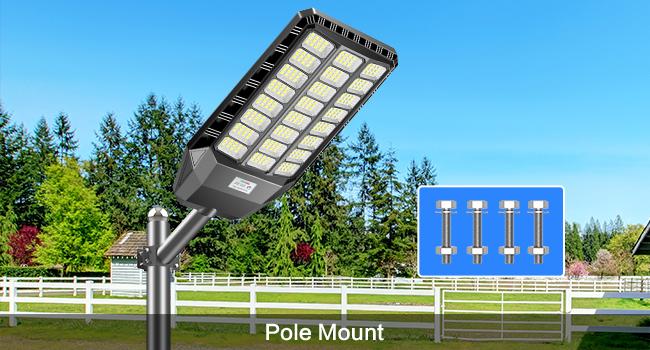

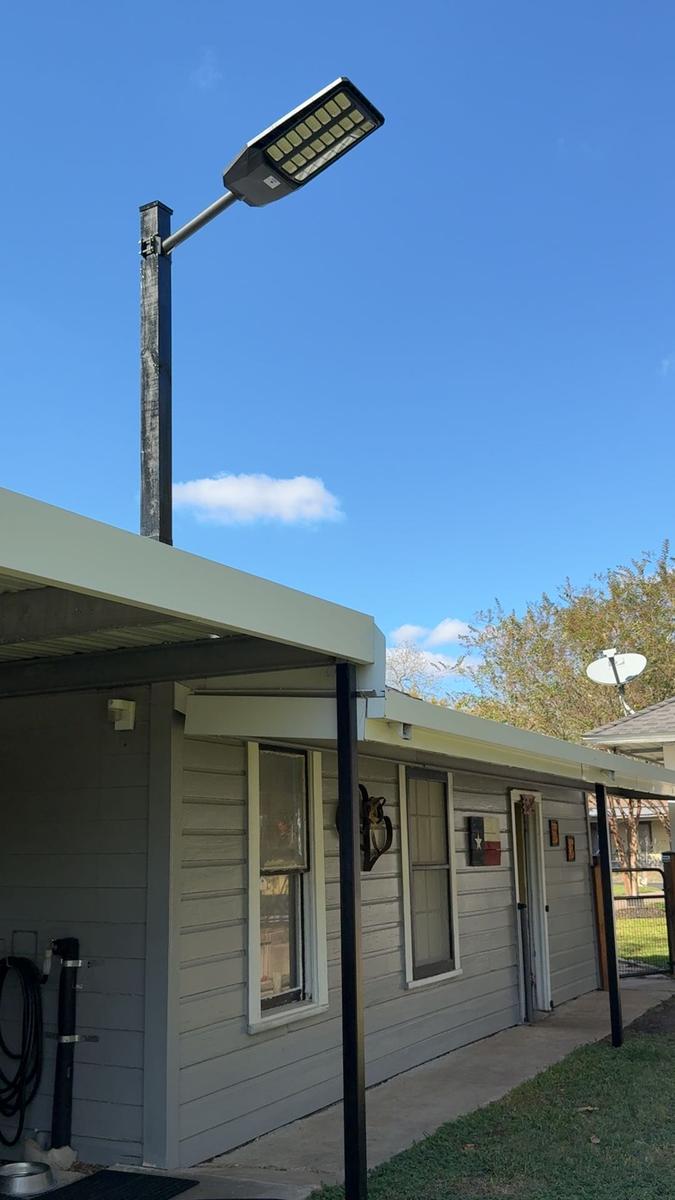

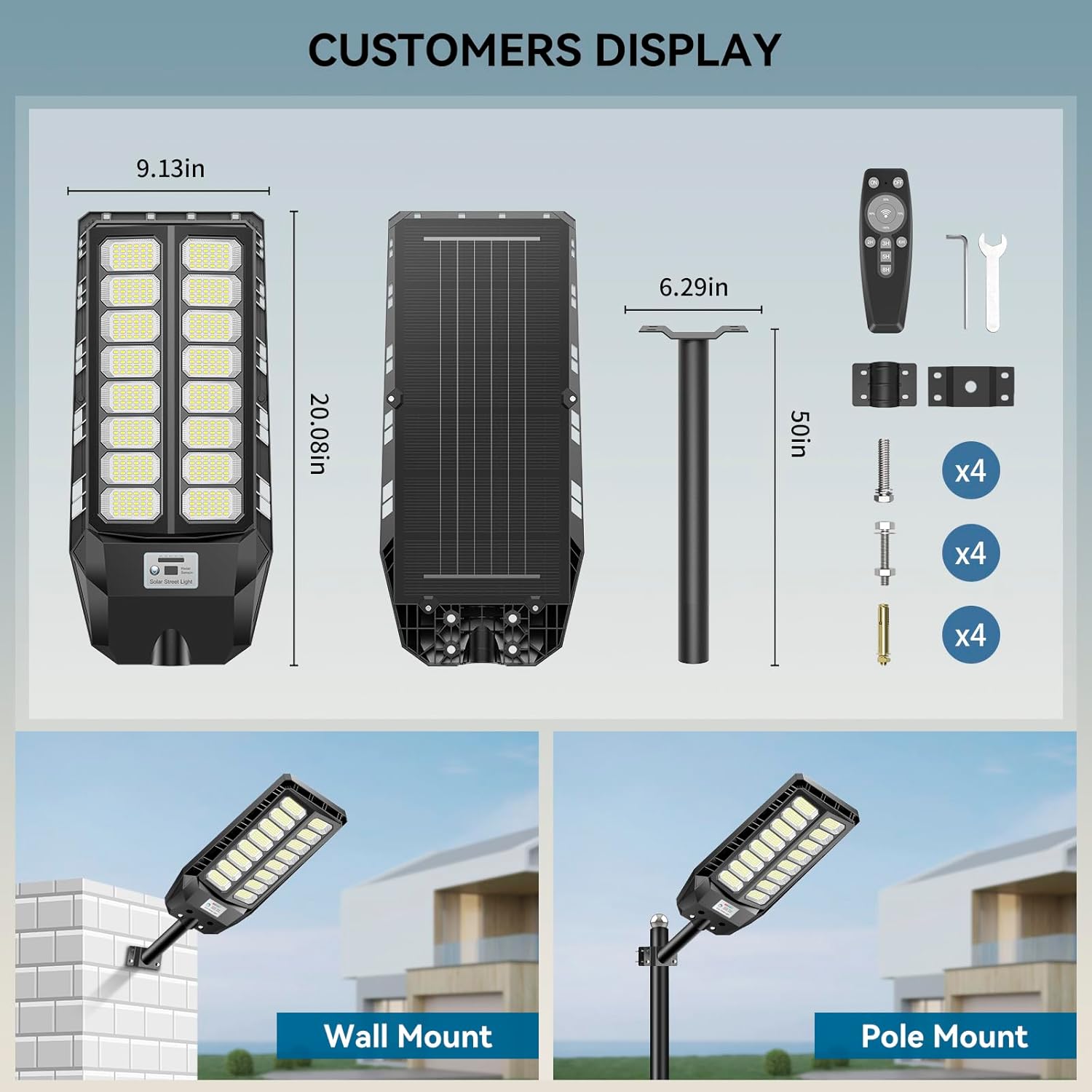

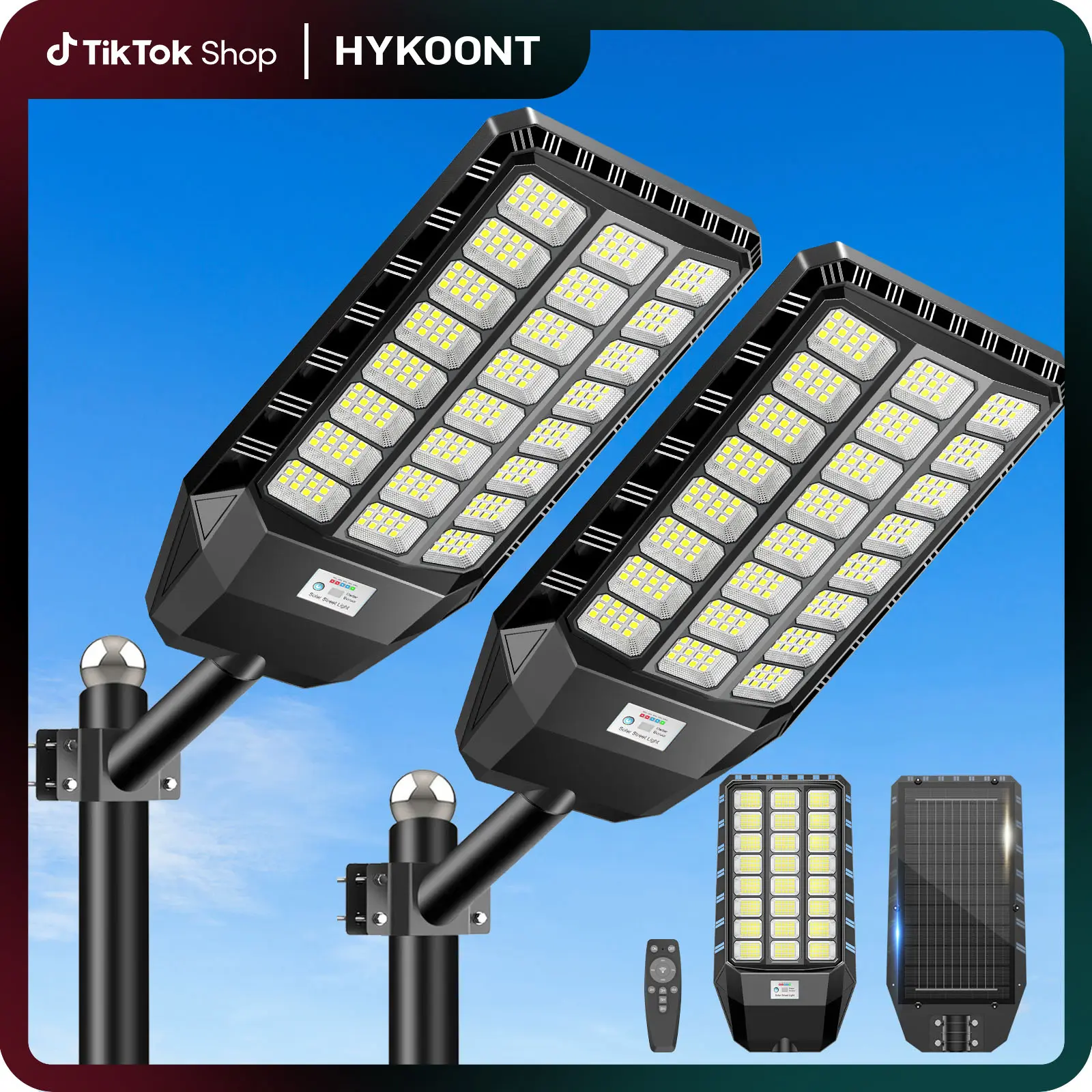

Pole Mounting Suggested Install Steps:
·Fix the mounting arm and pole. clamp on the street light pole and tighten the screw.
·Fix the lamp body on the mounting arm with a black clamp and tighten the screw.
·The installation completed.
The advised diameter of the pole is between 1.5in-4in. The advised installation height: 10ft-26ft

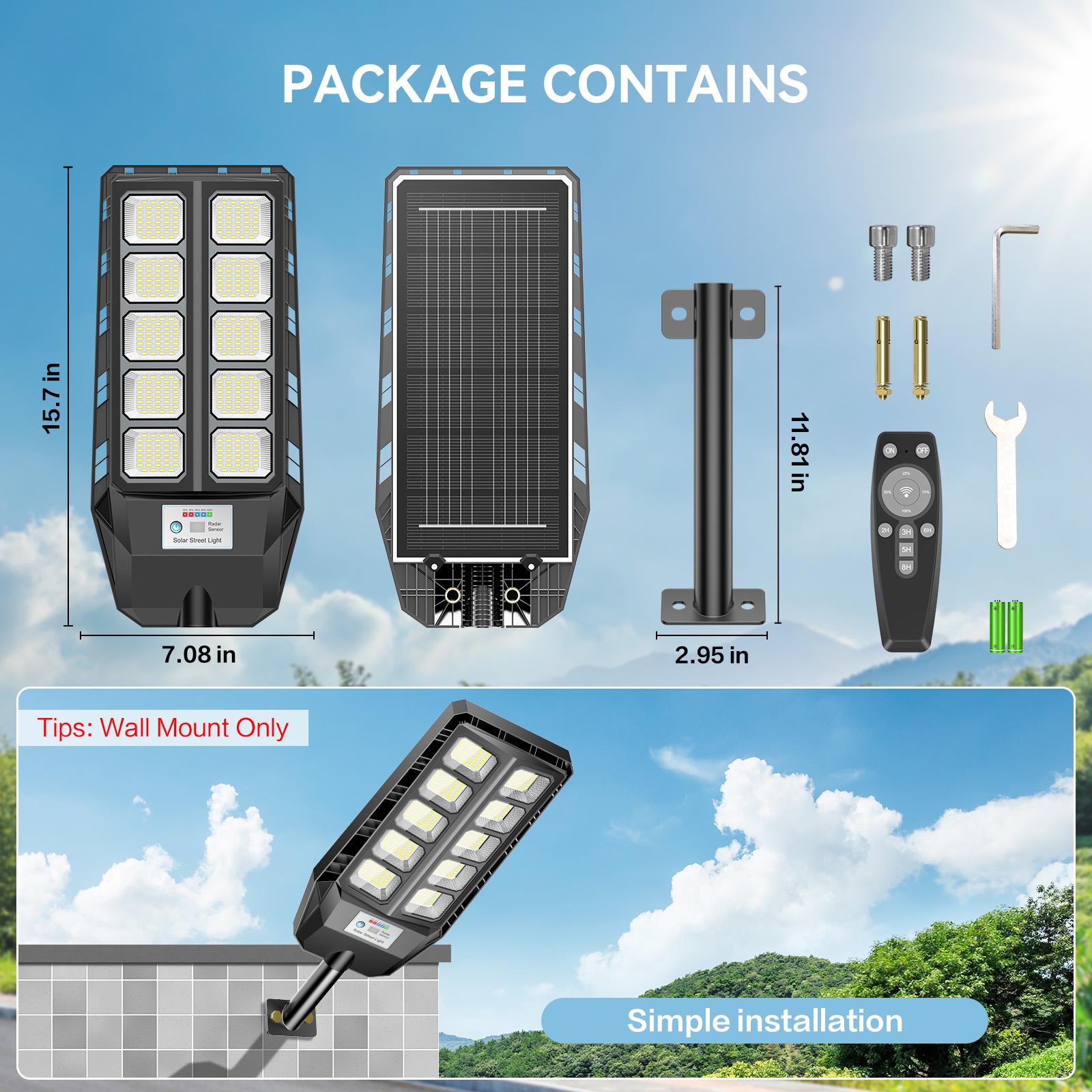

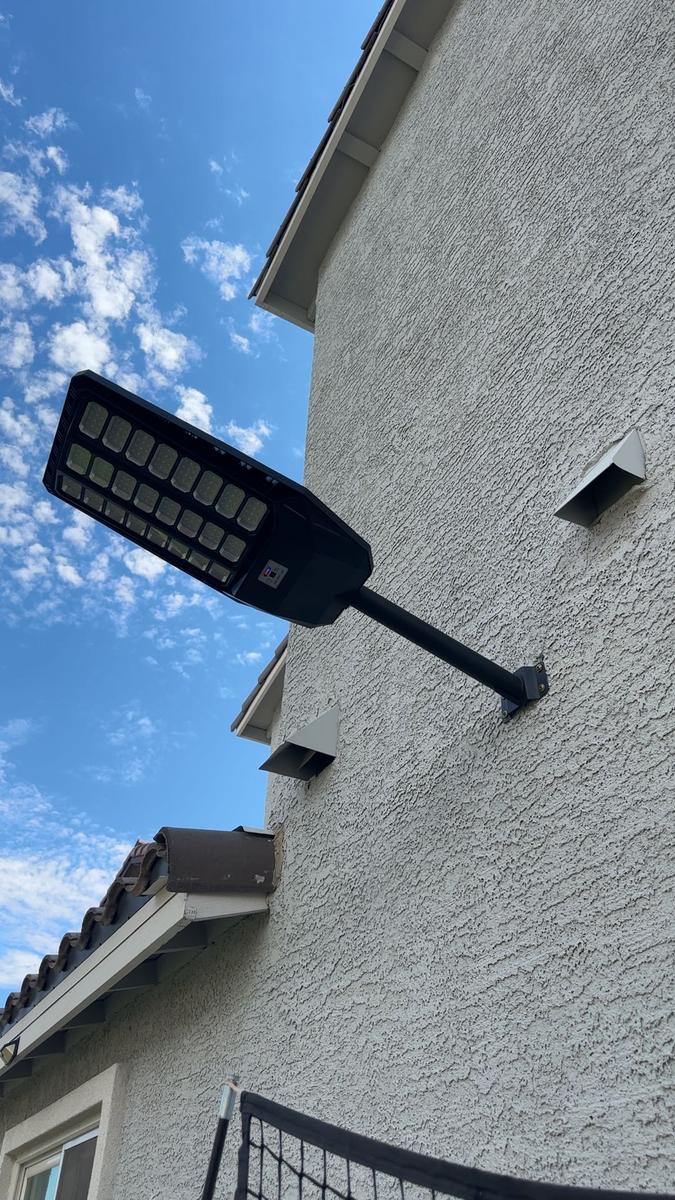

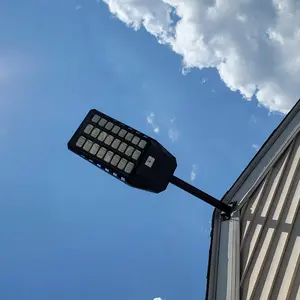

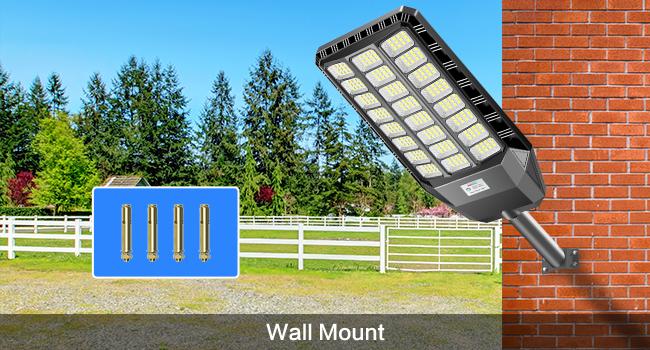

Wall Mounting Suggested Install Steps:
·Drill 4 holes according to the bracket arm hole location.
·Knock the screw into the hole and loosen the screw nut.
·Fix the bracket arm with screws and nuts, and install the light on the bracket.
The recommended installation height is 10ft-26ft. The illumination coverage is up to 4200sq.ft.

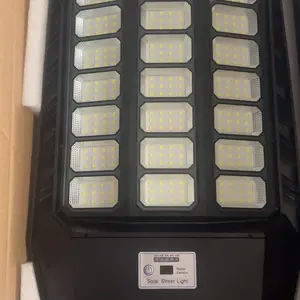

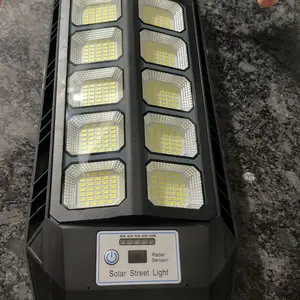

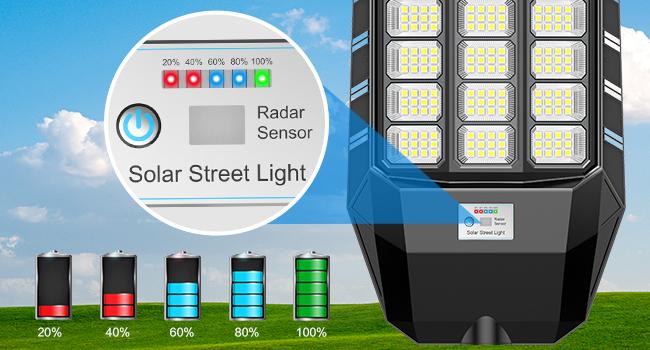

Solar Lamp Body Indicator Lights Details Reference
·The Red Light: remain battery capacity: 20%, 40%
·The Blue Light: remain battery capacity: 60%, 80%
·The Green Light: remain battery capacity: 100%

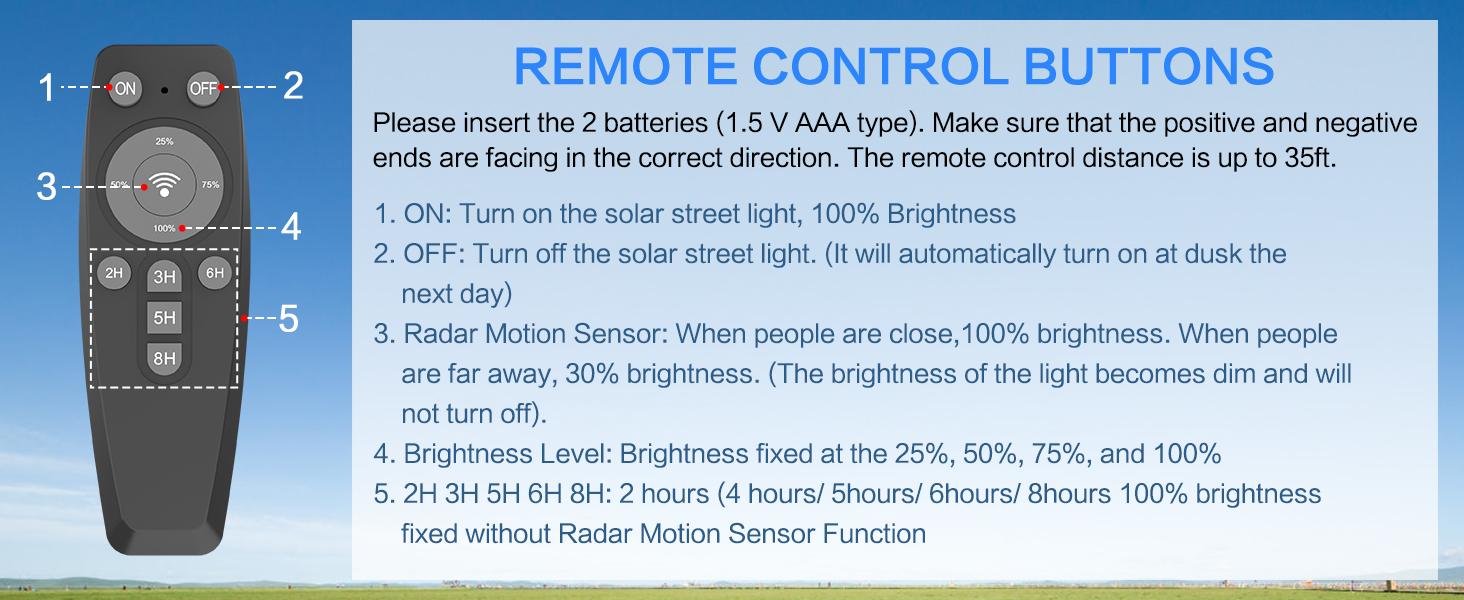

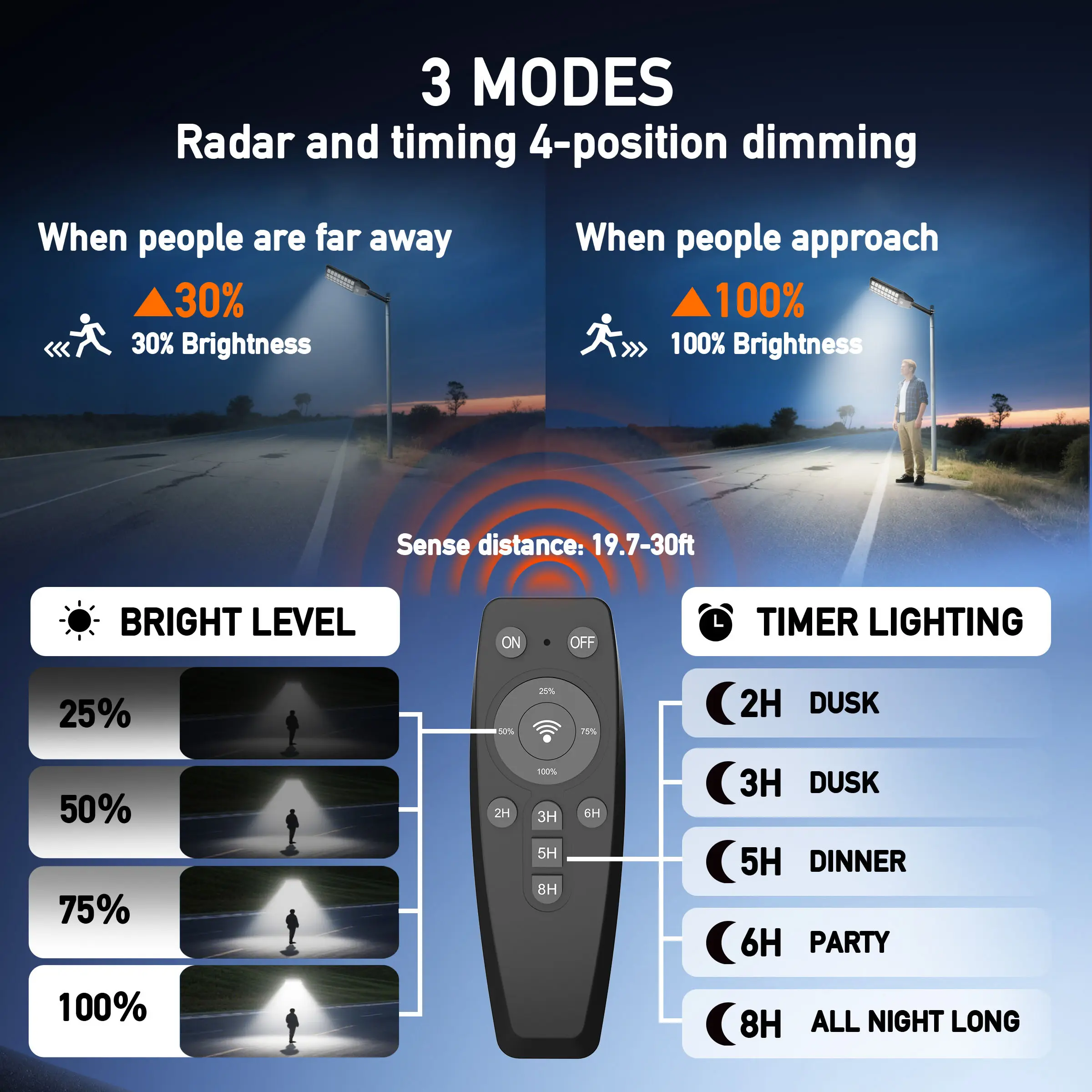

PLEASE PRESS & HOLD"ON" BUTTON ON THE LIGHT FIRST BEFORE USING THE REMOTE.
