**We are an authorized Hifonics dealer**The **Hifonics HFXR** active crossover that features 2 channel or 4 channel with 8.5 volt line driver. Select 2 or 4 channel inputs with input switch. A crossover is designed to allow your speakers, subs or tweeters only the range of frequencies that they were designed to reach.Other features include the direct sub in receivers with sub outs 0 – 12dB bass boost at bass remote, second order Butterworth front and rear channel high pass and level adjustments for front, rear and sub channels. Selectable for mono or stereo woofers 180° phase shift switch Maximum pre amp output: 8.5v RMS45Hz bass boost w/ quasi parametric EQ

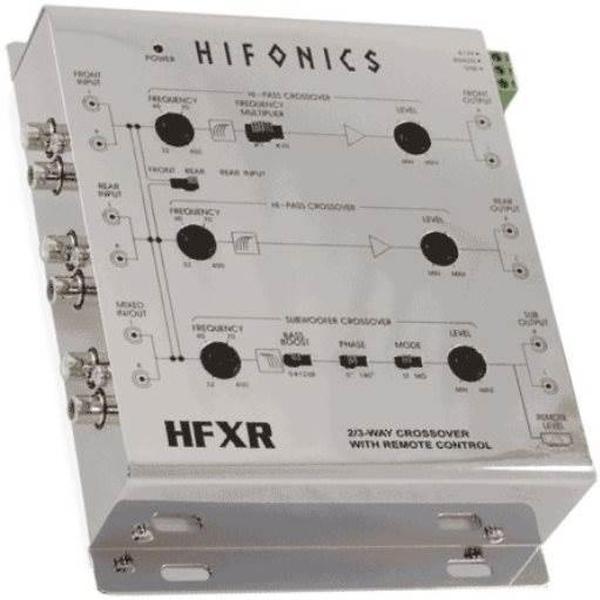

BRAND NEW HIFONICS Asymmetrical Active Crossover 2 or 4 Channel 2 or 3 Way

Mono/Stereo Control

Preamp Direct Sub In

2nd Order Butterworth Front & Rear Channel Hi Pass

45Hz Bass Boost with Quasi Parametric EQ

Level Adjustments for Front/Rear/Sub

Selectable 2/4 Channel Input Switch

Preamp Output: 8.5 Volts RMS

2 Channel Full Range RCA

Preamp Cascade Outputs

Phase Shift Control

0/12dB Bass Boost

Remote Bass Control Included!

Frequency response: 10 30,000Hz

Total harmonic distortion: > 0.01%

Signal to noise ratio: > 95 dB

Channel separation: > 60dB

Output gain ratio: 1:2

Dimensions: 6 3/4"D x 5 3/4"W x 1 3/4"H

Product Condition: BRAND NEW

Item Weight: 2.65 lbs.

Part Number: **HFXR**

1 Year Manufacturer Warranty
