Brand: FORENSICS DETECTORS Model: FD-600-HA-CO2 Data Logging: Click Here User Manual: Click Here Blog Article: Click Here

Features:

·🎆  MAP ANALYSIS: CO2 (NDIR sensor) headspace analysis. USA NIST traceable, calibrated in Los Angeles.

·🌈  COLOR DISPLAY: Color screen and graph functions. Computer data logging.

·📲  BATTERY: USB recharging for the light handheld instrument operation. Arrives with syringes, filters, Luer lock connectors, and 100 septa.

·💪  STRONG: Robust design constructed with high-strength ABS and anti-slip grip rubber. Water-resistant, dust-proof, and explosion-proof.

·🕵️  TRUSTWORTHY: ** 1-year limited warranty ** Arrives with calibration and QA certificates ** Product tested and verified in the USA ** 100% quality guaranteed **

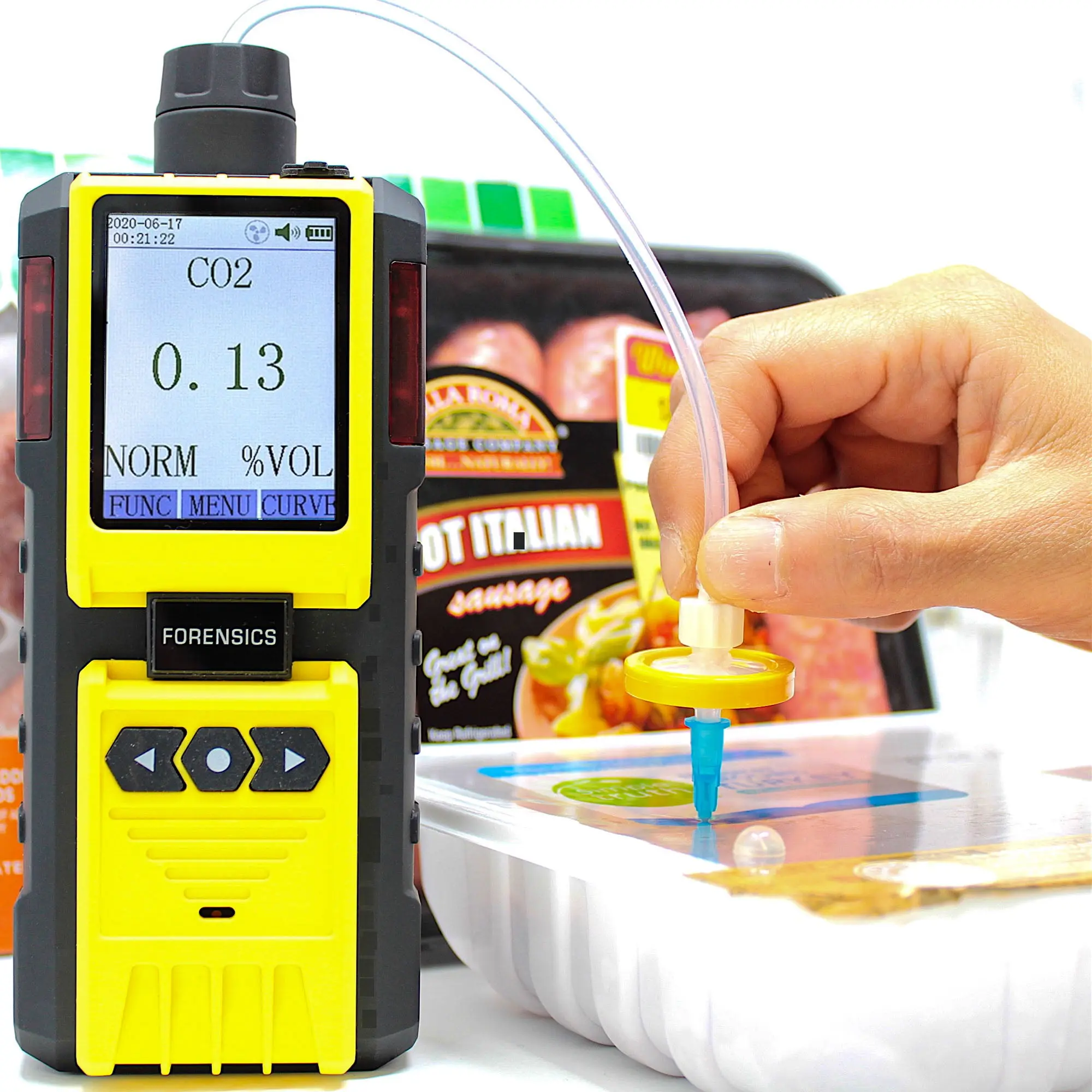

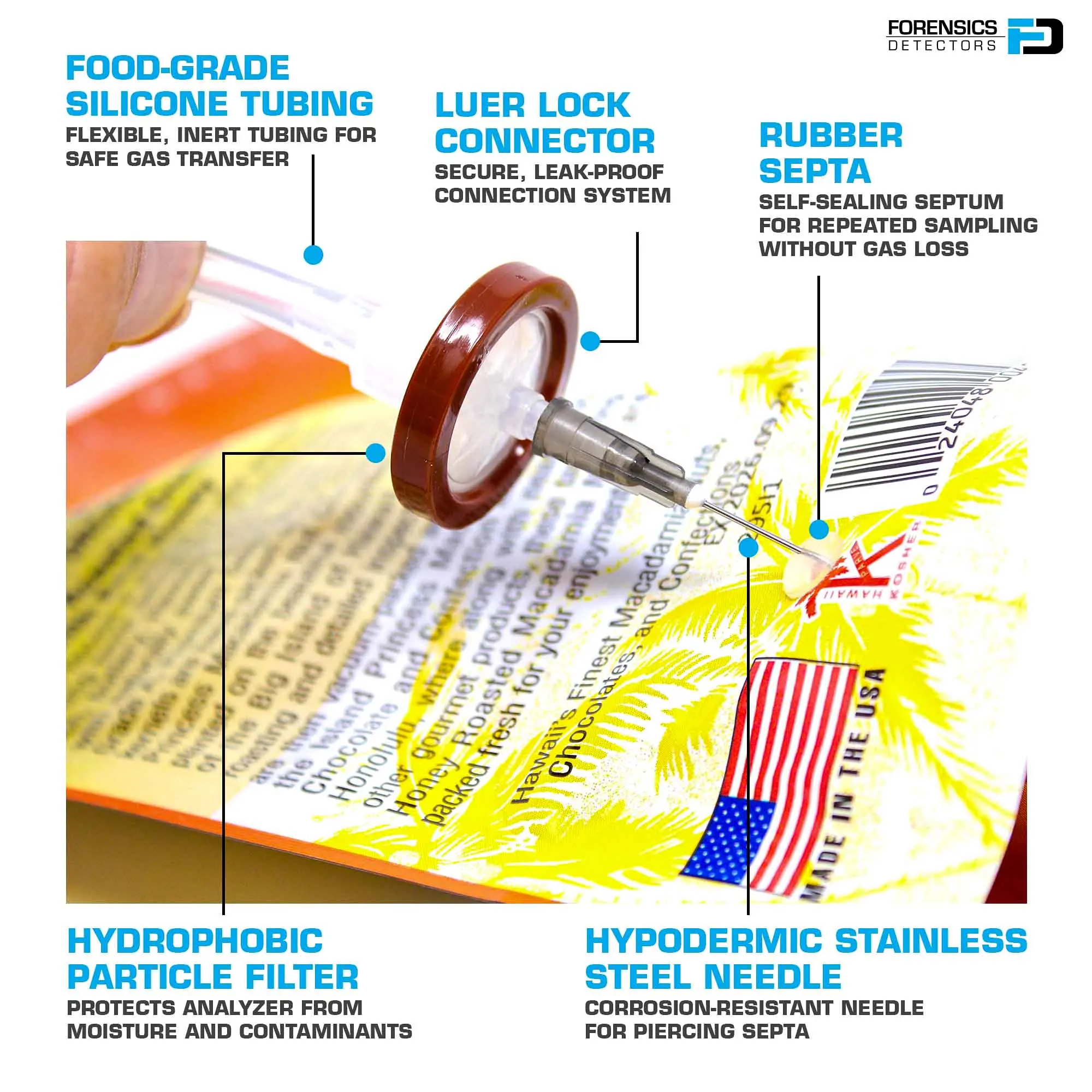

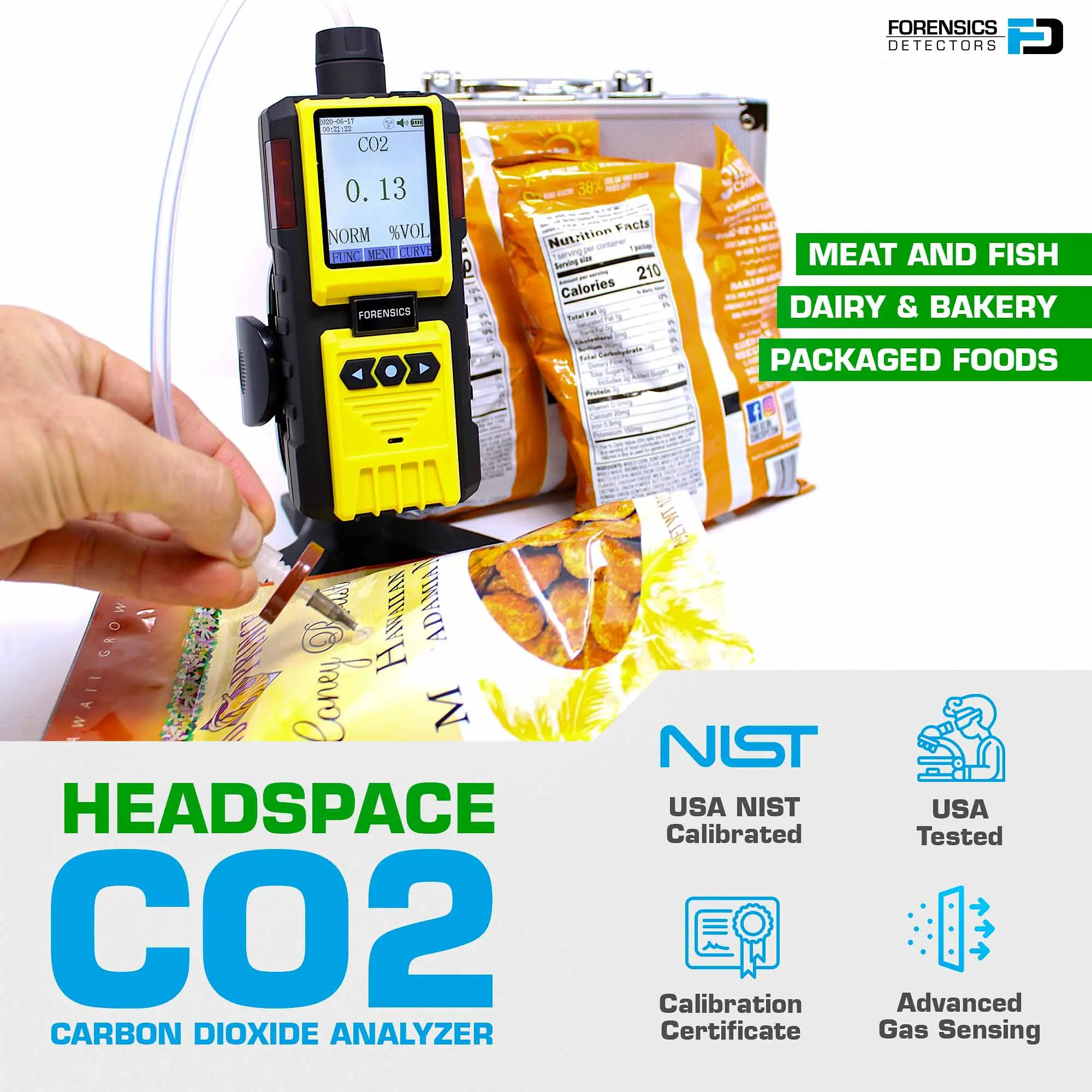

Details: Our carbon dioxide (CO2) headspace analyzer is a perfect solution to your packaging analysis problems. The headspace analyzer investigates your modified atmosphere packaged (MAP) products to measure carbon dioxide-modified levels. The FORENSICS CO2 analyzer is an excellent option with intuitive usage. Based on our industrial analyzer platform, this analyzer includes a built-in pump that is easy to use and very portable. Simply insert the needle tip of the probe into the food pack through a septa seal pad. The septa device provides a tight seal and prevents air from leaking into the package through the puncture hole. With full user control, the built-in pump draws in the small or large quantity of sample air required for analysis. The pump can be turned off at any time to sample the right amount of air, as packaging headspace varies from product to product. Comes with a color screen, large digits, and on-screen real-time graphing. The detector is constructed with an advanced NDIR CO2 sensor. The internal 32-bit microprocessor allows for user calibration, ON/OFF flow, and test control. Typical testing takes less than 30 seconds.

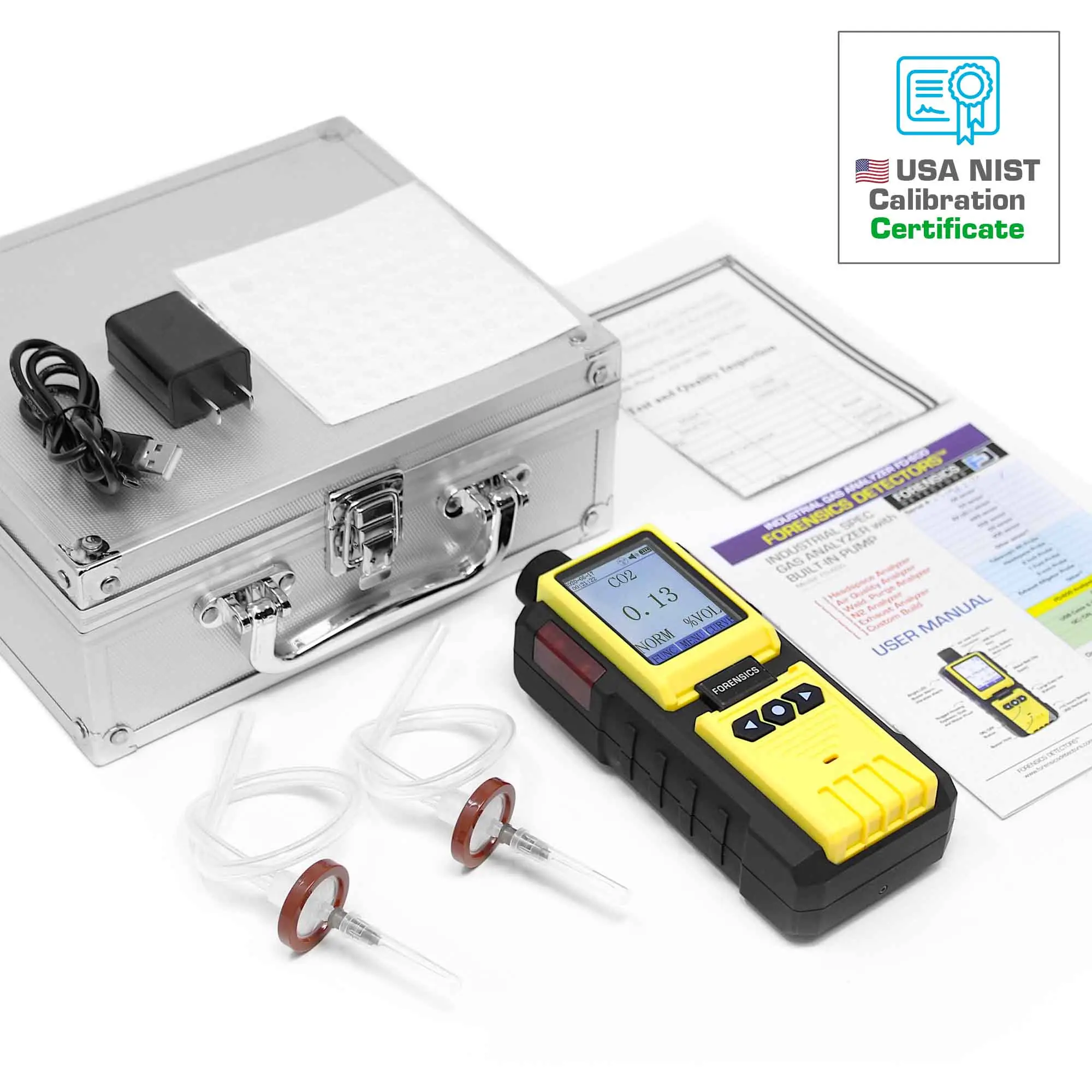

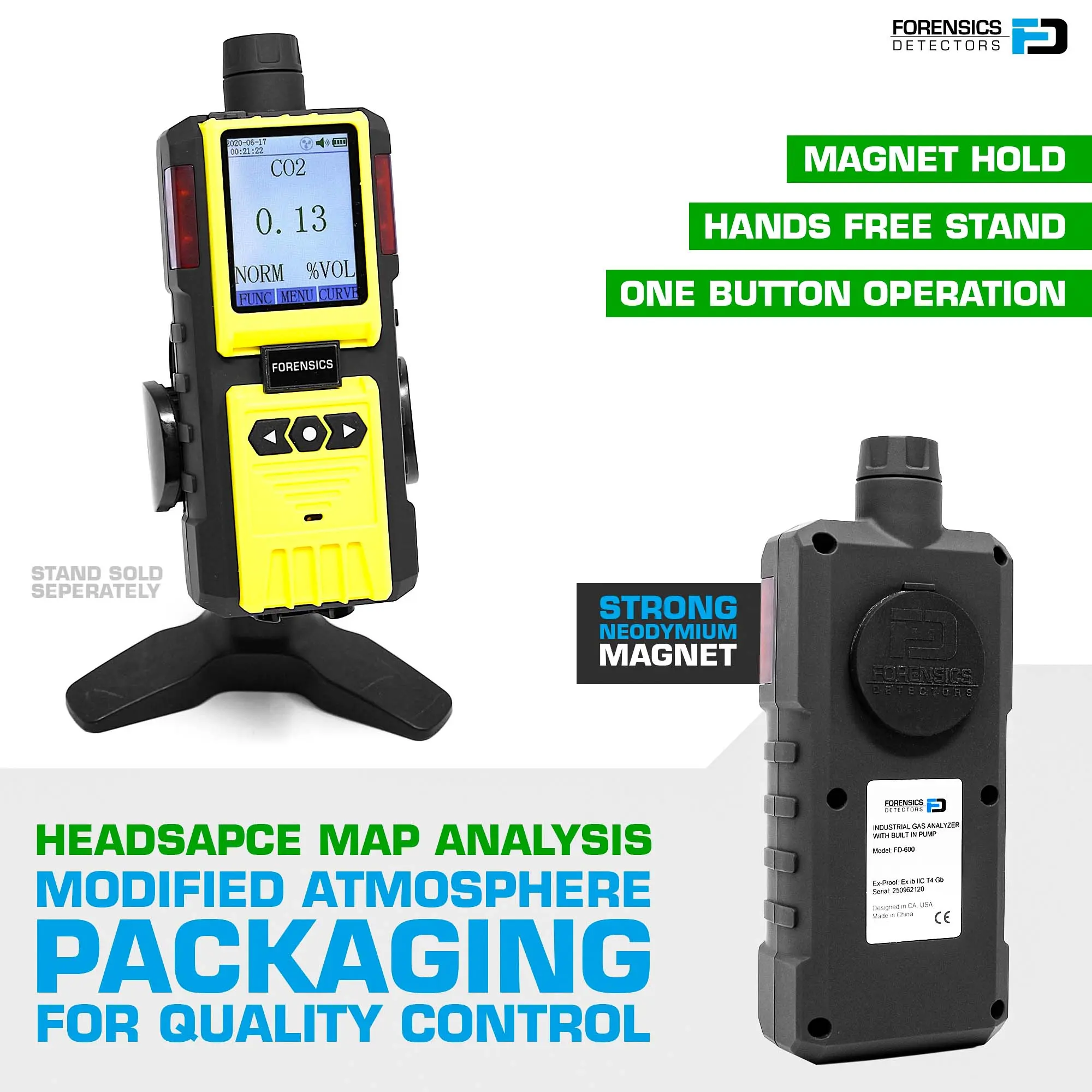

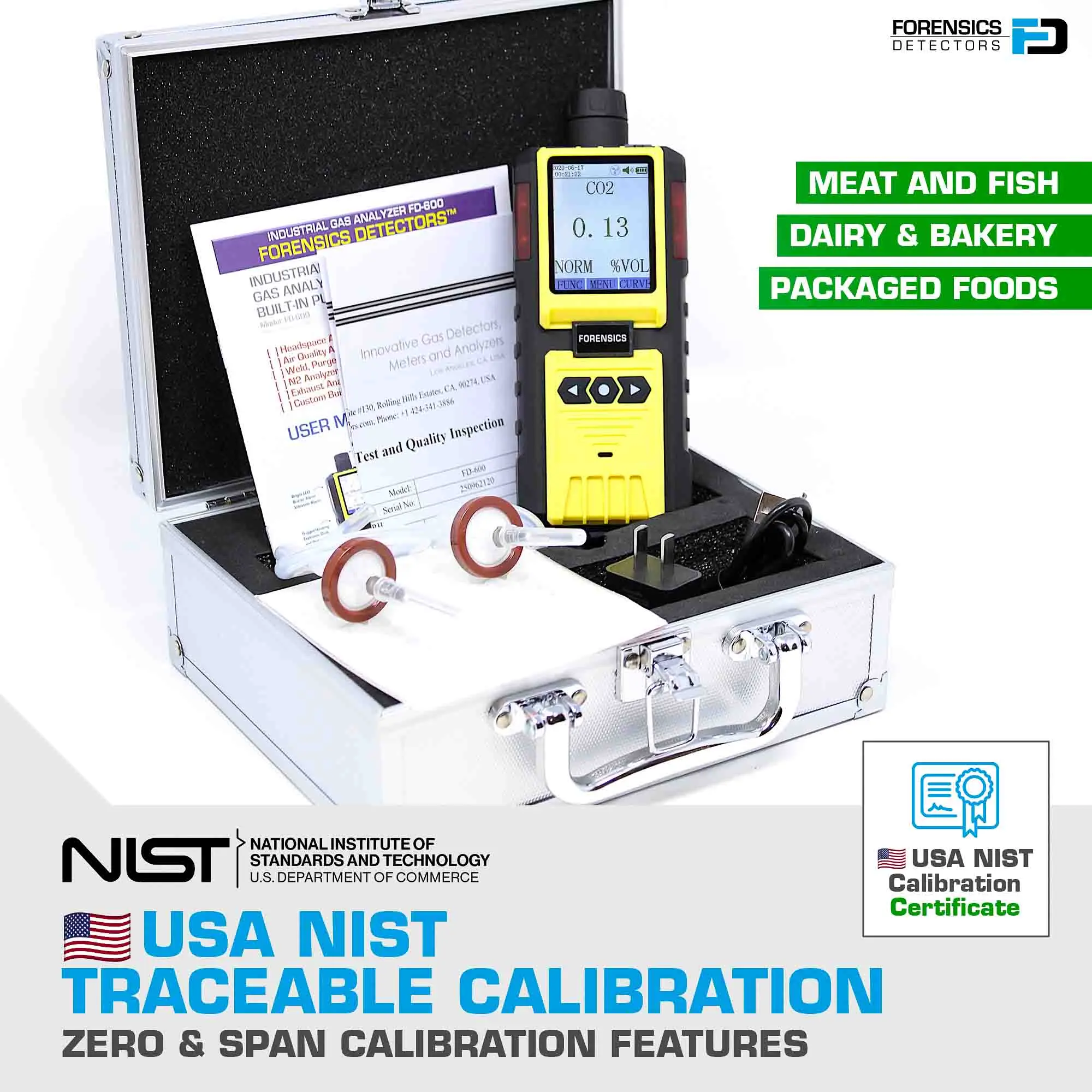

Included: CO2 analyzer and magnet back, English user manual, USA NIST calibration certificate, USB charging cable, charger, 2 x needles, 2 x filters, 100 x adhesive septum, and tubing with Luer lock connectors.

Calibration Options:   Calibration Service by Forensics Detectors Calibration Tutorial (DIY)

Calibration Kit (DIY sold separately):   Calibration T-piece & Tubing Calibration Gas (CO2 balanced in N2) Calibration Gas Regulator (C10) Bump Gas (CO2 balanced in N2) Accessories and Parts (sold separately):   Gas Detector Waterproof Case Gas Detector Stand Headspace Kit, Needles, Filters, Tubing, Septa

Specifications

Carbon Dioxide (CO2) Detection: 0 - 100% with 0.01% resolution Error: ≤ ± 3% F.S. Response Time: Store / Operating Temp: 0°F - 122°F Store / Operating Humidity:  Battery: DC 3.7V Li-on battery, 3200 mAh Gas Sensor Type: NDIR Gas Sensor  Gas Sensor Life: > 5 years Calibration Location: Los Angeles, California, USA Calibration Standard: USA NIST Traceable Gas Source Recommended Calibration Period: 12 months Explosion-Proof Grade: ATEX certified Ex ib IIC T4 Gb Weight: 14 oz Dimensions: 5.1 in × 2.6 in x 1.2 in Charge Time: 3 hours Operating Time: > 10 hours Pump Rate: 0.1 LPM - 0.3 LPM (100 - 300 cc/min) Alarm: LED Alarm
