*6ft XLR cable not included*

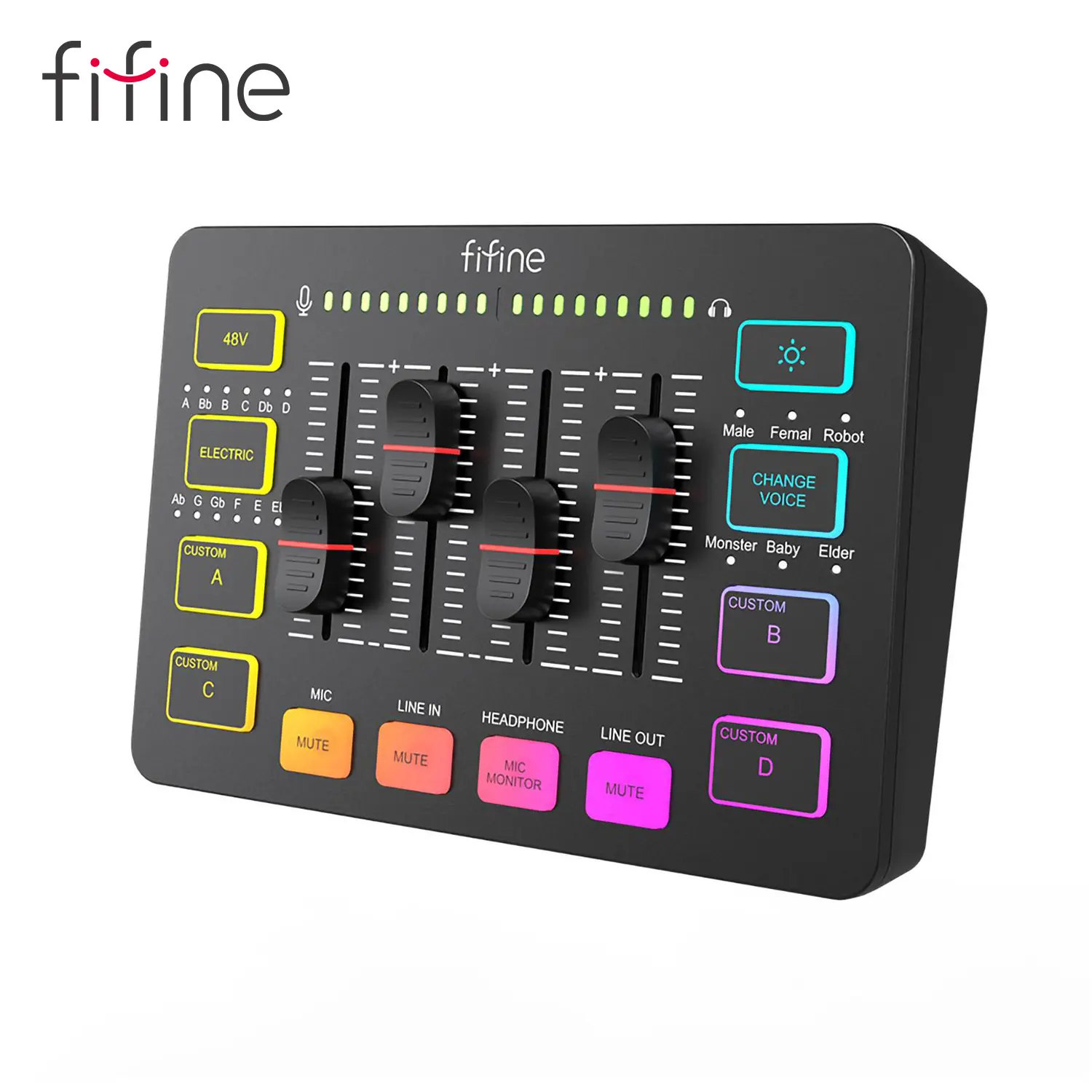

Main Features:

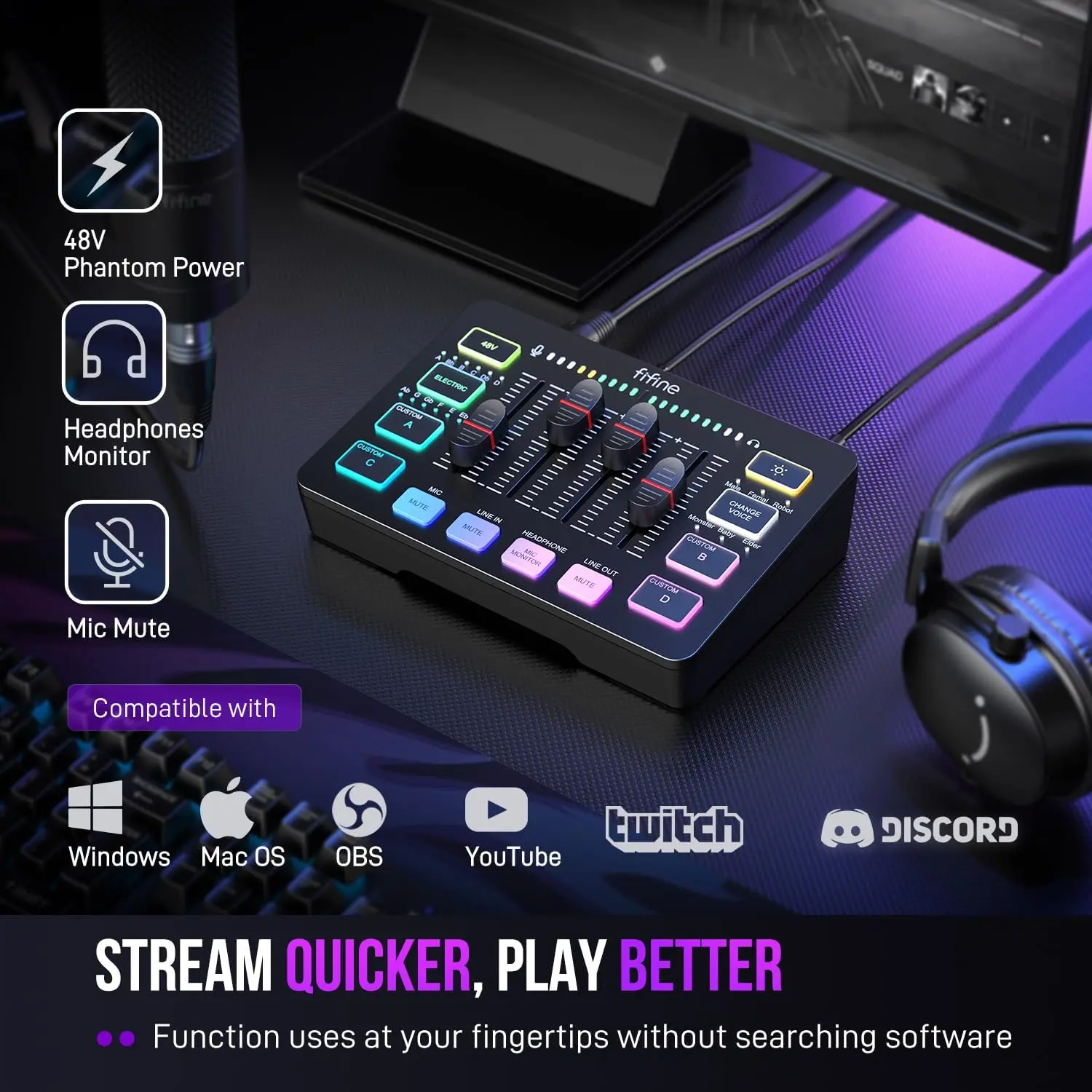

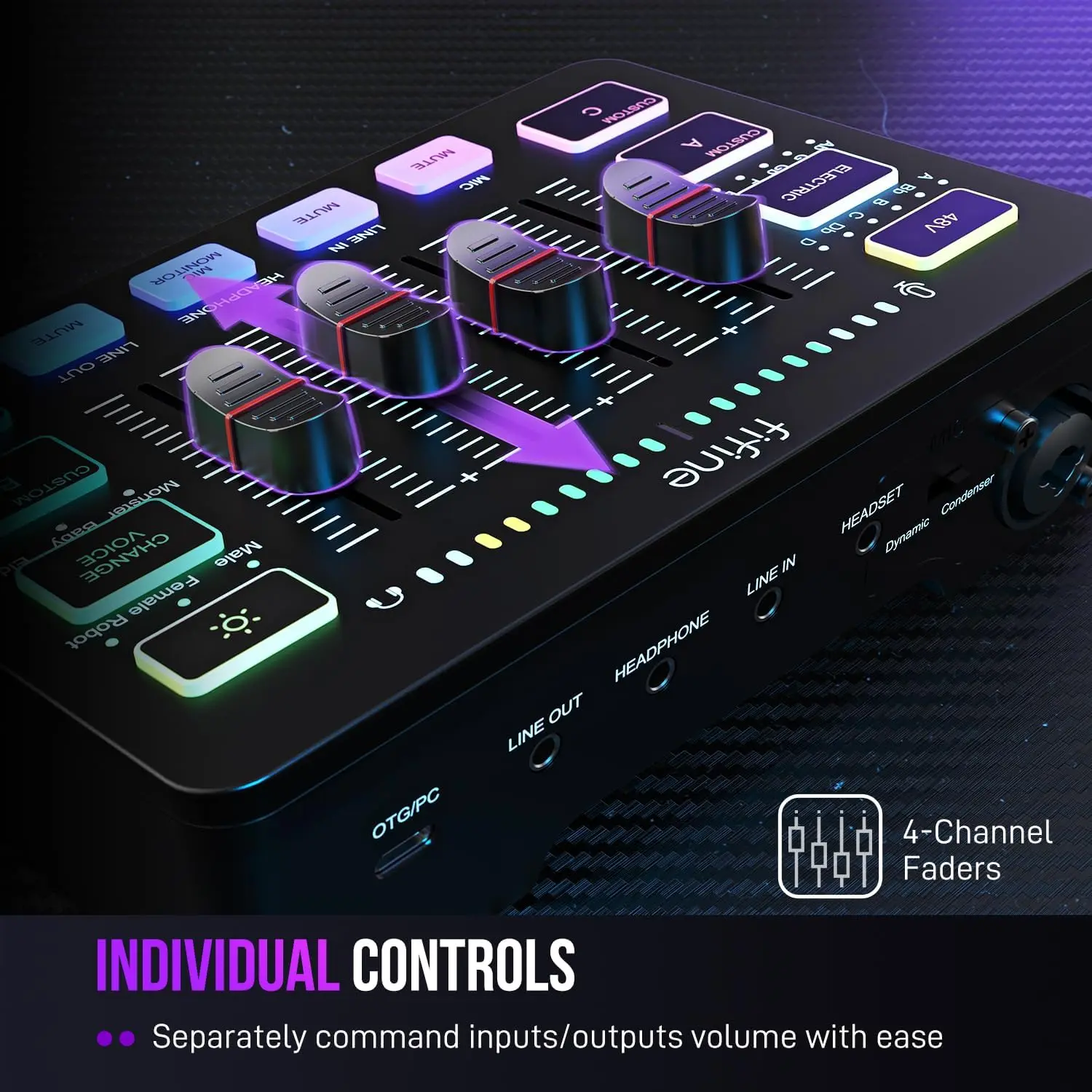

·4-Channel Control – Individual control for multiple devices with smooth volume fader.

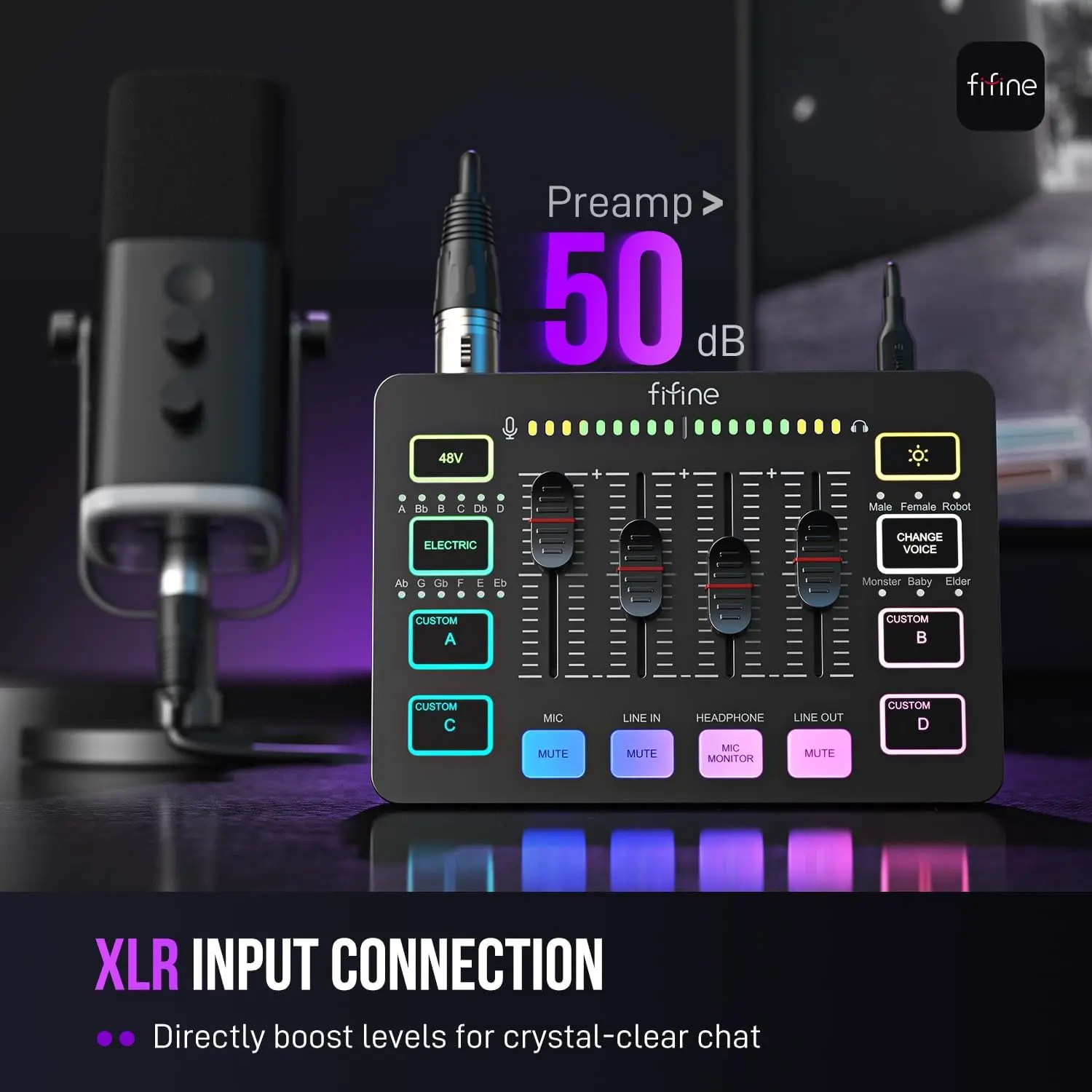

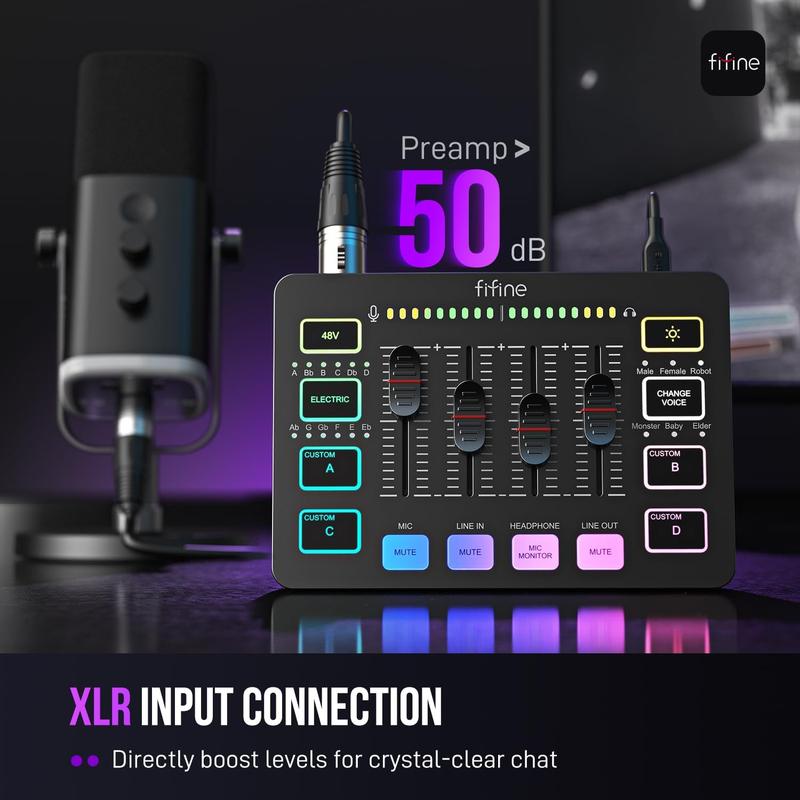

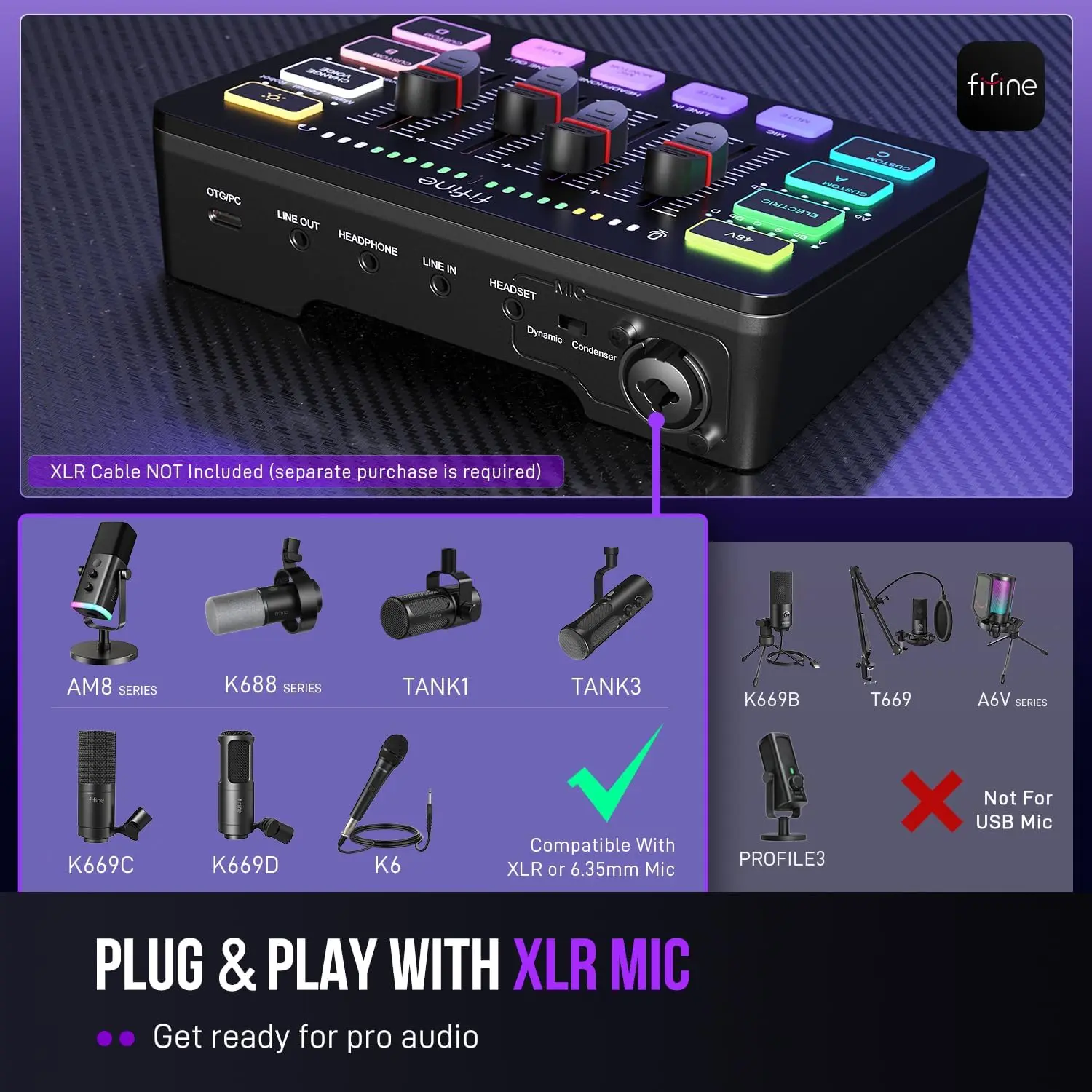

·XLR Mic Input – Supports XLR microphones with 48V phantom power.
·Essential Functions – Mute button, volume adjustment, and real-time monitoring.

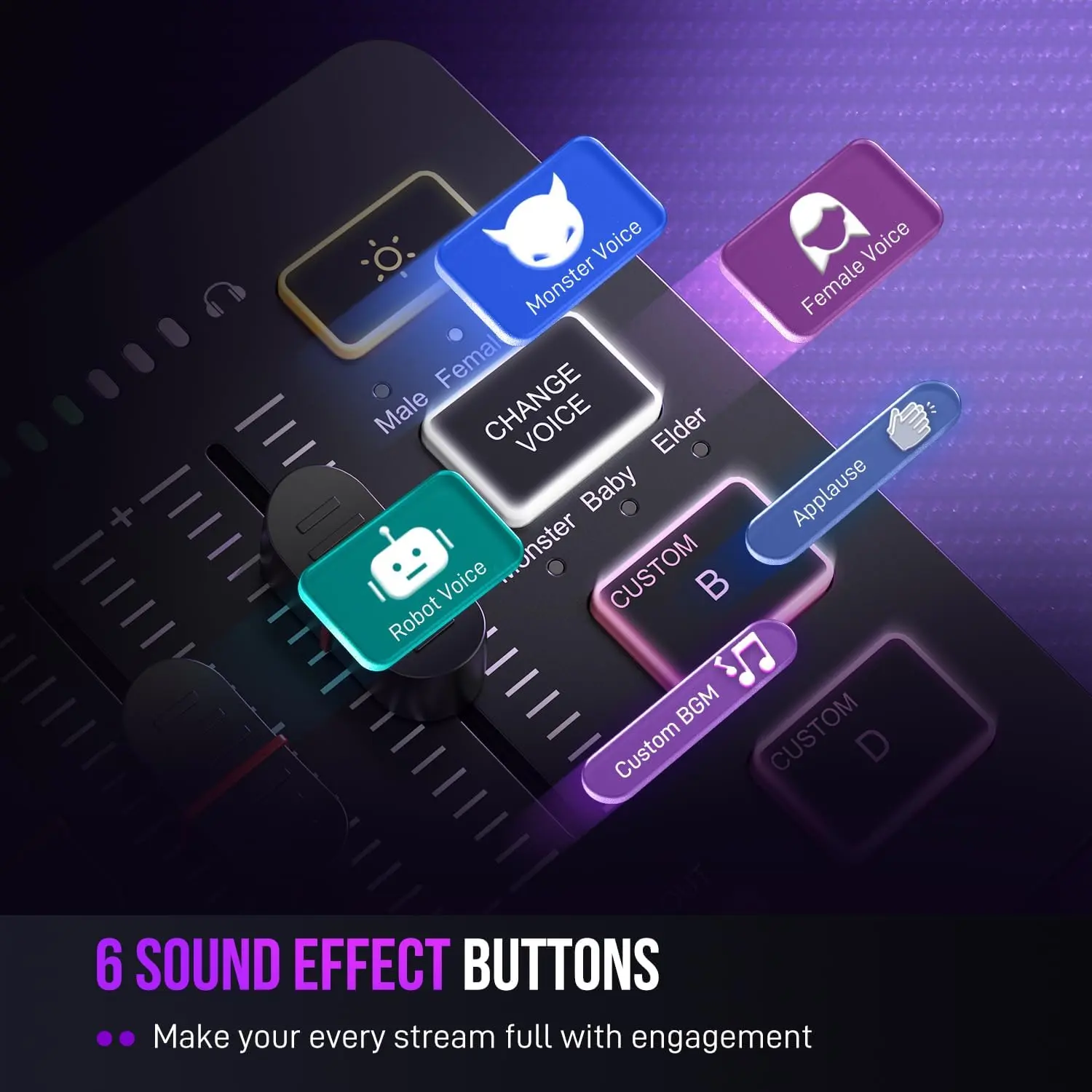

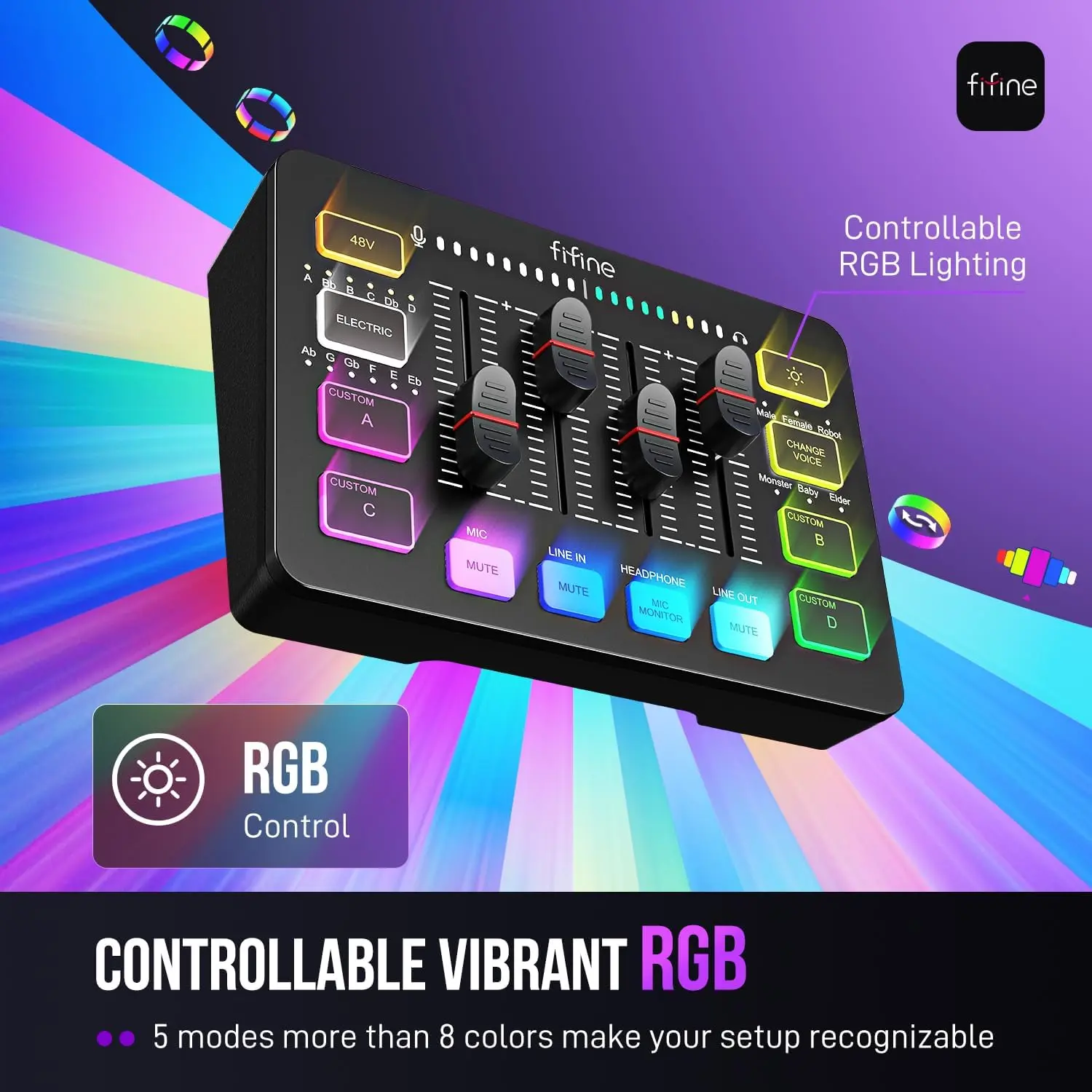

·Entertainment Features – RGB lighting, voice-changing modes, and customizable sound buttons for interactive streaming.
·Flexible Setup – Multiple audio ports for dual PC setups and various audio devices.
Tips:
·USB-C to USB-A/C cable used to connect mixer and computer via Type-C interface on the mixer. 3.5mm to 3.5mm audio cable used to connect mixer and 3.5mm audio device (like phone or tablet) via LINE IN on the mixer.
·XLR cable NOT included.

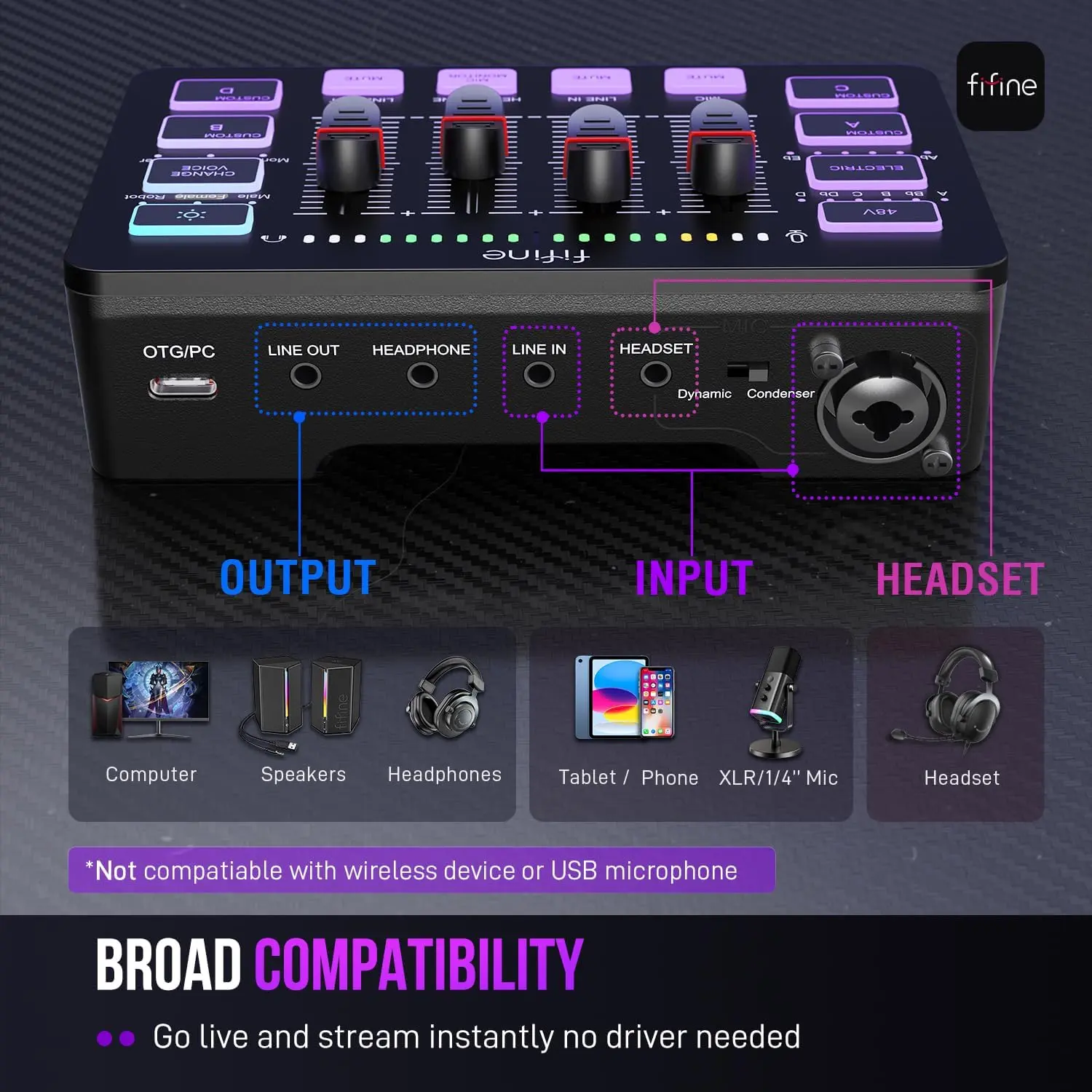

·Input Interface: Mic, LINE IN and Headset.
·Output Interface: Headphones, LINE OUT and Headset.

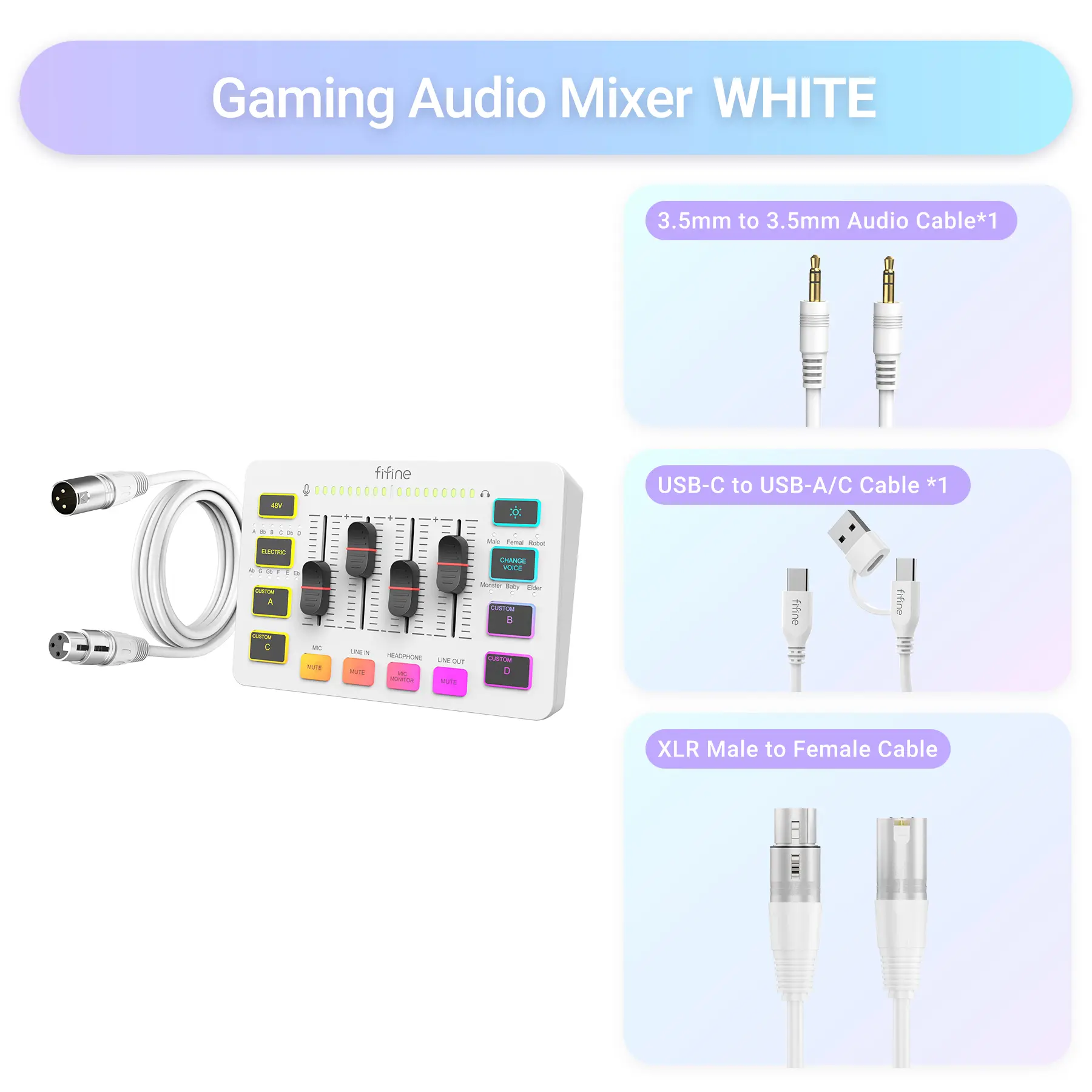

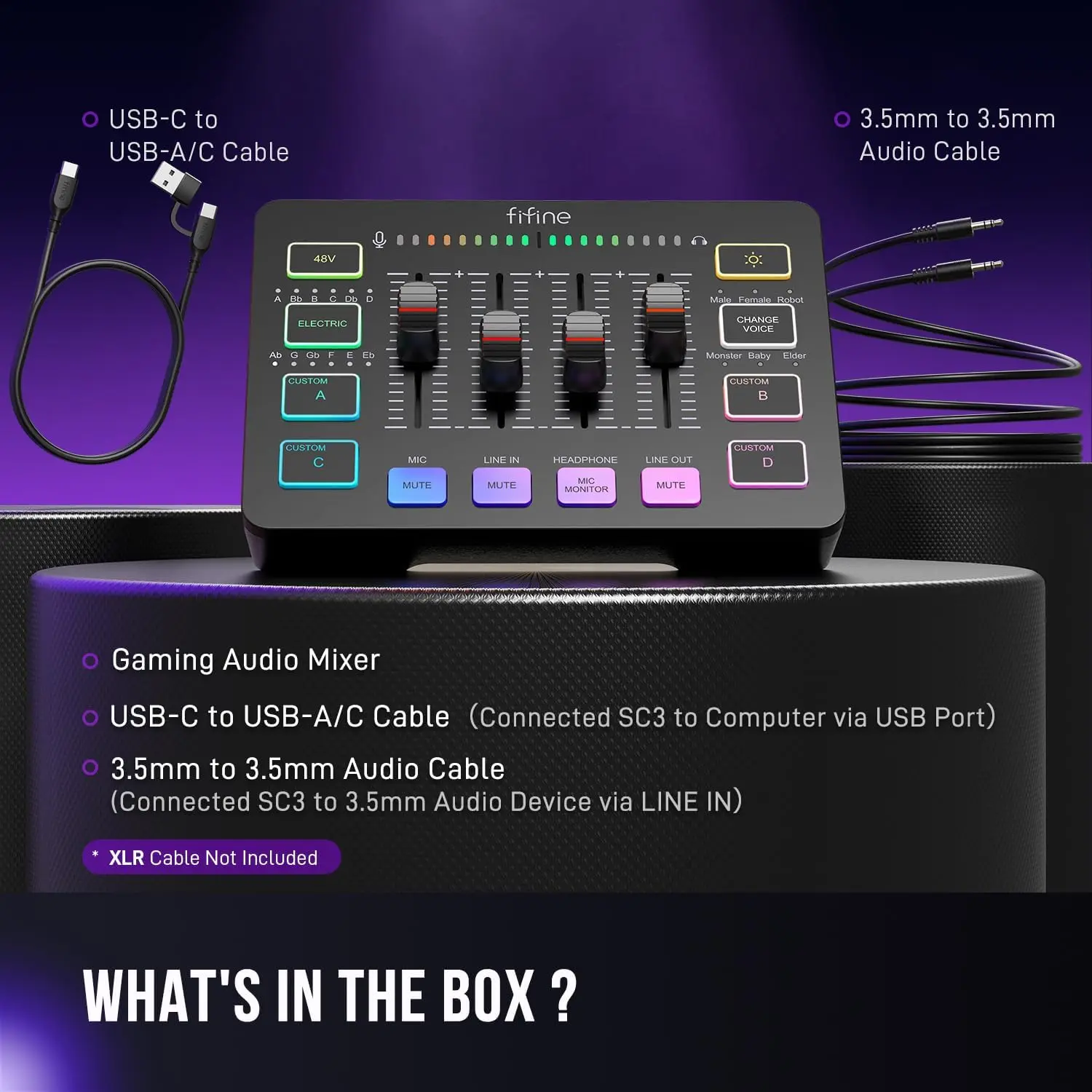

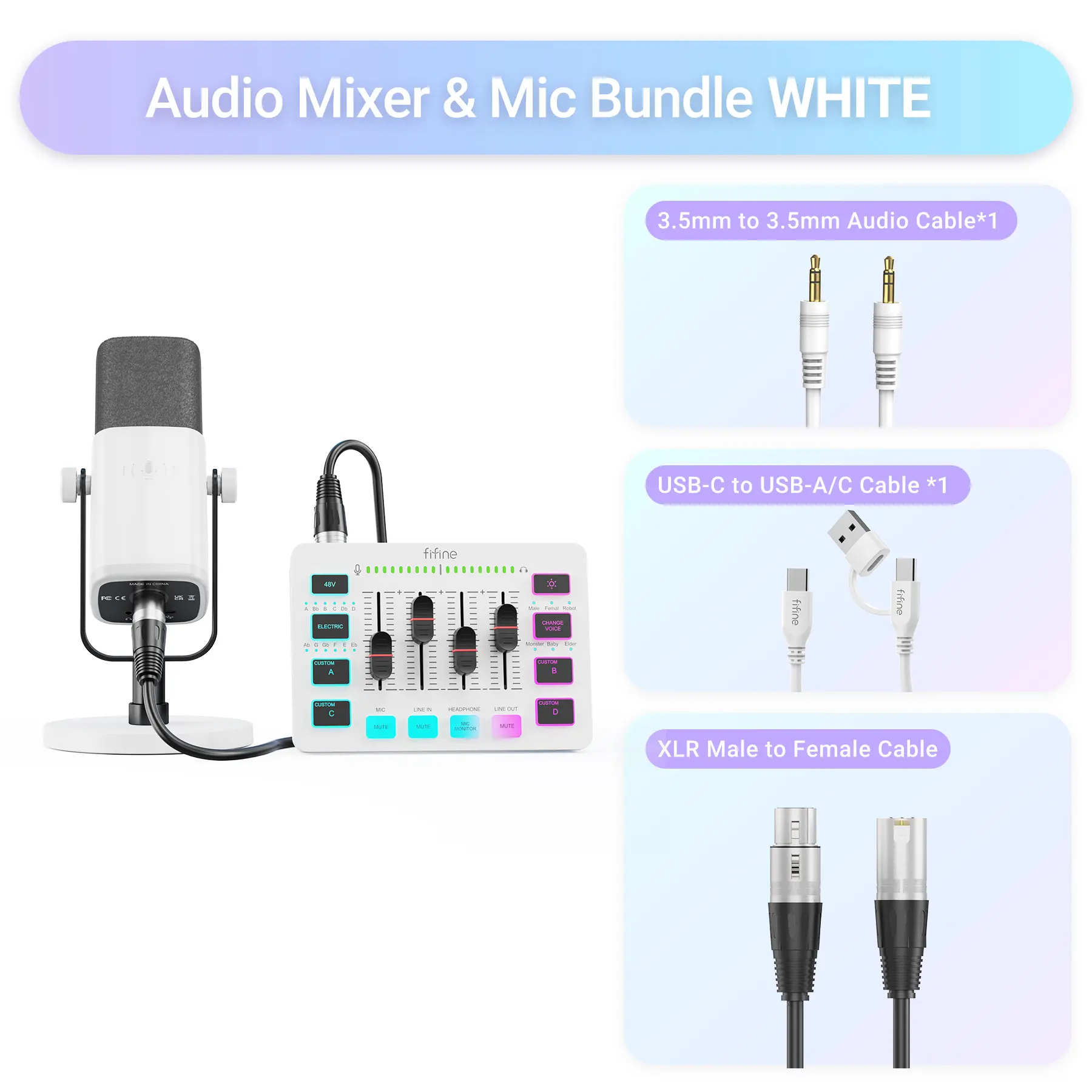

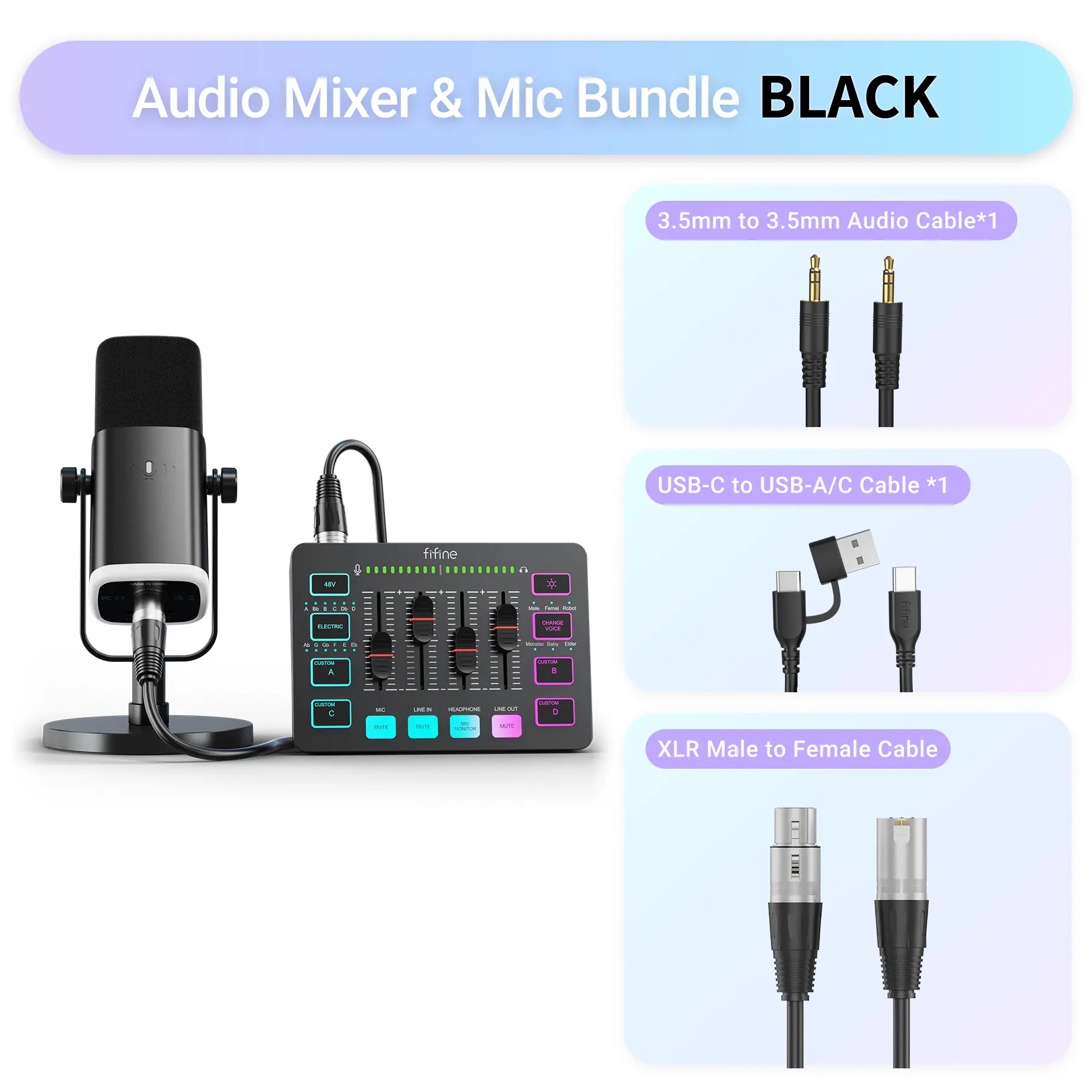

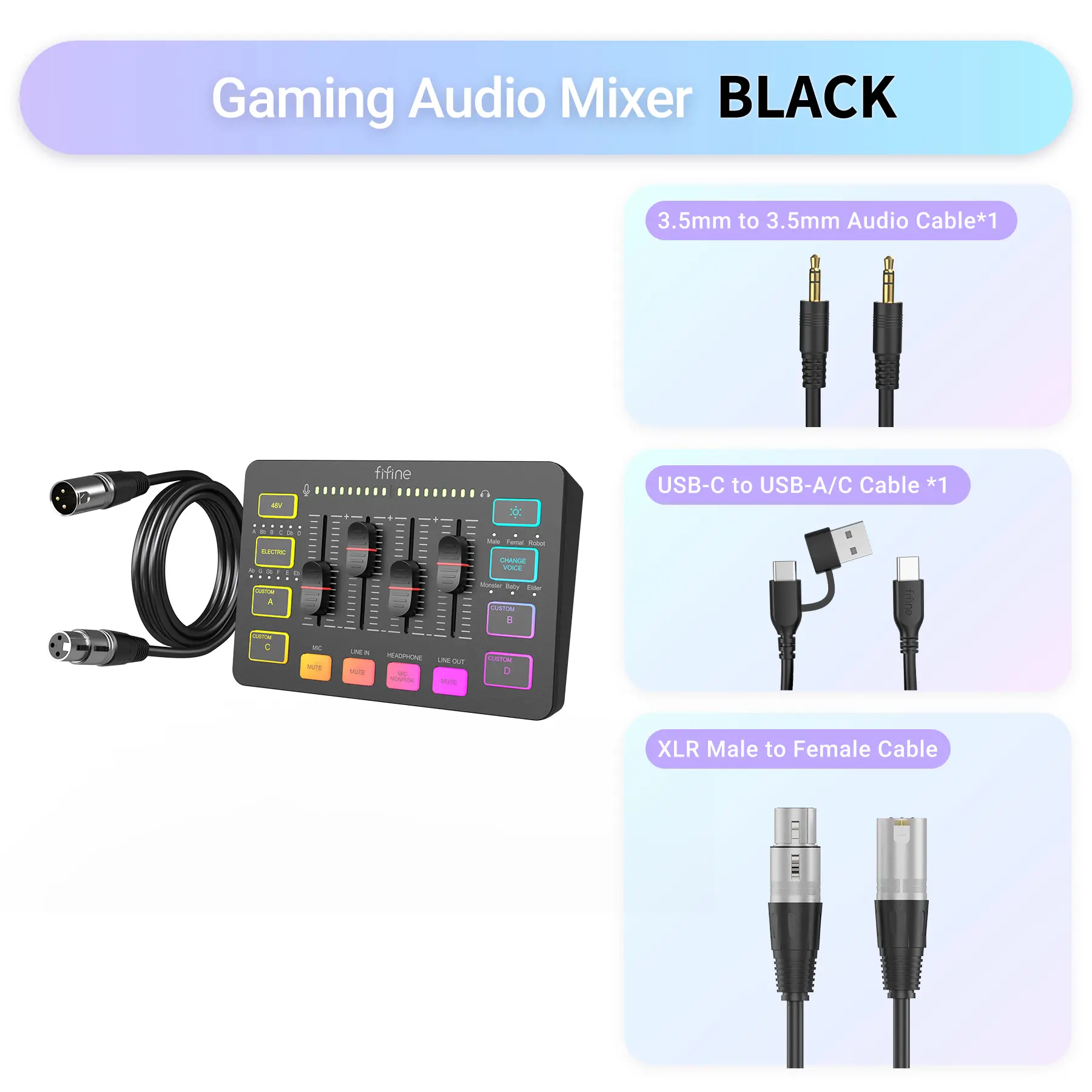

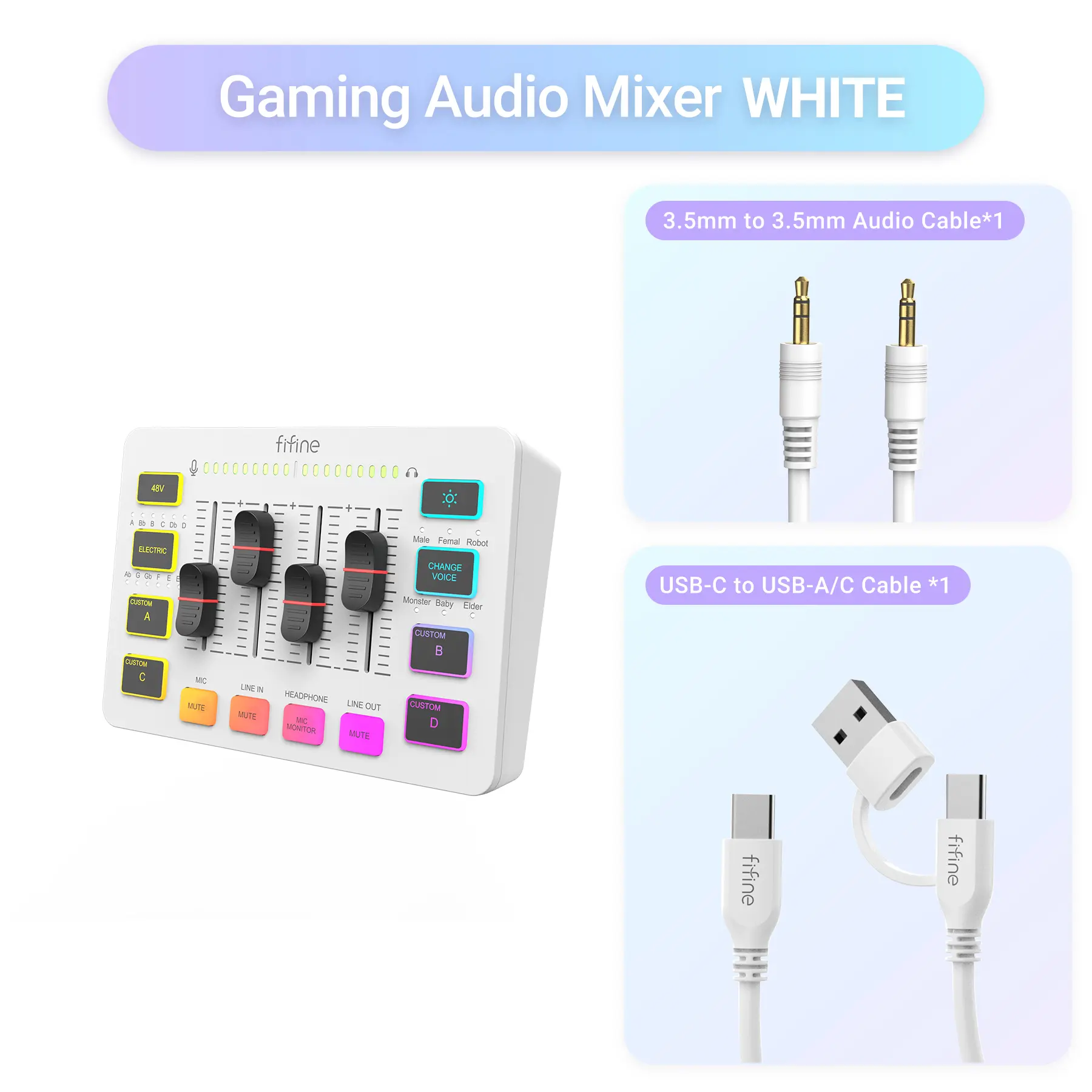

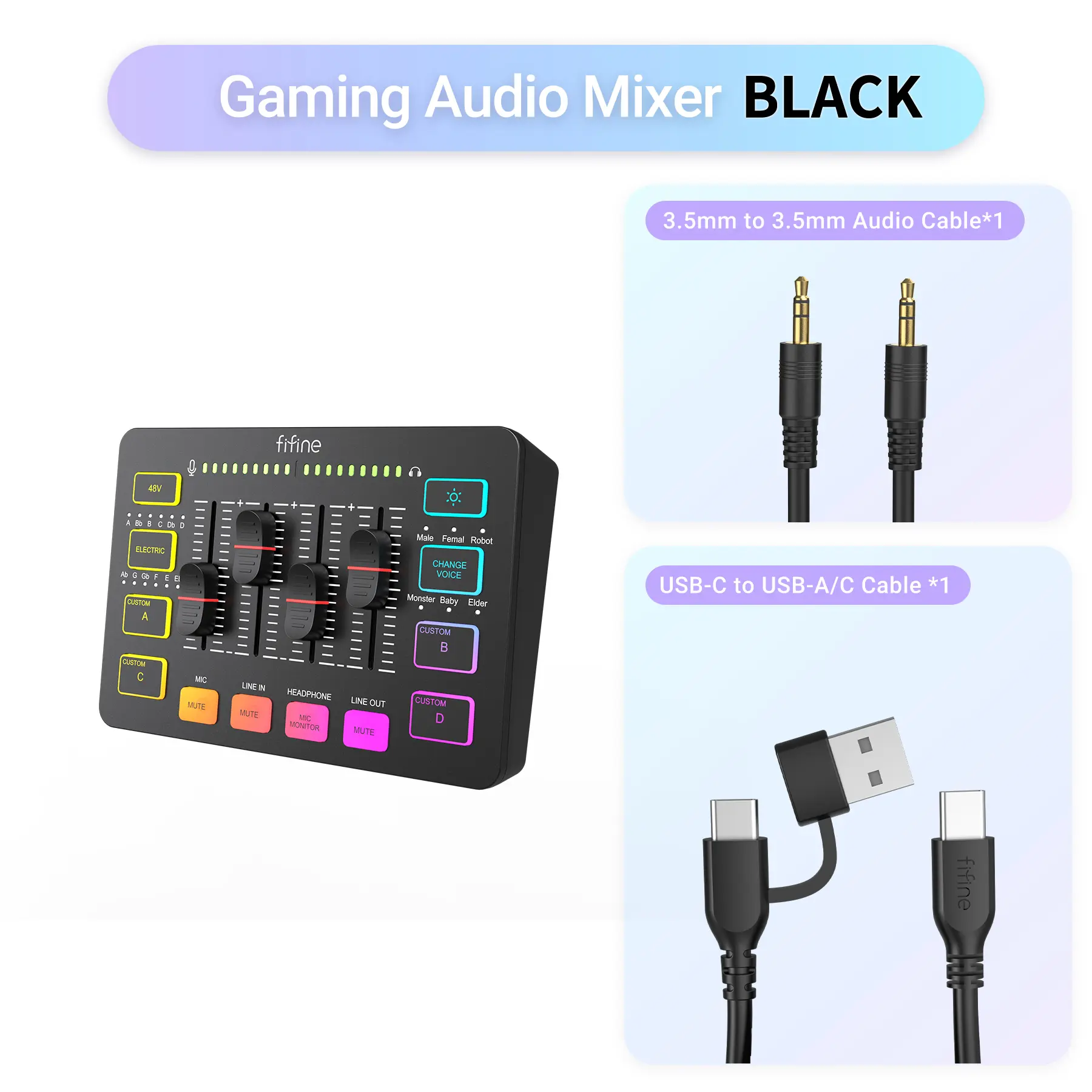

What's in the box
·Gaming Mixer*1
·USB Cable*1
·3.5mm to 3.5mm Audio Cable*1
·User's Manual*1
Mic Input
Frequency Response: 20-20kHz
Dynamic Range: 75dB
S/N Ratio: >75 dB
Gain Range: 50dB
Headphone Output
Frequency Response: 20-20kHz
Output Power: 15mW@32ohm
Output Impedance: 16/32/64 Ω
Dynamic Range: 90dB
Line Output
Frequency Response: 20-20kHz
Dynamic Range: 85dB
S/N Ratio: >80 dB
Maximum Output Level: +10dBV
Line Input
Frequency Response: 20-20kHz
Dynamic Range: 75dB
Gain Range: 50dB
Computer I/O: USB Type-C to USB Type-A 2.0 & Type-C
Power Consumption
Voltage: 5±0.25 V
Current: 500mA
Bit Depth/Sample Rate: 16-bit/44.1k-48k Hz
