Drive Endless.Power Effortless—Charger 2


1. Alternator and solar panels charge the power station, extra batteries, and DC panel while driving, without the need to switch cables or choose between charging and powering devices.
2. Seamless power switching between driving and parked states, keeping devices like fridges powered and DC appliances running.
3.Energy storage devices or solar panels can be charged or powered independently during overnight parking, ensuring multiple energy backup solutions.
4.Combines alternator and solar charging for maximum efficiency.
5.No more ""either-or"" choice — both charging sources work together.
6.Dual Voltage (12V/24V): No need for extra boost modules — safer and more convenient.
7.700W Output: Power multiple devices without worrying about insufficient power.

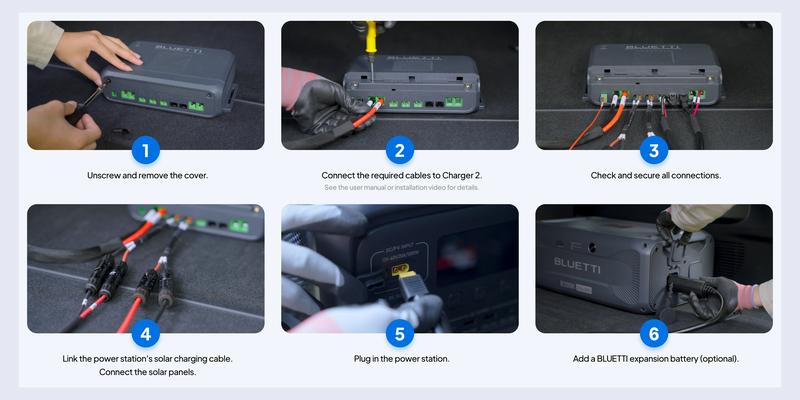

Easy Steps to Install--Step-by-Step Guidance

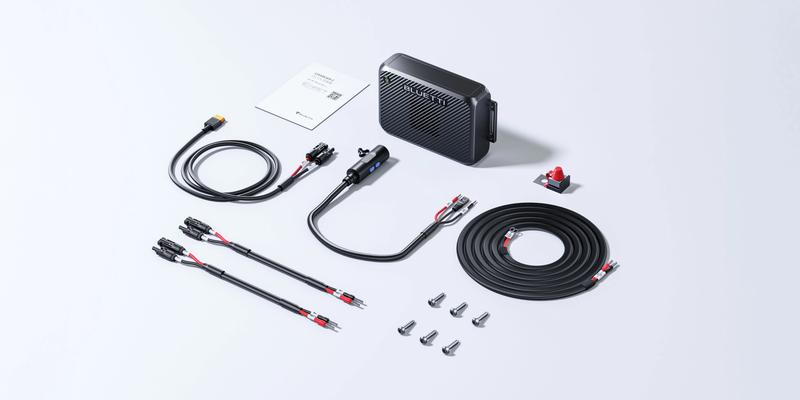

Step 1 : Check All Components

Step 2: Wire the Charger 2

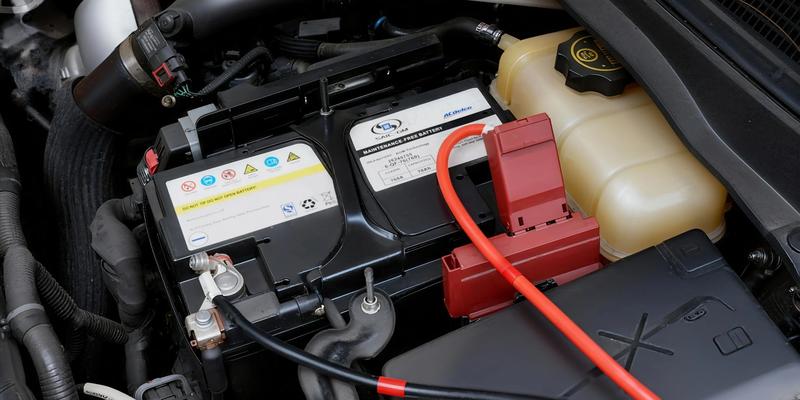

Step 3 : Connect to Car battery

Step 4 : Start Charging

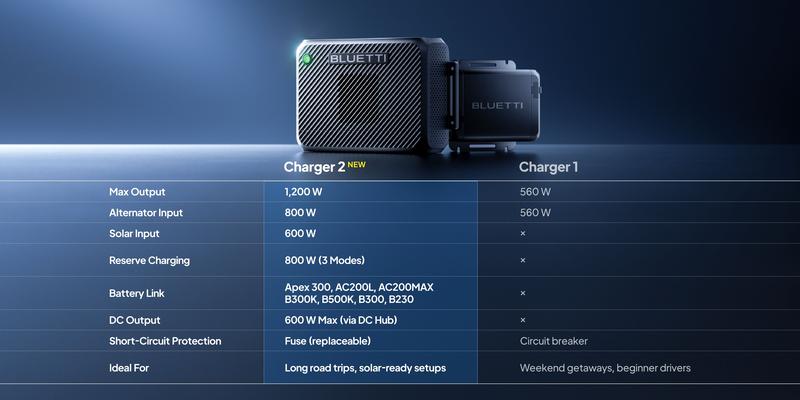

Worth the Upgrade?
Dual input, reverse charging, 2× faster — Charger 2 is the smart upgrade.

Tech Specs

GENERAL

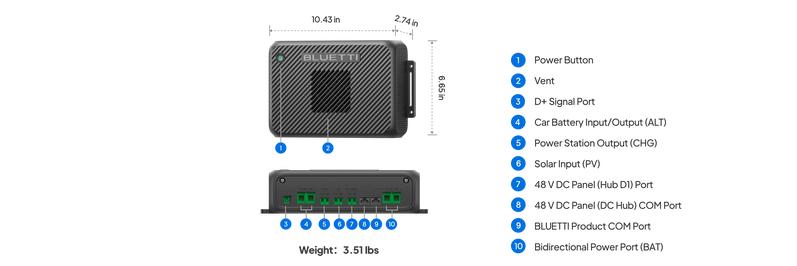

·Dimensions (LxWxH):265 x 169 x 69.7 mm / 0.43 x 6.65 x 2.74 in
·Weight:1.59kg / 3.51lbs
·Operating Temperature:Ambient Temperature -20°C to 60°C / 4°F to 140°F(Power decreases above 40°C / 104°F); Core Component Temperature: power decreases above 60°C / 140°F
·Storage Temperature:-20°C to 60°C / 4°F to 140°F
·Operating Humidity:10% to 90%
·Noise Level:50dB Max.
·Operating Altitude:
·Protection Rating:IP20

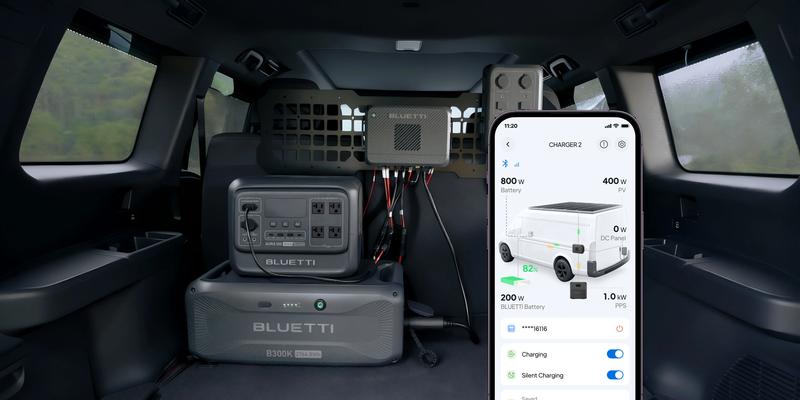

·APP Control:Bluetooth & Wi-Fi
·Maintenance Mode:100W,50/60 Hz
·Fuse Rated Current:75A
INPUT
·Car Battery Input (ALT):12.8 V - 62.5 A, 25.6 V - 31.3 A,Max. 800W
·Solar Input (PV):13V to 50V - 20A,Max. 600W
OUTPUT
·Car Battery Output (ALT):12.8 V - 62.5 A, 25.6 V - 31.3 A,Max. 800W
·Bidirectional Power Port (Bat):19.2 V - 52 A, 25.6 V - 39 A, 51.2 V - 19.5 A,Max. 1,000W
·Power Station Output (CHG):12V to 56V - 24A,Max. 1,200W
·48V DC Panel (Hub D1) Port:40V to 58.5V - 2.5A,Bypass Max. 700W(Note: 12V DC power supply requires Hub D1, total output 700W, including USB-A Ports, USB-C Ports, Cigarette Ports, 5521 ports and 50A Anderson Port)
WARRANTY
·2 Years

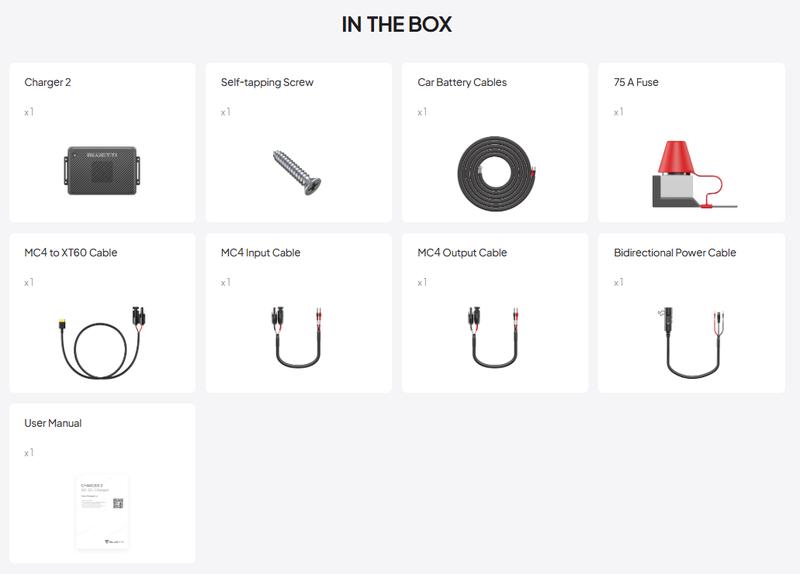

IN THE BOX
