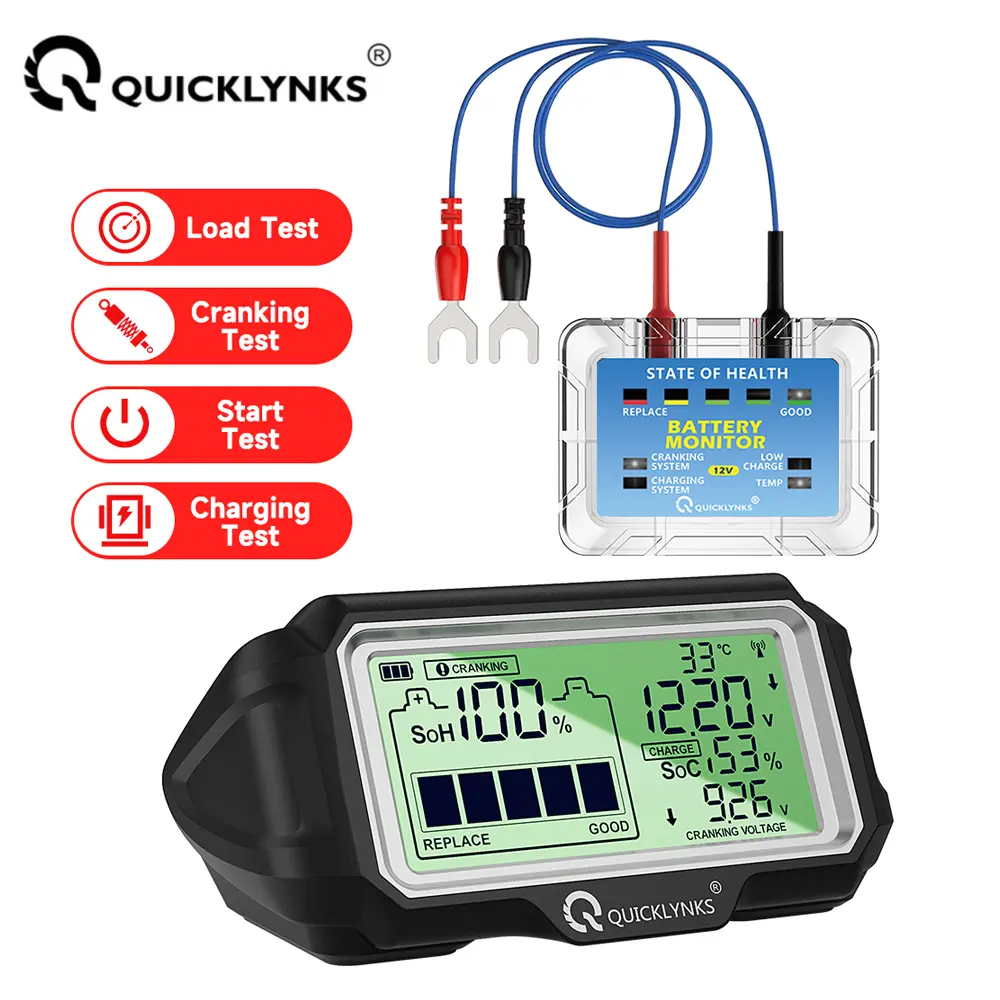

QUICKLYNKS BM5-D Battery Monitoring System
Smart Guardian for 12V Starter Batteries
Technical Specifications
▸ Battery: 750mAh Built-in Lithium-ion
▸ Charging: Solar Panel + Type-C Dual Input
▸ Display: Backlit Monochrome LCD
▸ Safety: Integrated Fuse Protection
▸ Operational Range: -20°C to 70°C
▸ Storage Range: -30°C to 80°C
▸ Dimensions: 10×8×5 cm (L×W×H)
Key Features
Intelligent Monitoring

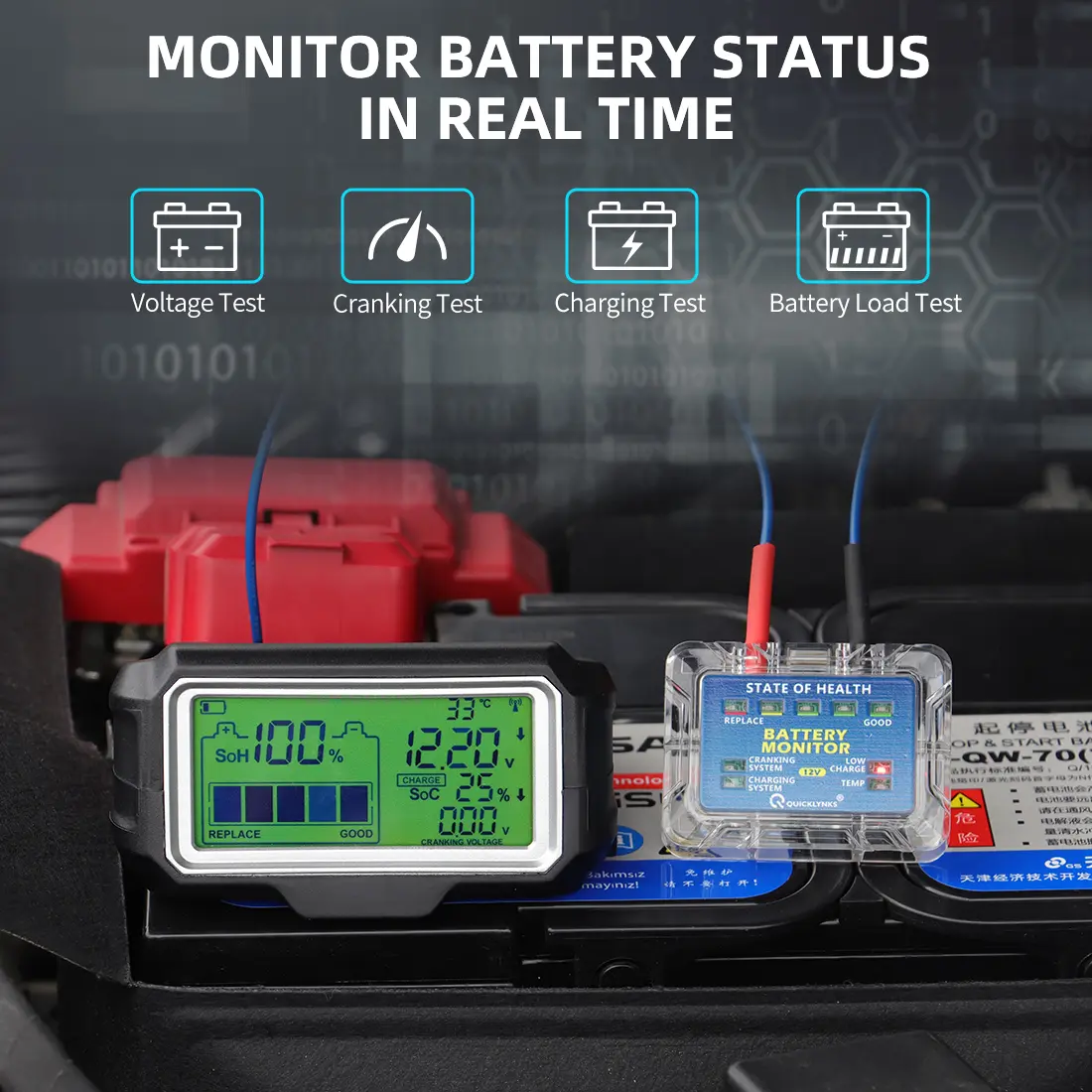

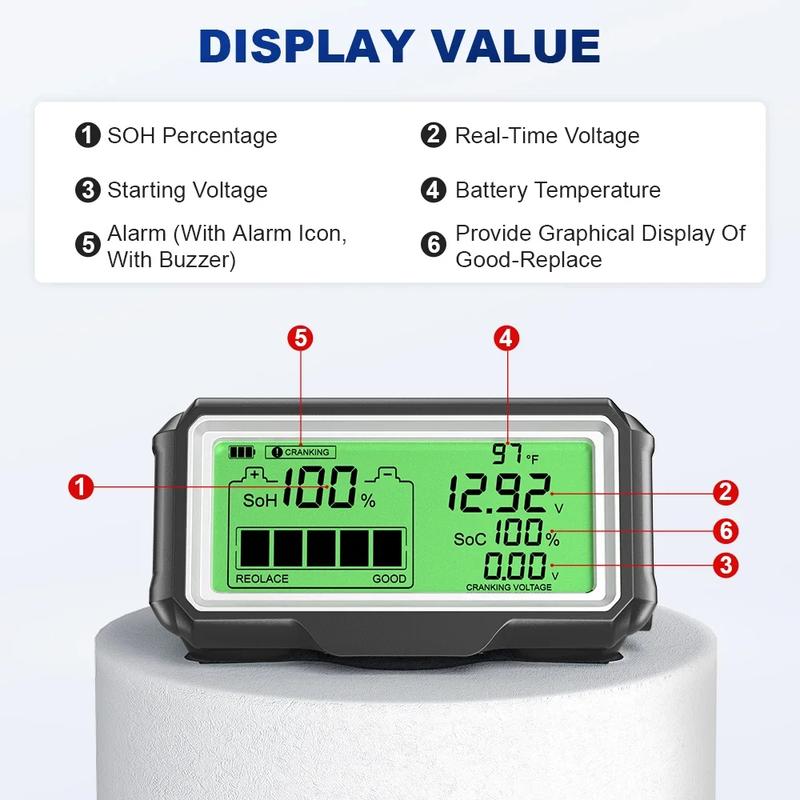

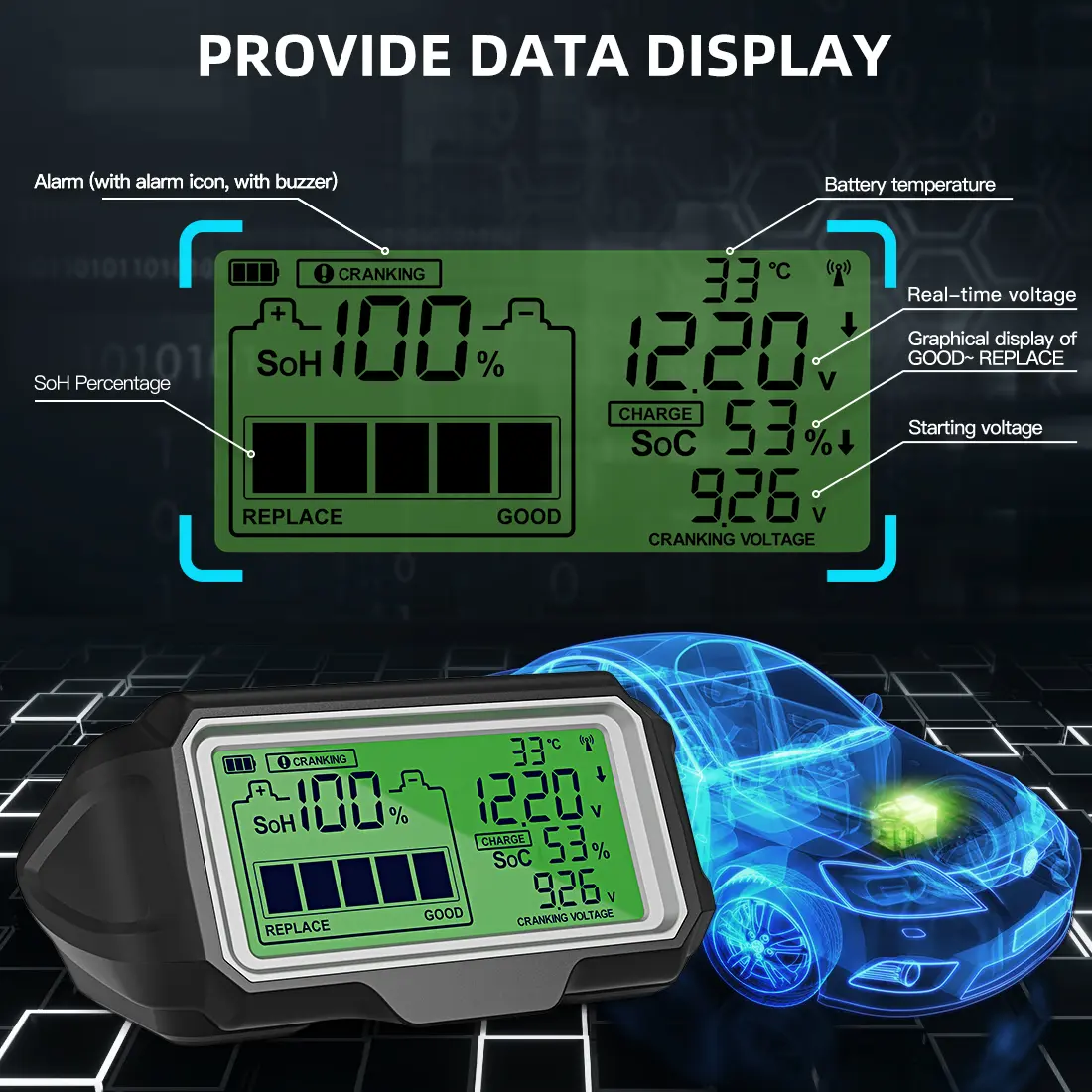

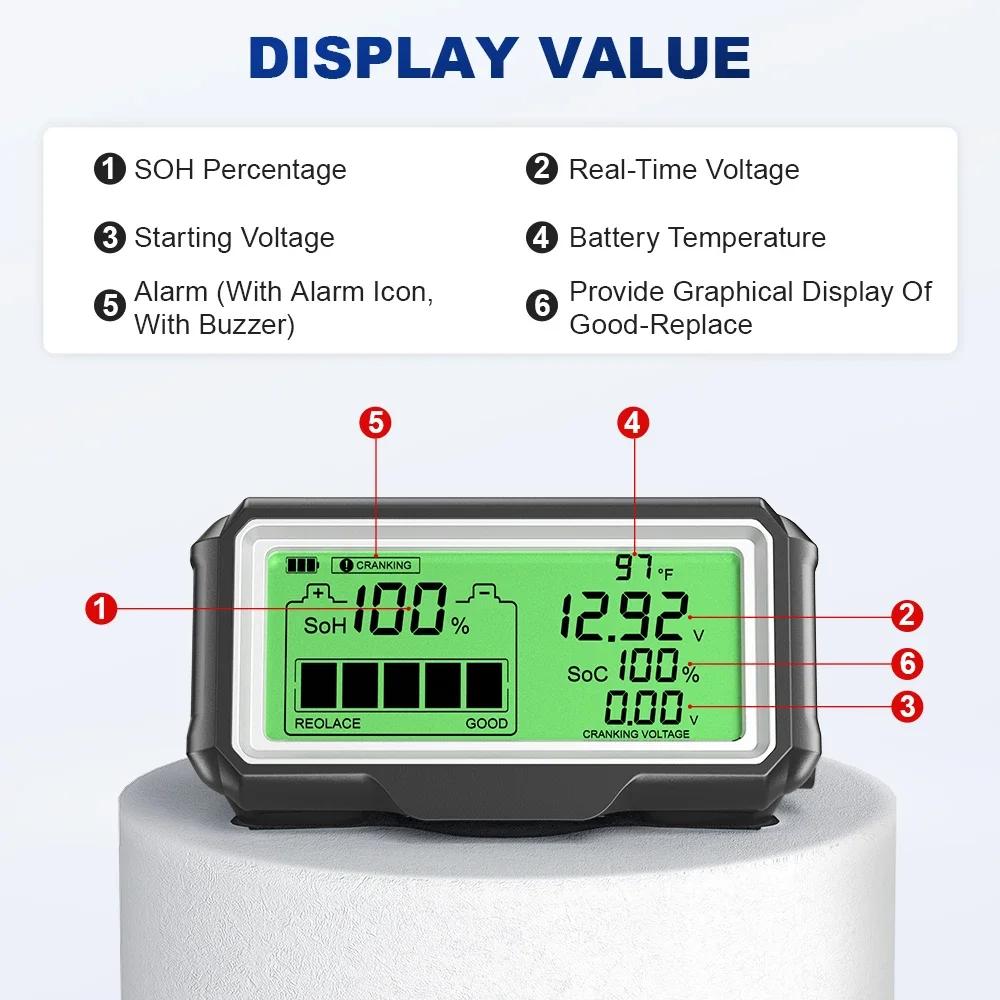

• Real-time tracking: Voltage | Temperature | SOH% | Charge Status
• Dual-alert system: Abnormal conditions & maintenance reminders

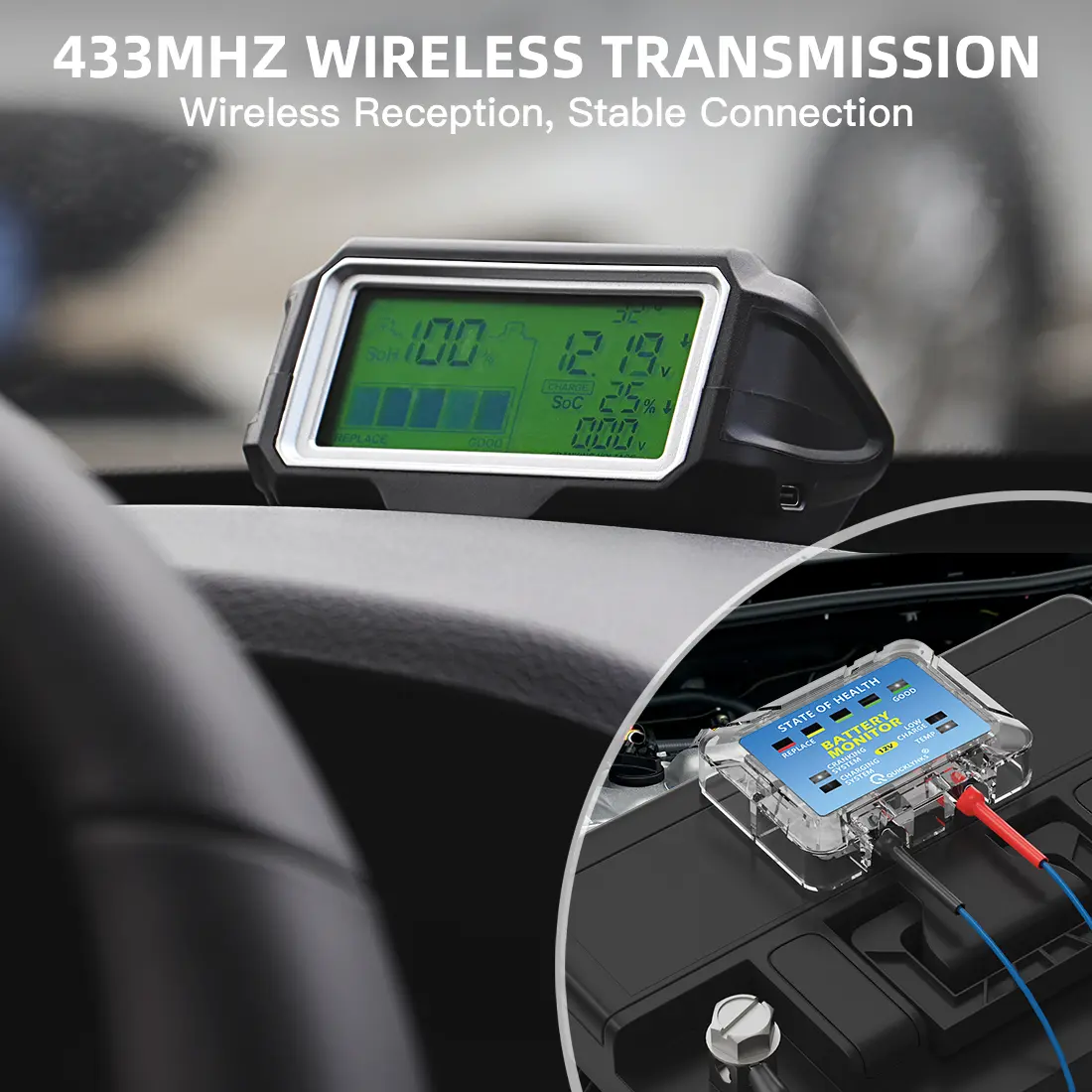

• 433MHz stable transmission for uninterrupted data
Smart Power Management

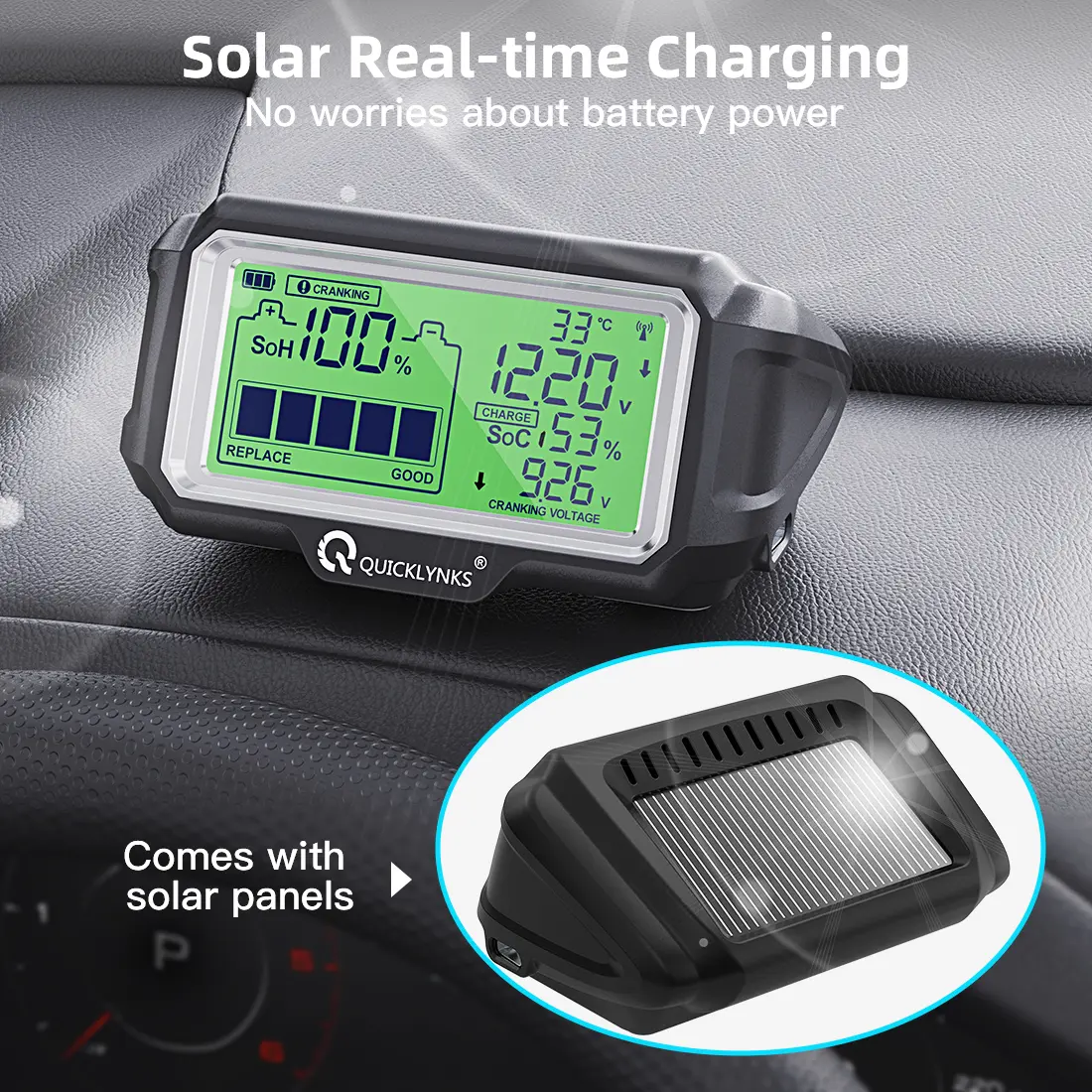

• Solar/Type-C hybrid charging
• 7-day runtime on single charge

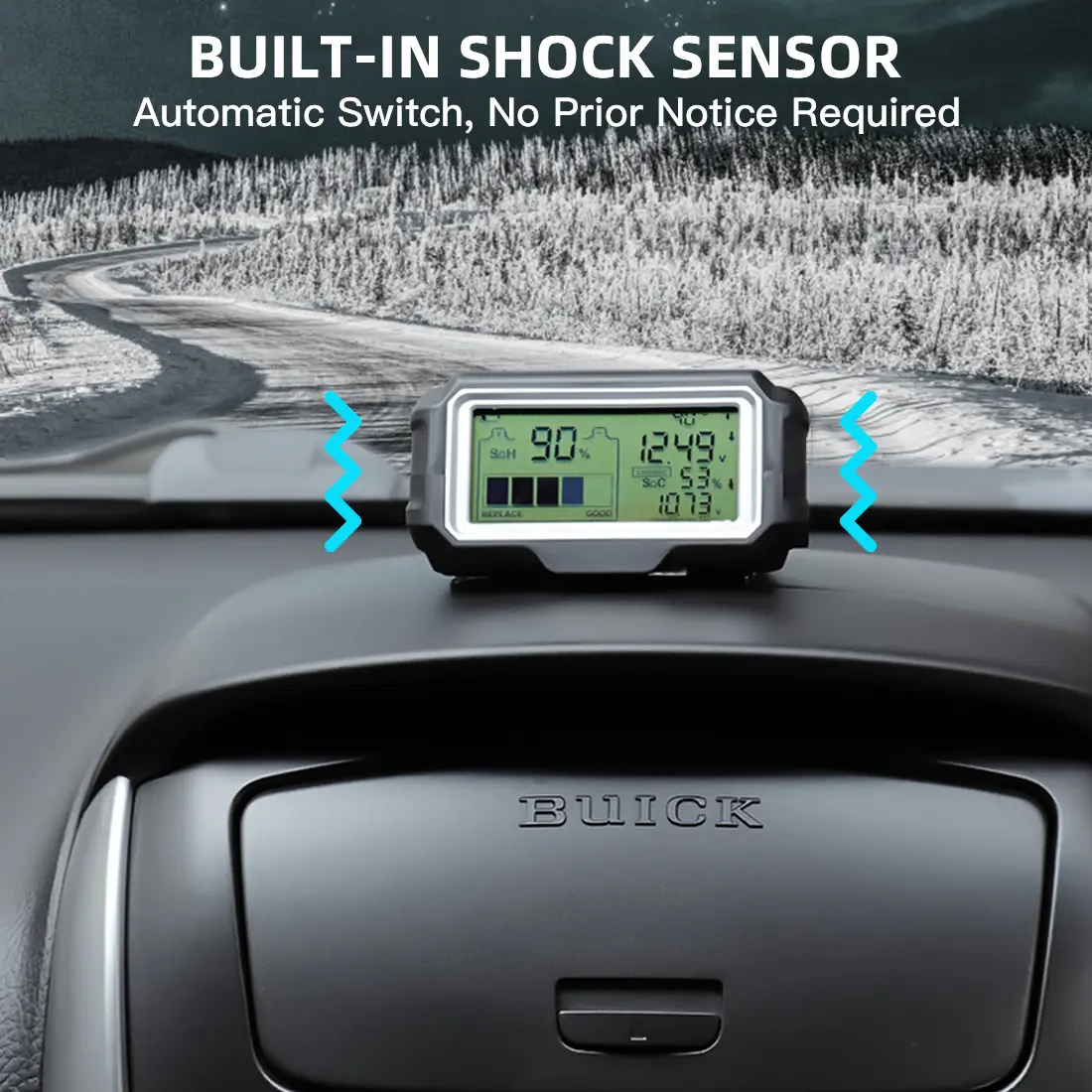

• Auto brightness & vibration-activated display
• Zero standby consumption with automatic shutdown
Advanced Technology
• Self-learning algorithm (accuracy improves over time)
• Universal 12V compatibility: Cars | Trucks | Yachts | Motorcycles
• IP65-rated durable construction
User-Centric Design
• At-a-glance date/time display
• Plug-and-play installation
• Windshield-mountable option

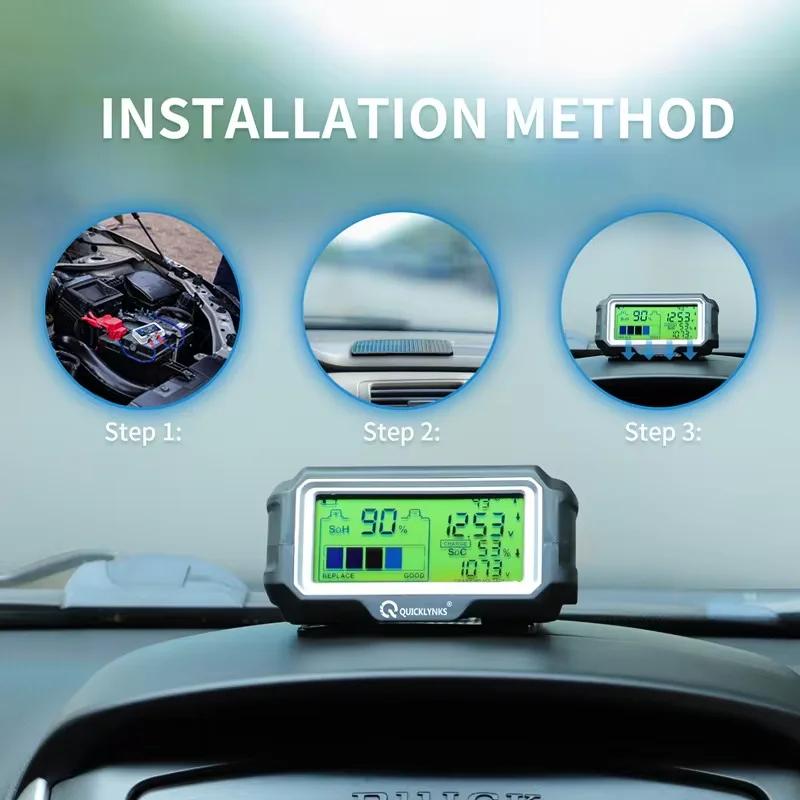

Installation Guide

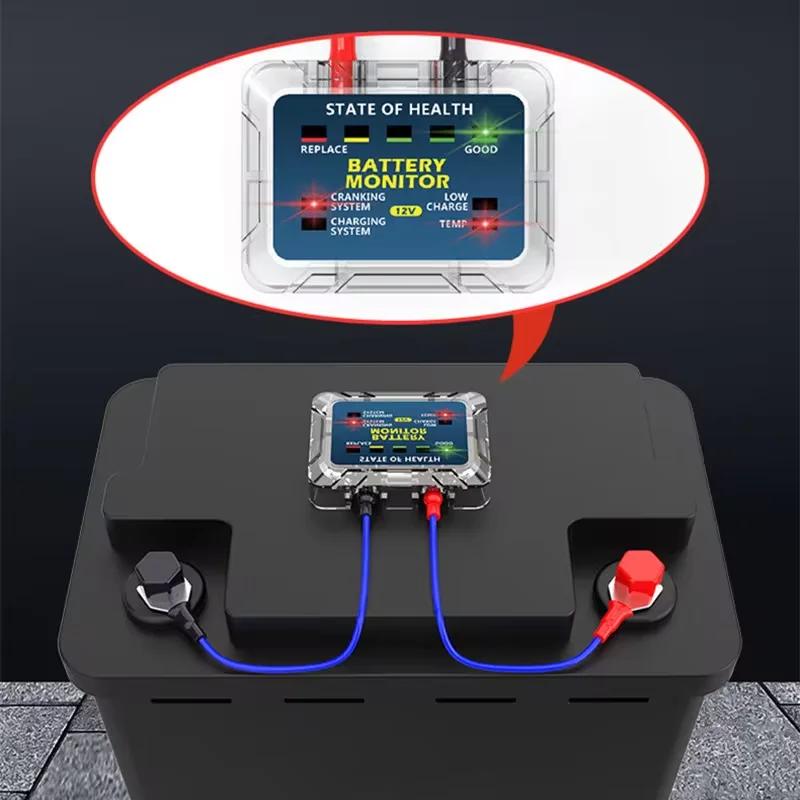

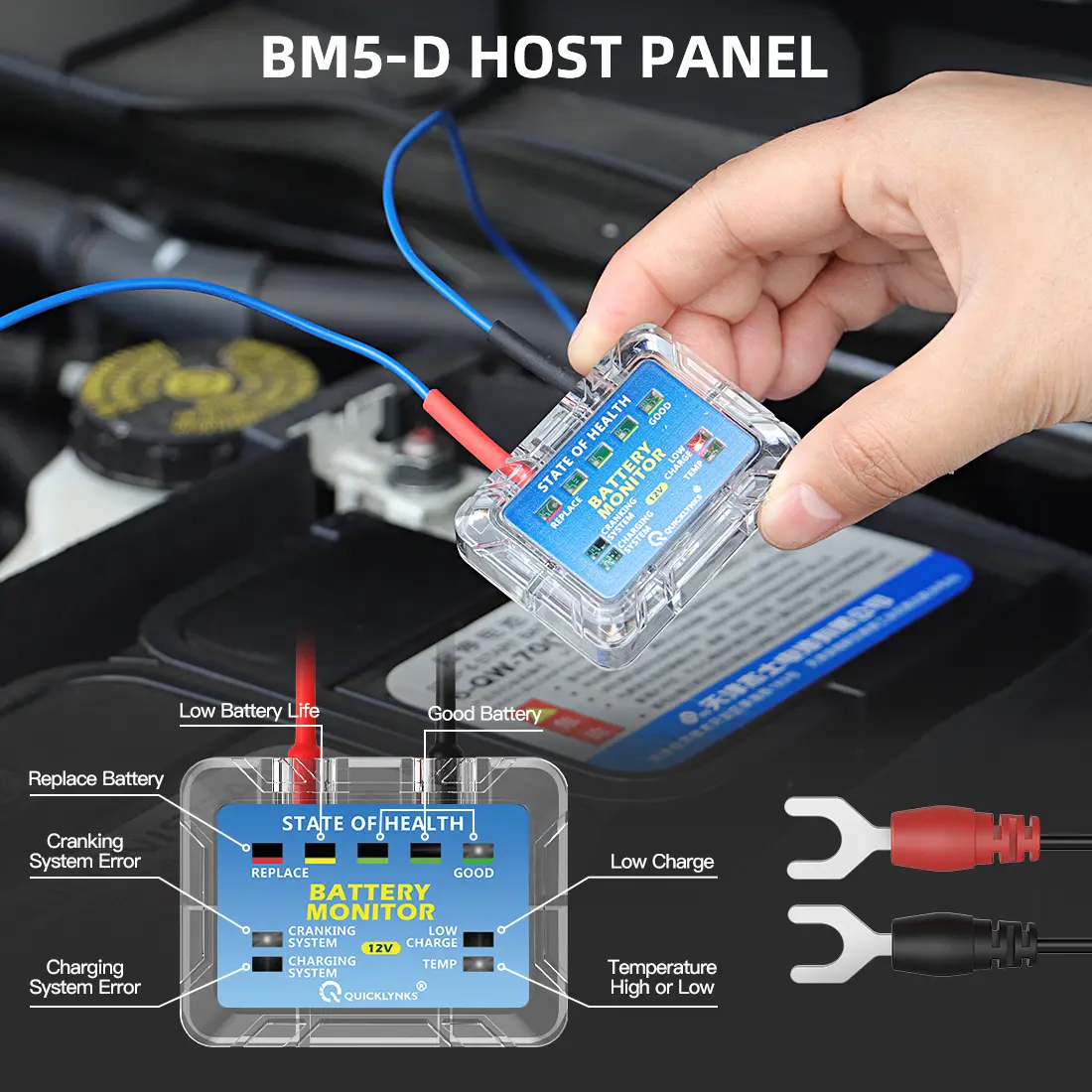

·Connect TerminalsSecure black connector to battery negative (-)Attach red connector to battery positive (+)
·Mount DeviceClean battery surfaceAdhere monitor securely
·Optional PlacementFor windshield mounting: Simply position in clear view
Universal Compatibility
Works with all 12V starter batteries:
Passenger Vehicles Commercial Trucks
Marine Batteries Powersport Batteries
Patented technology ensures precision across all environments
Why Choose BM5-D?
» Prevent unexpected battery failures
» Extend battery service life by 30%
» Reduce maintenance costs
» Weatherproof design for extreme conditions
