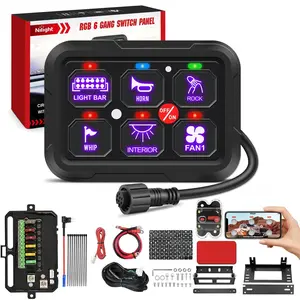

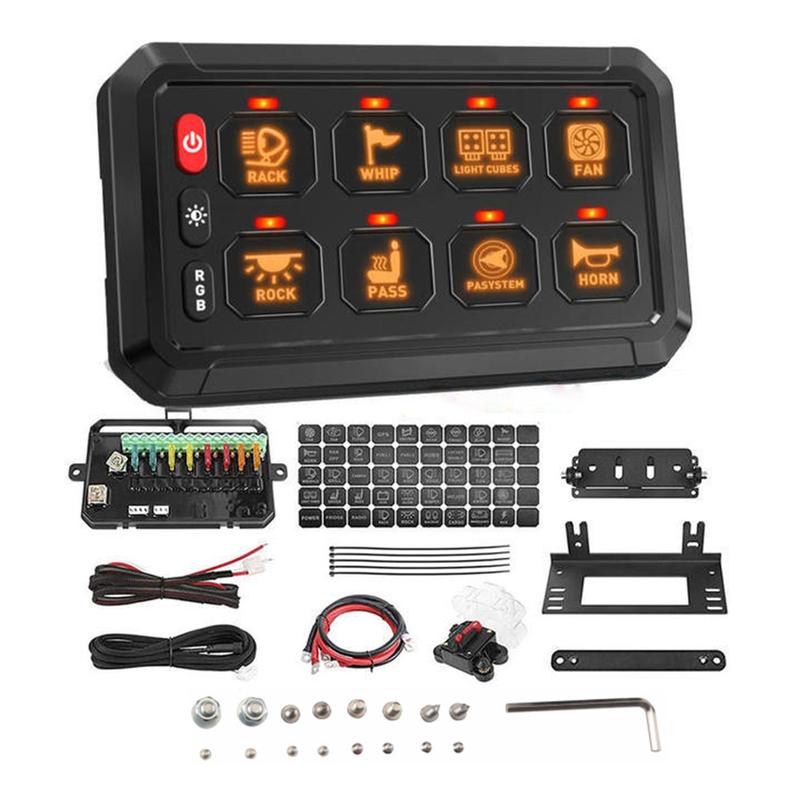

🚗 6/8/12 Gang Switch Panel 🚗

Stability, Safety, Simplicity:

Crafted from robust brushed aluminum, this universal switch panel is designed for off-road adventures. It caters to various lighting applications, including LED light bars, round driving lights, rock lights, whips, and horns. Built-in fuse, reverse polarity protection, overvoltage protection, and overcurrent protection ensure stability and safety. The fuse adapter allows easy connection to the vehicle's fuse box without cutting, splicing, or damaging the original wiring.

Description:

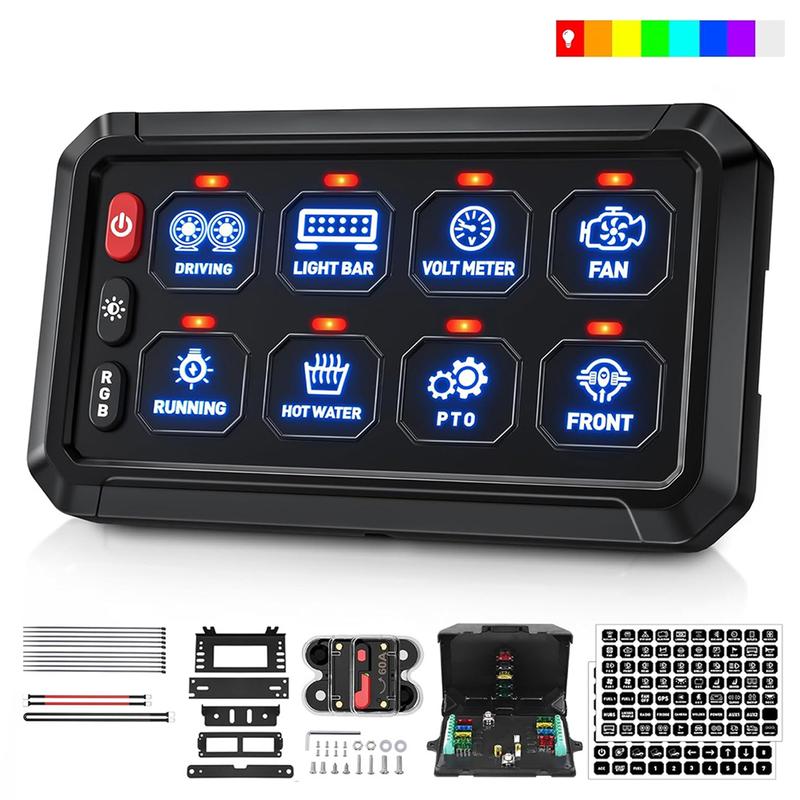

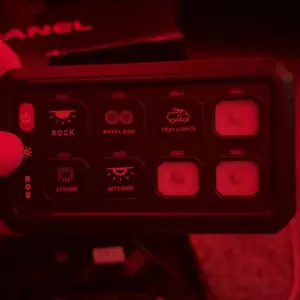

·3 Silicone Function Buttons: RGB switch panel with 3 silicone buttons for comfortable touch and high responsiveness. Includes ON/OFF switch with memory, brightness adjustment, and RGB color adjustment.

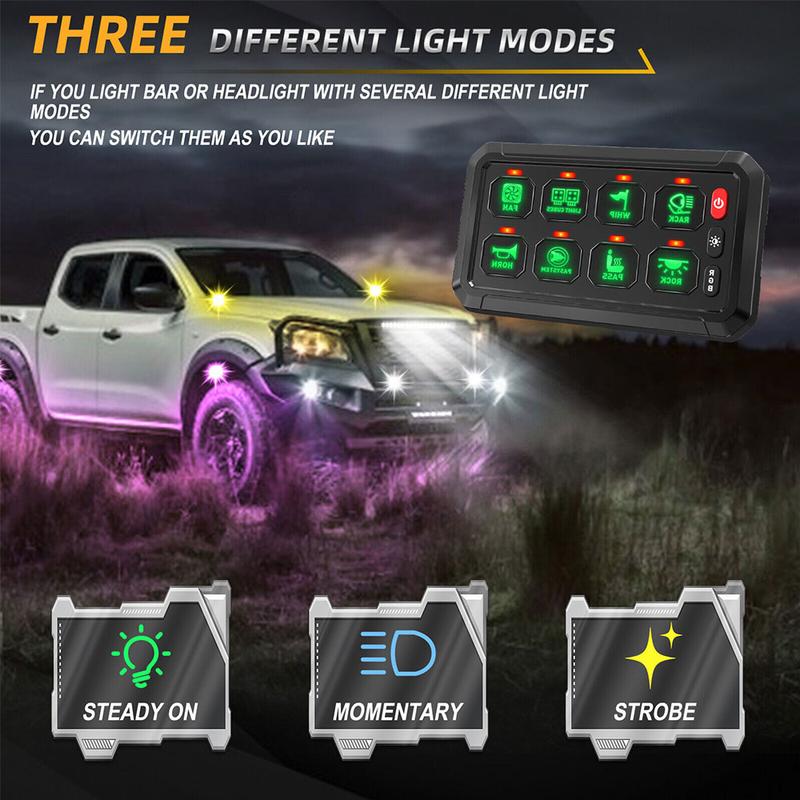

·Upgraded 4 Control Modes: Toggle, Momentary ignition power, Flash Light, and Strobe Mode.

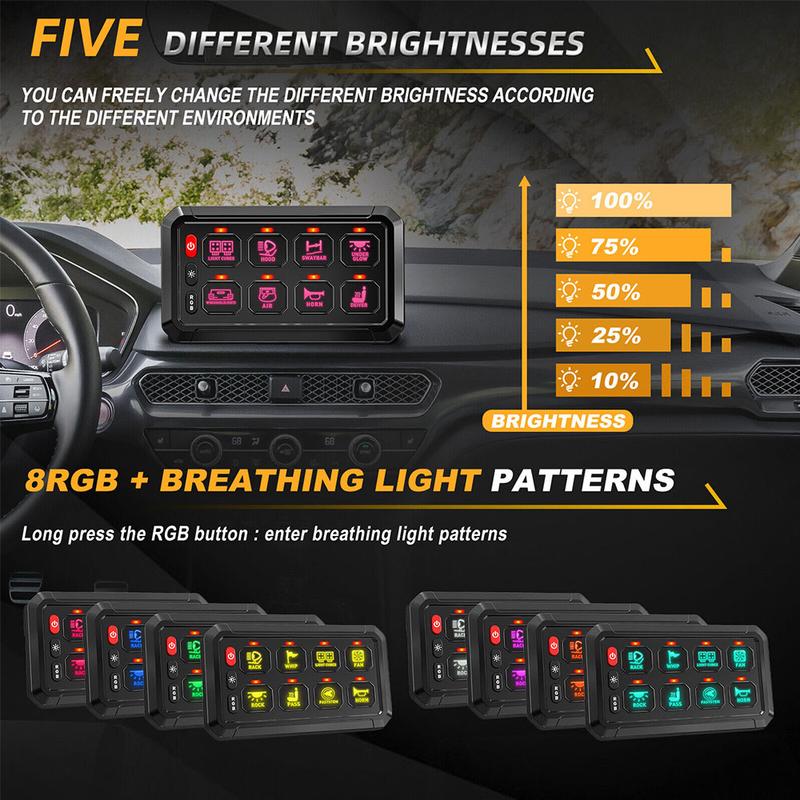

·Backlight OFF & 5-Level Brightness: Manual backlight off function and 5-level brightness (100%, 75%, 50%, 25%, 10%) to adjust according to the environment. Unlimited RGB backlight colors.

Power Source:

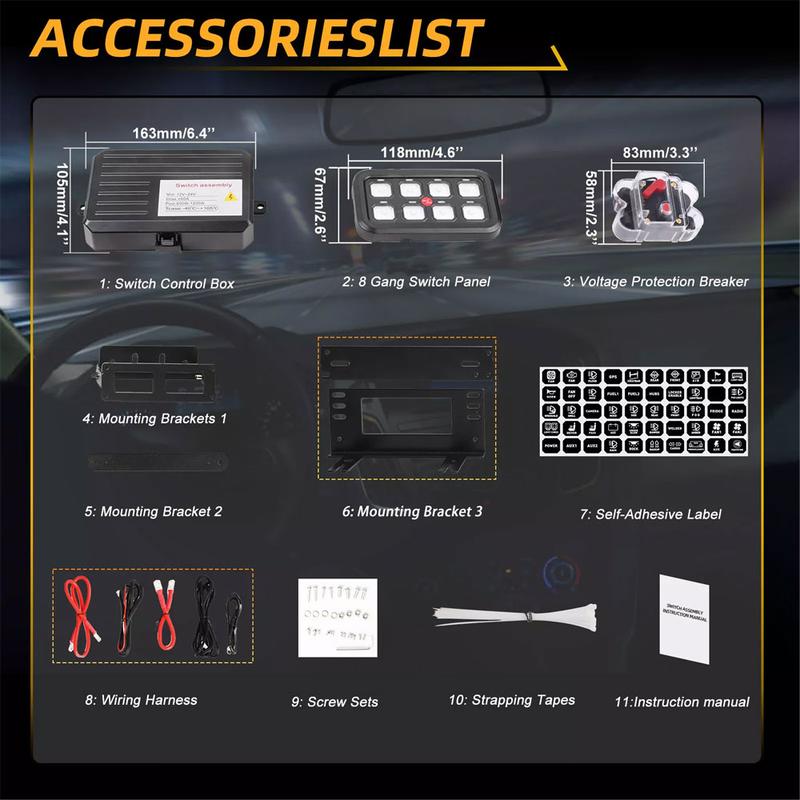

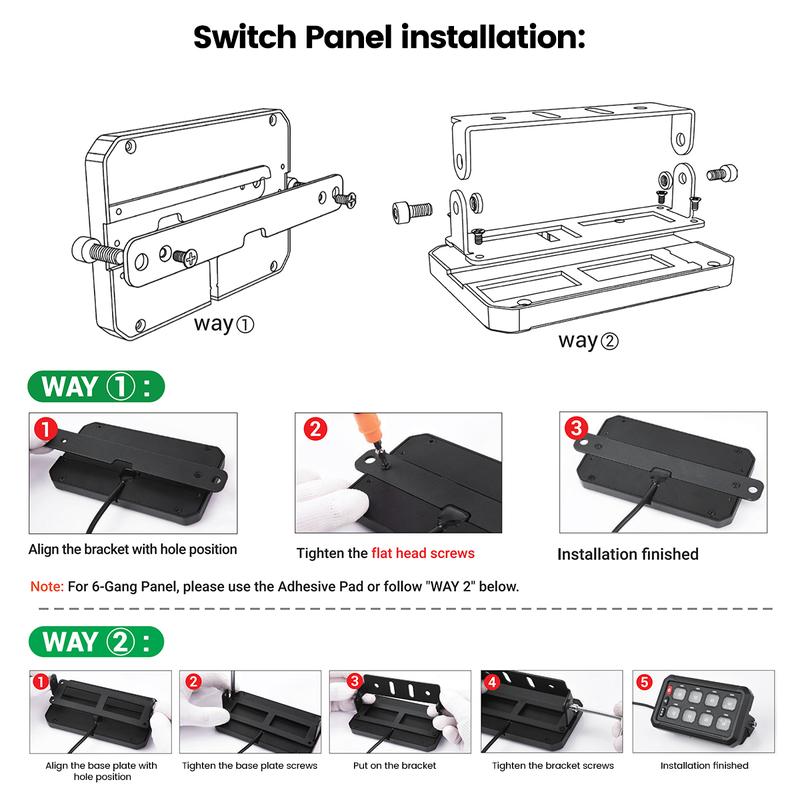

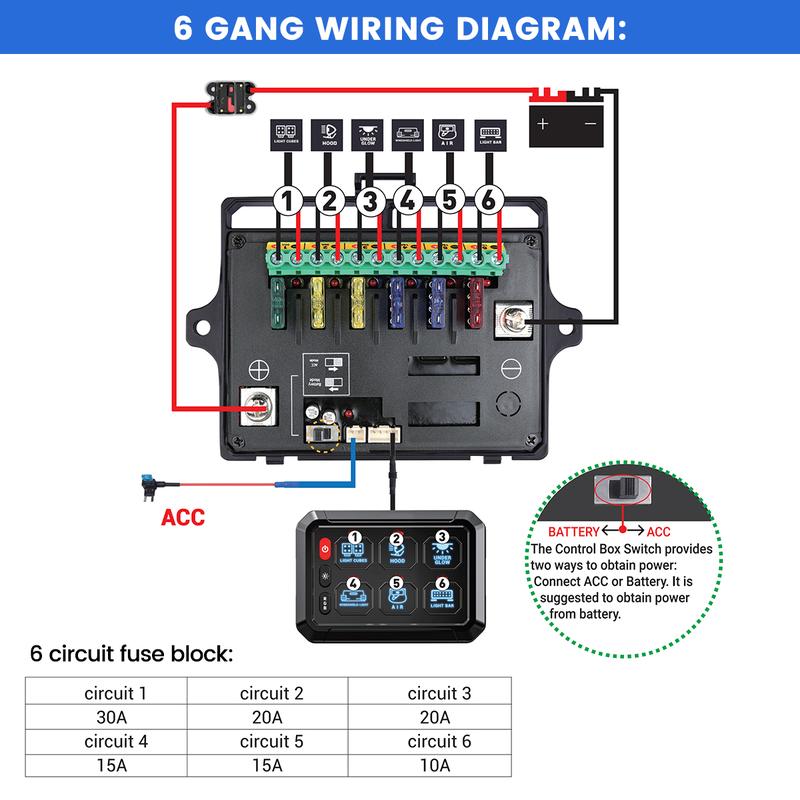

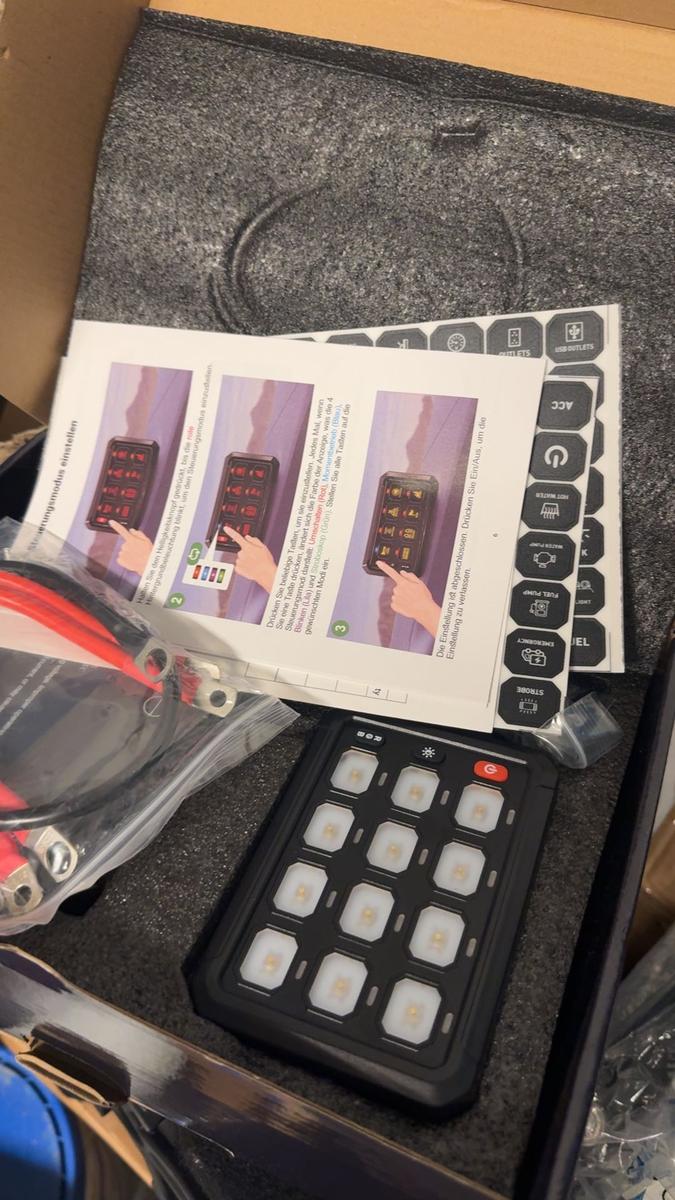

The control box switch provides two ways to obtain power: connect ACC or Battery. Different mounting brackets for flexible and quick installation. Bonus 140pcs labeling stickers included to customize your switch panel buttons. And fuse to well protect your car circuit.

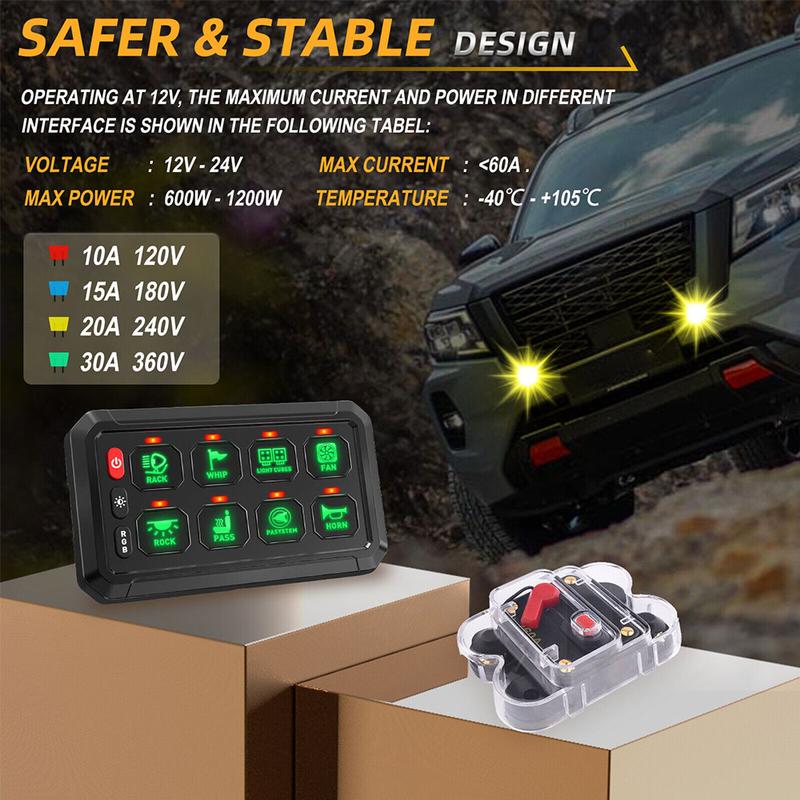

Specifications:

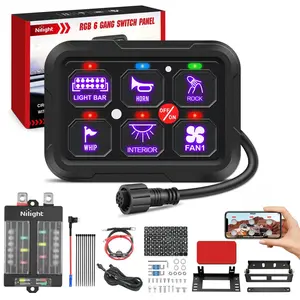

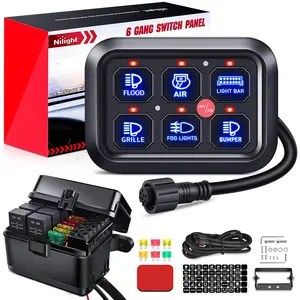

·6 Gang Switch Panel: Voltage: 12V, 24V. Maximum Total Current: 60A. Maximum Power: 720W@12V/1440W@24V. Updated circuit design accommodates one 30A circuit, two 20A circuits, two 15A circuits, and one 10A circuit. Safety features include a circuit breaker.

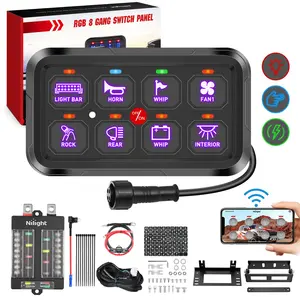

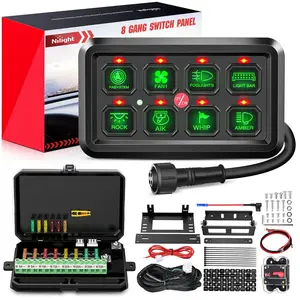

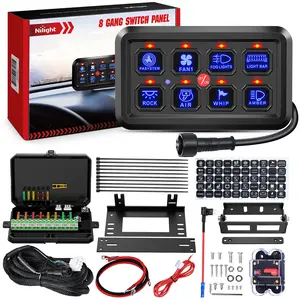

·8 Gang Switch Panel: Voltage: 12V, 24V. Maximum Total Current: 60A. Maximum Power: 720W@12V/1440W@24V. Updated circuit design accommodates two 30A circuits, two 20A circuits, two 15A circuits, and two 10A circuits. Safety features include a circuit breaker.

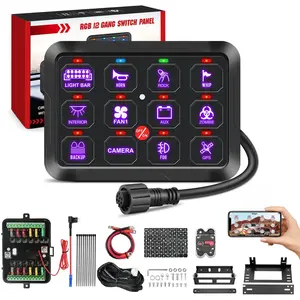

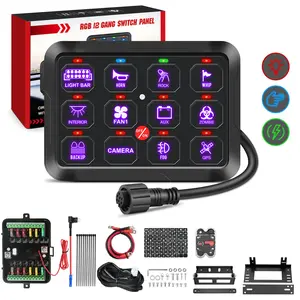

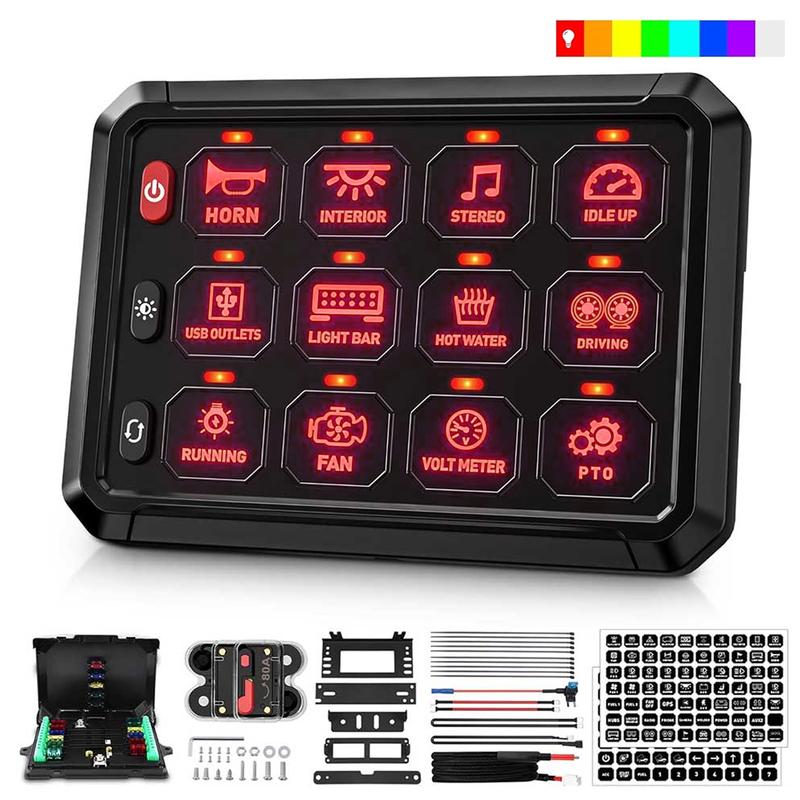

·12 Gang Switch Panel: Voltage: 12V, 24V. Maximum Total Current: 80A. Maximum Power: 960W@12V/1920W@24V. Updated circuit design accommodates four 30A circuits, two 20A circuits, two 15A circuits, and four 10A circuits. Safety features include a circuit breaker.

Suit for:

12V/24V RV, marine, car, truck, off-road, ATV/UTV, boat, yachts, Caravans, etc.

Material:

Aluminum Alloy

Lifespan:

Over 50,000 hours

Warranty:

2 Years

Frequently Asked Questions:

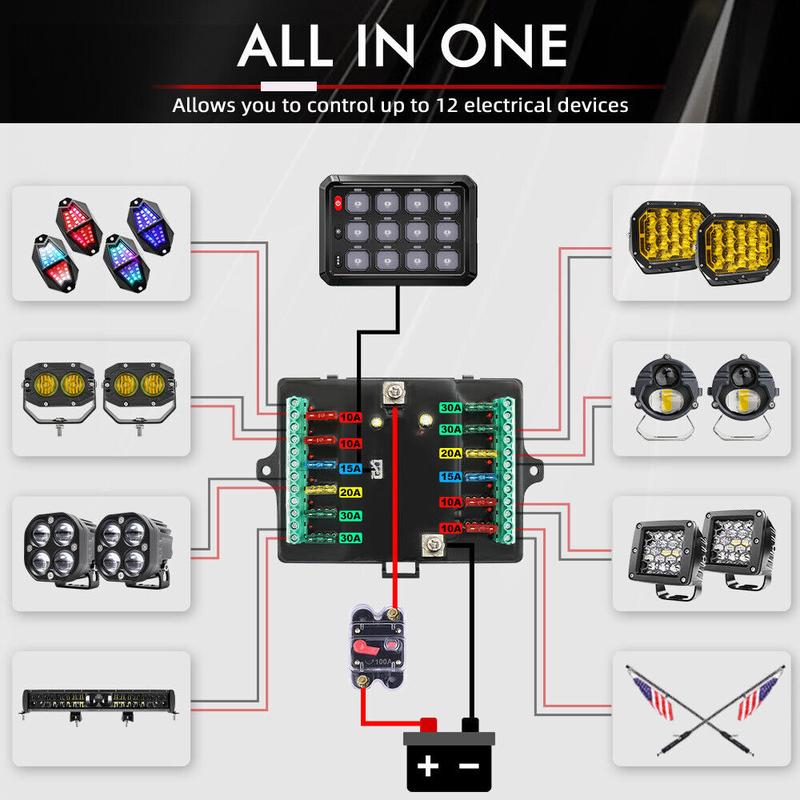

·How does a normal switch panel control 2 or more lights at the same time with one button?Connect the wires from both accessories to the same positive and negative outputs of the control box. Ensure that the accessories connected to a single circuit will not draw more power than the maximum for that control box circuit and the fuse for that circuit.

·Can I connect the negative wire to the common cathode?Yes.

·What is the maximum running current?The 6-gang or 8-gang switch panel is rated for 60A, and the 12-gang is 80A.

·When connecting the battery, the power indicator is always on, will it cause battery loss?No. The standby current of this product is less than 3mA. A 60AH battery provides 833 days of standby power for the switch panel without charging it.

·How do I know if the wiring is correct?If the power indicator is red on, it means the connection is correct.

·What is the function of the control box switch?The Control Box Switch provides two ways to obtain power: Connect ACC or Battery. It is suggested to obtain power from battery.

·What is the type of Add-a-Circuit Fuse Tap?Small fuse tap.

·Can I replace the fuses in the control box?Yes, BUT always use a new fuse with the SAME or LOWER amperage as the old one. For instance, replace a 30A fuse with another 30A or less; to replace a 5A fuse, do NOT use a 10A fuse.
