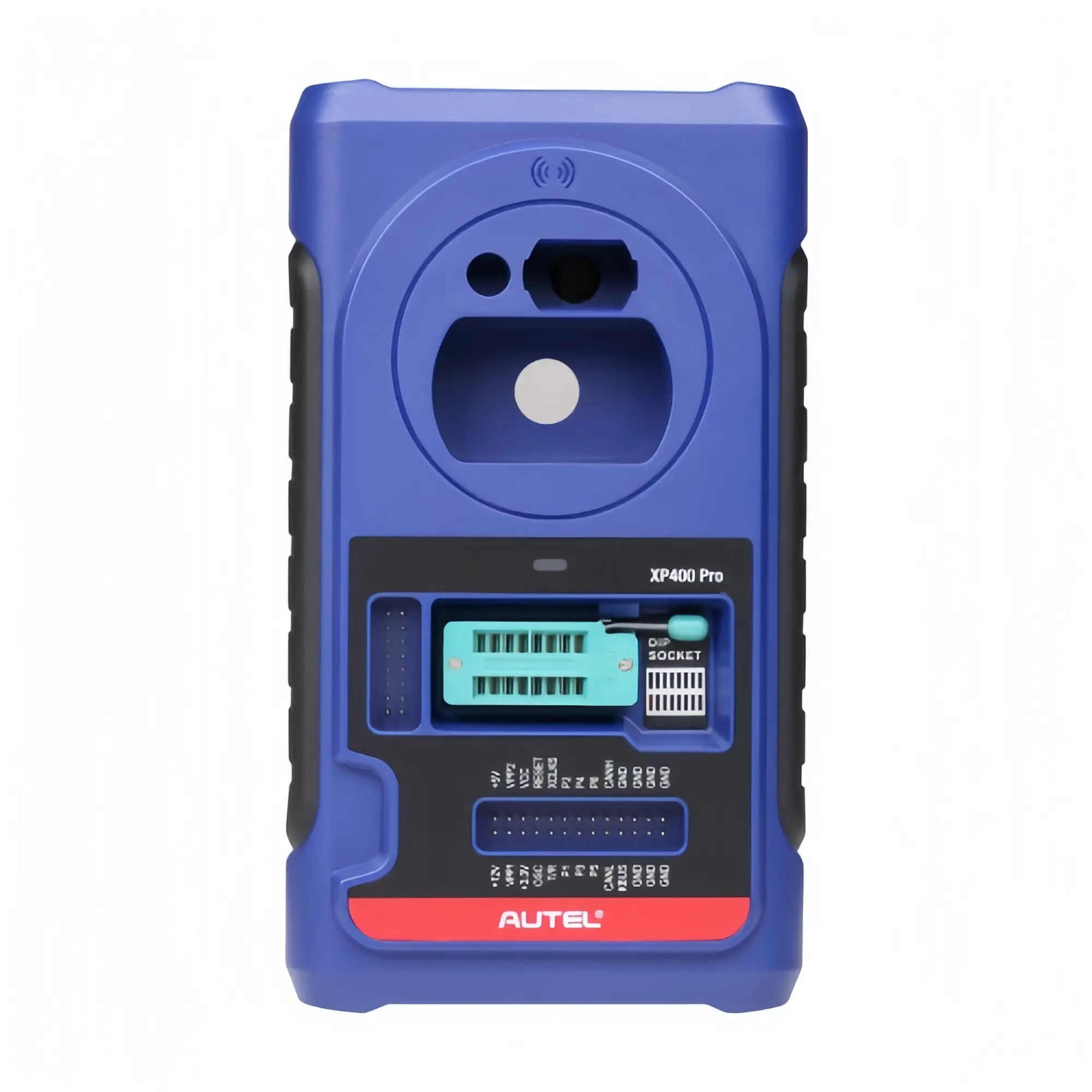

Autel XP400 PRO Immo and Chip Programmer for IM508/ IM608 Highlights of Autel XP400 Pro: 1. XP400 Pro is an Advanced All-in-One Immo Programmer 2. One Year Free Update Online on Autel Official Website 3. Compatible with Autel IM508 and Autel IM608, Also IM100 and IM600 as well (Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth) 4.Enables Programming of Infrared K e ys for Mercedes Vehicles and IC Chip K e ys on Late Model Hyundai Kia Vehicles 5. Supports Renewal on 11 Types with Additional Adapters - IMKPA, Key Programming Accessories Kit 6. Performs EEPROM-data Functions Needed for European Vehicles 7.Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU) Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

What Autel X400 Pro Supported? XP400 Pro Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU) 1. Expanded EEPROM functions for more component access 2. 170+ types Odometer component reading functions 3. 180+ Immobilizer ECU component types 4. 40+ Engine ECU component types 5. 2000+ MCU component types 6. 440+ EEPROM component types

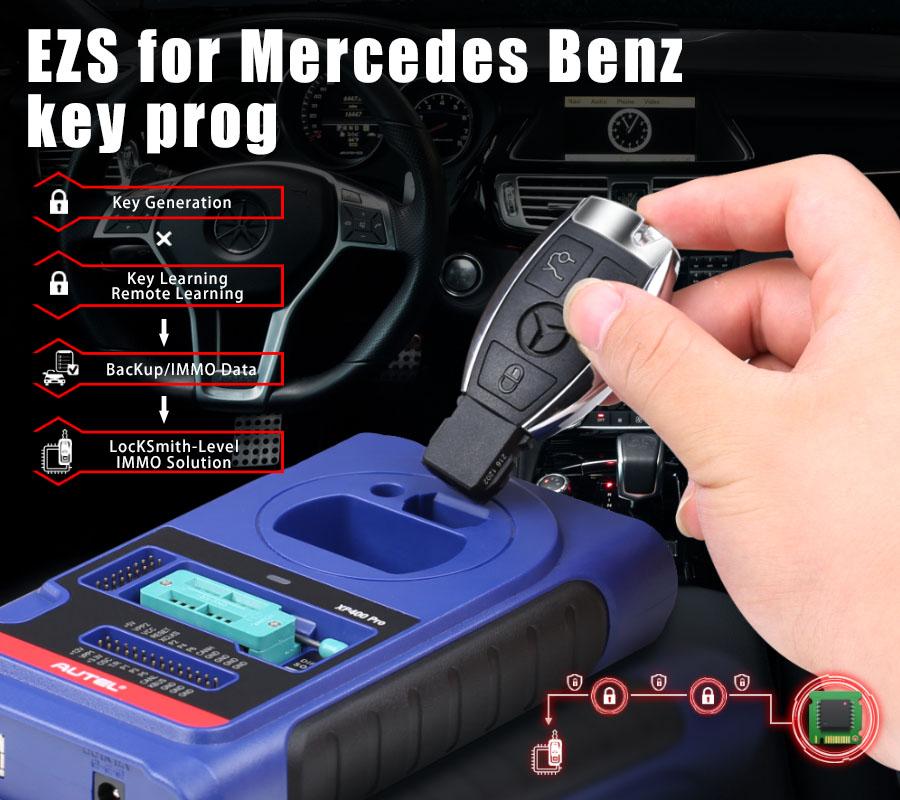

Advanced Immo Programming Vehicle Coverage when combined with XP400PRO: Benz * One-tap Immo Programming via OBD * 3rd Generation IMMO CAN-Line/ K-Line Add K, AKL BMW * Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC) * Add/AKL Volkswagen/ Audi * One-tap Online Programming * Add/AKL Via OBD for 2013 - 2020 Models GM * Read IMMO Password, Add/AKL up to 2020 Ford * Add/AKL (No PIN Needed) up to 2020 Mazda * Add/AKL (No PIN Needed) up to 2020 FCA * Read IMMO Password, Add/AKL Lost up to 2020 Renault * Add/AKL (No PIN Needed) up to 2020 LandRover/Jaguar *Add/AKL up to 2019 Volvo * Semi-smart Immo Learning via OBD up to 2018 * Smart/Blade/Fobik Immo Learning via Dump Powerful IMMO Functions: 1. Auto Detect Make/ Model/ Year/ System 2. Read PIN (AKL) 3. Immo Learning 4. IMMO ECU Reset/Adaption 5. IMMO ECU Refresh/Coding 6. Remote Learning 7. AUDI Q5/ A4/A5 2015-2017 Immo Learning 8. VW MQB Immo Learning 9. BMW FEM/BDC Immo Learning and Adaption 10. BMW CAS4 Immo Learning and Adaption 11. Mercedes Immo Learning 12. 2015-2018 Land Rover & Jaguar write via dump 13. Volvo Smart Immo Learning/ knob-style smart K Advanced Programming Functions: 1. EEPROM Read/Write 2. MCU Read/Write 3. Immo Programming 4. Mercedes Read/Write 5. Remote Frequency Detect

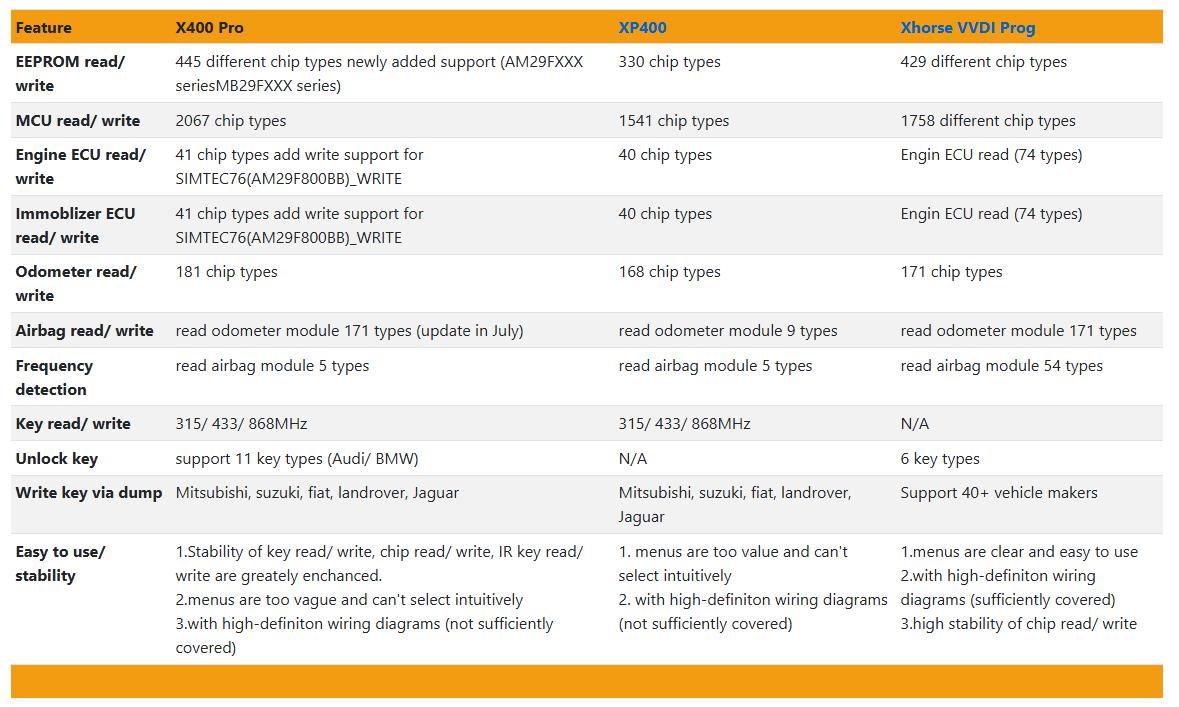

Comparison Table for XP400 Pro, XP400 and Xhorse VVDI Prog:

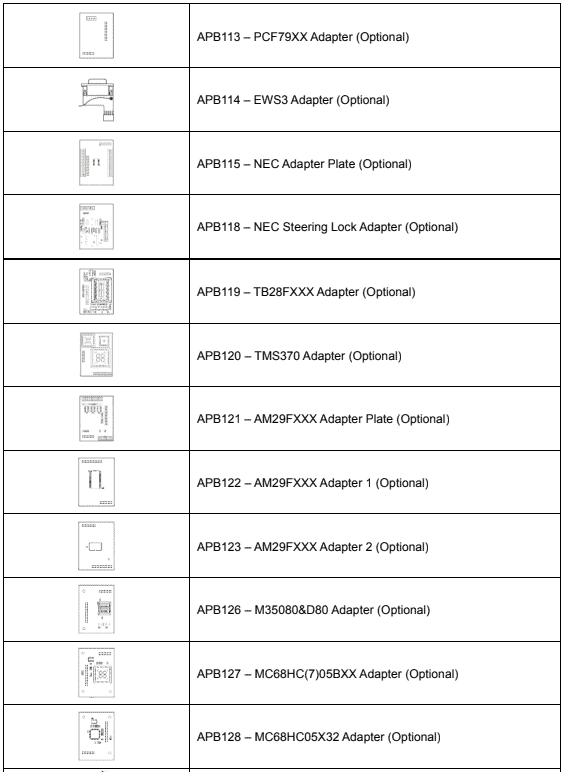

XP400Pro Adds Support for Following Chips: EEPROM-->>AMD-->>AM29FXXX series chip EEPROM-->> FUJITSU-->> MB29FXXX series chip EEPROM-->> ST-->> M29FXXX series chip Engine control module-->> ST-->> M29FXXX series chip IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function IMMO-->> BMW-->>EWS3 module read/write function REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase  XP400 Pro Adds Support for Following IMKPA Accessories APB113 PCF79XX adaptor board APB114 EWS3 adaptor board APB115 NEC adapter board APB118 NEC ELV adaptor board APB119 TB28FXXX adaptor board APB120 TMS370 adaptor board APB121 AM29FXXX adapter board APB122 AM29FXXX adaptor board1 APB123 AM29FXXX adaptor board2 APB126 M35080/D80 adaptor board APB127 MC68HC0(7)05BXX adaptor board APB128 MC68HC05X32 adaptor board

XP400 Pro Specifications: Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉) Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉) Port Type: B-USB, DB26, DC12 Input Voltage: 5 VDC, 12VDC Operating Current: < 500 mA Maximum Consumption: 2.5 W

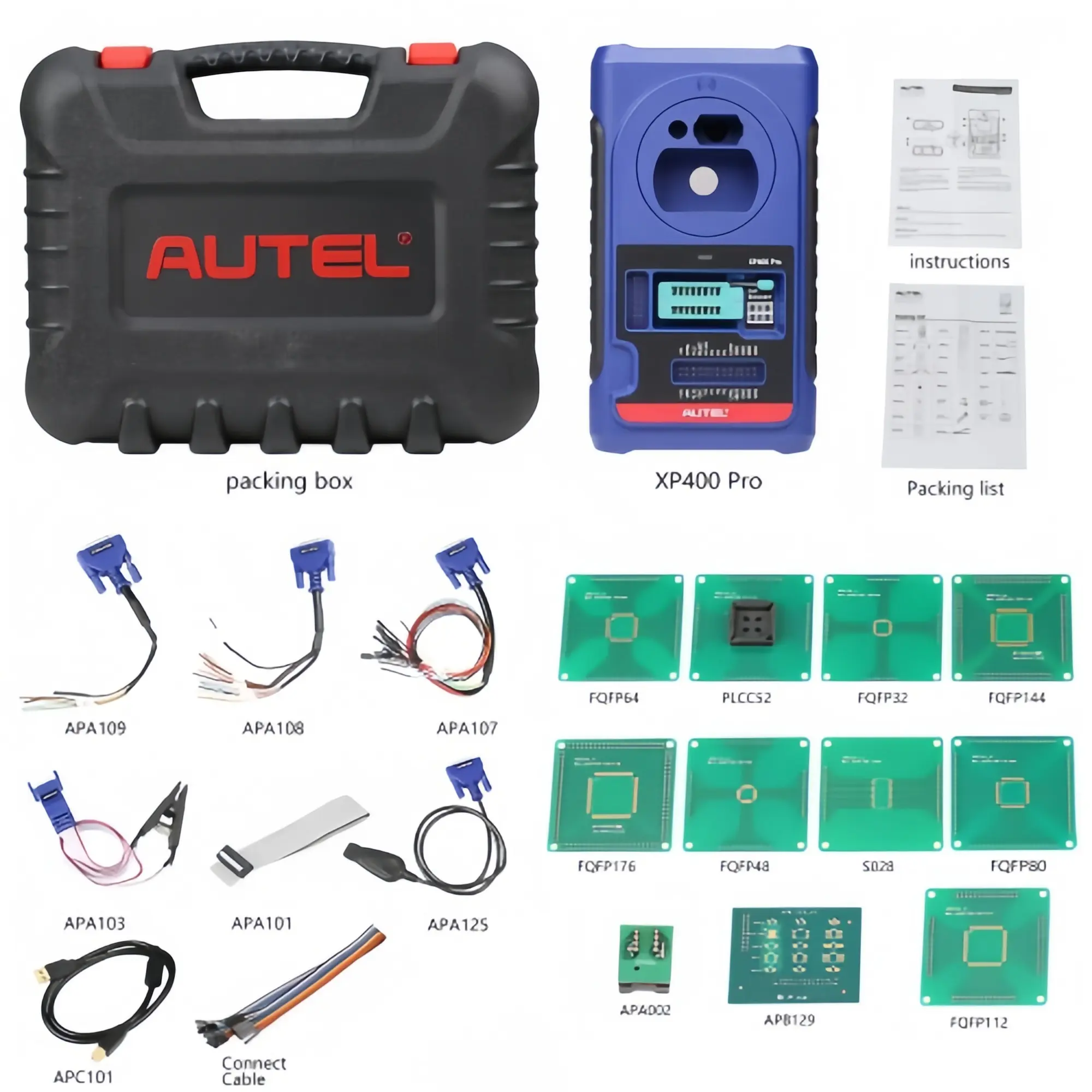

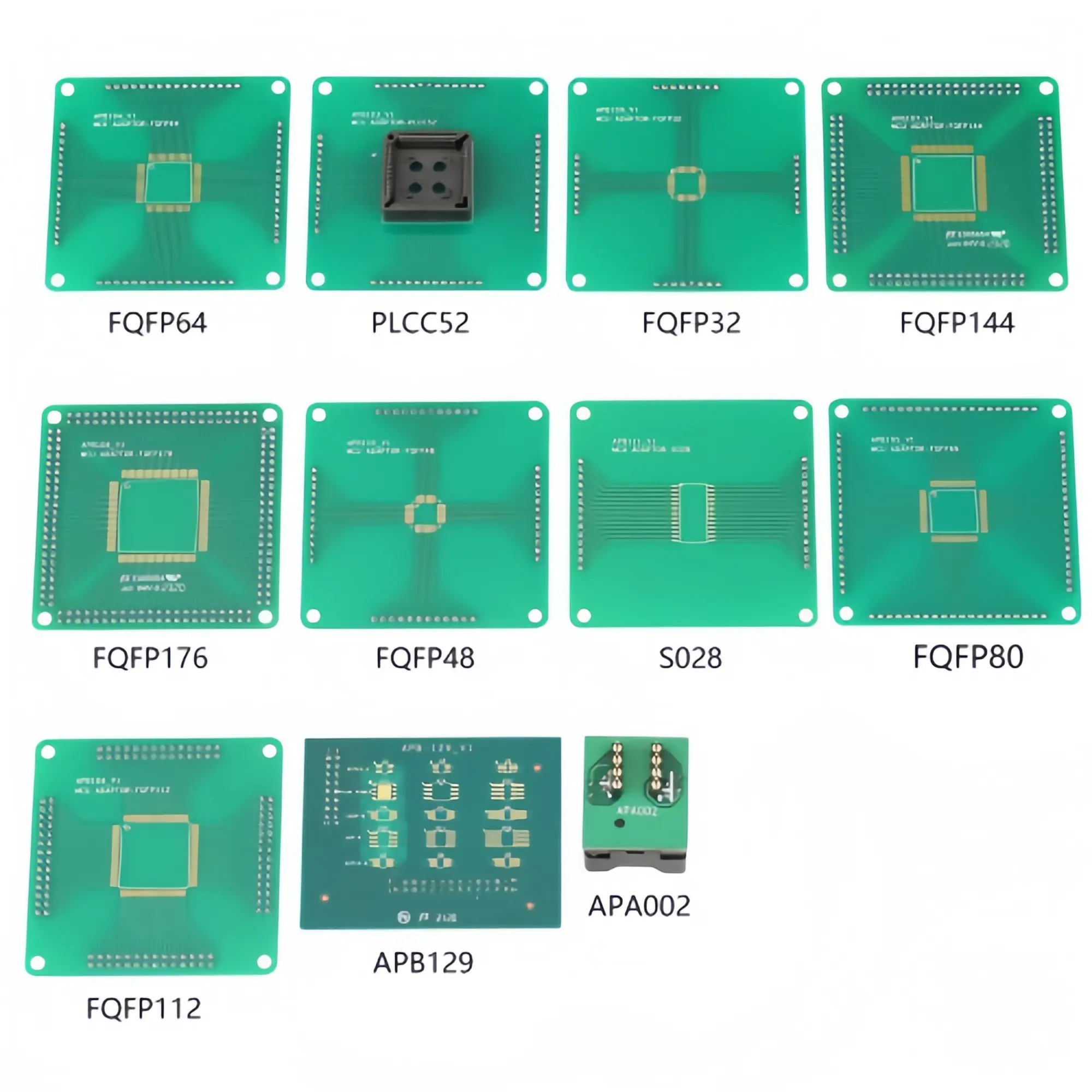

Package List: 1 x XP400 Pro Main Unit 1 x APB129 – EEPROM Adapter 1 x APA002 – EEPROM Socket 1 x APB125 – Mercedes Infrared Collector 1 x APB103 – MCU_PLCC52 Adapter 1 x APB104 – MCU_FQFP64 Adapter 1 x APB105 – MCU_FQFP80 Adapter 1 x APB106 – MCU_FQFP112 Adapter 1 x APB107 – MCU_FQFP144 Adapter 1 x APB108 – MCU_FQFP176 Adapter 1 x APB109 – MCU_FQFP32 Adapter 1 x APB110 – MCU_FQFP48 Adapter 1 x APB111 – MCU_SO28 Adapter 1 x APA101 – Spare Signal Cable 1 x APC101 – USB Cable (Standard USB –Type B USB) 1 x APA103 – EEPROM Clamp 1 x APA107 – ECU Cable 1 x APA108 – MCU Cable 1 x APA109 – MC9S12 Cable 1 x Dupont Line
