- ANCEL BM310 12V Car Battery Tester 6 LED Lights Display Battery Health Analyzer Digital Battery Detector
About this product
Product description
·12V Digital Battery Alternator Tester
·6 LED display lights
·Small and lightweight, convenient to carry.
·Improves driving safety

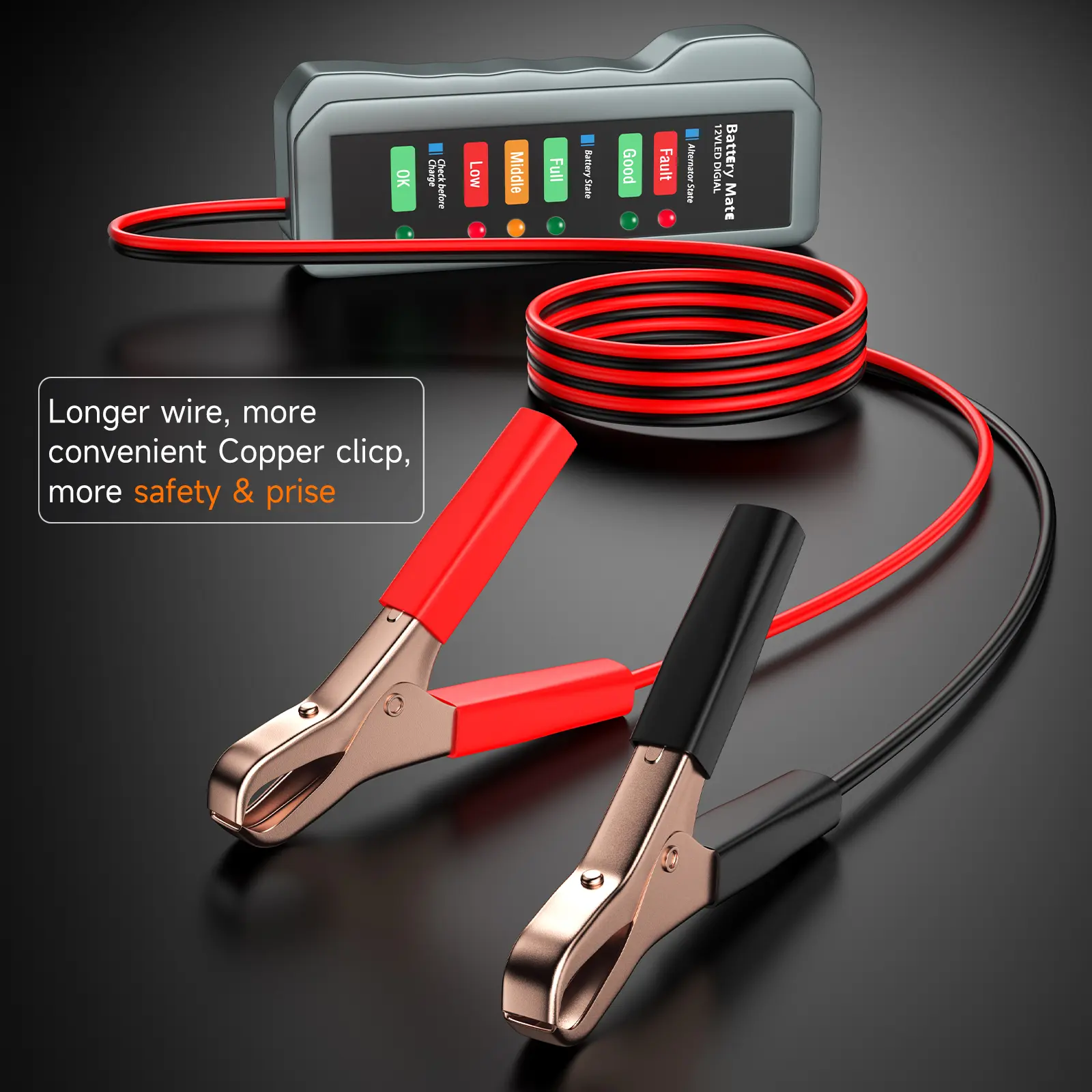

·Two test clips for safe and easy operation.
·Easy and safe to use, no sparks.
·With a high-quality chip inside, it does not overheat easily.
Description:
The 12V digital LED battery tester is a simple yet effective battery testing device that can determine the status of a battery. It is easy to use and understand.

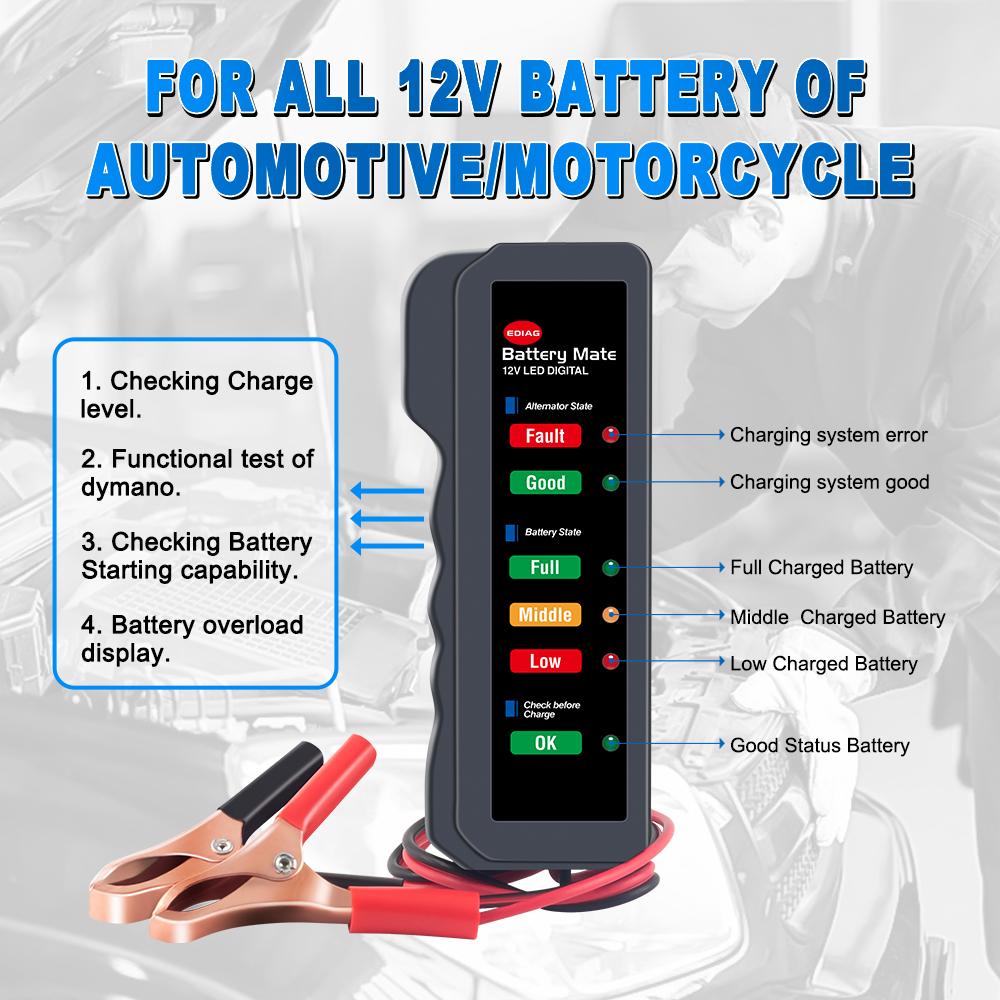

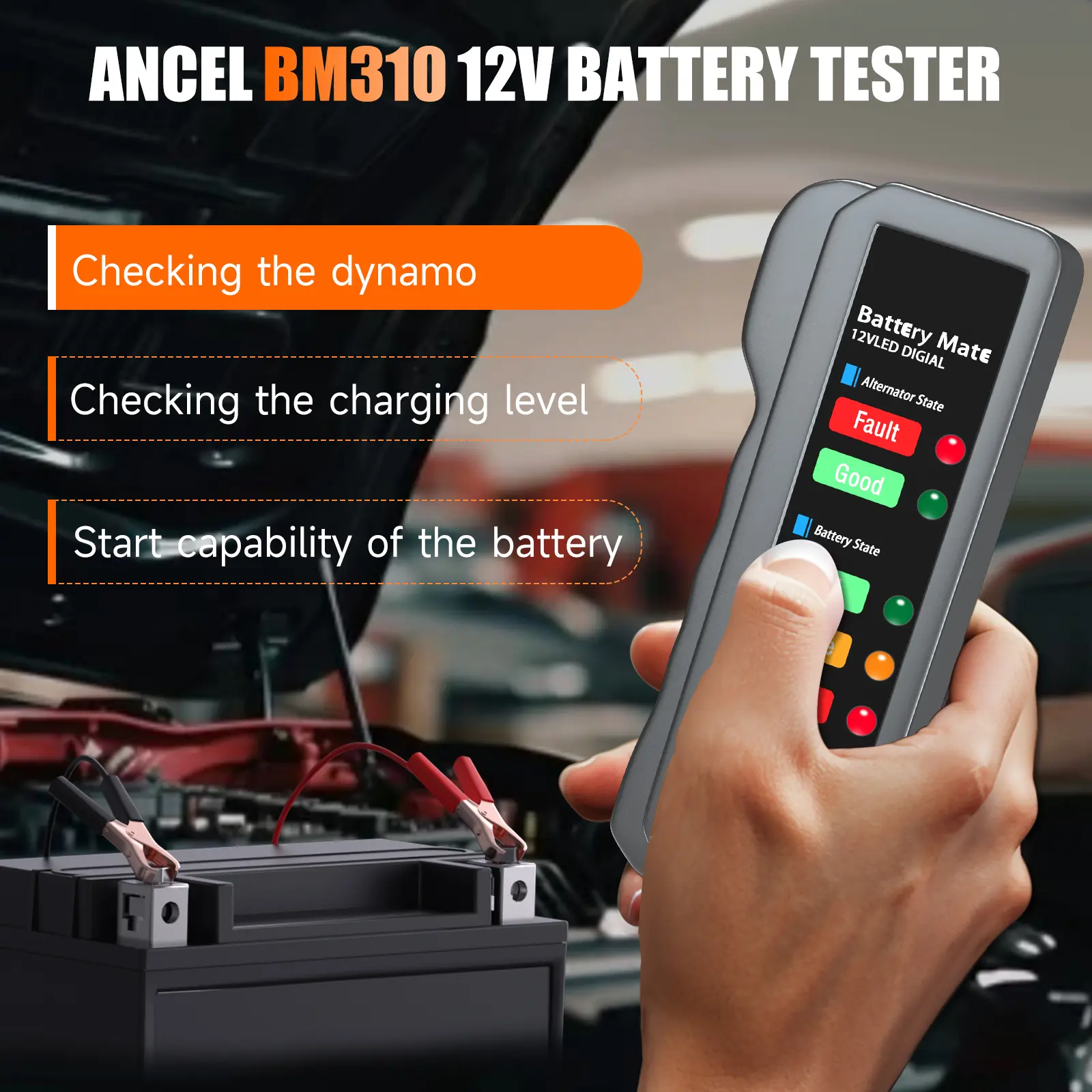

Main Functions:
1. Checking the charge level
2. Functional testing of the dynamo
3. Checking the battery's starting capability
4. Displaying battery overload

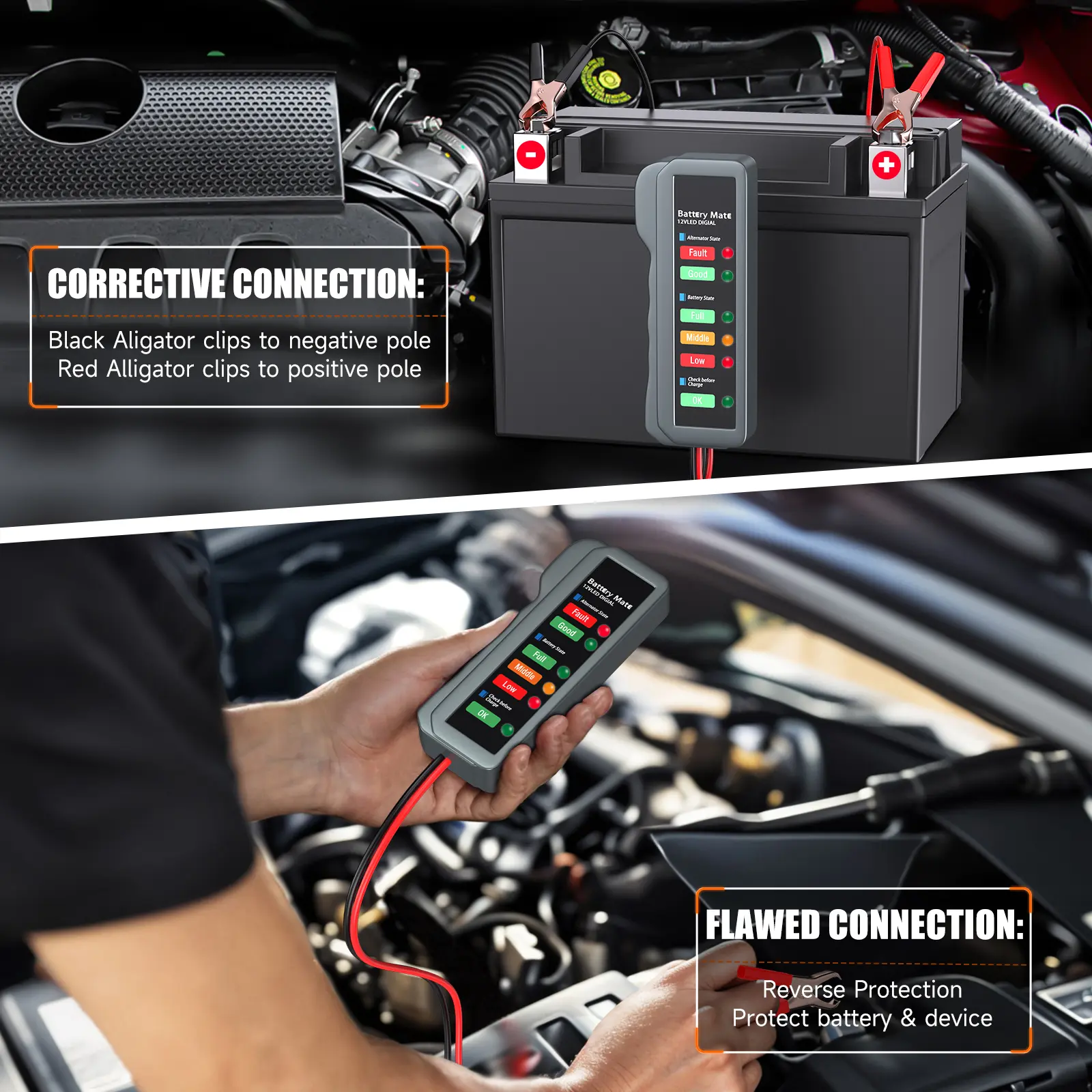

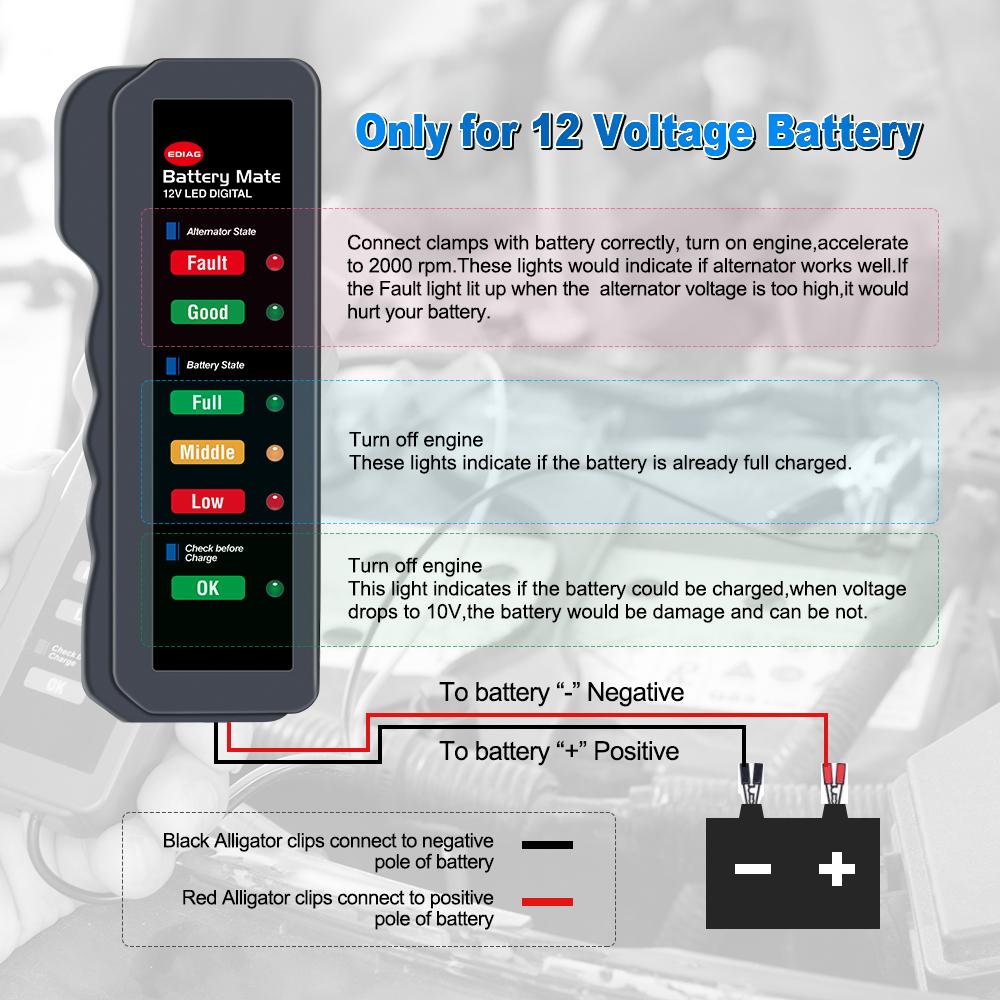

Connections:

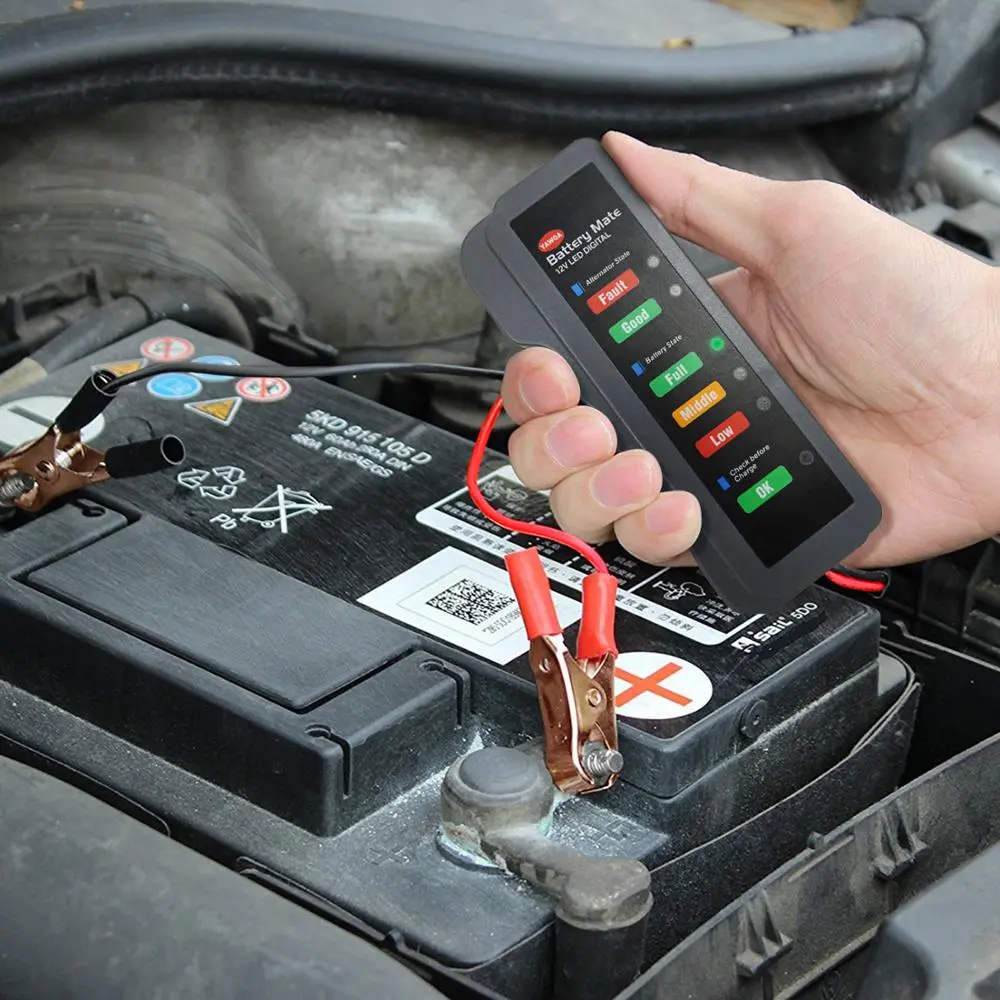

Connect the red cable clip to the positive (+) terminal of the battery and the black cable clip to the negative (-) terminal of the battery.

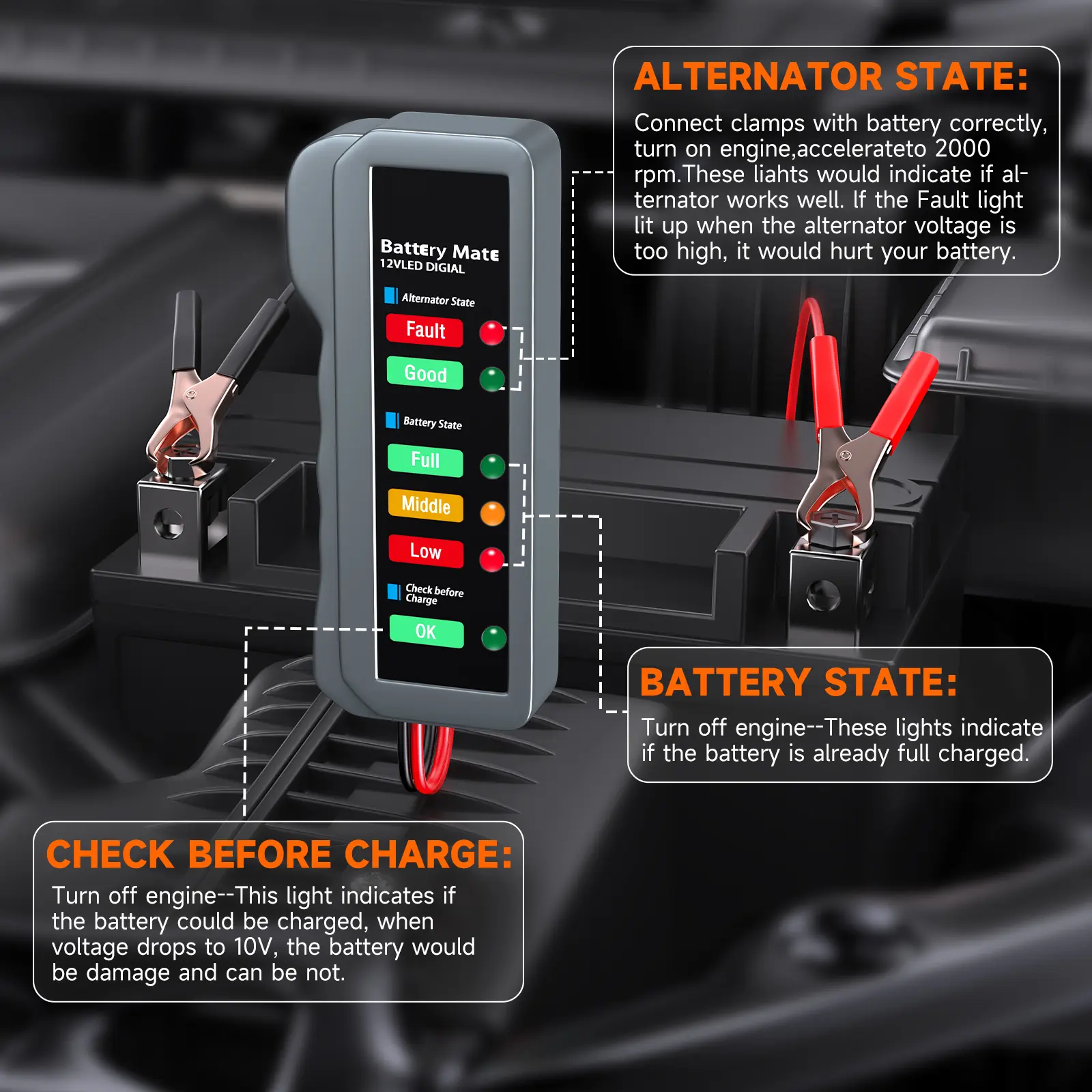

6 LED Lights:
Alternator status check
First light (red)
Second light (green)
Third light (green)
Battery status check
First light (yellow)
Second light (red)
Third light (green)

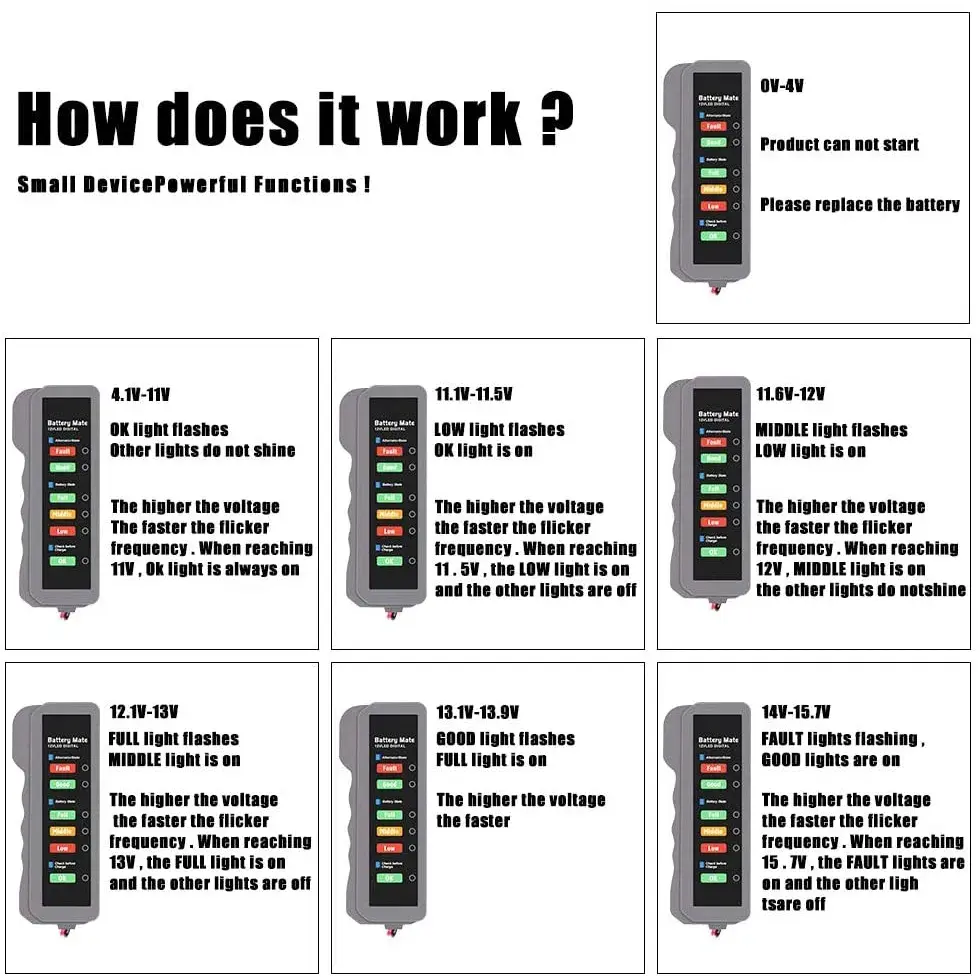

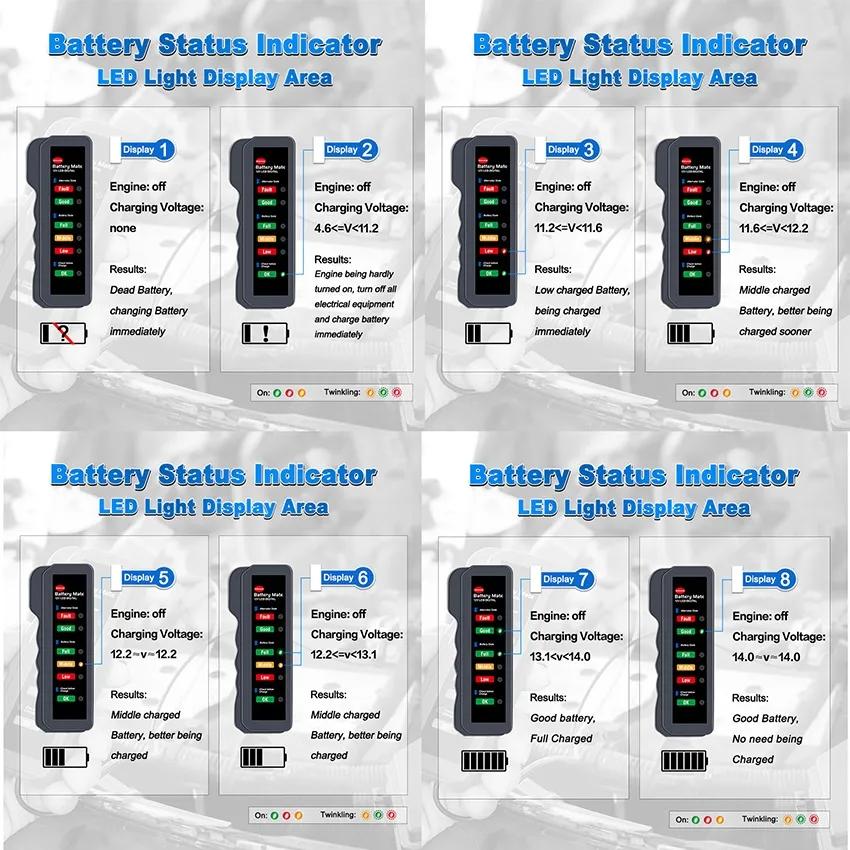

Different LED displays to indicate battery status
Display 1: All LEDs off; Test result: no charging voltage, battery dead
Display 2: ON LED flashing, other LEDs off; Test result: Charging voltage 4.6-11.2V, engine barely started, turn off all electrical equipment and charge the battery immediately.
Display 3: ON LED lit, LOW LED flashing; Test result: Charging voltage 11.2-11.6V, battery has low charge, charge immediately.
Display 4: LOW LED is on, MID LED is flashing; Test result: Charging voltage 11.6-12.2V, battery is moderately charged, it is better to charge it faster.
Display 5: MEDIUM light is on; Test result: Charging voltage 12.2V, battery is moderately charged, better to charge.
Display 6: MIDDLE LED lit, FULL LED flashing; Test result: Charging voltage 12.2-13.1V, battery is moderately charged, better to charge.
Display 7: FULL LED lit, GOOD LED flashing; Test result: Charging voltage 13.1-14V, Battery good, Fully charged.
Display 8: GOOD LED lit; Test result: Charging voltage 14V, Battery good, Fully charged.
Display 9: GOOD LED lit, Error LED flashing; Test result: Charging Voltage 14-16V, Battery may be damaged, Check machine and tester.
Display 10: FAULT lit; Test result: Charging Voltage above 16V, Battery damaged.
Specifications:
Number of LEDs: 6 (2 red, 3 green, and 1 yellow)
Wire material: Copper 0.06 square millimeters
Maximum voltage and current: 12V 15A

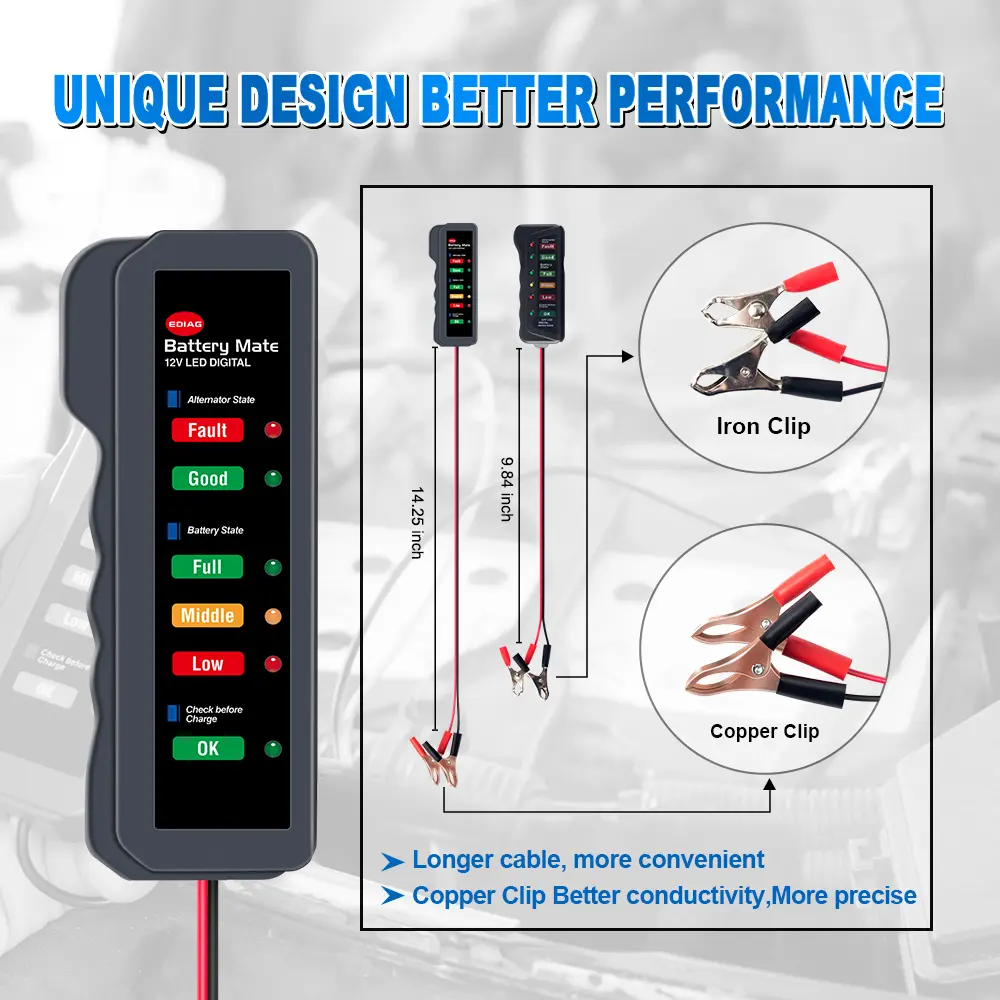

Wire length: 25cm / 9.84in
Battery tester dimensions: 12 x 5.2 x 1.8cm / 4.7 x 2 x 0.7in
Features: Portable
Function: Enhances driving safety
Material: Plastic, Copper
Color: Gray
