Description

SET SAIL

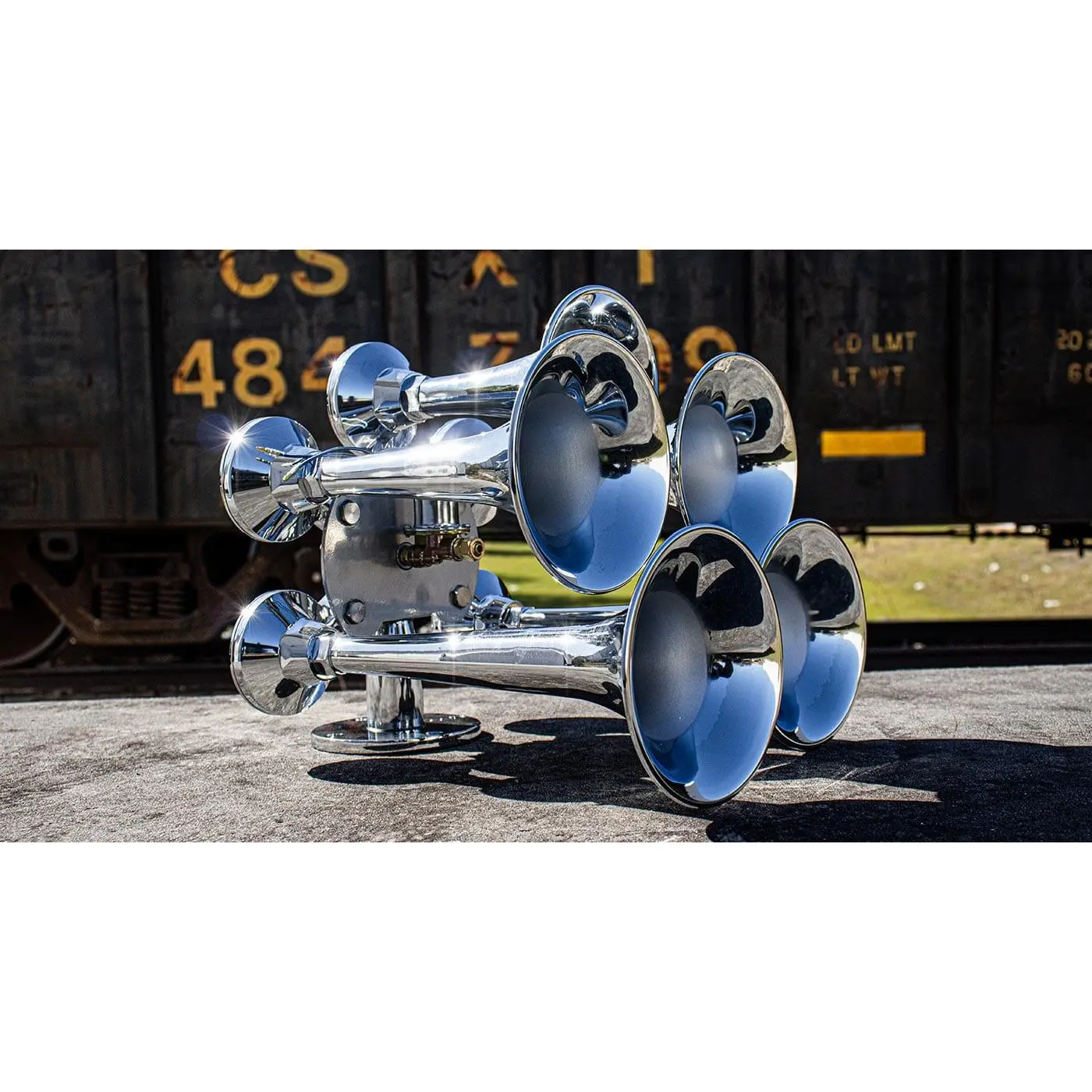

Make a bold statement with the Admiral 228H Train Horn Kit. Impress with its stunning chrome finish and powerful 5-chime train horn sound. Ideal for the road or high seas, this kit is designed to command respect. The brass train horn is paired with the beginner-friendly HornAir 228H air source unit. It is pre-plumbed and pre-wired for easy installation and provides 2 gallons of air for up to 5 seconds of continuous honk time. Get the complete kit with all required components and detailed instructions.

·Bold Aesthetics & Sound: The Admiral 228H boasts a lustrous chrome finish and delivers an authoritative 5-chime train horn blast, ensuring you stand out whether on land or sea.

·User-Friendly Installation: Pre-plumbed, pre-wired components and a pre-installed electric air valve make the setup of this kit hassle-free, even for beginners.

·Continuous Performance: Equipped with a 2-gallon air capacity, experience up to 5 seconds of uninterrupted, powerful honking.

·Complete Package: This all-inclusive train horn kit ensures you have every component needed for a seamless setup, complemented with detailed instructions.

·Sturdy & Resilient: Designed with a heavy-duty chrome finish, the Admiral is built for durability and to withstand various conditions.

(Note: Tank-mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

Videos

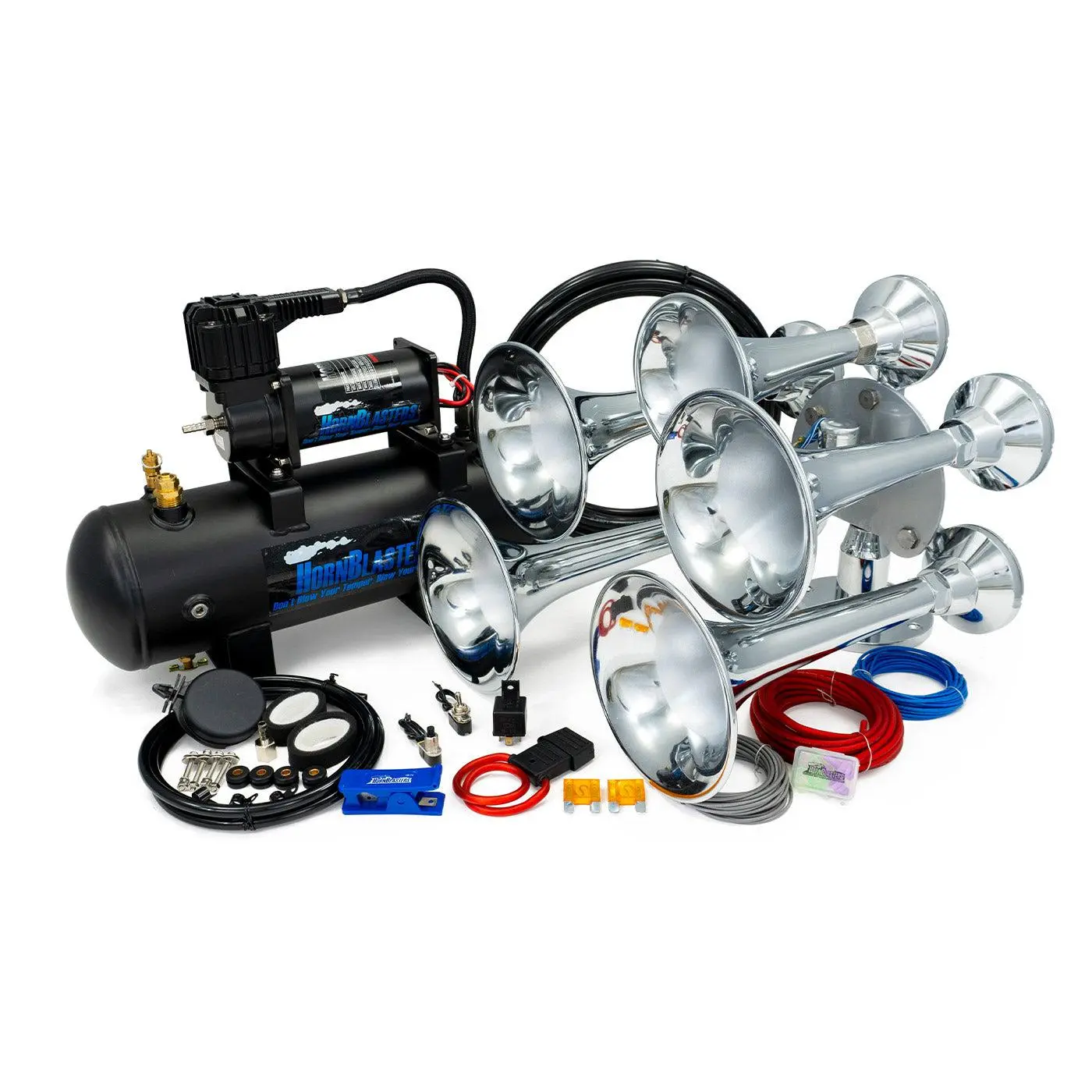

Includes

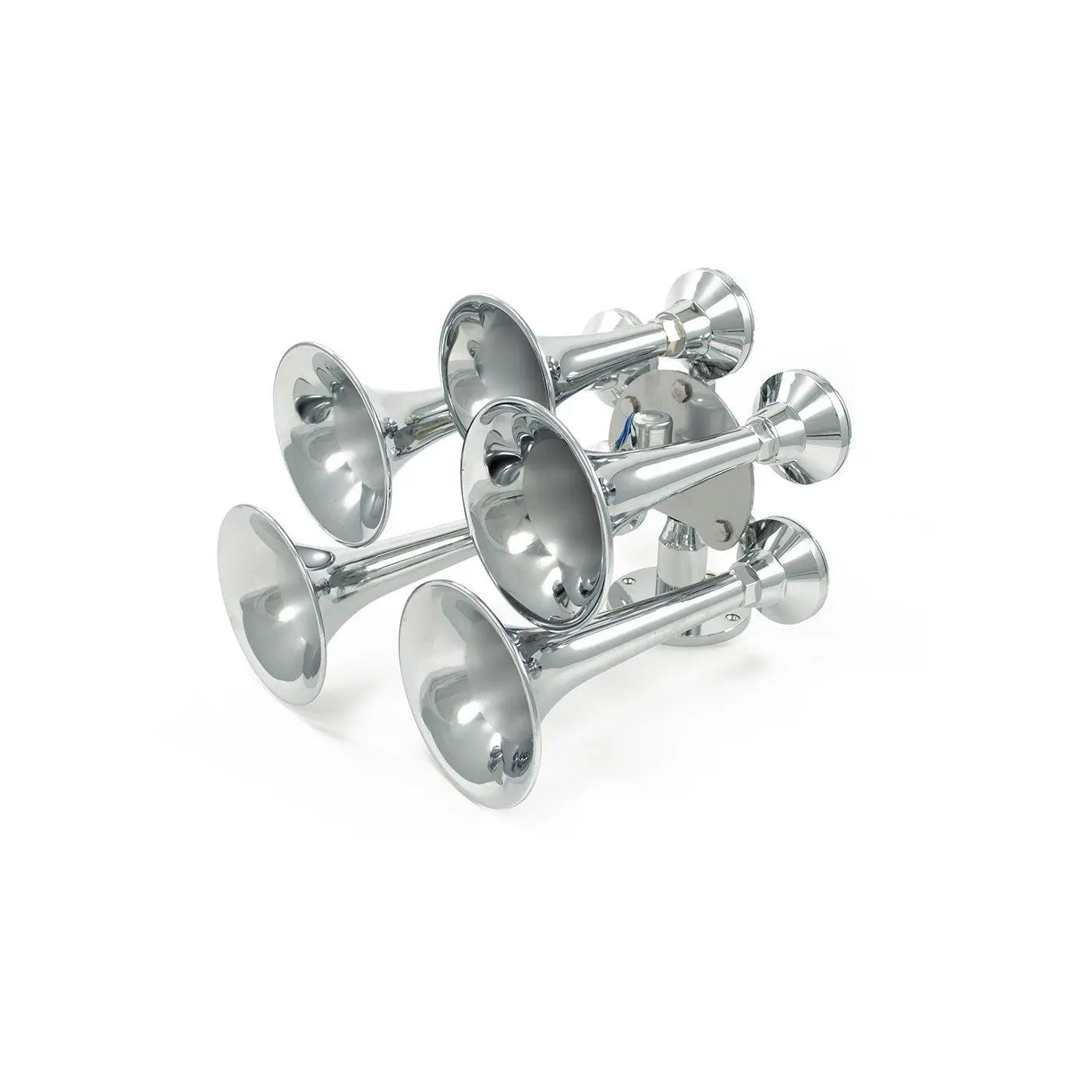

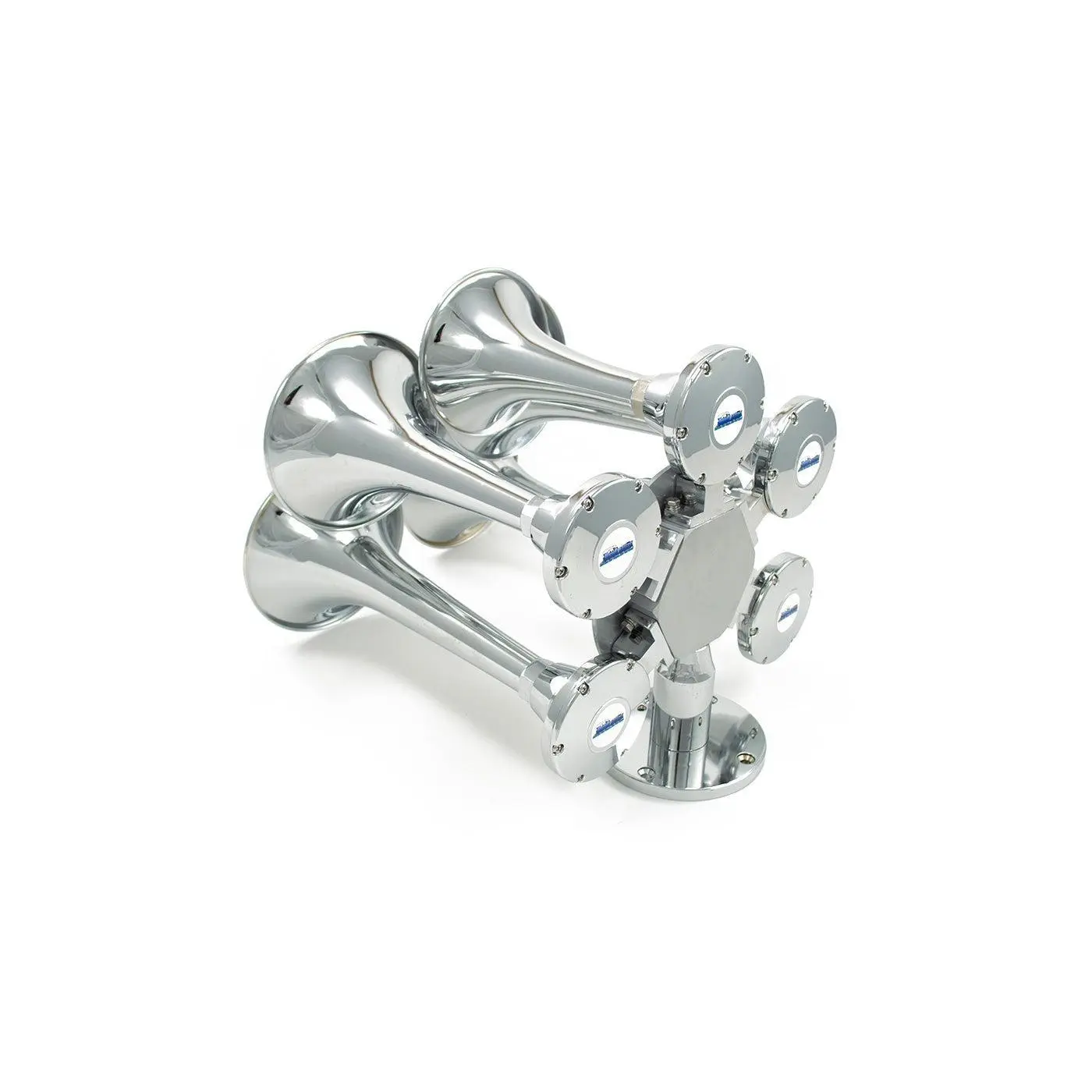

·Admiral chrome train horn

·HornBlasters 228H air source unit

·HORNBLASTERS 110/145 PSI PRESSURE SWITCH WITH LEADS

·Remote mountable intake filter assembly

·Spare air filter elements

·10ft 1/2" D.O.T. Approved air line

·6ft 3/8" air line (for intake)

·22ft of 10-gauge red wire

·22ft of 18-gauge blue wire

·22ft of 18-gauge grey wire

·Pre-installed 3/8" electric air valve

·Brass NPT fitting kit with a safety blow-off & drain cock

·Complete wiring kit with fuse holder & fuses

·Mounting hardware

·Detailed instructions

·Earplugs

Specifications / Fill Rates

·Part Number: HK-C5-228H

·Operating Pressure: 150 PSI

·Restart Pressure: 110 PSI

·Voltage: 12-Volt DC

·Horn: Admiral train horn

·Horn Air Inlet: 1/2" air line

·Horn Length: 17" (431.8 mm)

·Horn Width: 16" (406.4 mm)

·Horn Height: 15.5" (393.7 mm)

·Horn Weight: 19.8 lb (8.98 Kg)

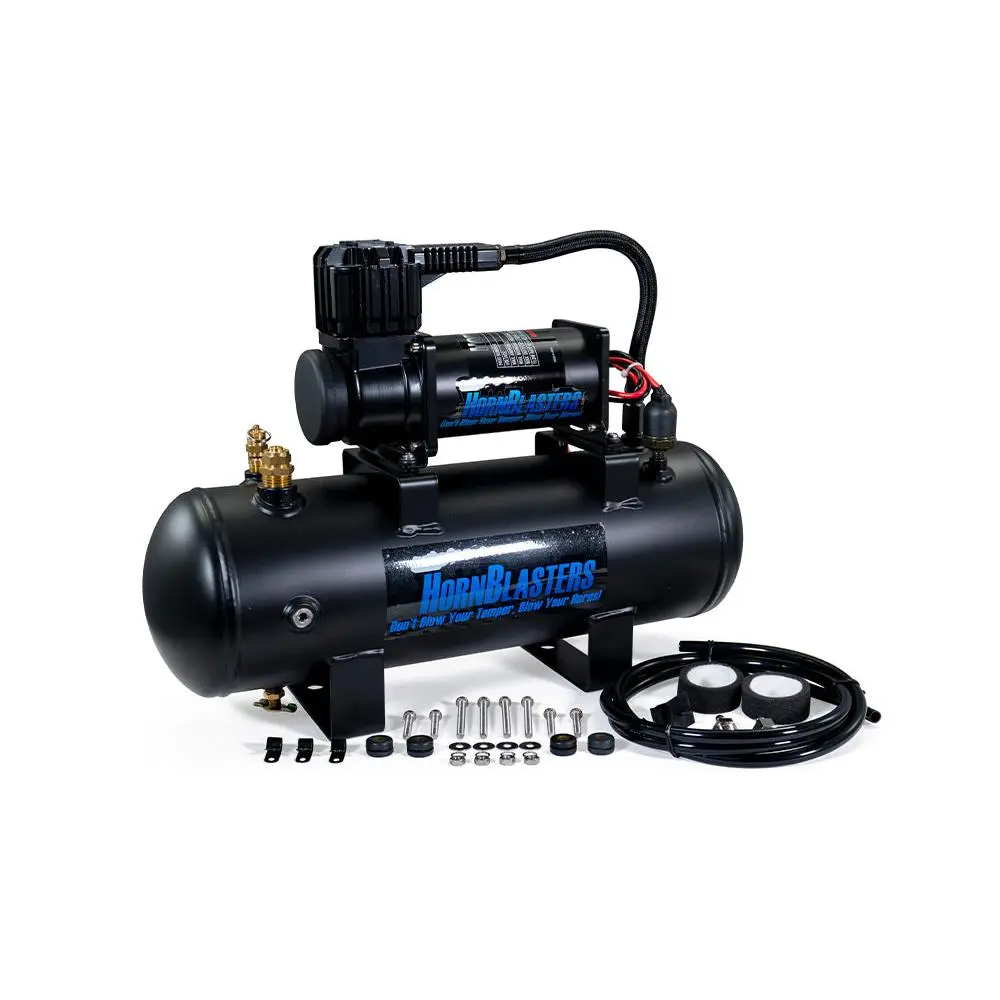

·Air Source Unit: HornBlasters 228H air source unit

·Working Pressure: 150 PSI

·Air Source Length: 18.9″ (480.6 mm)

·Air Source Width: 5.9″ (149.86 mm)

·Air Source Height: 13.7″ (347.98 mm)

·Air Source Weight: 17.15 lb (7.78 Kg)

·Air Source Kit Tank: 2-gallon 5 port air tank

·Volume: 2 Gal (8.8 L)

·Air Source Kit Compressor: HB-2 air compressor

·Max Amperage: 19 amps

·Maximum Duty Cycle: 30% @ 100 PSI

* Supply Voltage: 13.8 Volts

Diagrams & Manuals

·HornAir 228H air source unit manual

·HornAir 228H air source dimensional drawing

·HornBlasters Admiral 228H instruction manual
