Product Description

1. Overview

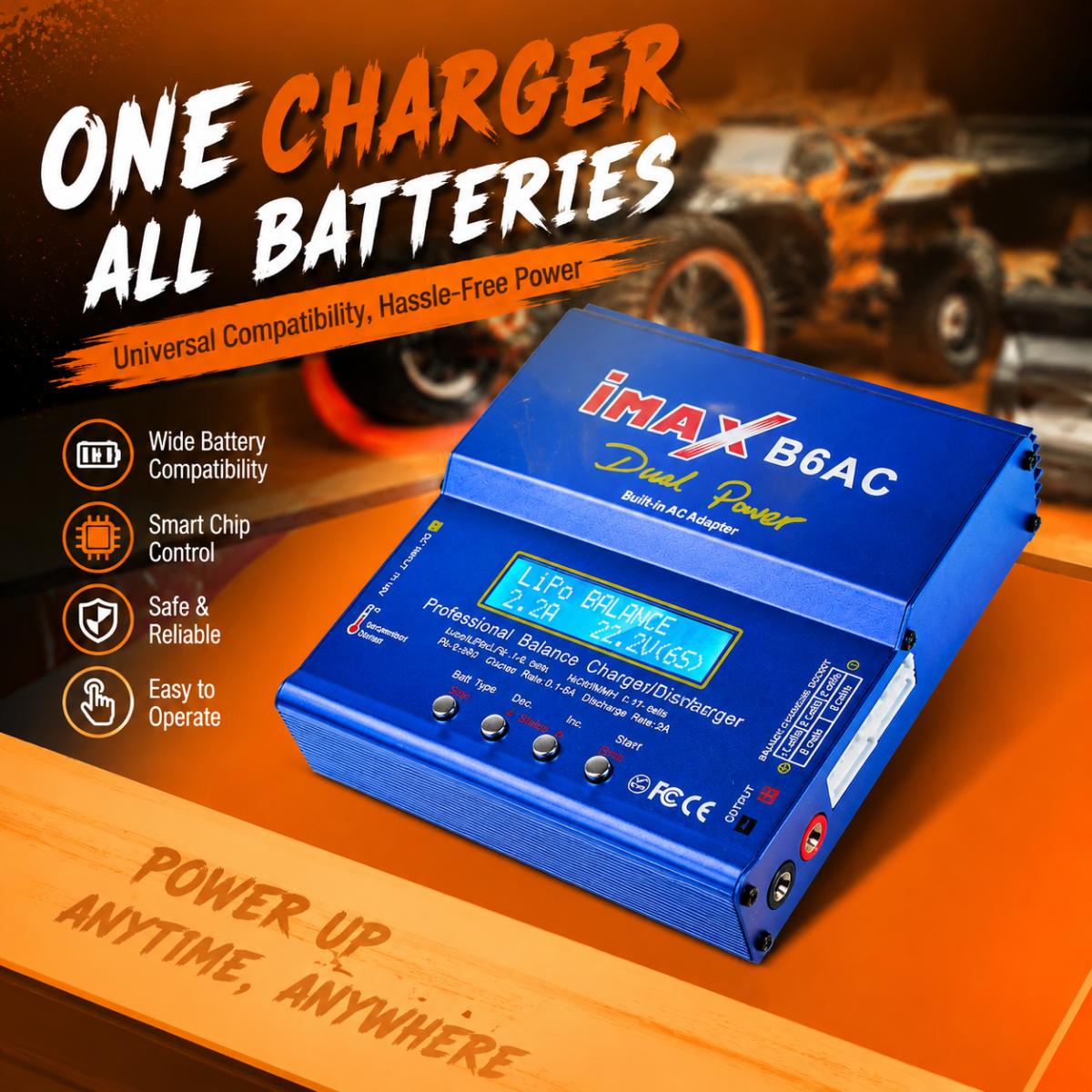

This professional-grade balance manager is designed for hobbyists and routine maintenance tasks. Powered by a microprocessor control system, it delivers precise voltage balancing and regulation for various types of series-connected units. The built-in AC conversion module eliminates the need for bulky external transformers, keeping your workspace tidy and portable.

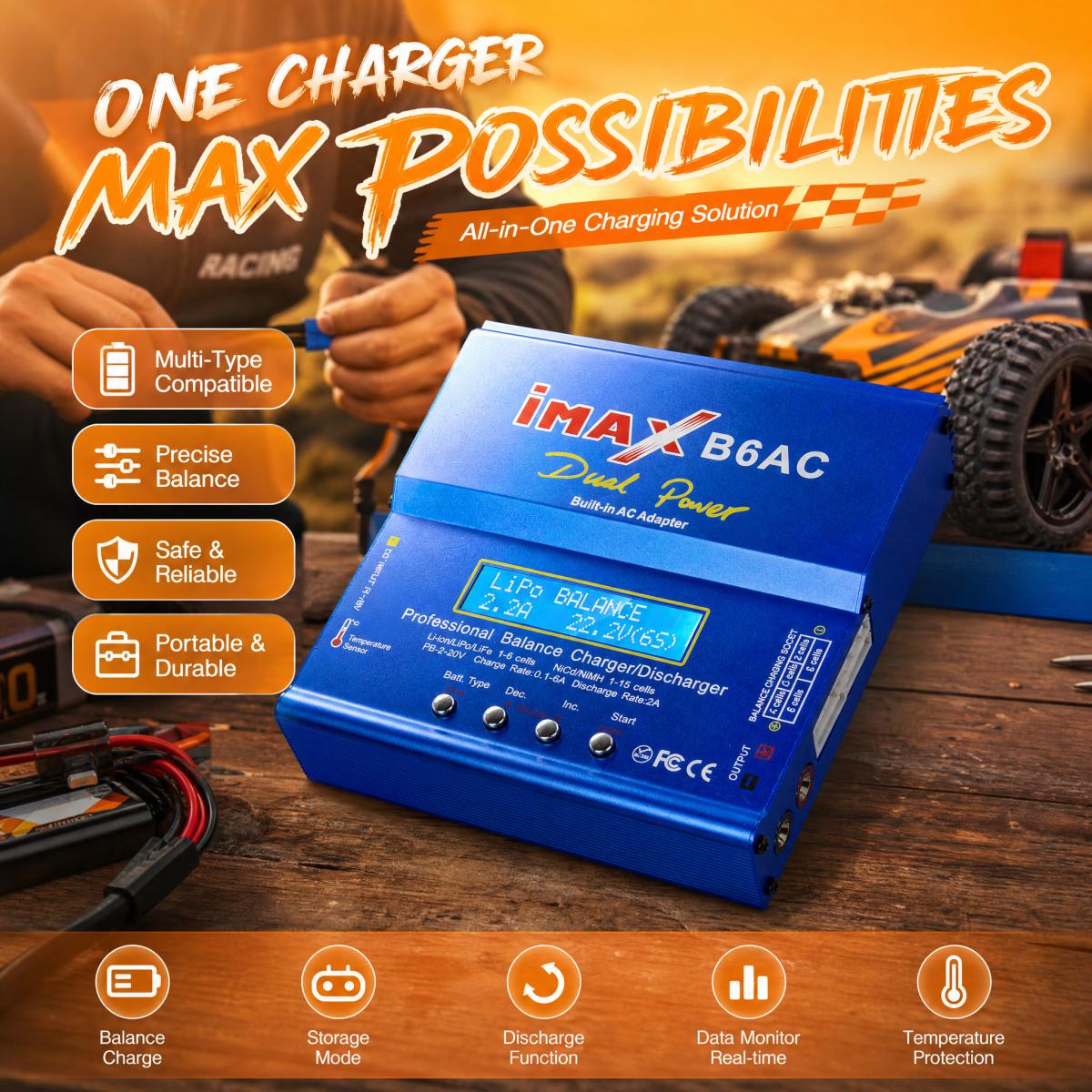

2. Key Performance Features

• Precise Adjustment – Output current up to 5.0A, with step-by-step fine-tuning to suit different configurations (LiPo/Li-ion/LiFe: 1–6 cells; NiCd/NiMH: 1–15 cells).

• Multiple Safety Protections – Built-in over-time, over-temperature, and reverse-polarity safeguards. An external temperature sensor port allows real-time monitoring – the system automatically pauses if any abnormality is detected.

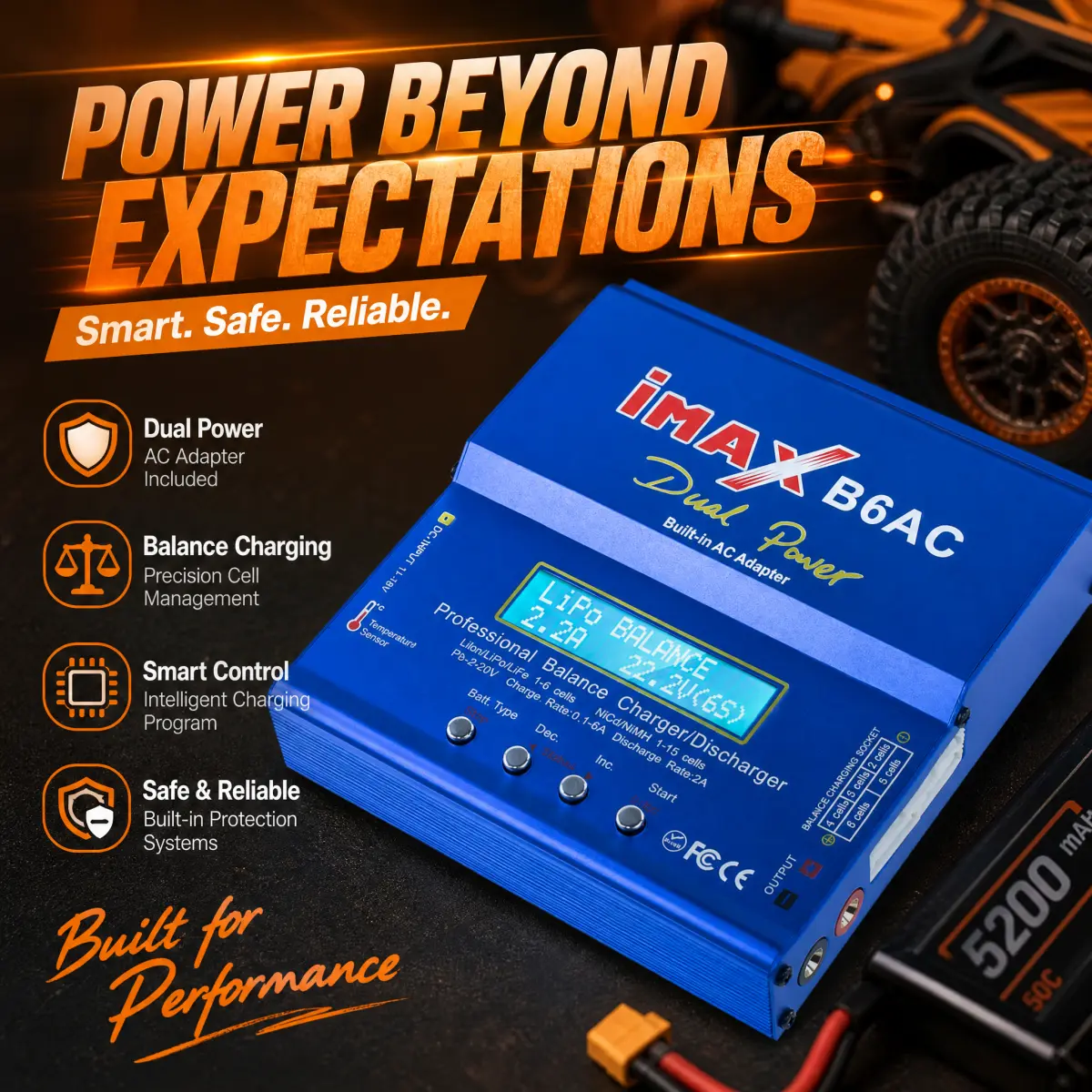

• Dual-Power Ready – Supports both DC input and the built-in AC module, making it flexible for fixed stations or mobile use without relying on specific regional power standards.

• User-Friendly Interface – 4 status LEDs plus Inc./Dec. buttons for easy parameter setting; a large Enter key confirms each step with confidence.

3. Wide Applications

Ideal for maintaining aircraft, car, and boat models, as well as balancing series-connected packs in workshops, garages, or outdoor test sites.

4. Durability & Reliability

Optimized thermal design and aged internal components ensure consistent performance over long-term use. The impact-resistant casing and long-life buttons are built for frequent operation.

uick Start Guide (Easy Setup)

Pre-Connection Check

Place the unit on a stable, well-ventilated surface.

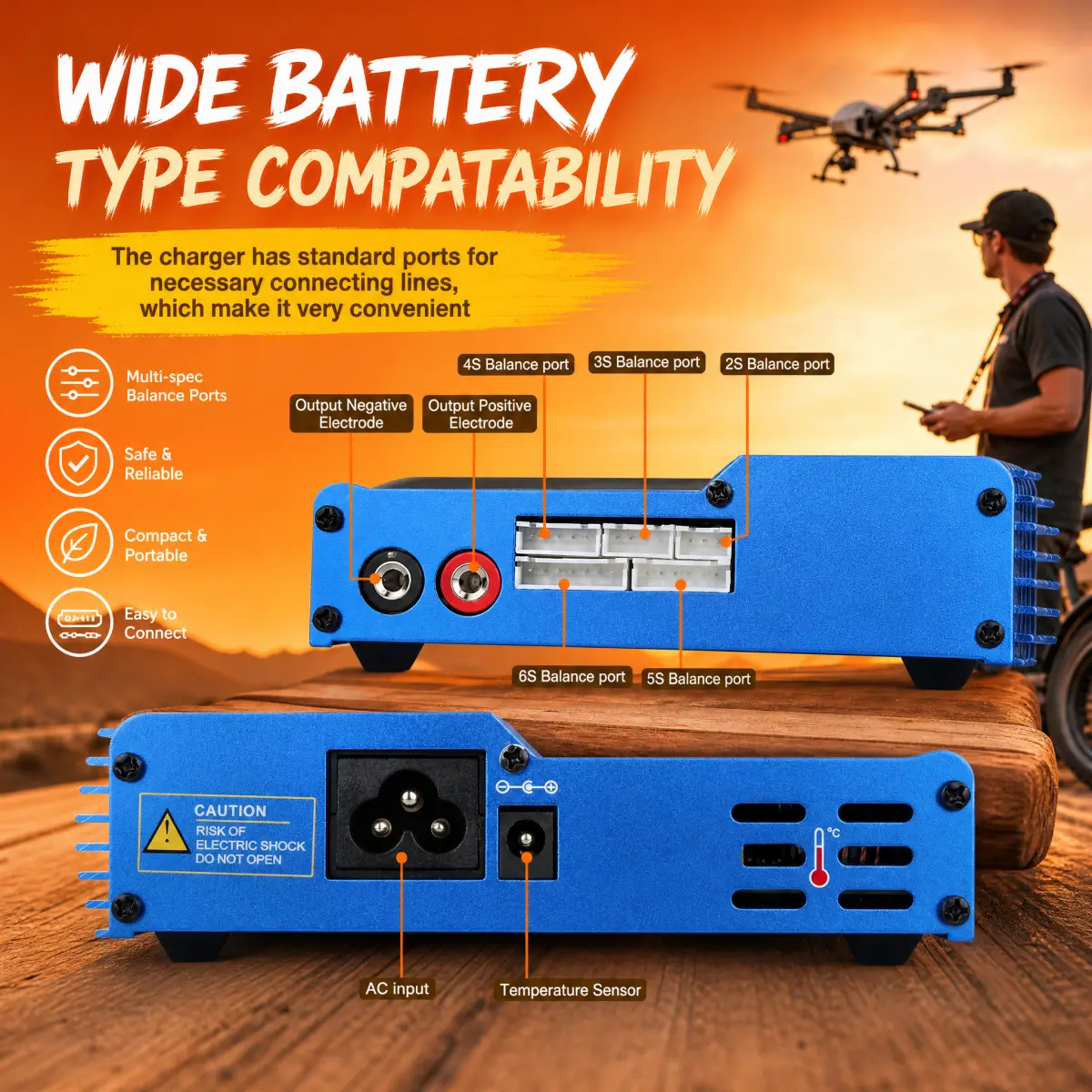

Connect the red/black terminals of your series-connected unit to the corresponding output ports on the manager (red-to-red, black-to-black).

Power On

Connect the supplied AC power cord to the rear inlet and then to a wall outlet (accepts 100–240V wide range).

The display lights up – the unit enters standby mode.

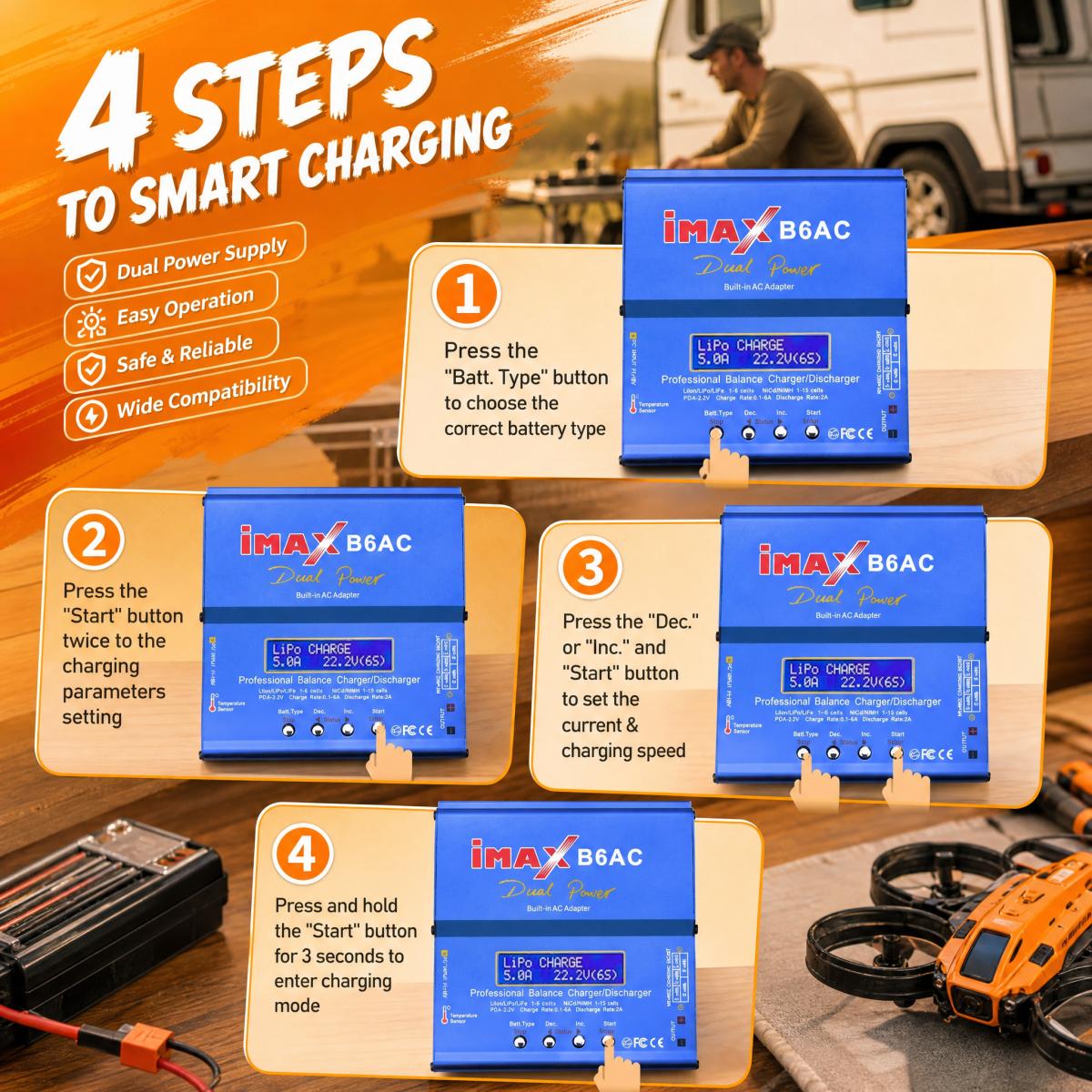

Parameter Setting

Press Batt Type repeatedly to select your unit type (e.g., LiPo, NiMH).

Use Dec. or Inc. to adjust the target voltage or current value (maximum settable: 5.0A).

Press and hold the Start button for 2 seconds – the balancing process begins automatically.

Monitoring During Operation

Observe the 4 status LEDs:

Green flashing – normal operation

Yellow fast flash – parameter confirmation in progress

Red solid – abnormality detected (press Enter immediately to pause and check connections)

For real-time temperature tracking, attach the optional temperature sensor to the surface of your unit and plug it into the sensor port.

Finish & Disconnect

When the process completes, the unit returns to standby with a solid green LED.

Always remove the output clips from your unit first, then unplug the AC power cord.
