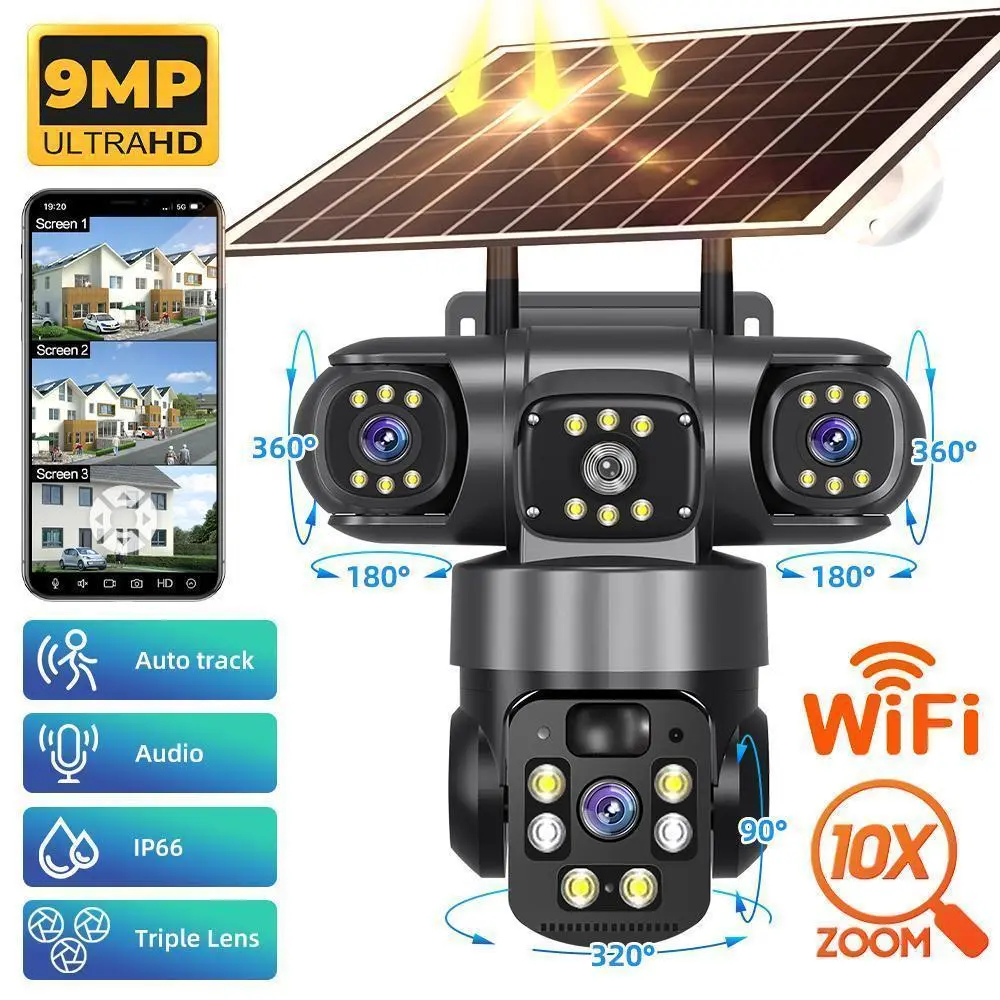

Q203
Product Specifications
Product List: Camera + Bracket *1 + Solar Panel with Extension Cable *1 + Installation Kit *1 + Instruction Manual *1
APP: v380
Product Specifications:
Sensor Type: 1/2.9" Progressive Scan CMOS
Illumination: Color: 0.1Lux@(F2.0, AGC ON), 0 Lux with Light
Lens: 4.0mm F1.6, Field of View: 110°5°; 4.0mm F1.6, Field of View: 110°5°
Shutter Speed: 1/3s ~ 1/100,000s
Day/Night Switching Mode: ICR Infrared Filter Type
Wide Dynamic Range: Supports Digital Wide Dynamic Range
Image:
Pixels: 3MP+3MP+3MP
Image Size: Main Stream: 1920x2160; Sub Stream: 640x720
Tilting Rate: 5fps
Image Settings: Supports Image Inversion
Image Enhancement: 3D Digital noise reduction, strong light suppression, digital wide dynamic range
Compression Standards:
Video Compression Standard: H.265 AVI
Video Compression Bitrate: 32Kbps~1.5Mbps, adaptive bitrate
Audio Compression Standard: AAC
Audio Compression Bitrate: 8kbps
Interfaces and Functions:

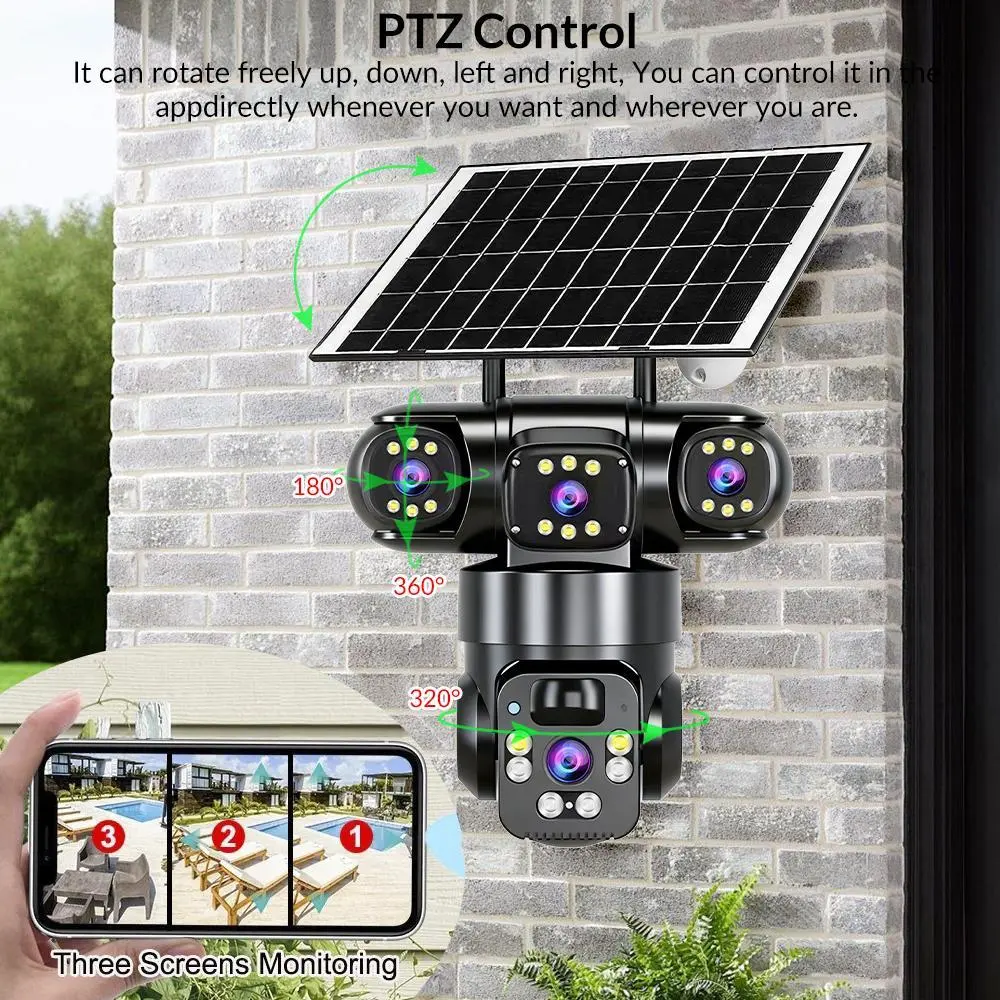

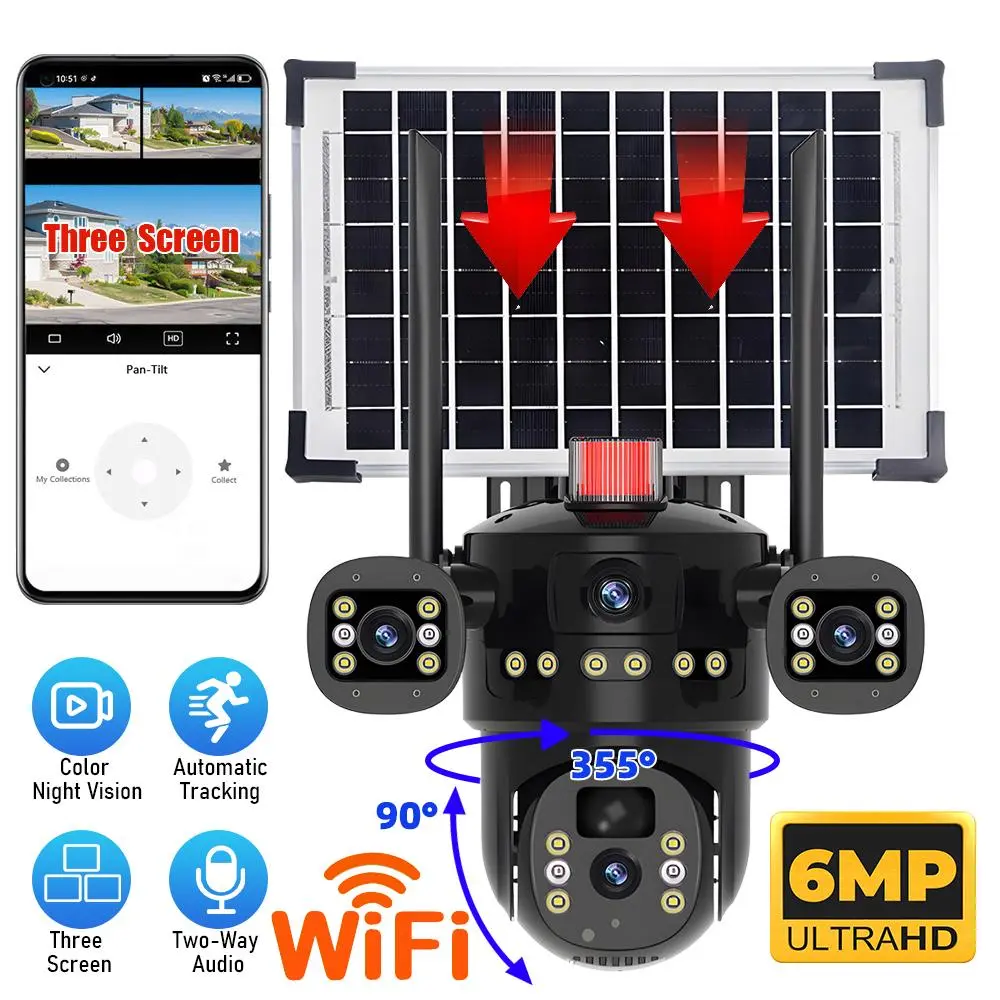

PTZ Control: Horizontal: 355°, Vertical: 90°
Communication Interface: WiFi wireless transmission (supports 2.4GHz)
Audio Interface: Built-in 1 microphone, 1 speaker
General Functions: NTP time synchronization, time watermark, supports Micro SD card (128G) local storage recording, supports cloud services
Anomaly Detection: Motion detection, motion tracking, human detection
Factory Reset: Device reset

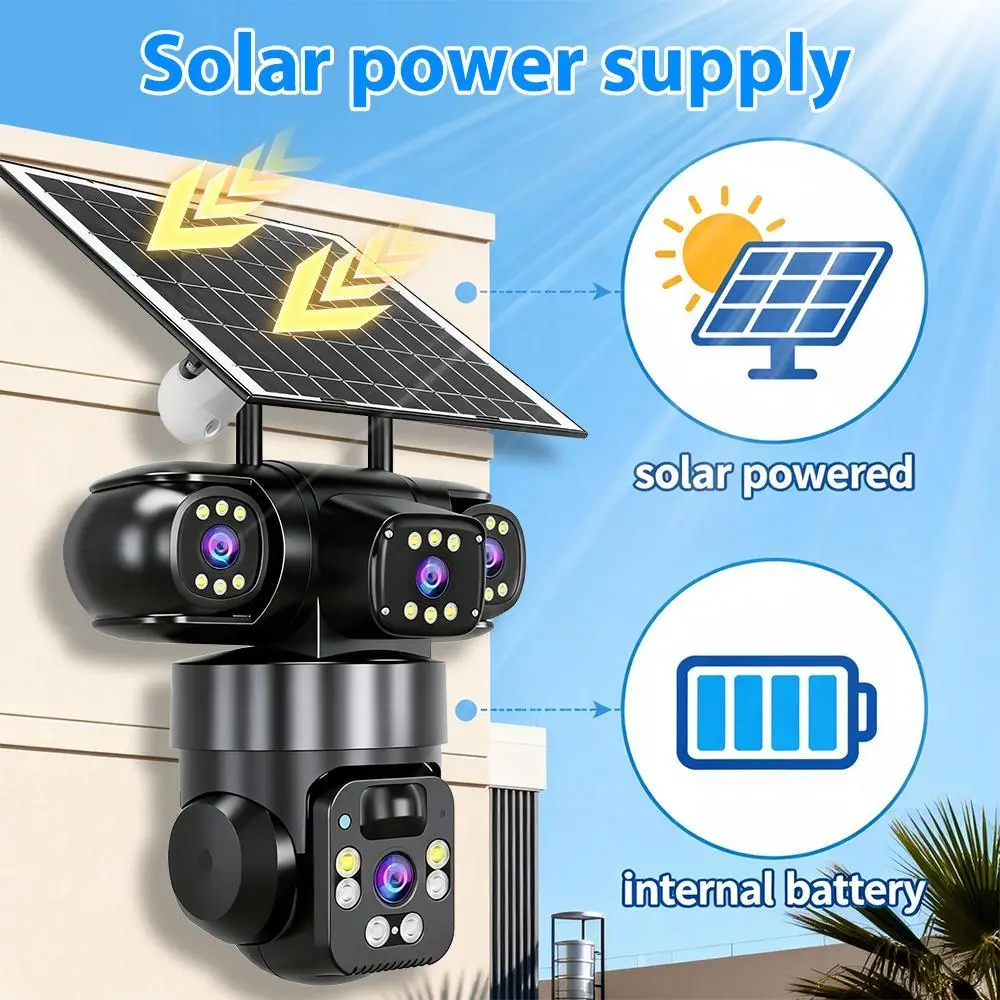

Others: Power Supply: Photovoltaic cell power/DC 5V/2A (max)
Power Consumption: Approximately 5W in operating mode
Photovoltaic Panel: 7W
Zoom: 10x electronic zoom
Operating Environment Adaptability: Operating Temperature: -10℃~+50℃; Operating Humidity: Relative Humidity ≤75%
Supplemental Light: Bullet Camera: 4 infrared white LED integrated beads; PTZ Camera: 4 infrared LEDs + 4 white LEDs

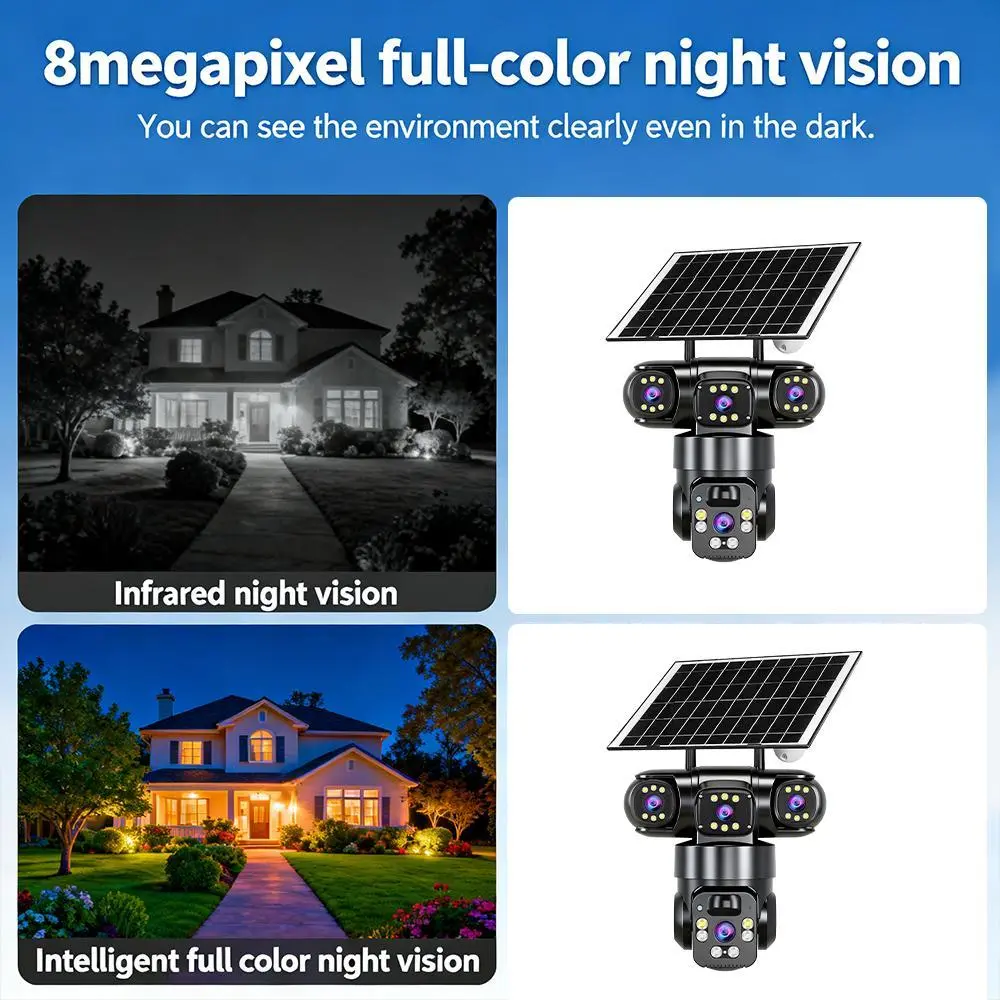

Night Vision Distance: Infrared supplemental lighting 10m~15m (depending on specific environment)
Battery Capacity: 8000mAh
