NOTE: The LED indicator light on the remote control is red in the video, but it is actually blue,

don't worry, the functionality is the same

Specifications

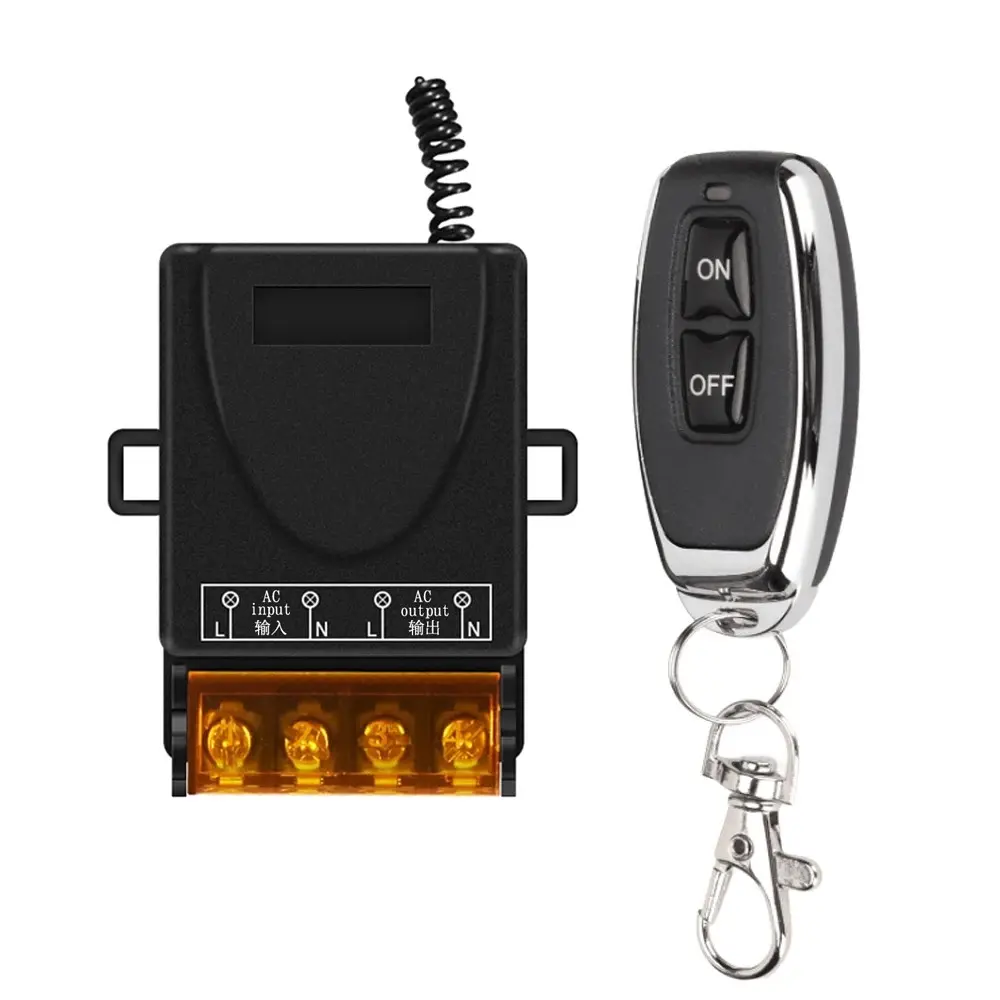

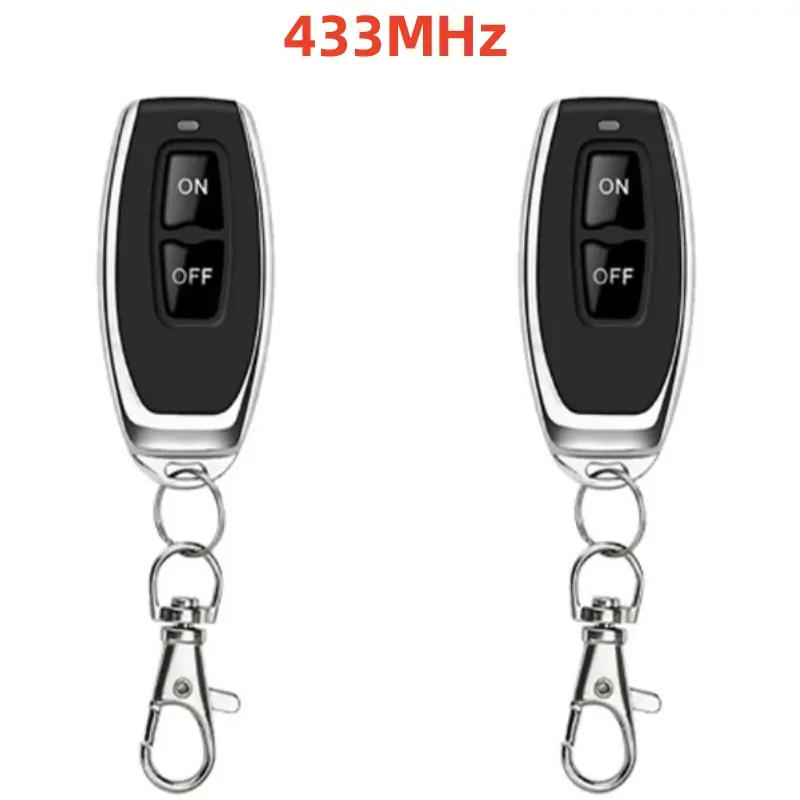

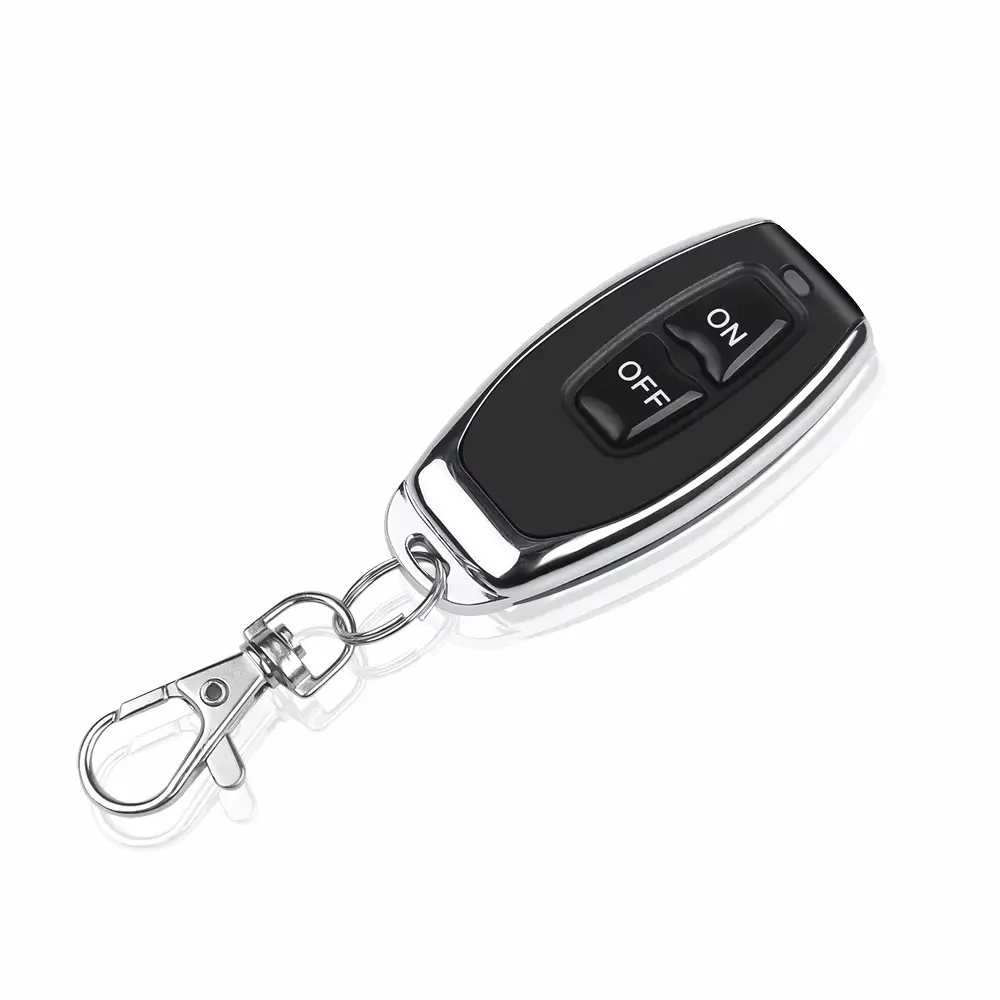

Remote control Transmitter

Operating voltage: DC12V (23A/12V battery x1)

Transmitting frequency: 433MHz

Encoding Type: Fixed code

Receiver sensitivity: > -105dB

Transmission distance : 100M (Open field)

Size: approx 55*28*10mm

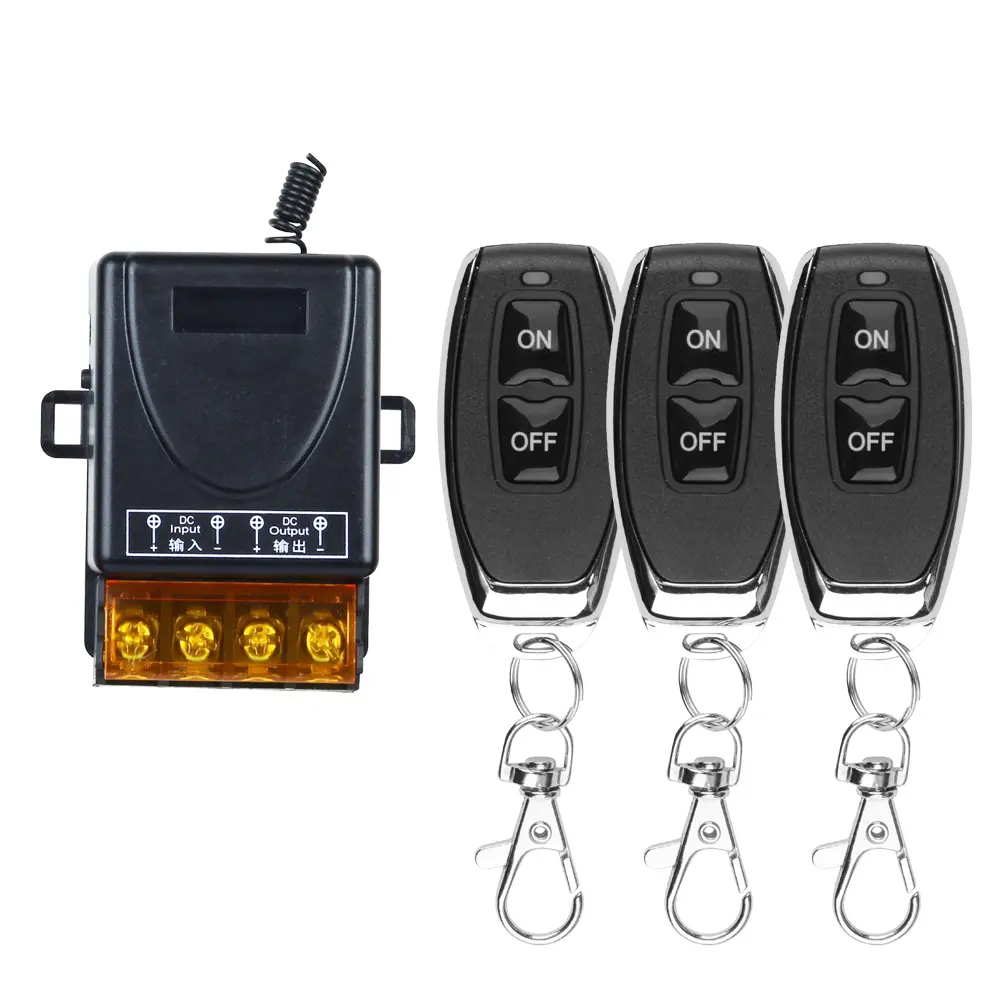

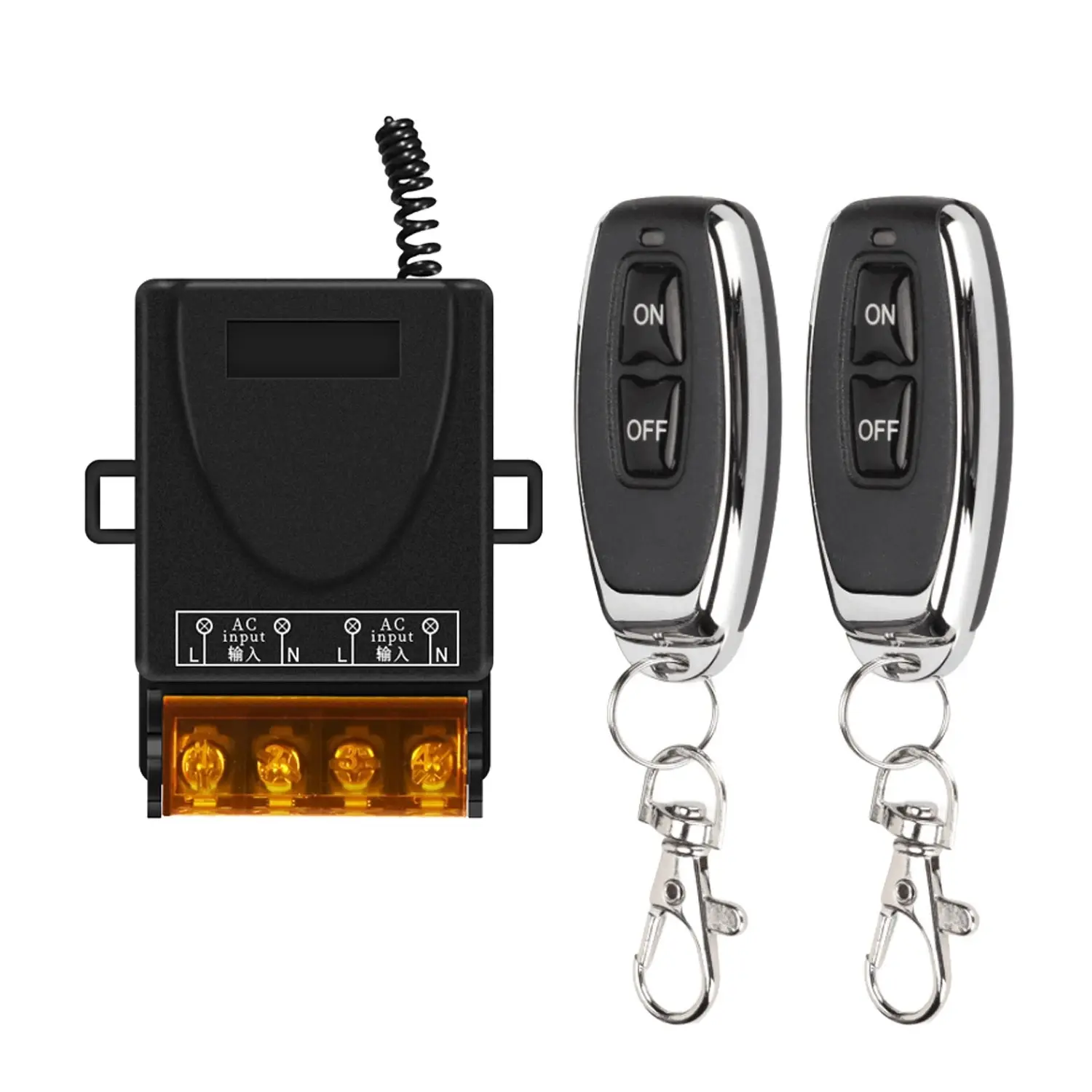

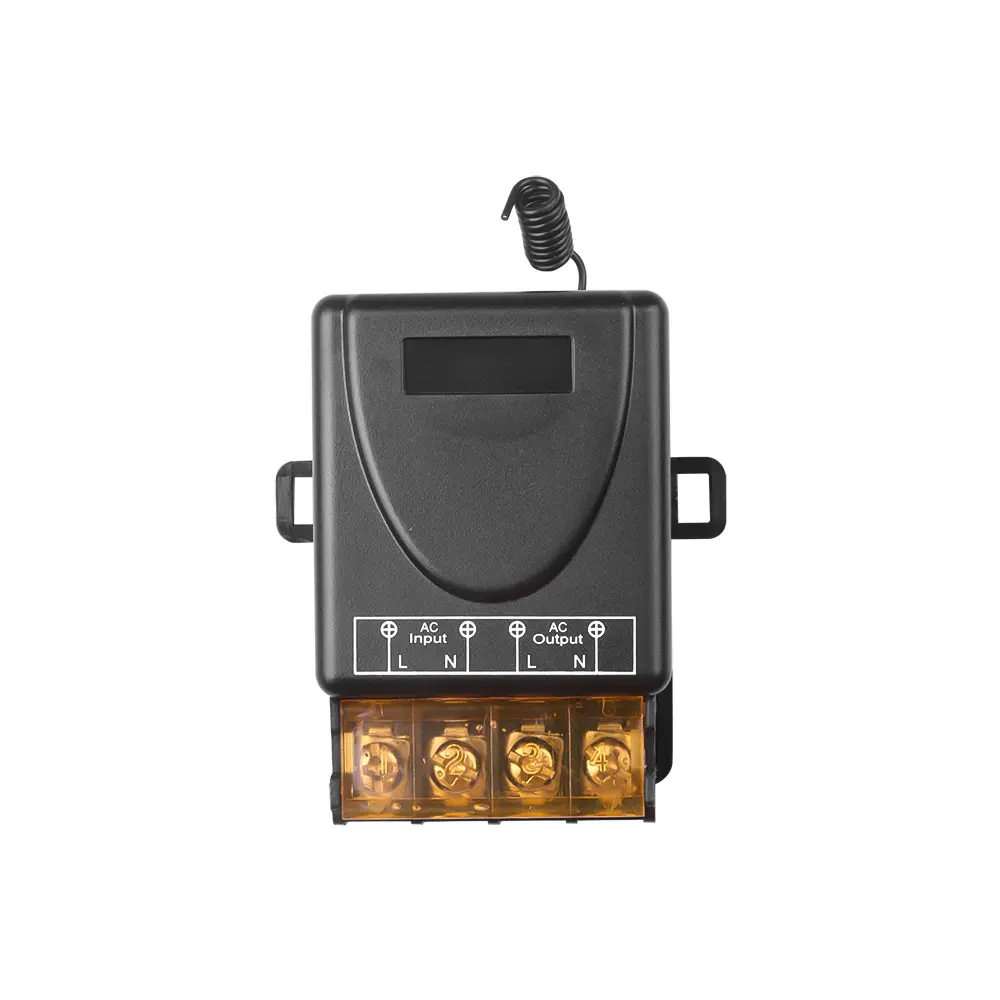

Specifications Of The Receiver:

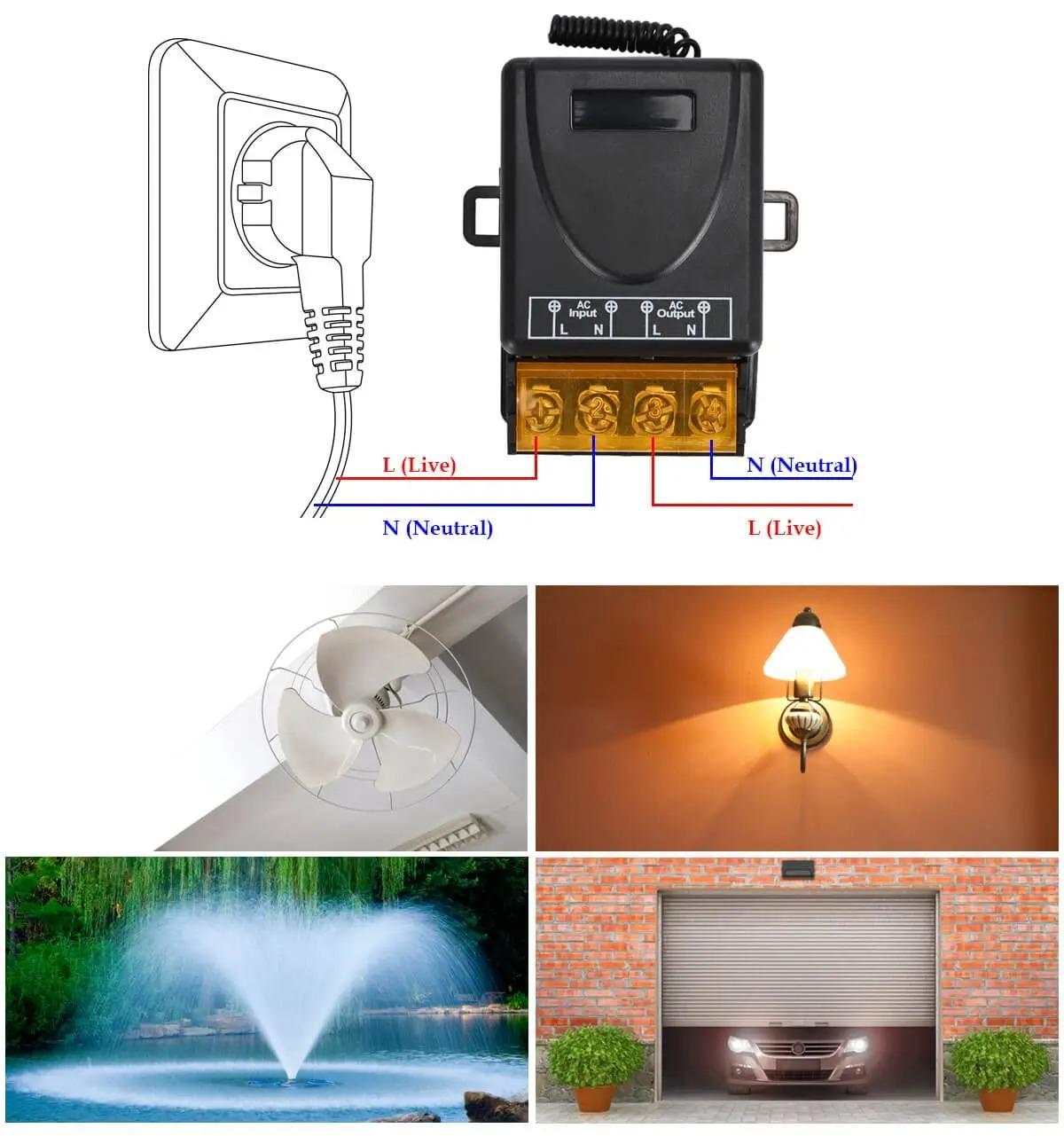

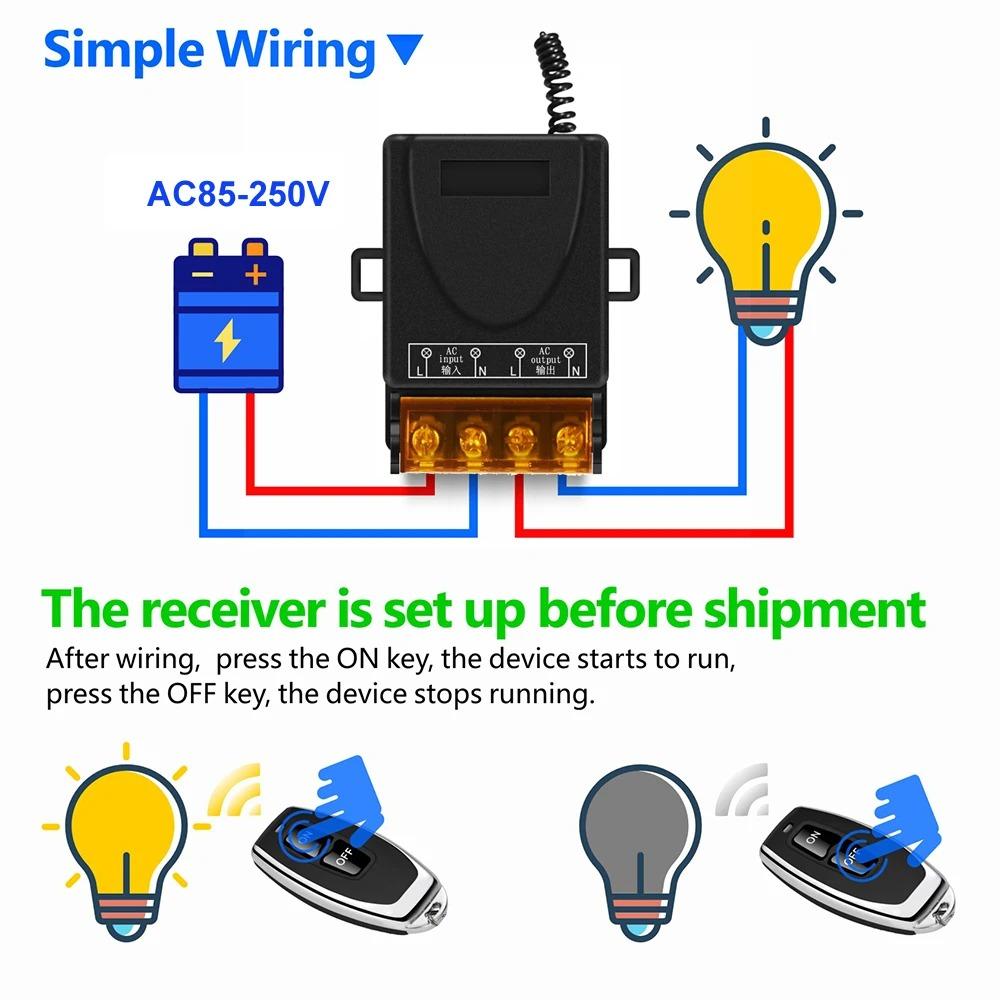

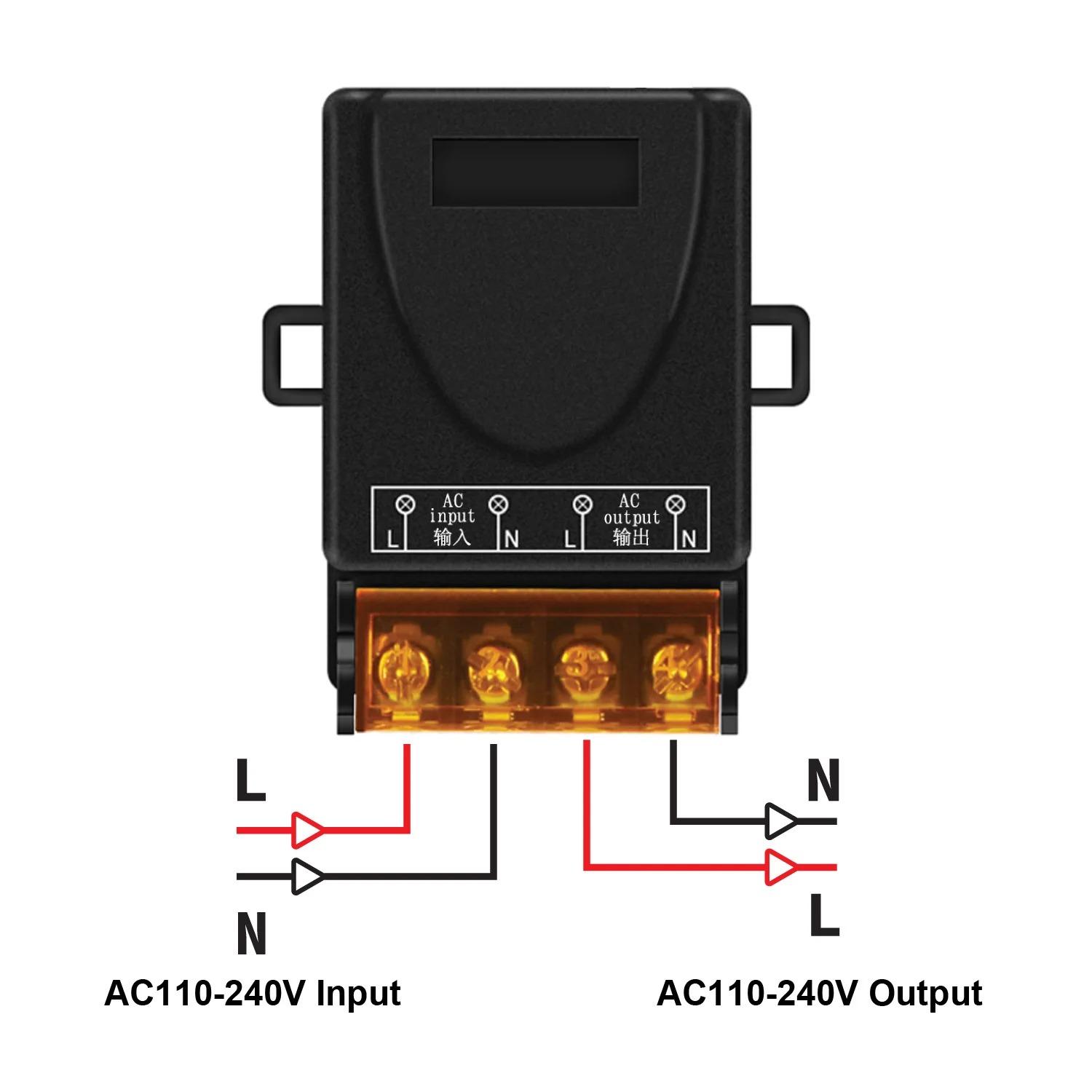

Operating voltage: AC 110V - 240V

Output voltage = Operating voltage

Operating frequency: 433MHz(Same with Remote control)

Encoding Type: learning code

Rated contact current of relay: 15A/240VAC, 15A/110VAC (Please notice that : Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A)

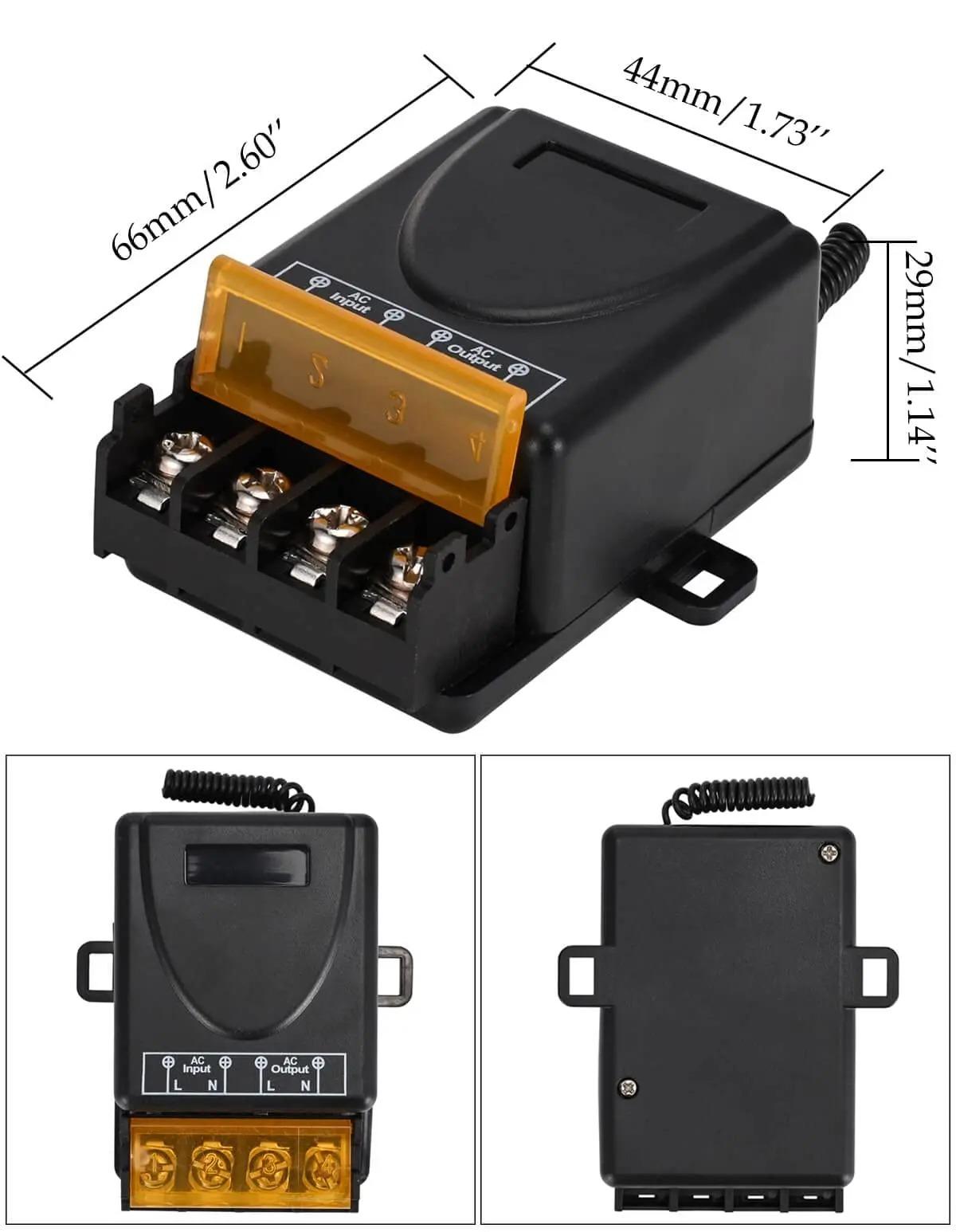

Box size: Approx 65x45x28m

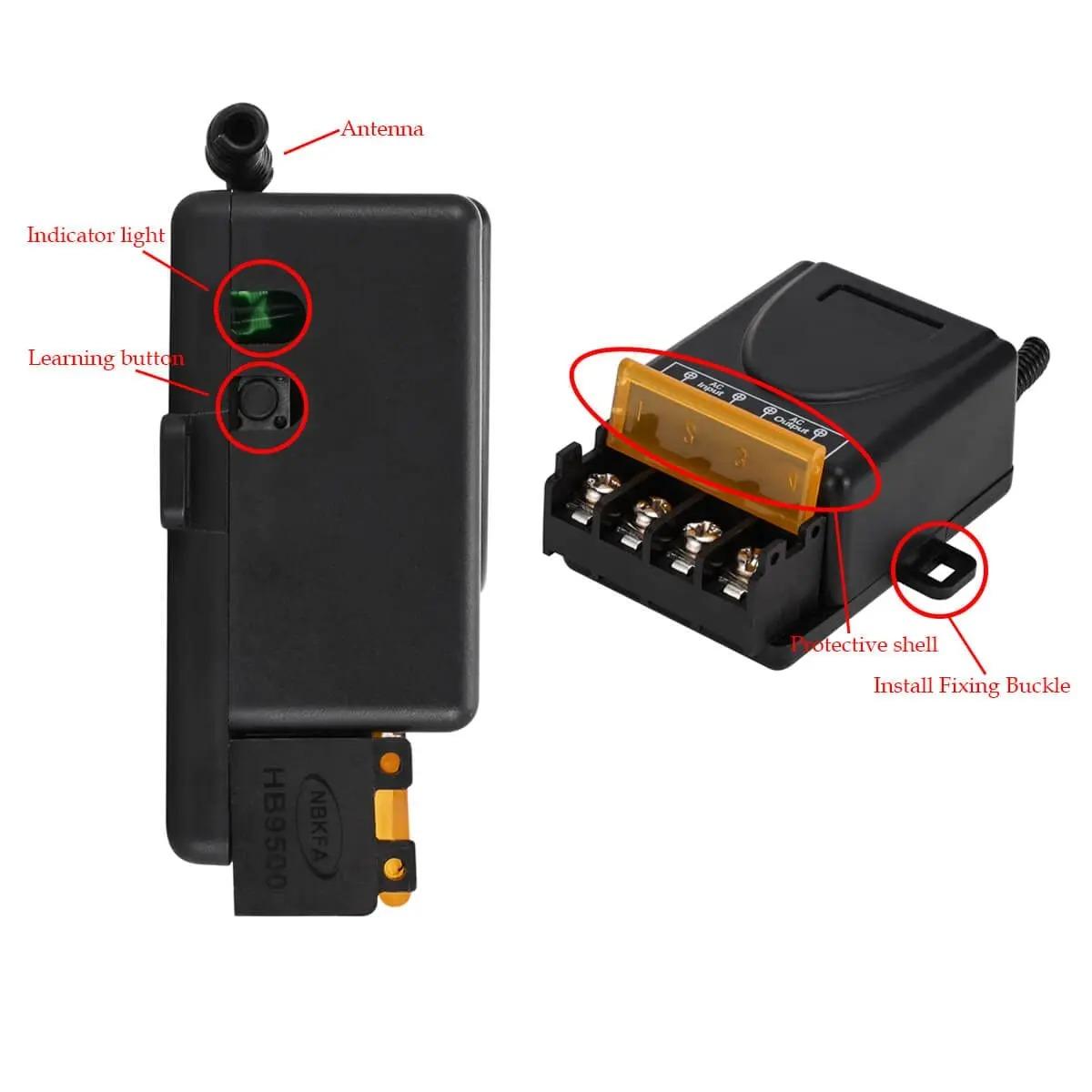

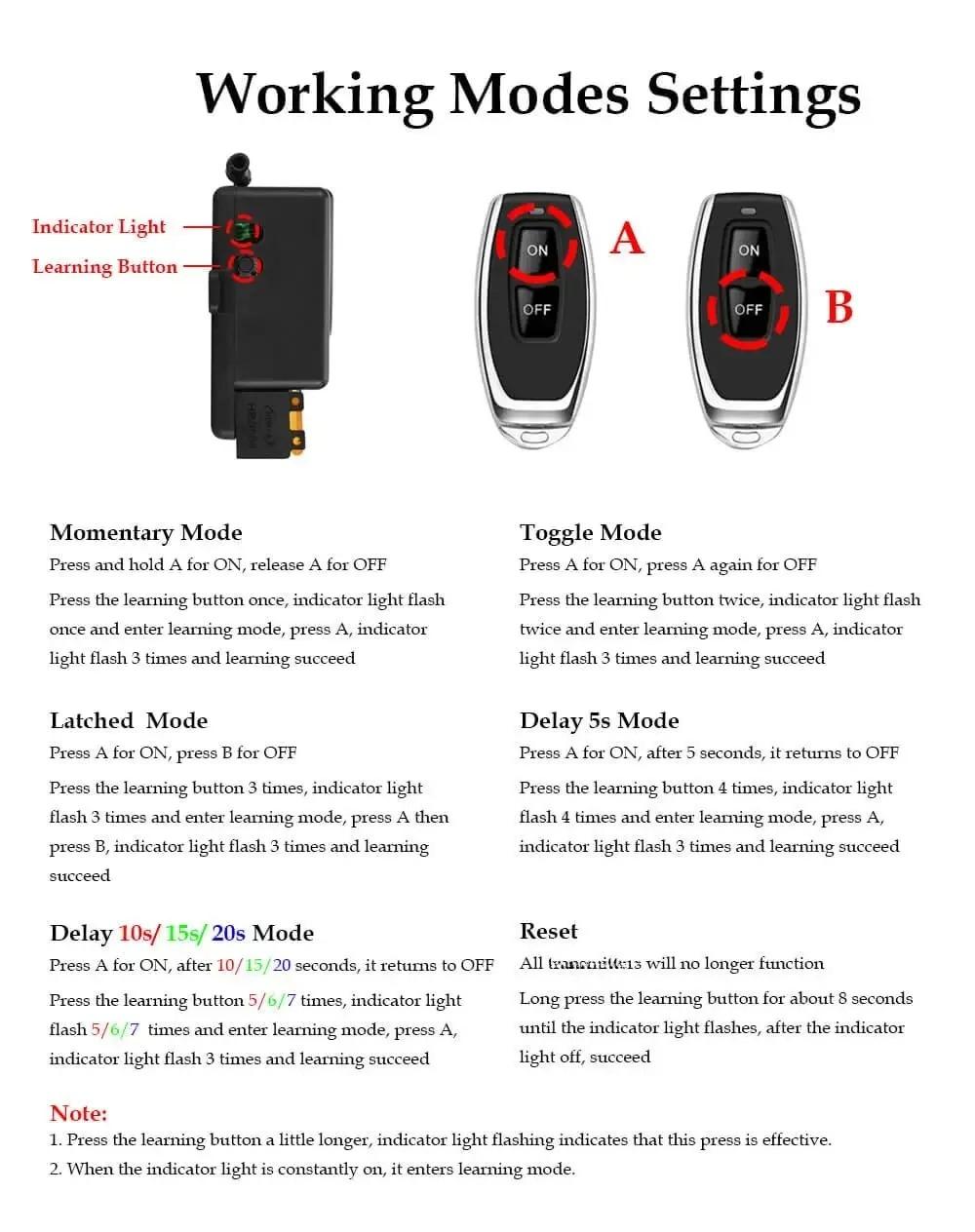

About Working way: Momentary: Relay: Press and hold -> On; Release -> Off. Toggle: Relay: Press -> On; Press same button again -> Off· Latched: Relay: Press -> On; Press other button -> Off. Delay time : Press remote control button, the corresponding relay actuates and keeps working until the time out. About Learning and clearing Method: Input 12V for the Receiver , Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press , the Led indicator flash for 3 times, learning successfully. Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press , the Led indicator flash for 3 times, learning successfully. Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press, the Led indicator flash for 3 times, learning successfully. Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press , the Led indicator flash for 3 times, learning successfully. Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press , the Led indicator flash for 3 times, learning successfully. Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press, the Led indicator flash for 3 times, learning successfully. Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
