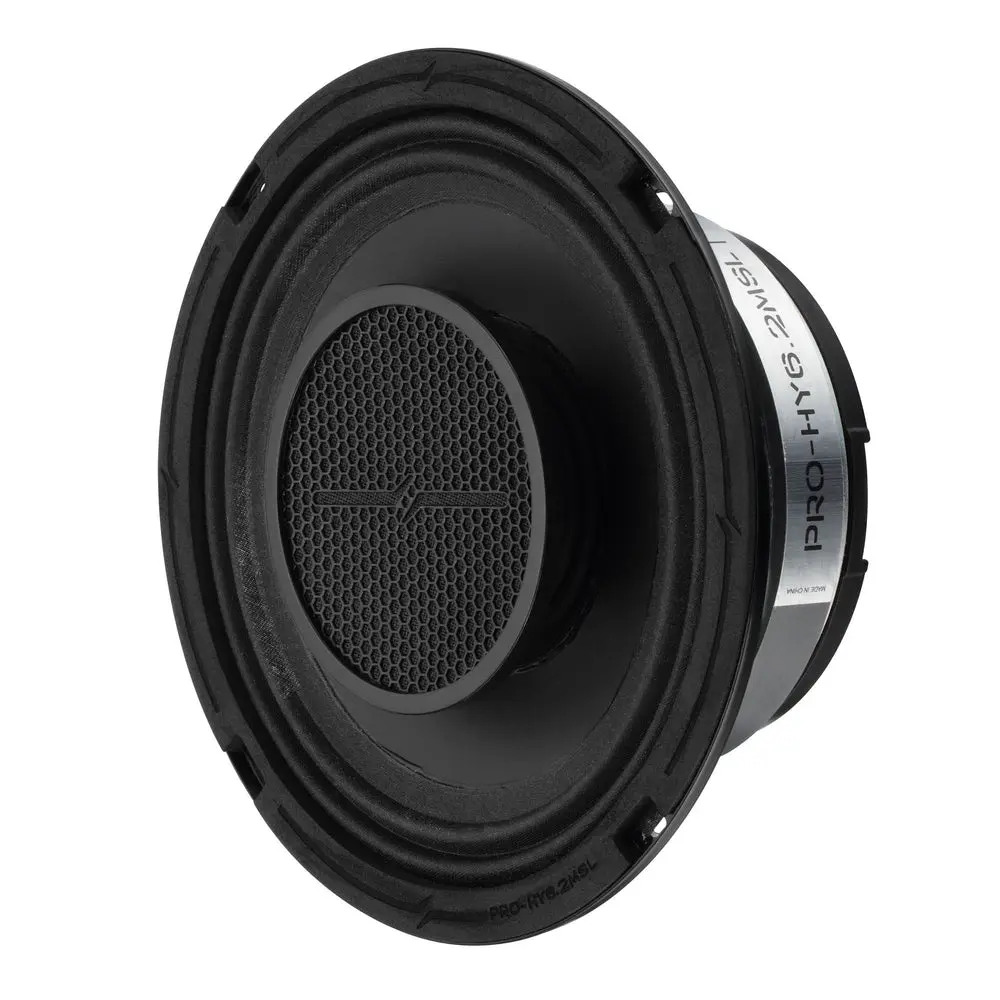

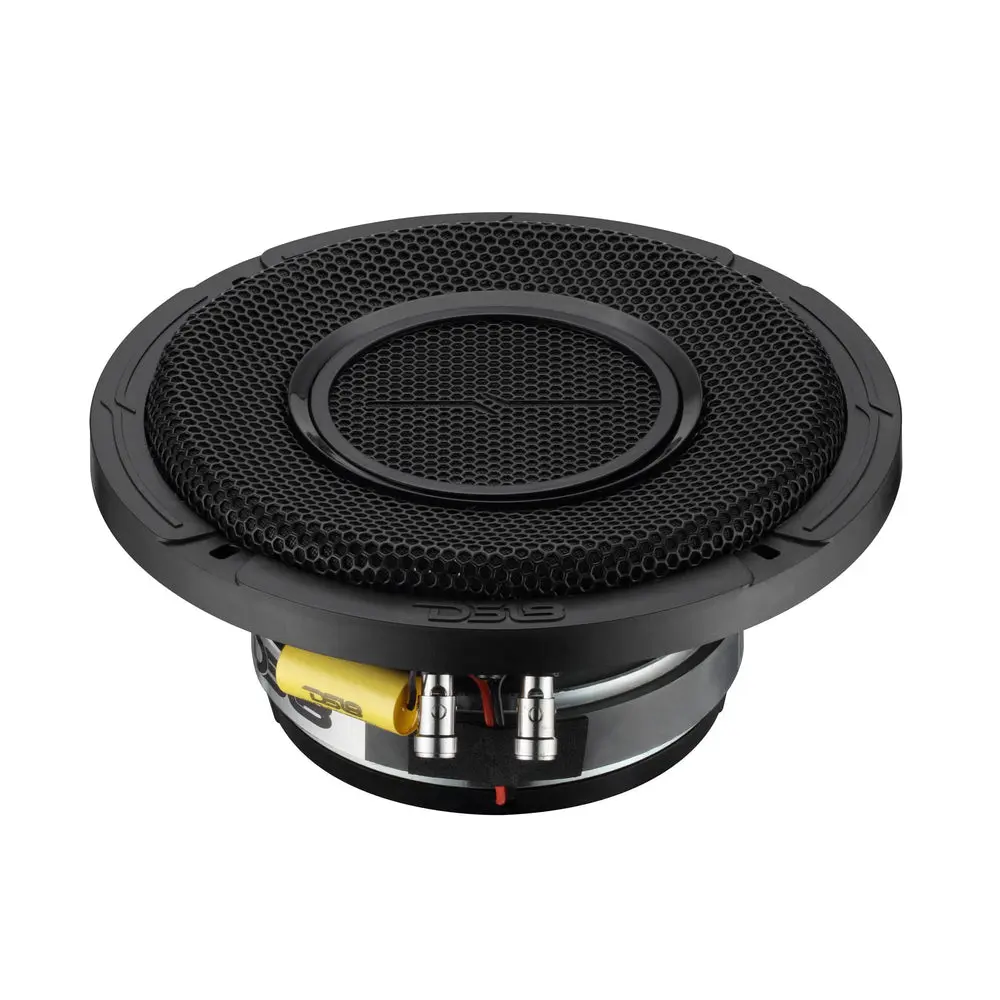

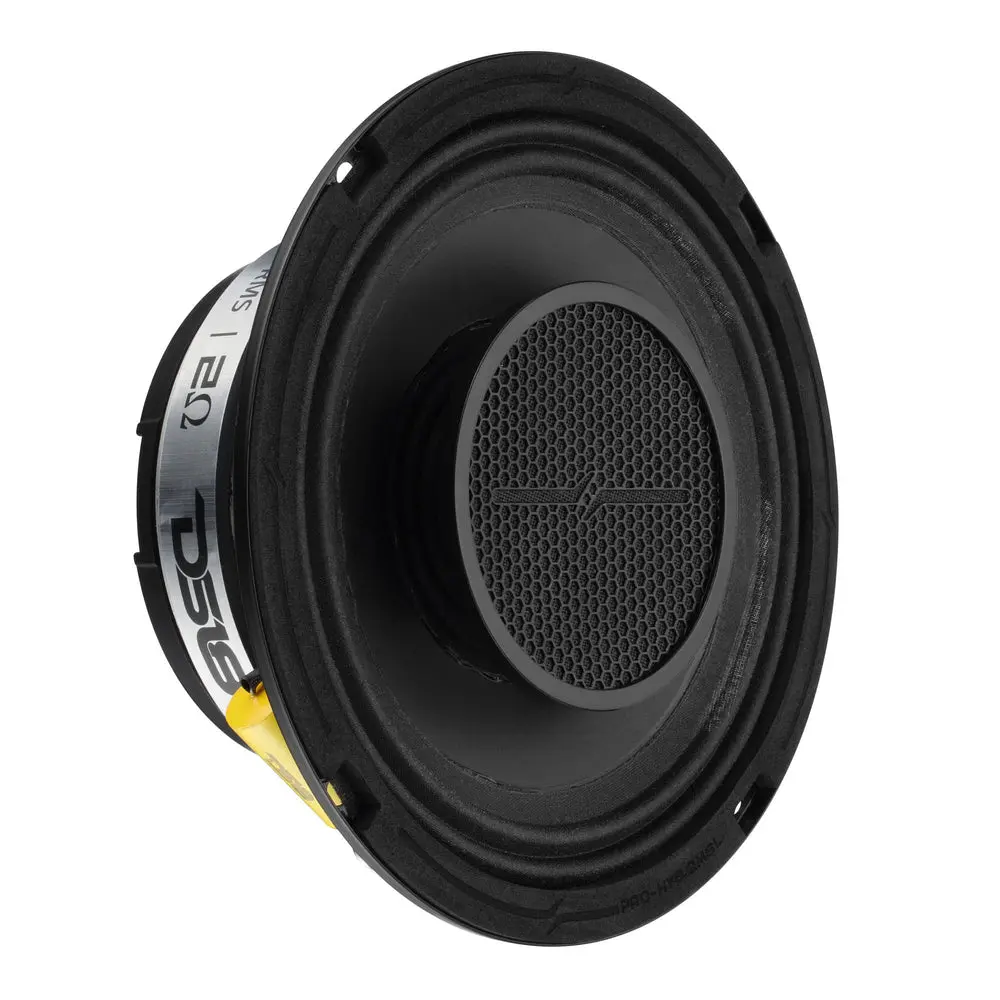

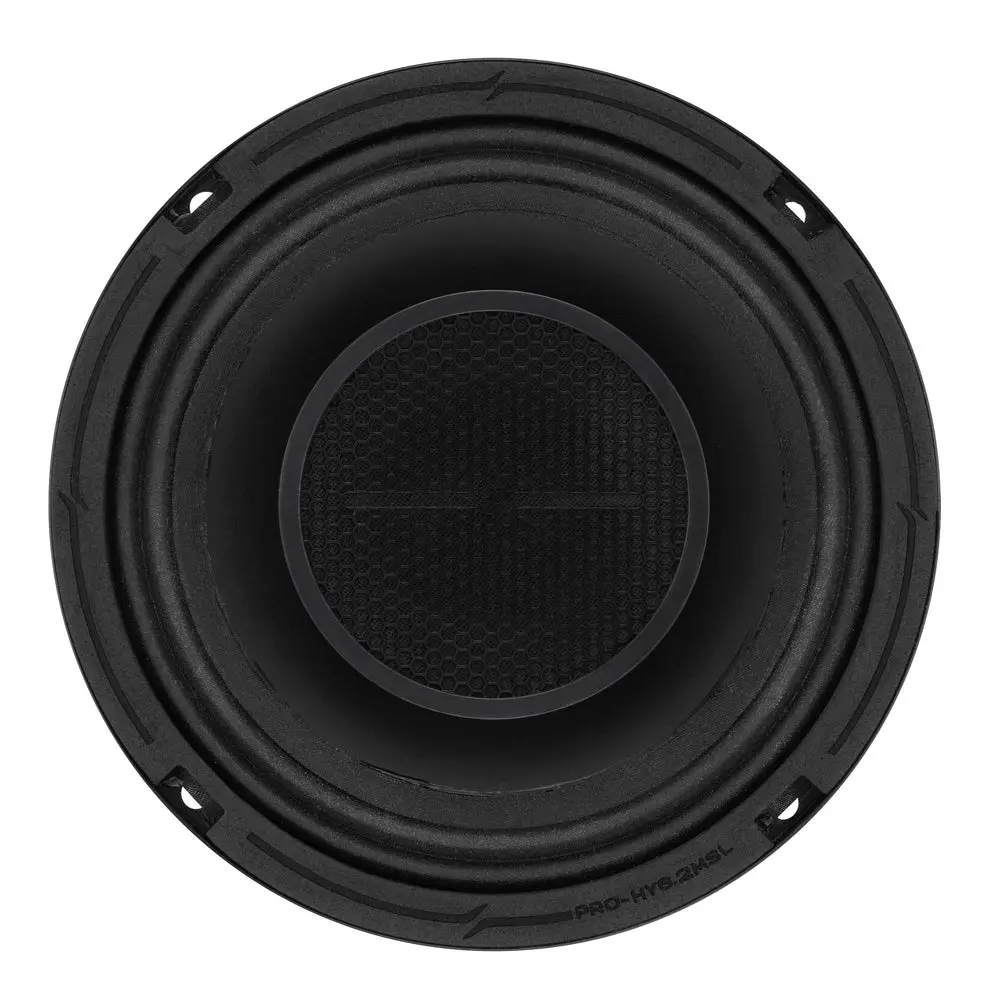

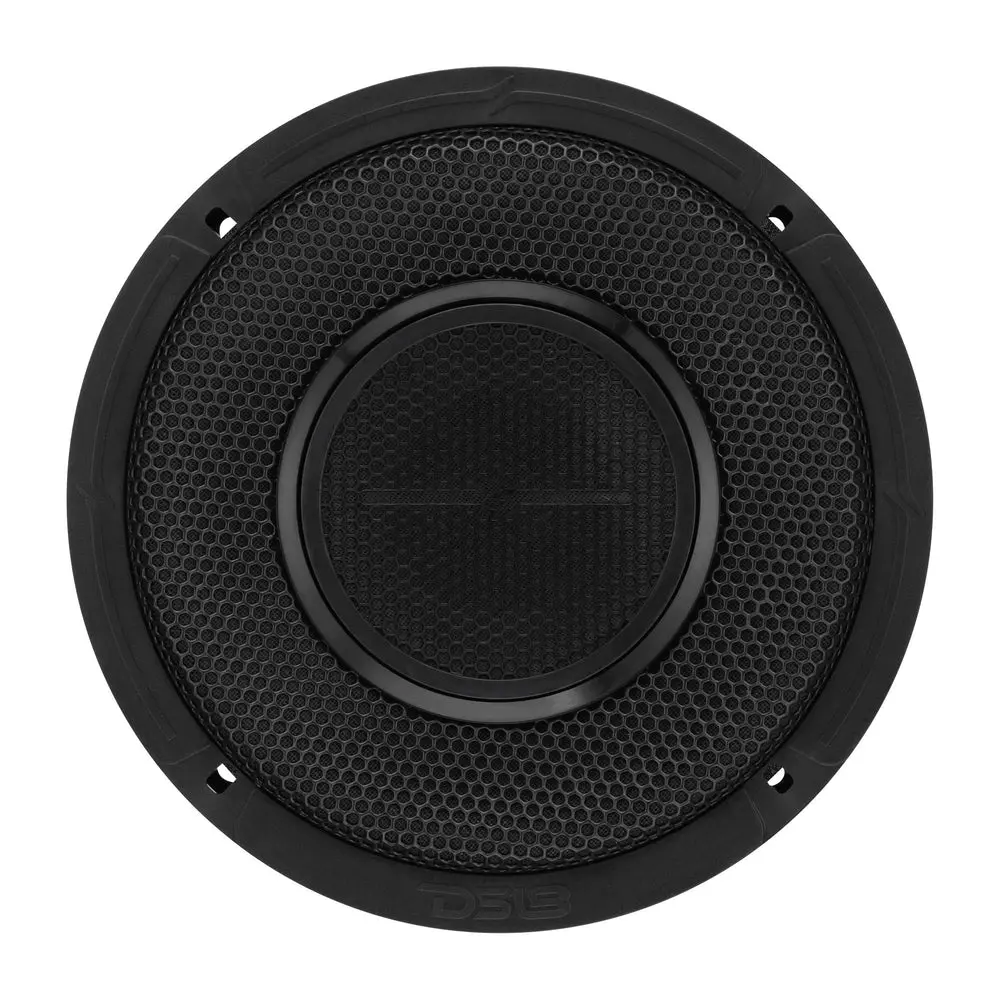

Upgrade your ride with the DS18 PRO-HY6.2MSL 6.5” hybrid slim loudspeaker. Featuring a built-in 1” compression driver horn, 150W RMS power, and a compact 2.82” mounting depth, it delivers loud, full-range audio with crystal clarity—perfect for motorcycles, UTVs, Jeeps, and powersports builds where space is tight but performance matters.

Features:

·6.5" Slim Hybrid Loudspeaker

·150W RMS / 300W MAX

·1" Titanium Compression Driver

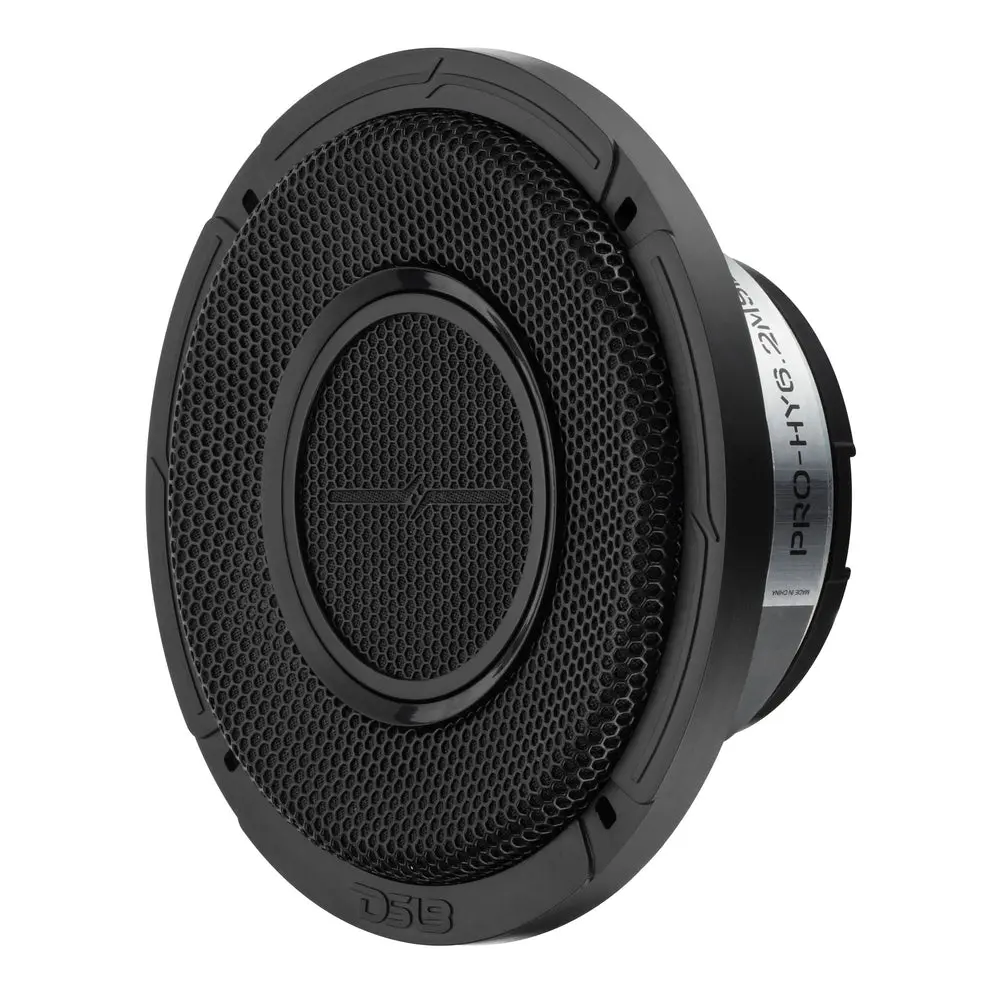

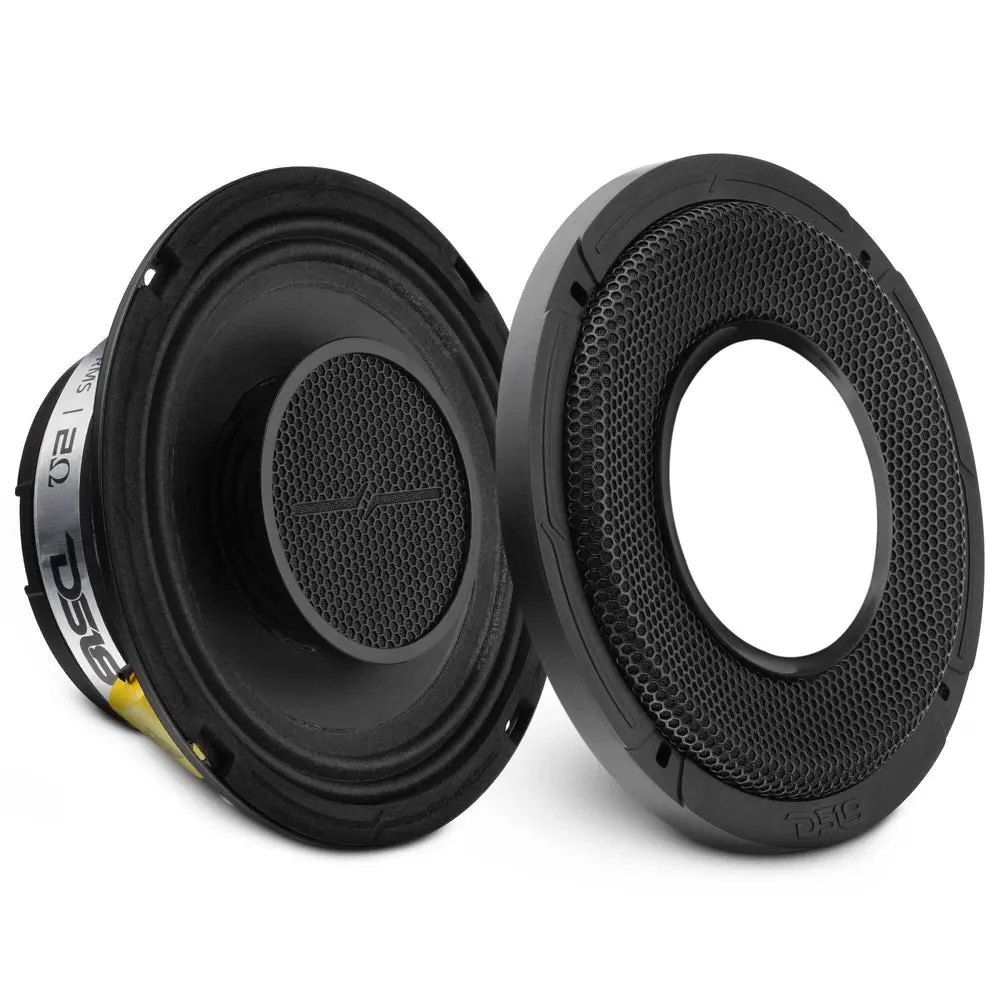

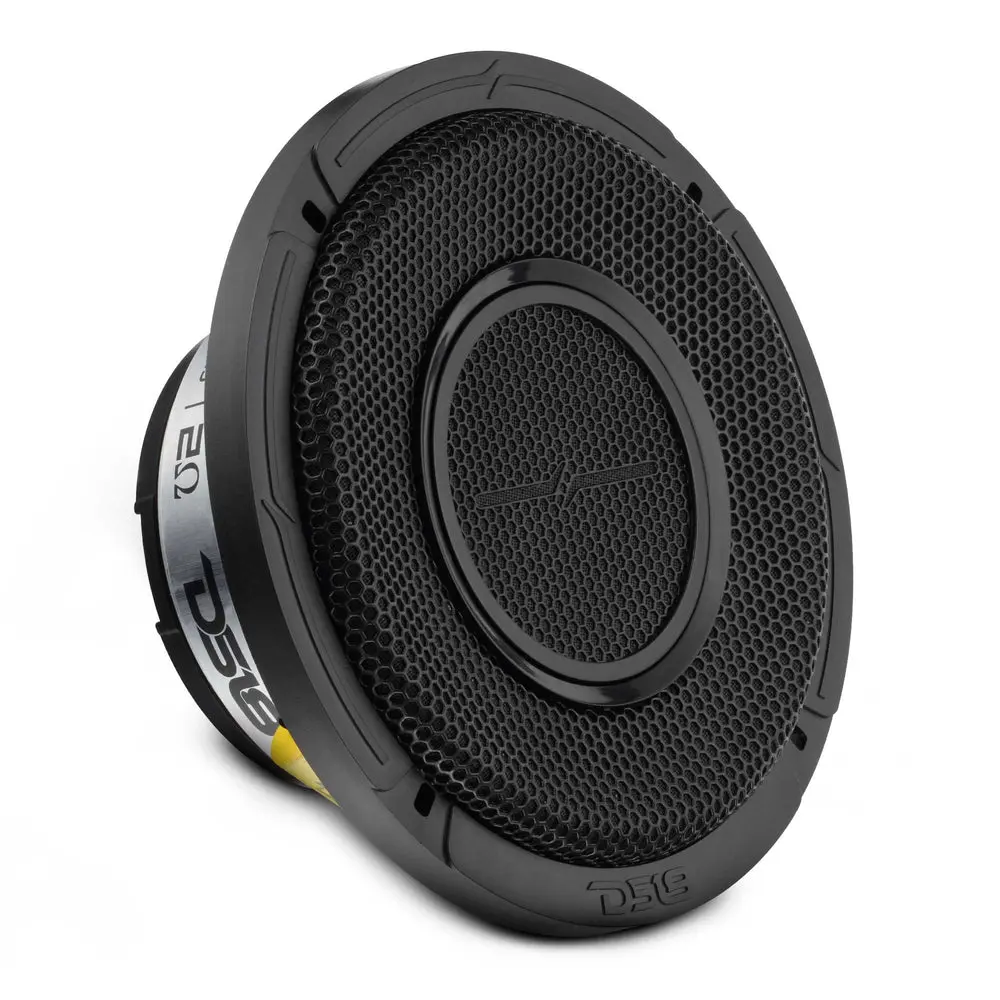

·IP65 Rated + Grille w/ Water/Sun Protection Cloth

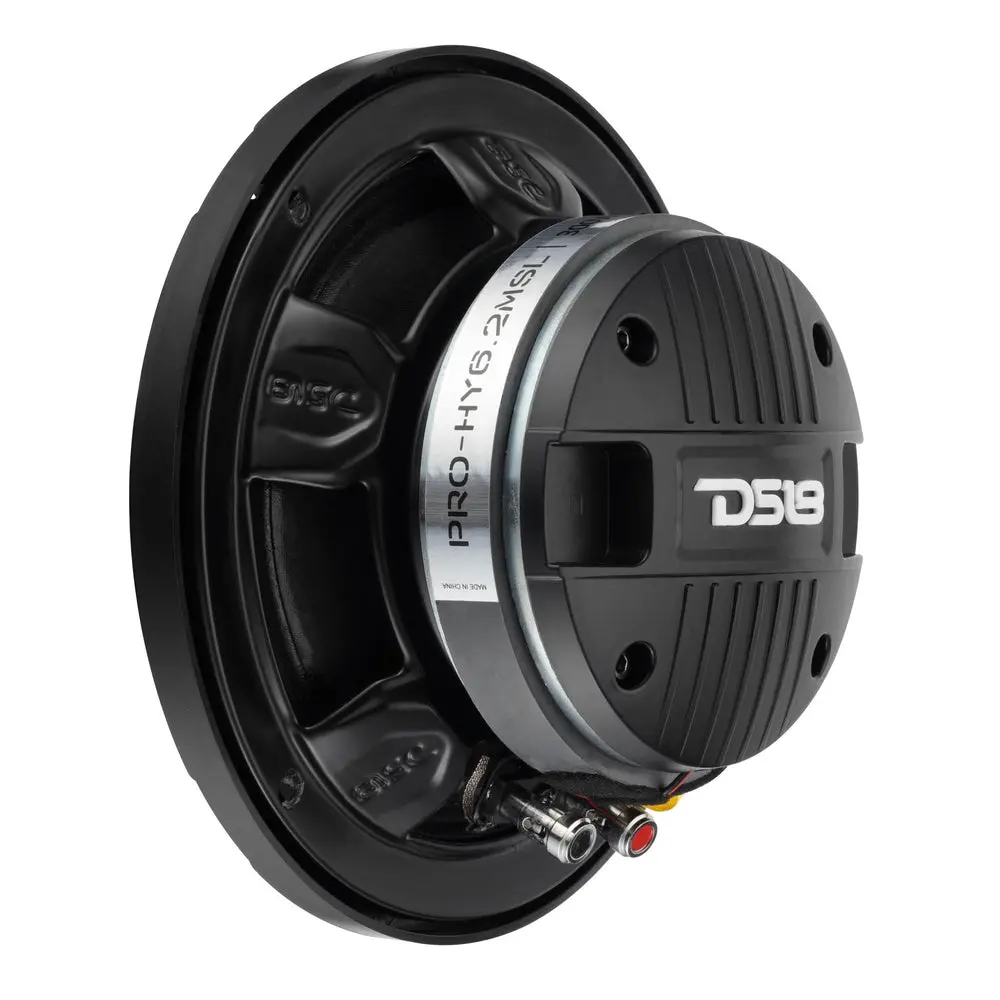

·Neodymium Driver Magnet / Ferrite Woofer Magnet

·Mounting Depth: 2.82"

Specifications:

SKU PRO-HY6.2MSL Nominal Diameter 6.5" / 165.1mm Nominal Impedance 2 Ohms RMS Power Handling 150W MAX Power Handling 300W Sensitivity (1w/1m) 97dB Frequency Response 120Hz-20Khz Recommended HI Pass Crossover 140Hz Number of Ways 2 ways Pair or Single Single Grill Included Yes

Woofer Specifications

Voice Coil Diameter 1.5" / 38.6mm Voice Coil Former Material KSV Winding Material CCAW Cone Material Paper Surround Material Cloth Basket Material Steel Basket Color/Finish Black Magnet Material Ferrite Magnet Weight 19.5 Oz

Thiele & Small Parameters

Equivalent Volume Vas 7L / 0.248ft3 Excursion (one way) Xmax 1.5mm Free Air Resonance Fs 163Hz Mechanical Factor Qms 7.488 Electrical Factor Qes 1.102 Total Factor Qts 0.96 Mechanical Mass Mms 2.87g Mechanical Compliance Cms 0.333mm/N BL Factor BL 2.287 Voice Coil Inductance Le 0.07041mH Cone Area Sd 136.8 Cm2 DC Resistance Re 1.9 ohm Mechanical Mass w/o air Mmd 20.7g

Driver Specifications

Voice Coil Diameter 1" / 25.4mm Voice Coil Former Material Kapton Winding Material CCAW Diaphragm Material Titanium Magnet Material Neodymium Horn Diameter 3.15" / 80mm

Speaker Measurement

Overall Diameter (Without Grill) 6.55" / 167mm Overall Diameter (With Grill) 6.93" / 176mm Overall Depth (Without Grill) 3.26" / 83mm Overall Depth (With Grill) 3.45" / 88mm Front Mount Baffle Cutout 5.65" / 144mm Mounting Depth 2.82" / 72mm Motor Diameter 4.31" / 110mm

UPC: 810097266322
