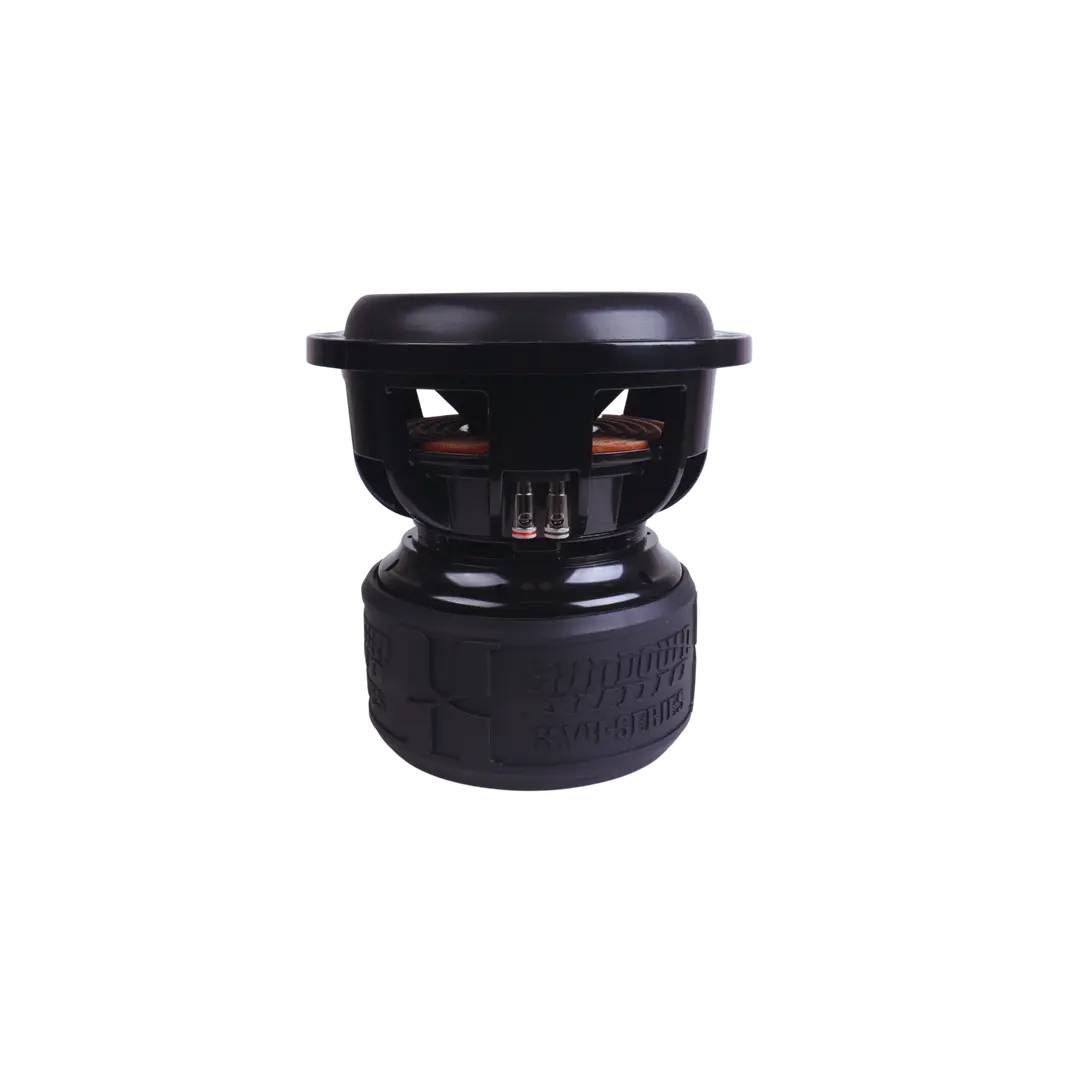

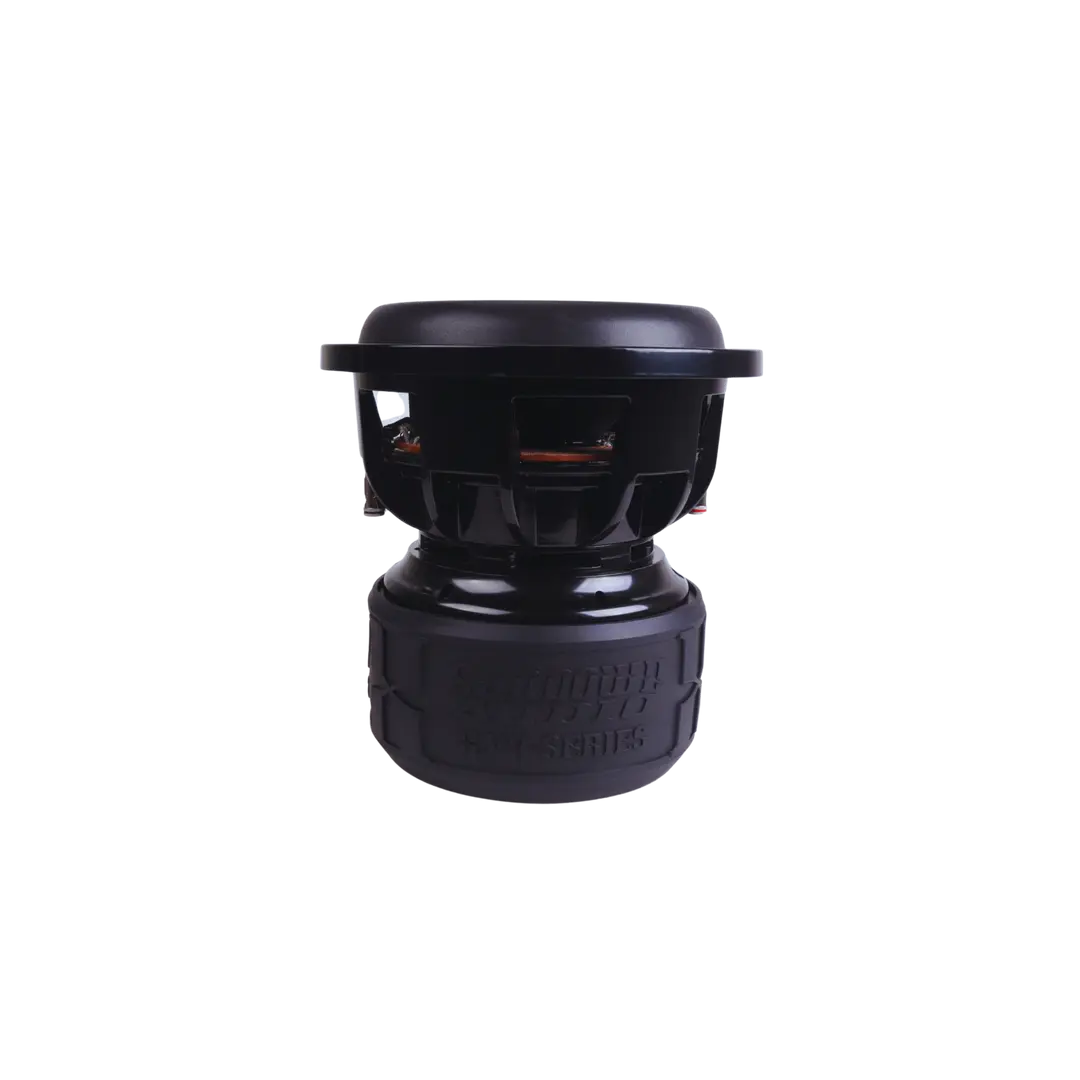

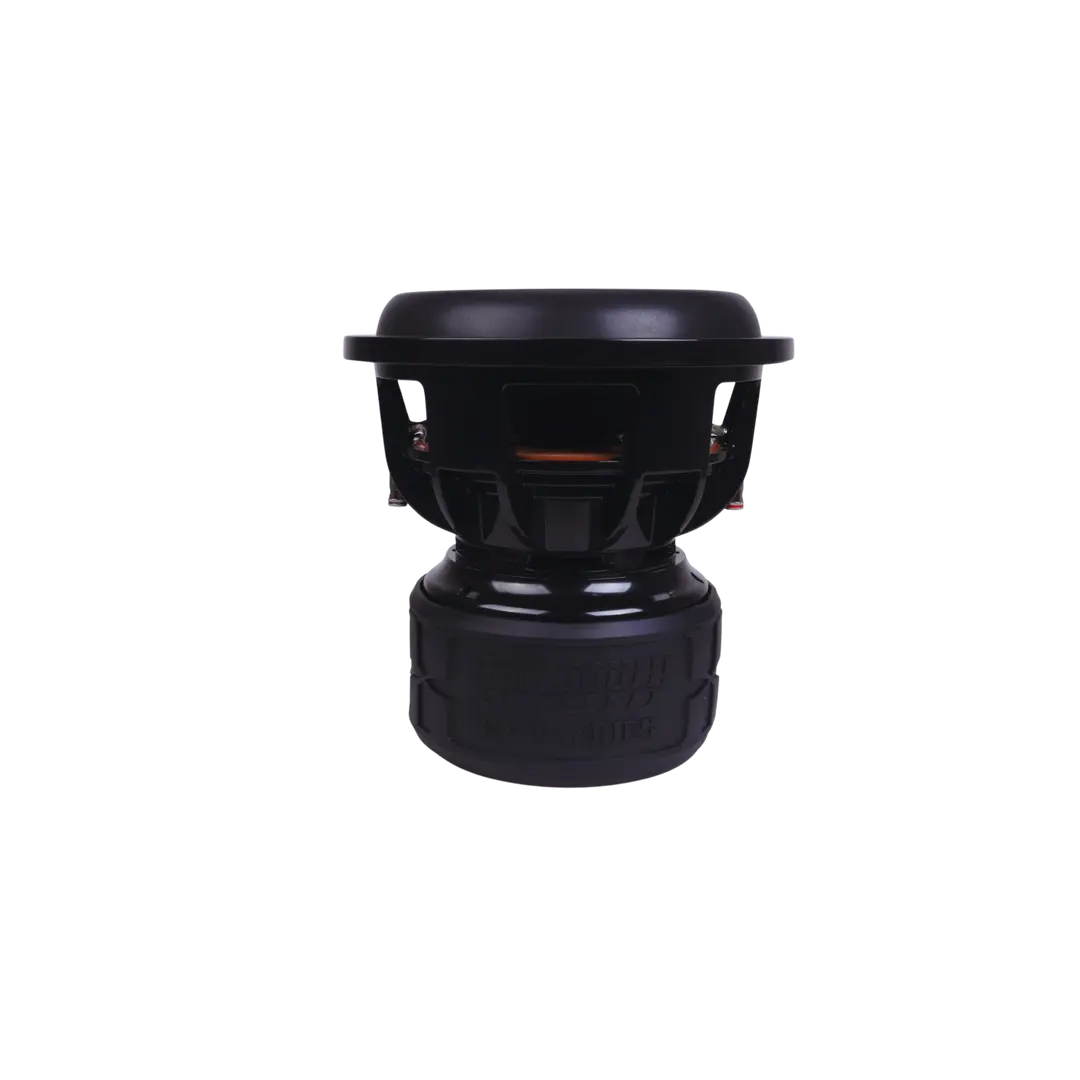

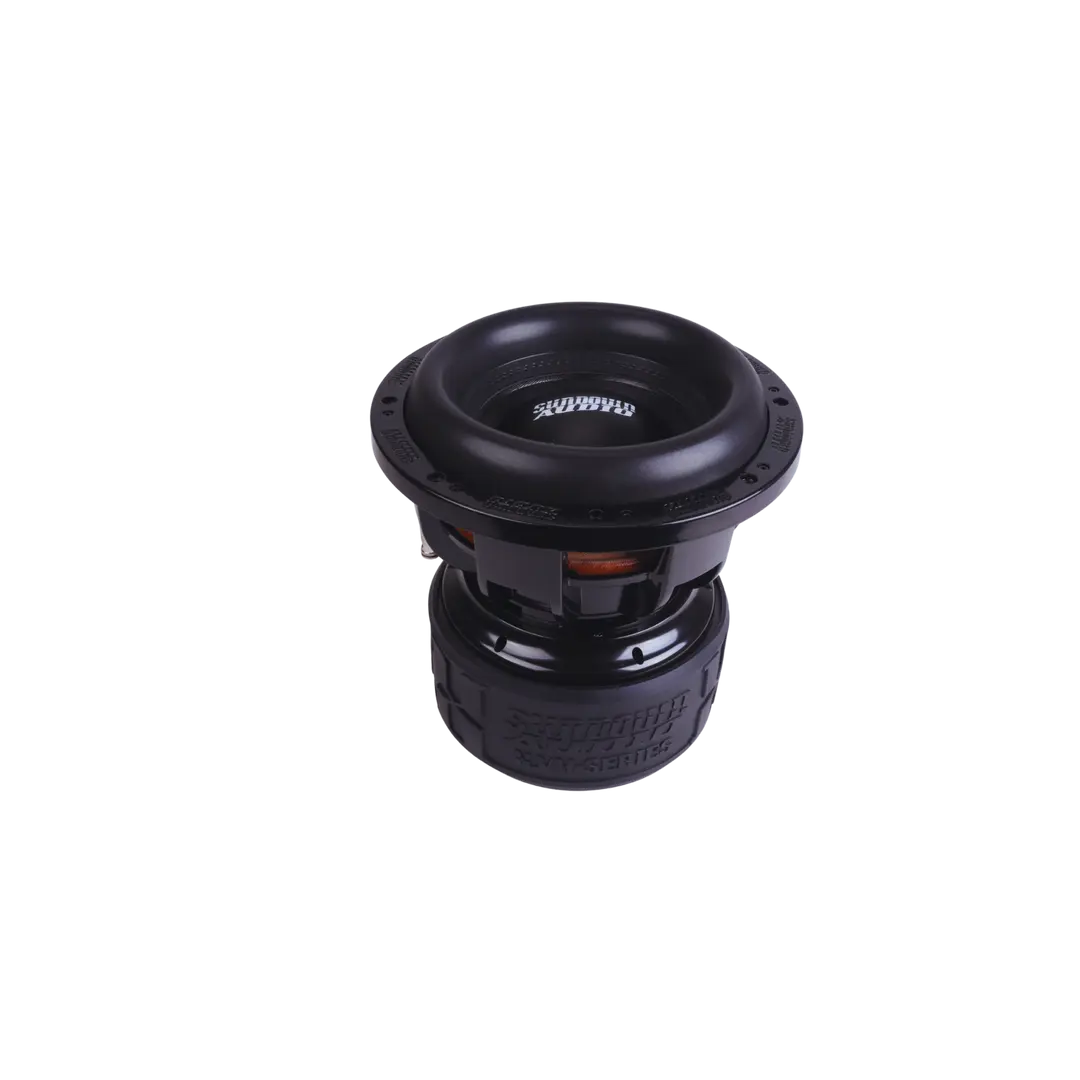

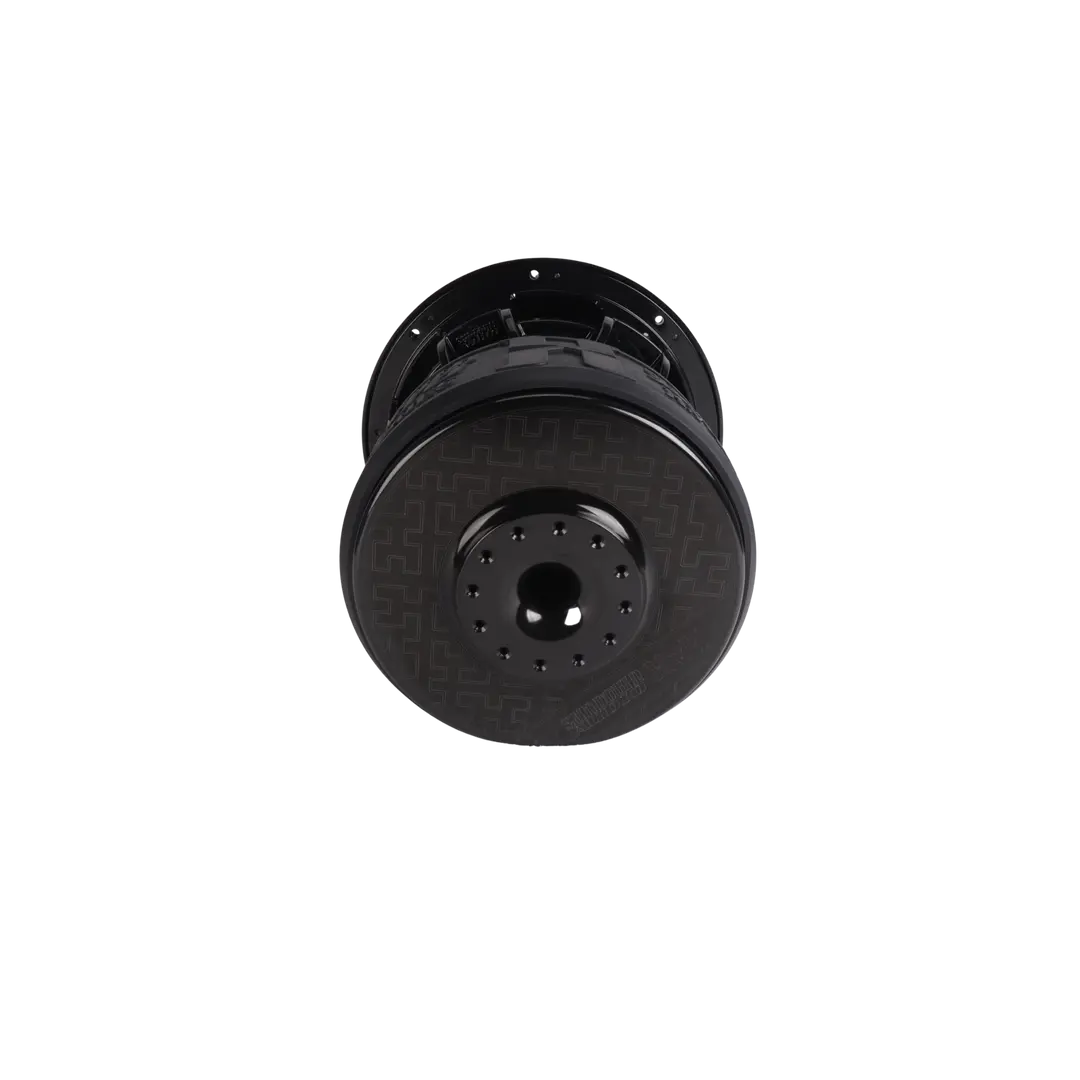

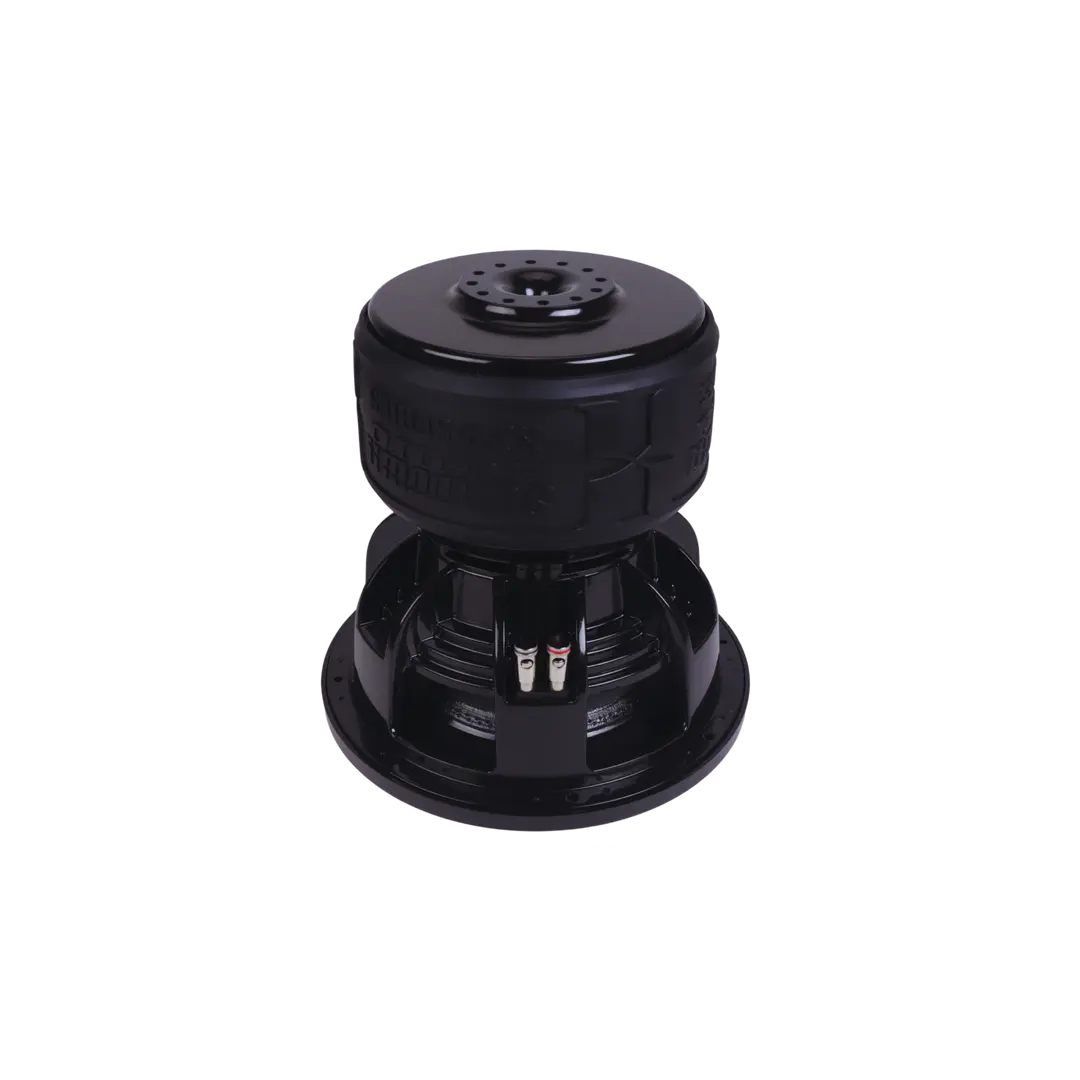

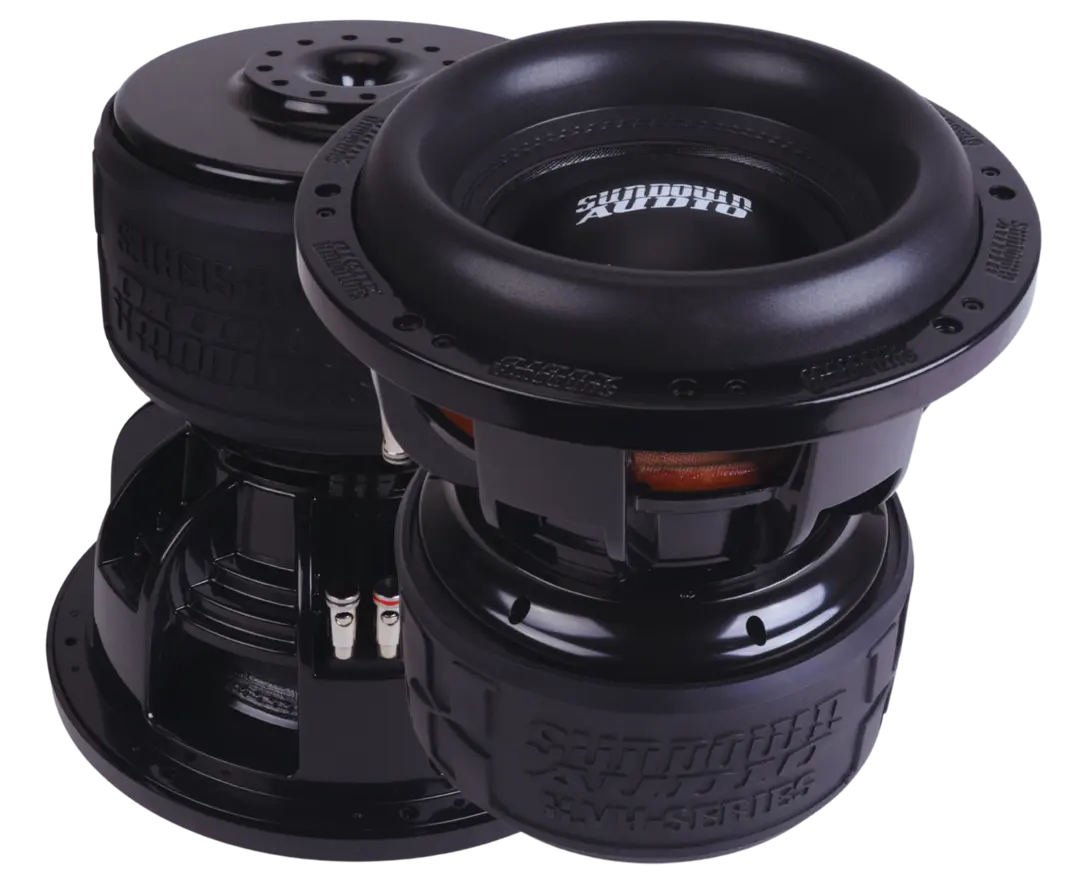

Experience deep, precise bass with the Sundown Audio XV4 10" subwoofer. Featuring 3000W RMS / 6000W peak, 30 mm Xmax, and X v.4 coil technology, it delivers high-output, distortion-free performance for car audio upgrades and competition setups.

Features:

·Delivers 3000W RMS continuous power and 6000W peak output.

·Advanced X v.4 coil technology for superior efficiency and performance.

·10" subwoofer engineered for deep, precise bass reproduction.

·Optimized for ported enclosures with 1.5 cu ft volume and 32 Hz tuning.

·30 mm Xmax ensures maximum cone excursion for clean, distortion-free bass.

·Equipped with a heavy-duty 9.25" motor for high-output reliability.

·Built with durable construction for competition-level performance.

·Offers Dual 1‑Ohm and Dual 2‑Ohm wiring options for flexible system setups.

Specifications:

Dual 1‑Ohm T/S Specs

RMS Power: 3000 W

Peak Power: 6000 W

Re (Ohms): 3.2

Fs (Hz): 41.37

Vas (L): 8.24

Qes: 0.58

Qms: 5.07

Qts: 0.52

Le (mH): 2.68

BL (N/A): 22.19

Mms (g): 341.7

Cms (µm/N): 43.29

Sensitivity (dB @ 1W/1m): 81.76

Xmax: 30 mm

Subwoofer Measurements

Displacement: 0.22 cu ft

Depth: 11″

Cutout: 10.01″

Motor Diameter: 9.25″

Ported Enclosure Specs

Enclosure Size: 1.5 cu ft

Recommended Port Area: 24 sq in

Recommended Port Tuning: 32 Hz

4th Order Enclosure Specs

Sealed Side: 0.75 cu ft

Ported Side: 2.25 cu ft

Port Area: 45 sq in

Port Length: 8″
