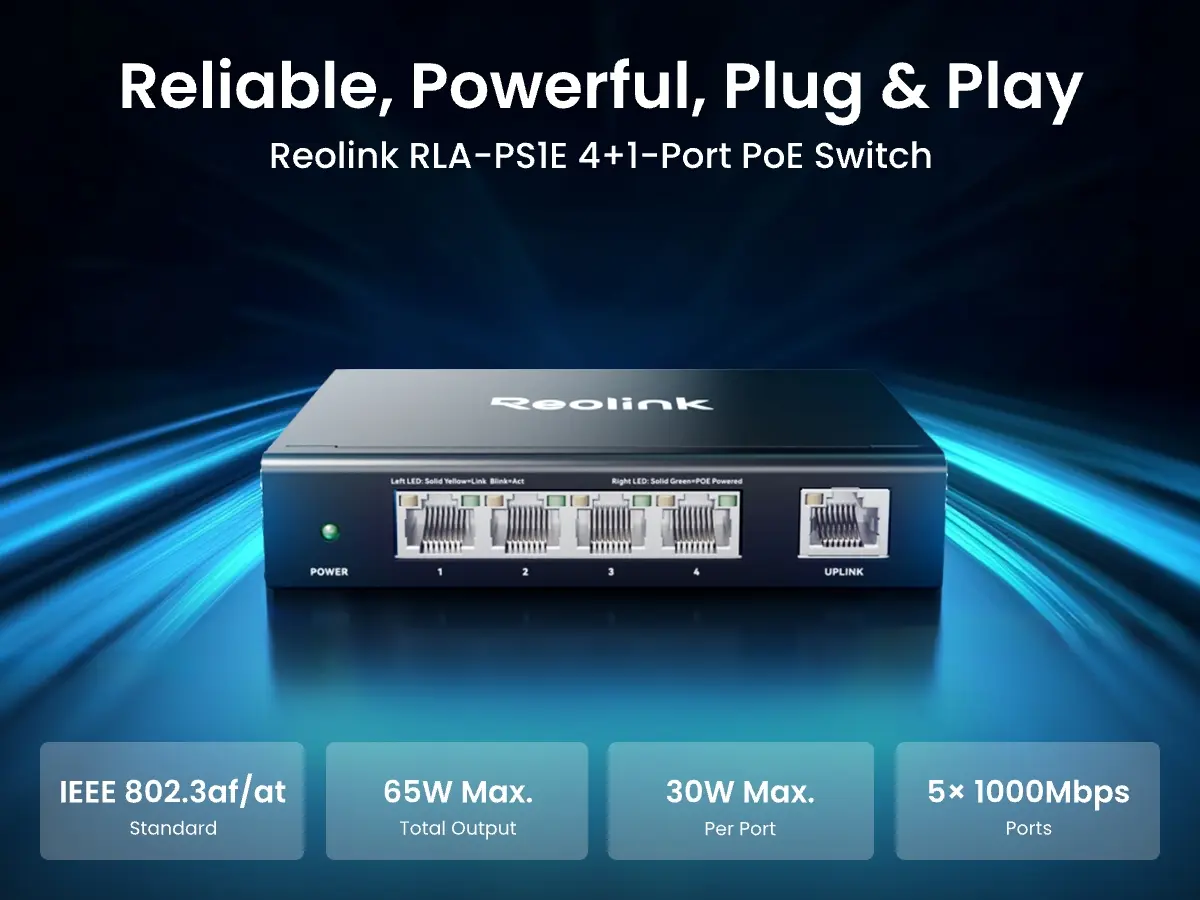

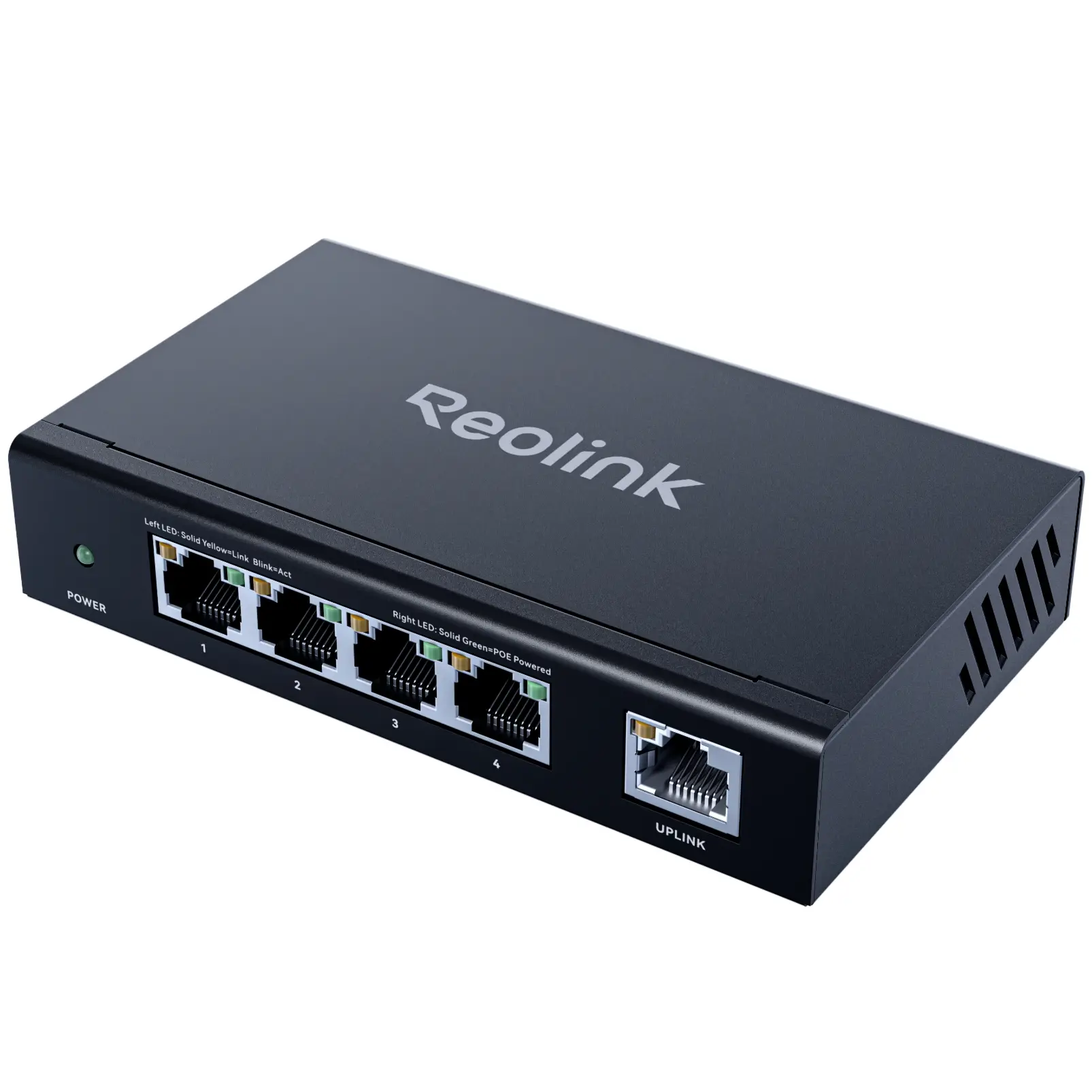

REOLINK RLA-PS1E — 5-PORT GIGABIT POE SWITCH | 65W POWER BUDGET | PLUG & PLAY SETUP
Power your security cameras and NVR through a single Ethernet cable — no extra power adapters, no messy wiring. The Reolink RLA-PS1E delivers reliable, intelligent Power over Ethernet to up to 4 devices simultaneously, with smart power management built right in.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
4 GIGABIT POE+ PORTS — UP TO 30W PER PORT
4 × Gigabit PoE+ Ports (10/100/1000Mbps) — IEEE 802.3af/at compliant
1 × Gigabit Ethernet Uplink Port (10/100/1000Mbps)
Up to 30W per PoE port — powers most IP cameras, NVRs, and access points
65W total power budget — supports up to 4 PoE devices simultaneously
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

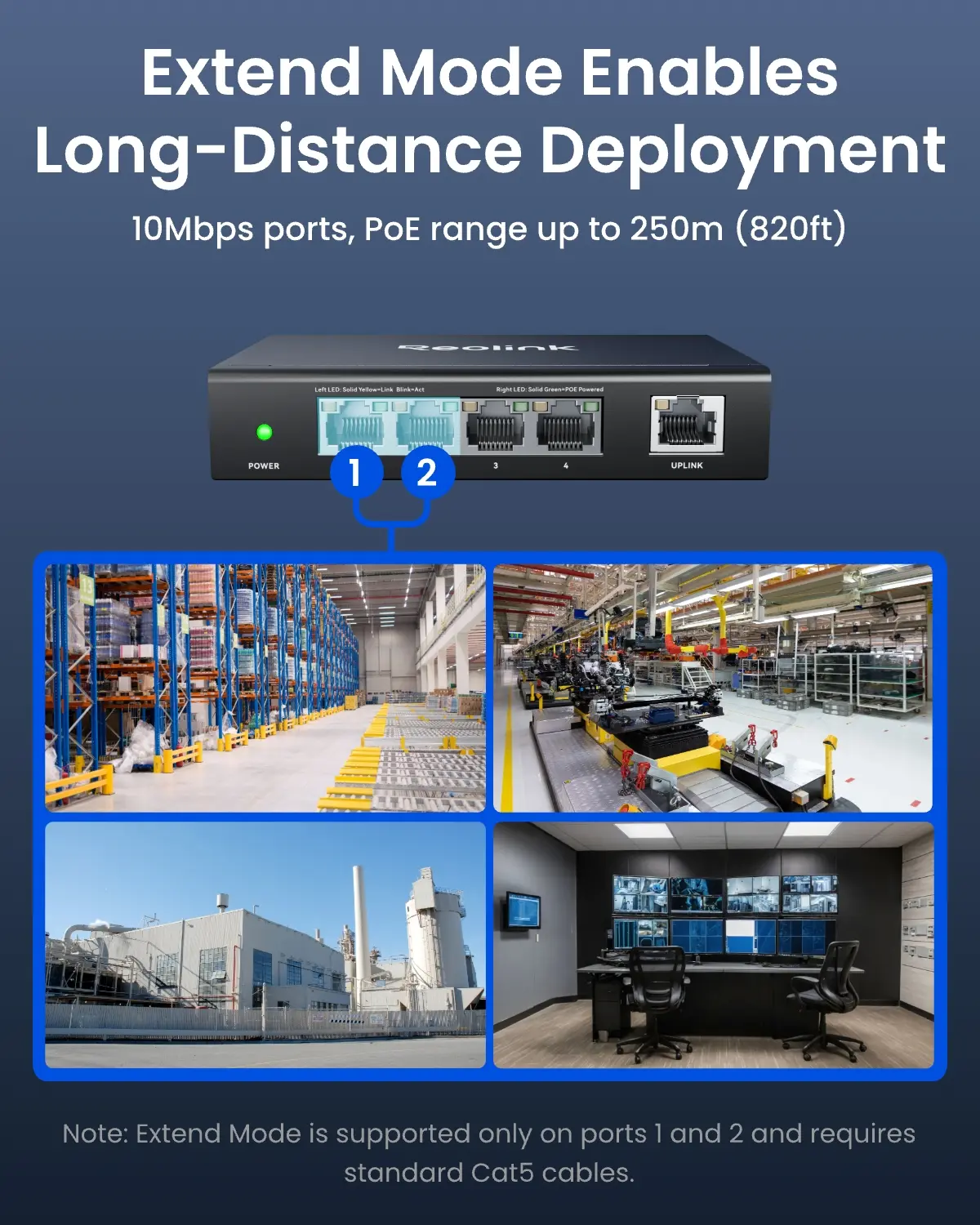

EXTEND MODE — POE UP TO 820FT (250M)
Need to cover large spaces or long cable runs? Enable Extend Mode to stretch your PoE transmission distance up to 820ft (250m) on Port 1 and Port 2 — far beyond the standard 330ft (100m) limit.
- Transmission speed limited to 10Mbps in Extend Mode
- Requires standard Cat5e cable
- Ideal for large properties, warehouses, parking lots, and farms
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

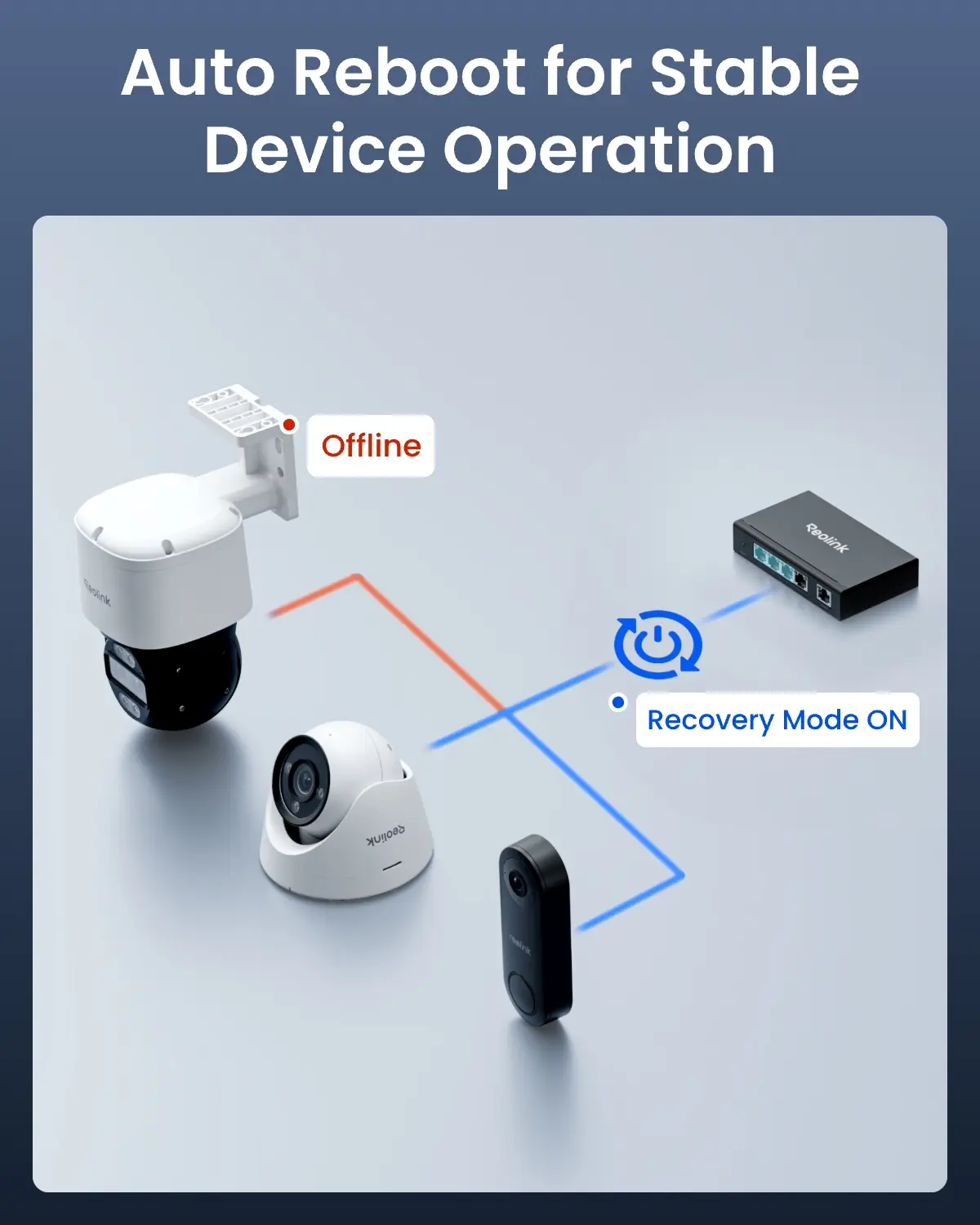

RECOVERY MODE — AUTOMATIC DEVICE REBOOT
No more manual resets. Recovery Mode continuously monitors all connected PoE devices and automatically detects and reboots any that go offline or become unresponsive — keeping your security system running 24/7 without any intervention.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
SMART POWER MANAGEMENT — PROTECT WHAT MATTERS MOST

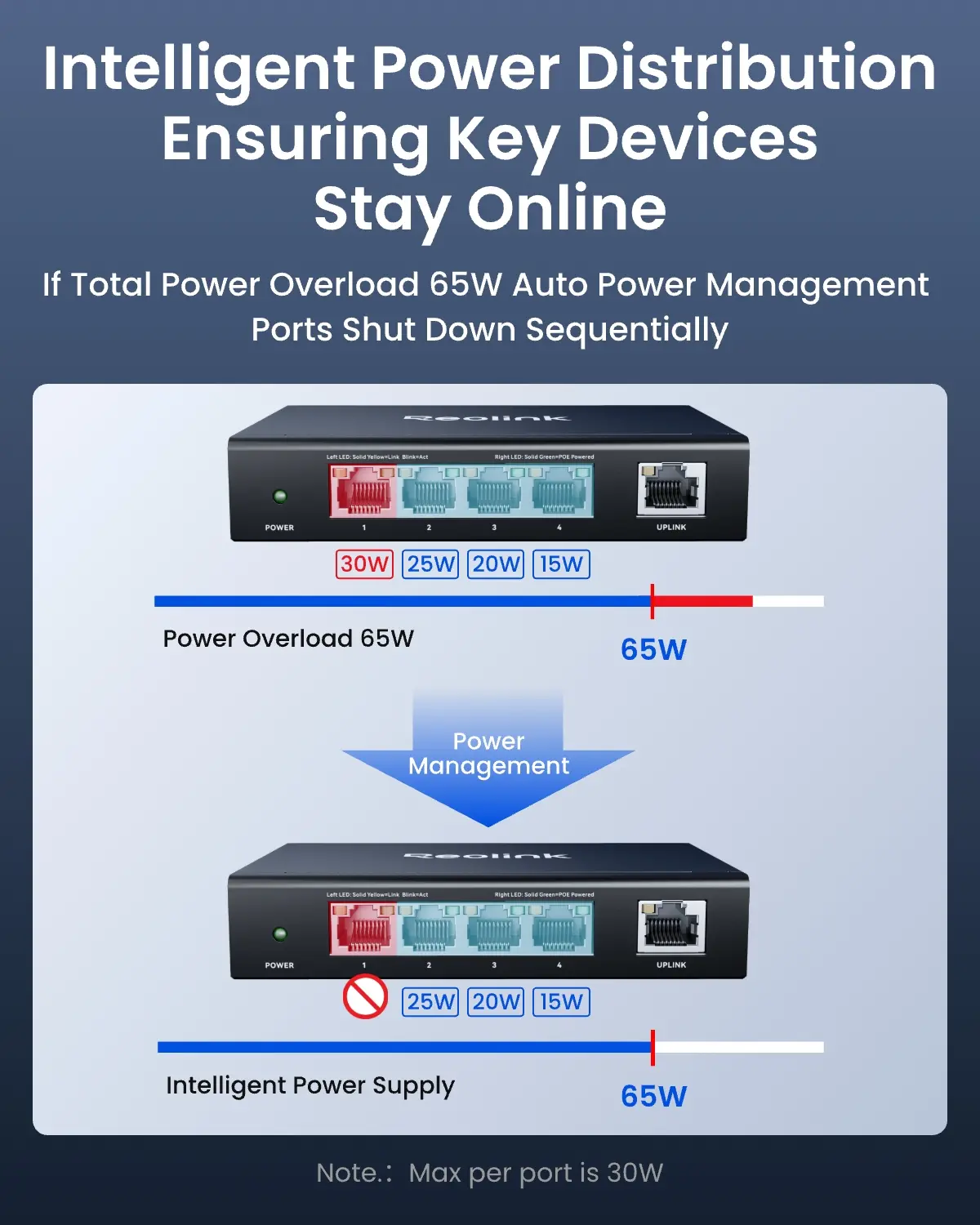

The RLA-PS1E actively monitors power consumption across all ports. If total usage exceeds 65W, it intelligently powers down sequentially from Port 4 to Port 1 — always protecting your highest-priority devices on Ports 1 and 2 first.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

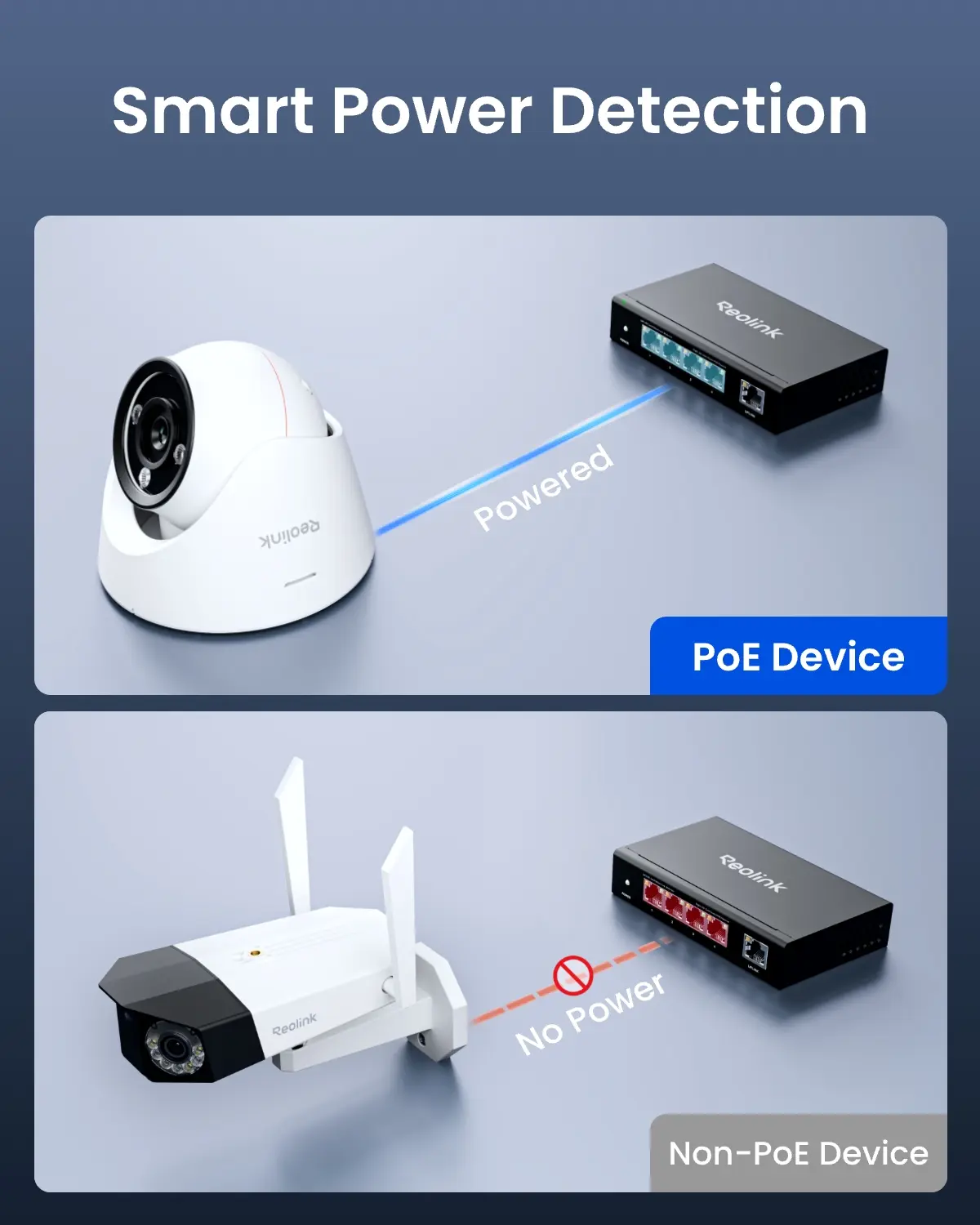

AUTO PoE DETECTION — SAFE FOR ALL DEVICES
Automatically identifies whether each connected device requires PoE power before supplying it. Non-PoE devices are never accidentally powered, eliminating the risk of damage to standard Ethernet equipment.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

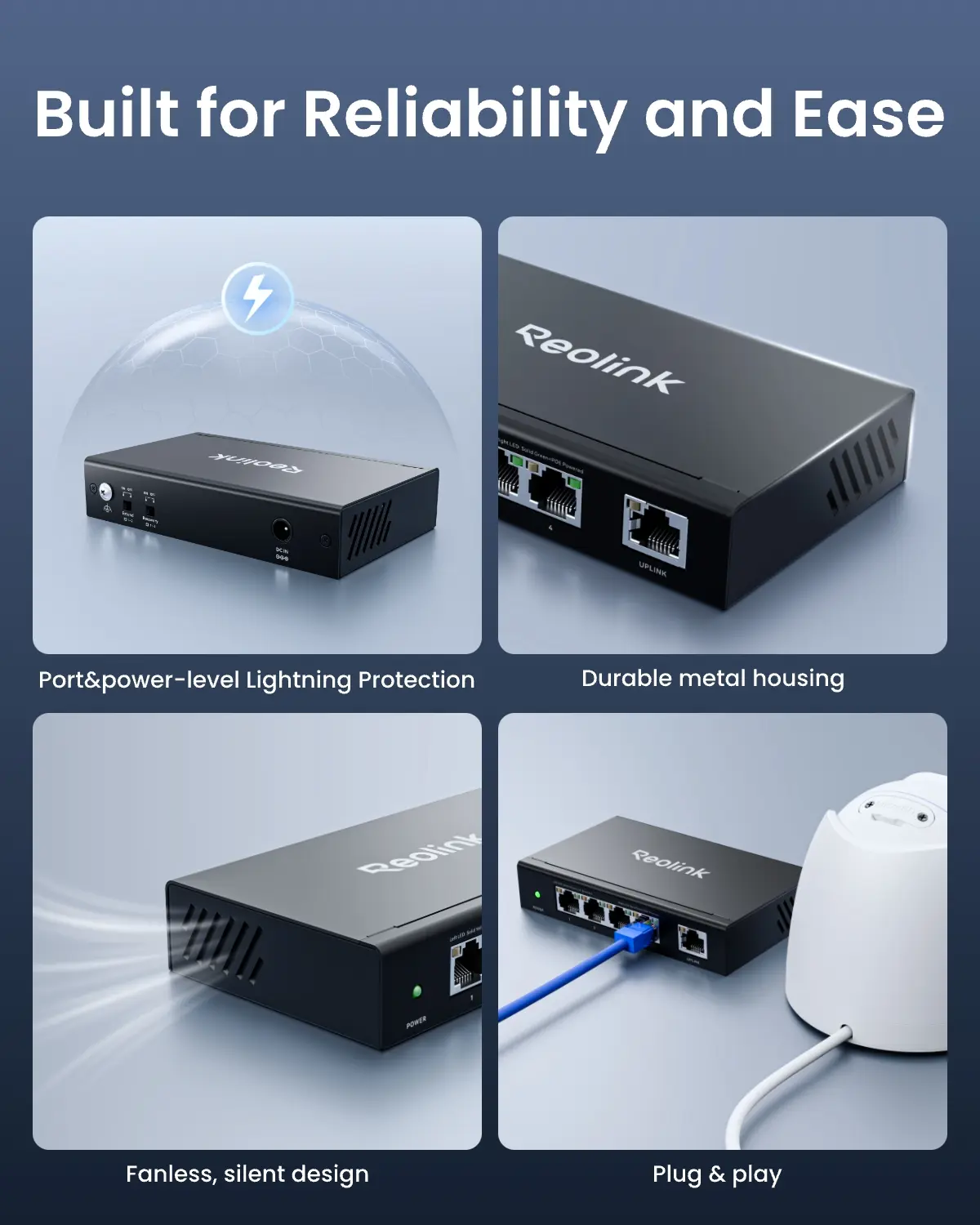

4KV SURGE PROTECTION — DEFEND AGAINST VOLTAGE SPIKES
Professional-grade lightning and surge protection on both ports and power supply blocks sudden voltage spikes before they can damage your connected cameras, NVRs, or other devices — even during storms.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
FANLESS DESIGN — COMPLETELY SILENT OPERATION
No fan. No noise. The RLA-PS1E runs completely silently at all times — perfect for home offices, living rooms, bedrooms, or any environment where noise is a concern.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
TRUE PLUG & PLAY — SETUP IN MINUTES
No configuration software, no technical expertise required. Simply connect your PoE cameras or NVR via a single Ethernet cable and you're done — data and power delivered through one cable instantly.
Compatible with all Reolink PoE cameras and NVRs
Connect directly to your NVR or to the same LAN as your cameras
Beginner-friendly setup — no IT knowledge needed
️ Note: This switch provides network data only (not power) when connected to Wi-Fi cameras.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
IDEAL USE CASES
Home Security Systems | Small Offices | Warehouses
Parking Lots | Farms | Construction Sites
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

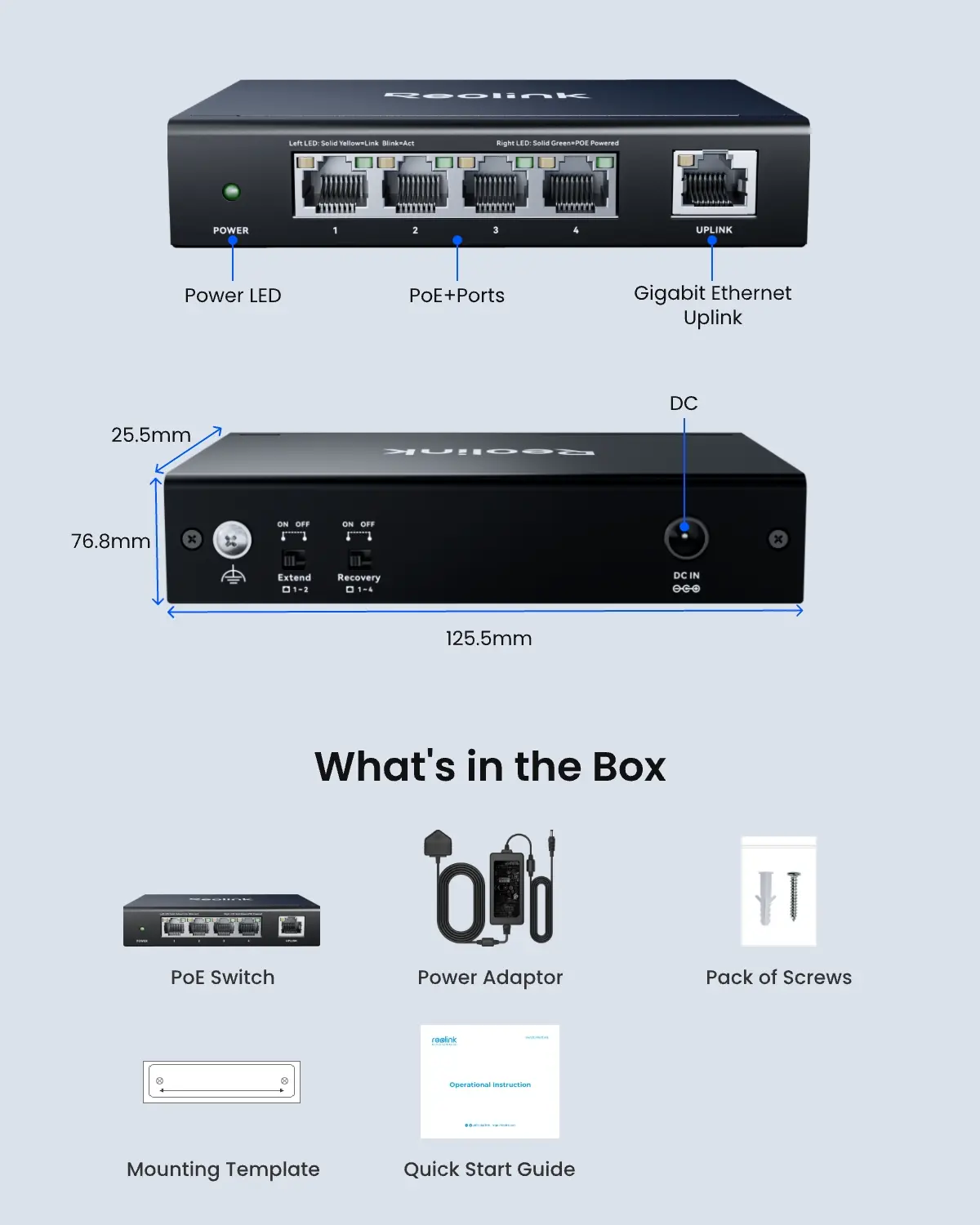

KEY SPECS AT A GLANCE
- Ports: 4 × PoE+ (IEEE 802.3af/at) + 1 × Gigabit Uplink
- Speed: 10/100/1000Mbps (Gigabit)
- Max Per Port: 30W
- Total Power Budget: 65W
- Extend Mode: Up to 820ft (250m) on Port 1 & 2
- Surge Protection: 4KV
- Design: Fanless (Silent)
- Setup: Plug & Play — No Configuration Required
- Compatible: Reolink PoE Cameras & NVRs
