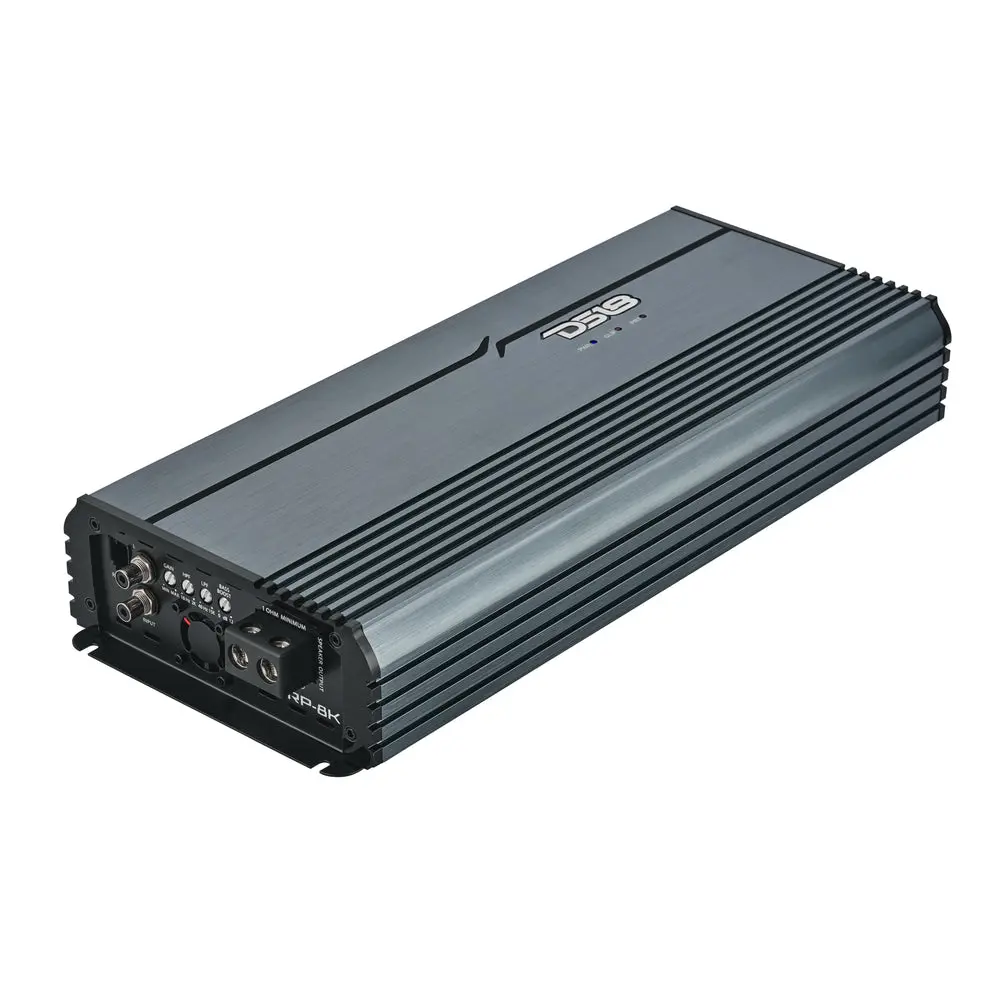

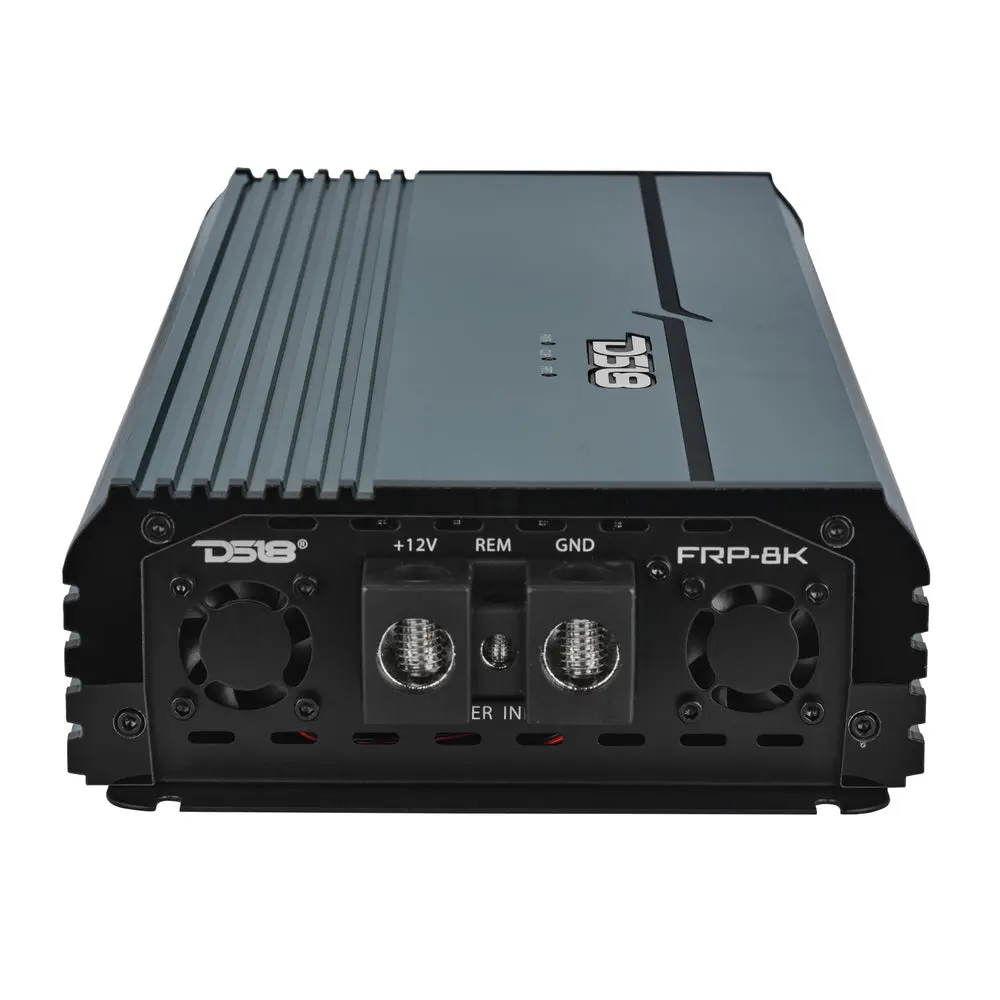

Push your car audio to the max with DS18 FRP-8K1 – 8000W RMS full-range Class D power, stable 1-ohm operation, precision bass tuning, smart protection, and a compact show-ready design.
Features:
·8000W RMS @ 1 Ohm – Full-Range Monoblock Power
·Compact design with Smart Cooling and LED Clipping Indicator

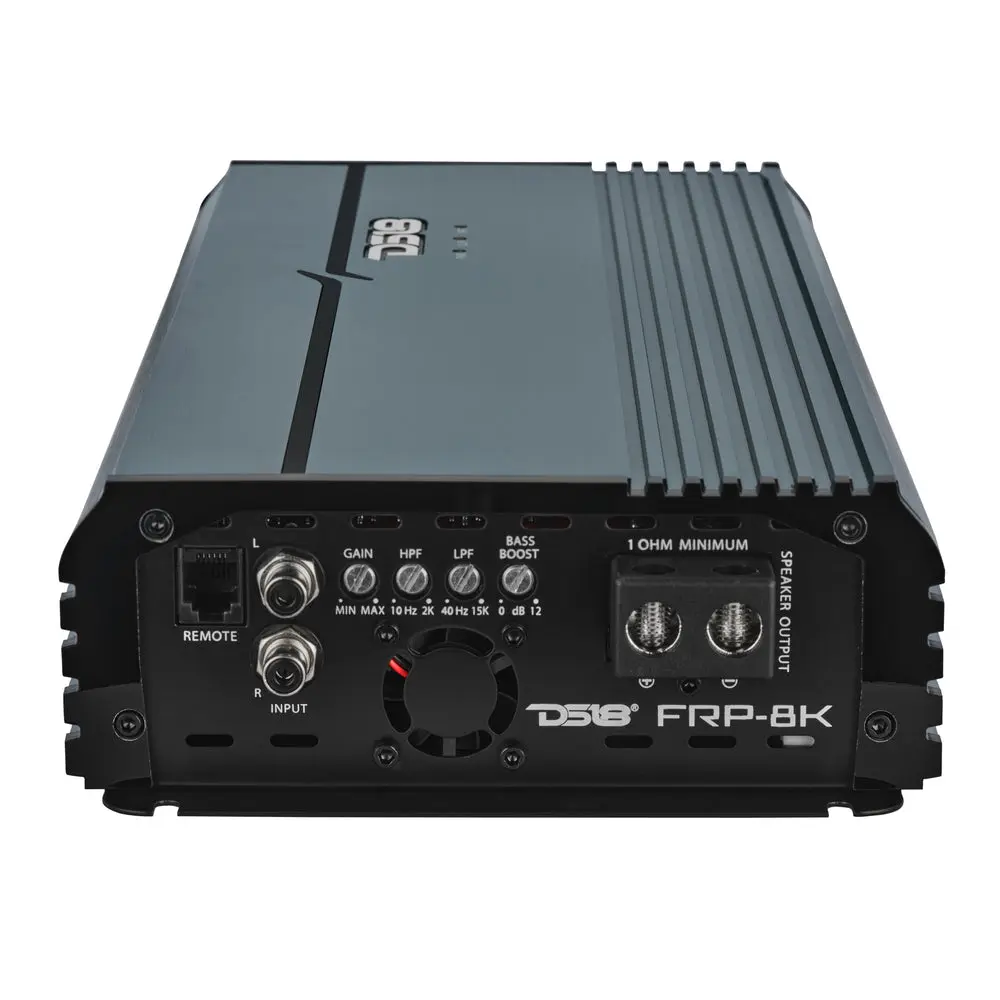

·Variable Low-Pass & Subsonic Filters (10Hz–2KHz & 10Hz–80Hz)
·12dB Bass Boost @ 50Hz for maximum low-end punch

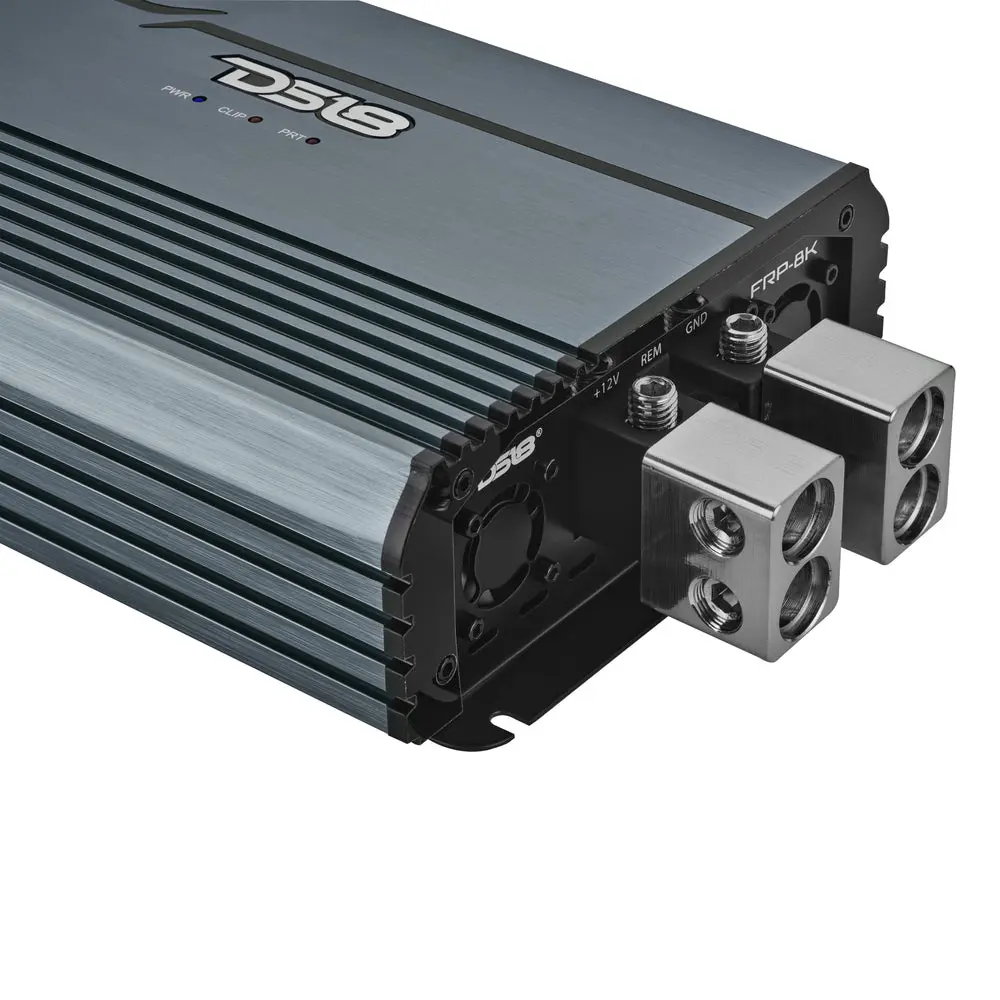

·0GA terminals & Tiffany RCA inputs
·Tested with Audio Precision equipment for real-world durability
Specifications:
Power
RMS Power @ 4 ohms
2500W
RMS Power @ 2 ohms
5000W
RMS Power @ 1 ohm
8000W
MAX Power @ 1 ohm (Burst)
9000W
Audio
Frequency Response
10Hz-15KHz
Signal to Noise Ratio
83dB
Efficiency @ 4ohm
95%
Damping Factor
90
Input Impedance
10KΩ
Total Harmonic Distortion (THD)
0.5%
Low Level Input Range
400mV-6V
High Level Input
No
Selectable X-Over
Fixed Band-Pass
X-Over Filter Range (HP)
10Hz-2KHz
X-Over Filter Range (LP)
40Hz-15KHz
Bass Boost Range
0-12dB
Bass Boost Frequency
50Hz
Phase Selector
No
Features
Amplifier Class
Digital
Amplifier Type
Full-Range Monoblock
Number of Channels
1CH
Minimum Impedance
1Ω
Led Indicator
Power / Protect / Clipping

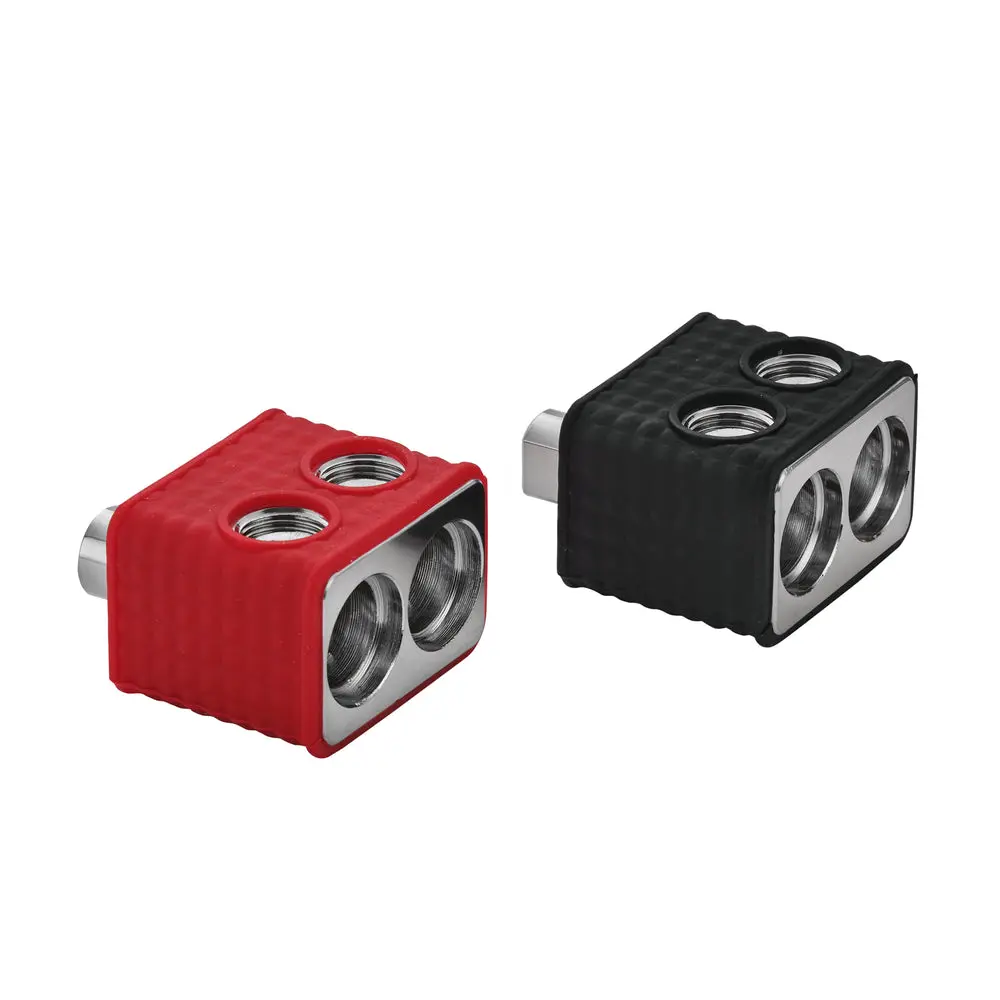

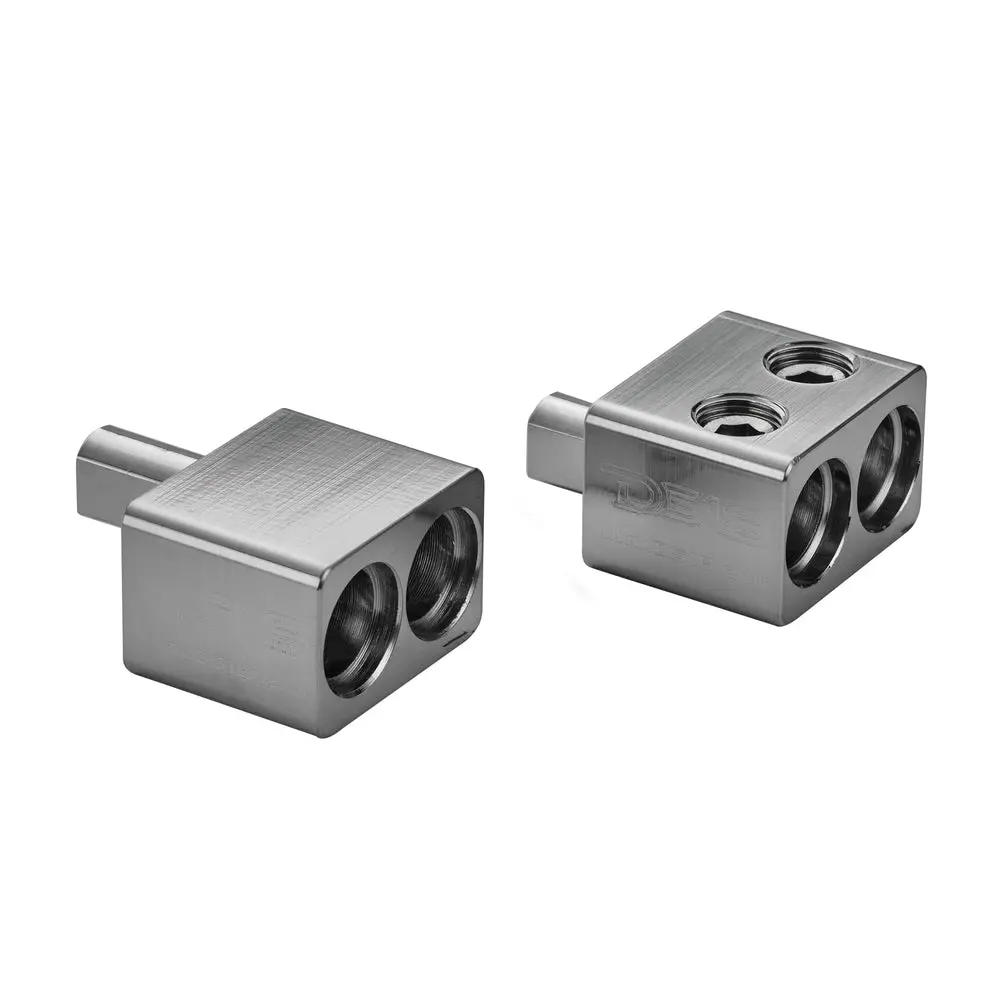

Power Input Terminal Size
0GA
Fuse Size (Recommended)
750A
Cooling Fan
Yes (Smart Cooling x 3)
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes
Clipping Protection
Yes
Body Color / Finish
Blue / Red / Titanium
Compact Size to Easy Installation for Any Applications
Yes

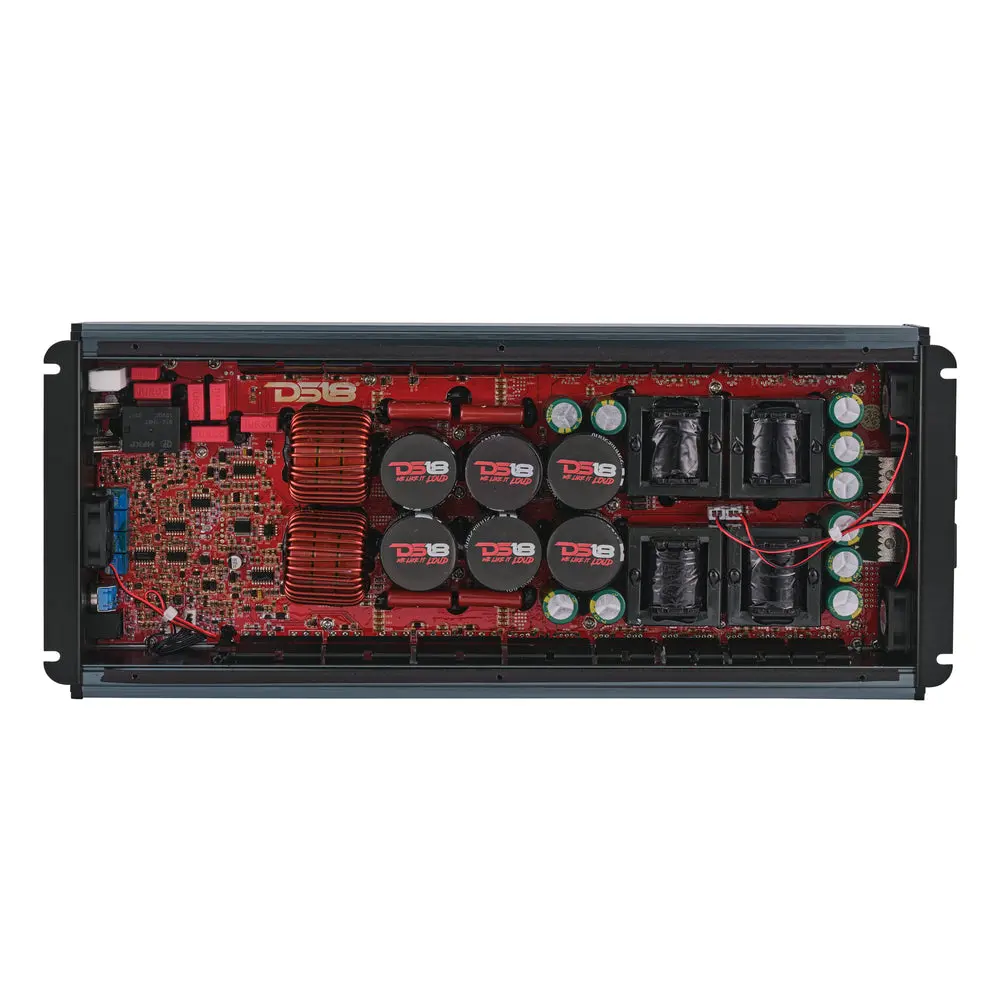

Stable/Reliable Four Layers Traces PCB Design
Yes
Surface Mount Component Technology
Yes
Quality Control Verification using Audio Precision Instruments
Yes
Tiffany RCA Terminal
Yes
LED Clip Indicator
Yes
Metal Knobs with Click Steps
Yes

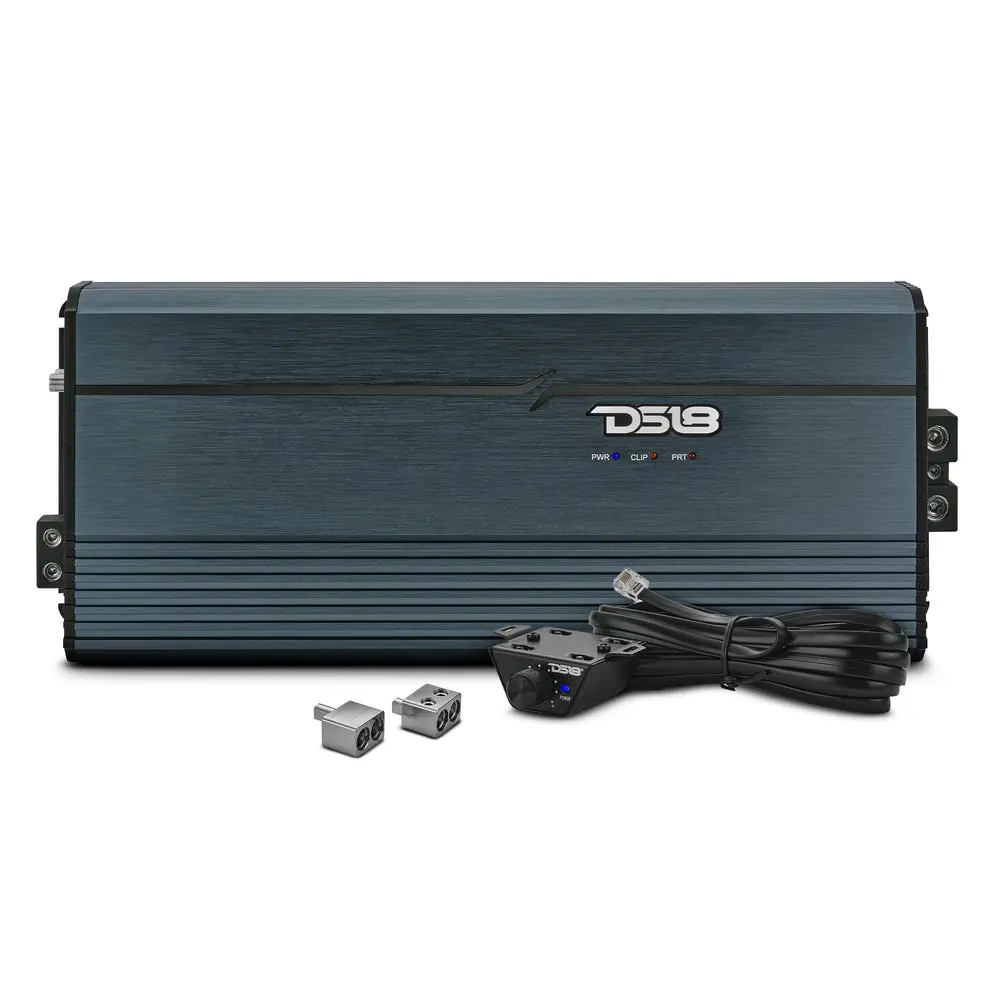

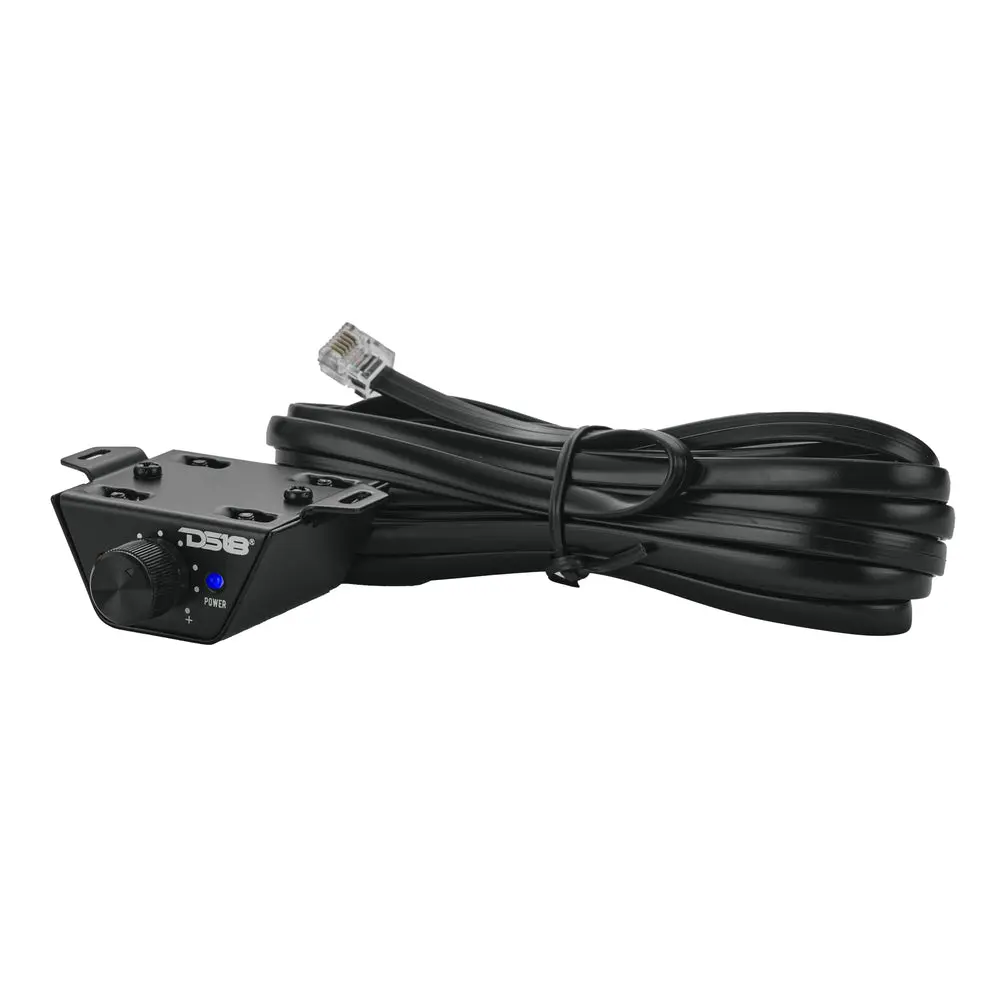

Remote Level Control with Clip Indicator
(Included)
Remote Level Control with Clip Indicator and Voltmeter
(Optional)
Measurement
Overall Length
15.8" / 403mm
Overall Width
6.5" / 166mm
Overall Height
2.4" / 62mm
Heatsink Length
14.6" / 371mm
Gross Single Unit Weight
5kg
UPC: 810097269477
