Diehl Hydrus 2" AWWA Ultrasonic Water Meter Type 171 17" Lay Length T30 160 GPM

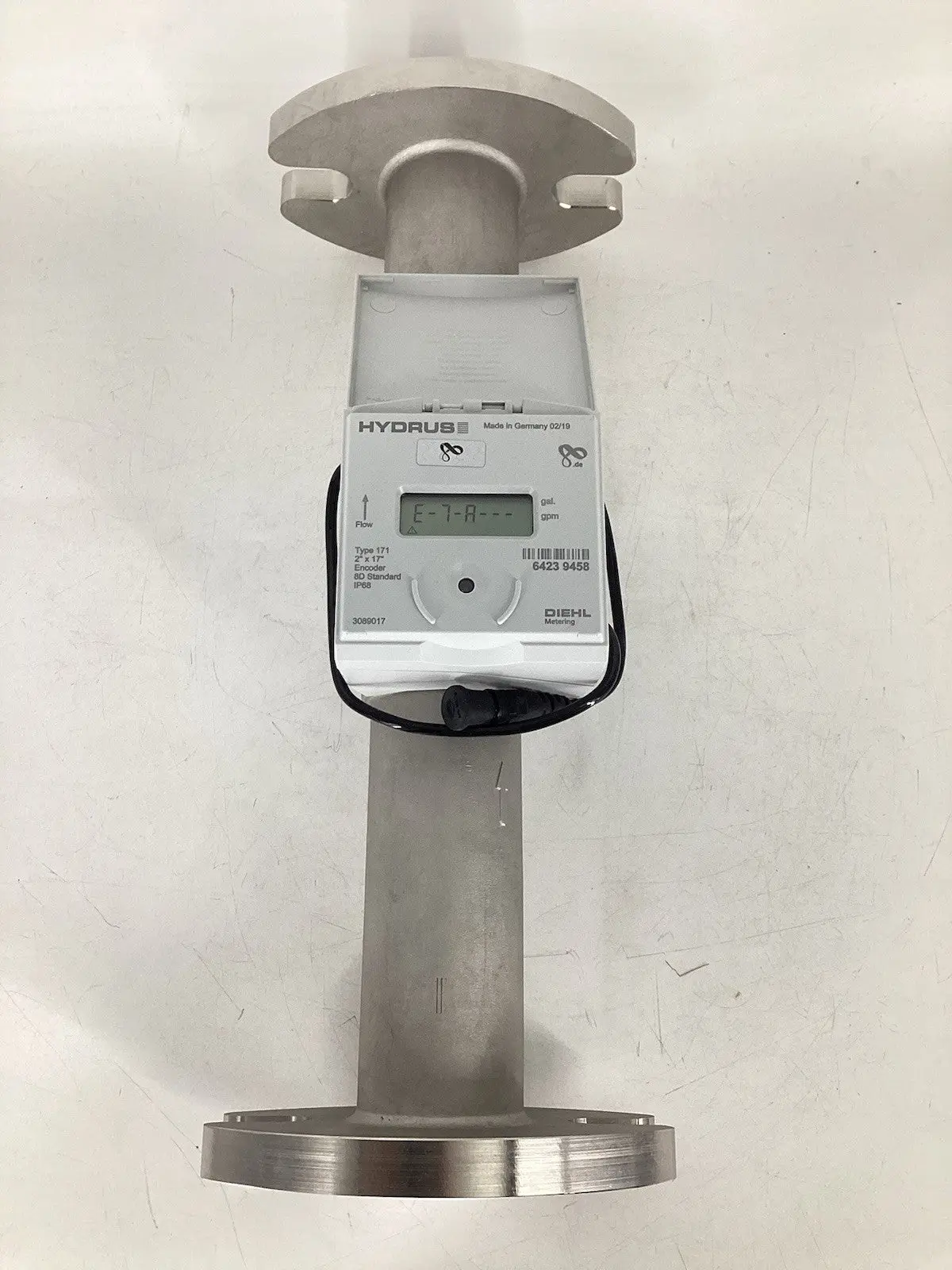

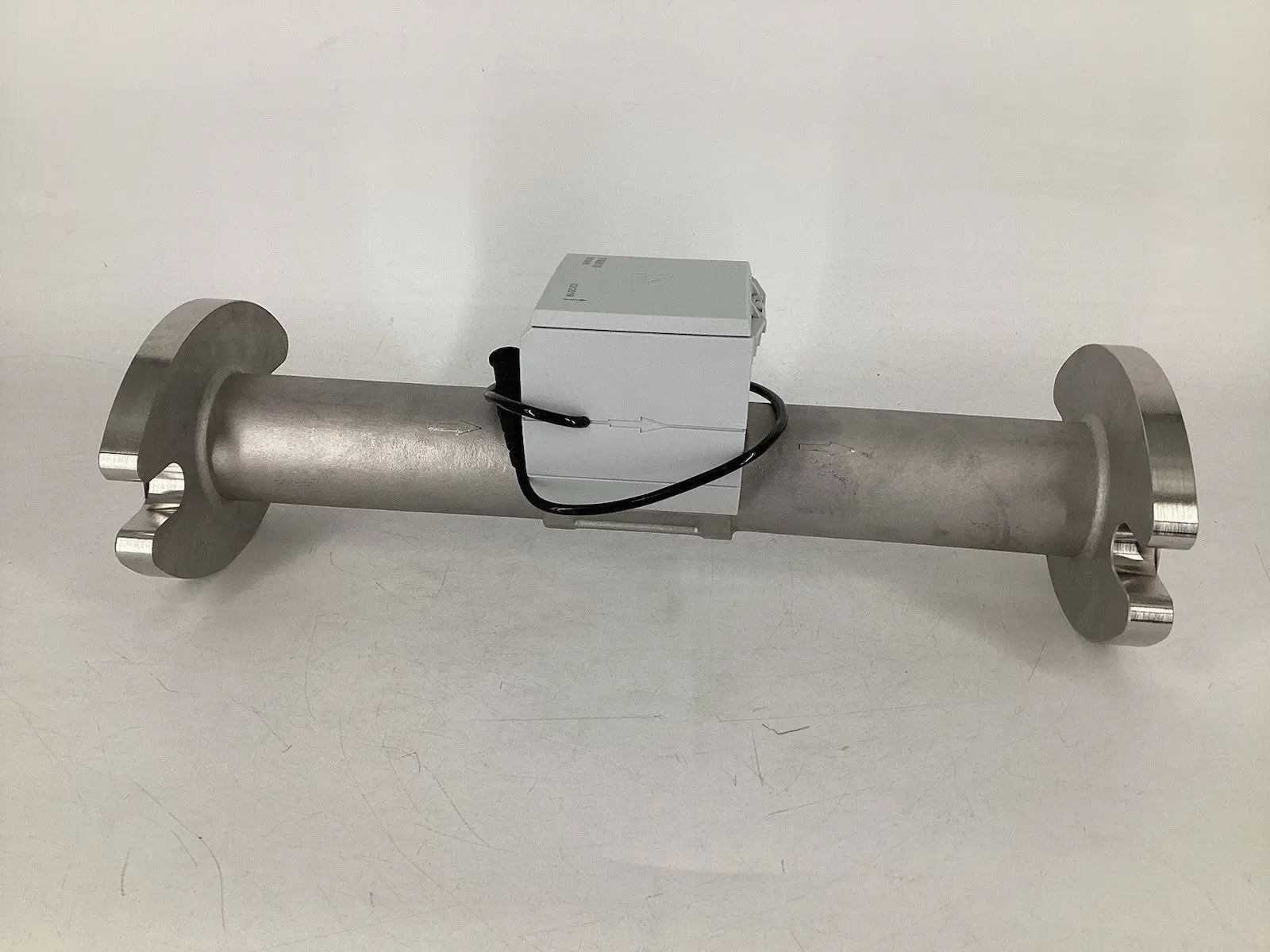

For sale is a Diehl Hydrus Type 171 ultrasonic water meter, part number 3089017. This is a 2" AWWA flanged meter with 17.0" lay length and 4.5" AWWA bolt circle, rated for approximately 160 gallons per minute (T30 class).

The Diehl Hydrus series uses ultrasonic measuring technology (no moving parts) for highly accurate, long-term stable water metering in municipal, commercial, industrial, and irrigation applications. It’s in the same family as the Hydrus 2.0 meters used by utilities for smart metering and AMR/AMI systems.

Key Features

·Size: 2" flanged, 17" AWWA lay length

·Flow rating: up to approx. 160 gpm (T30)

·Connection: 2" x 17" FL, 4.5" AWWA bolt circle

·Technology: Solid-state ultrasonic meter – no mechanical moving parts

·Register: AWWA 8-digit (8D) encoder – compatible with many AMR/AMI/reading systems

·Battery powered internal electronics for long-term operation

·IP68 submersible housing for pit installations

·Lead-free, drinking-water compliant (NSF/ANSI 61 & 372, per Hydrus 2.0 specs)

·Designed for cold potable water in demanding environments (no measurement of air, insensitive to sediment and debris)

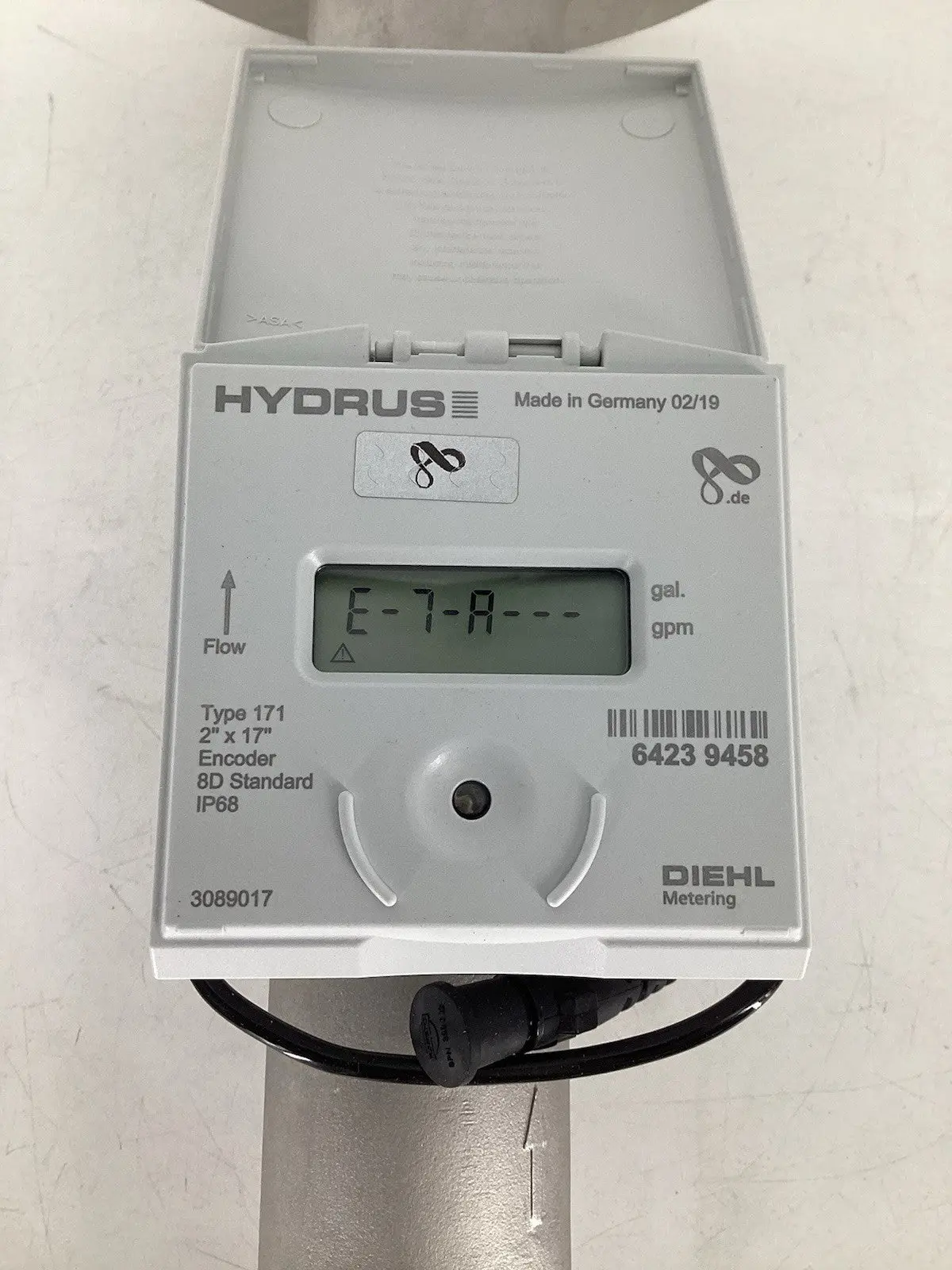

Technical Details (per label / series information)

·Manufacturer: Diehl Metering

·Model / Type: Hydrus, Type 171

·Part Number: 3089017

·Size: 2"

·Connection: AWWA 2" flanged, 17" lay length

·Flow range (approx.): 0.8–160/170 gpm, ±1.5% accuracy over operating range

·Max operating pressure: up to 300 psi (per Hydrus 2.0 spec)

·Protection class: IP68 – suitable for buried or pit installations

·Standards: AWWA/ANSI C715, NSF/ANSI/CAN 61 & 372 (Hydrus series)

Please confirm the exact configuration and compatibility with your utility or system before purchase. Specs above are based on the Hydrus/ Hydrus 2.0 documentation and the meter nameplate.

R2v3 Grading: C9-F4
