Simpson Anchors THD75500H Description

The Titen HD anchor is a patented, high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete; a requirement that the 2006 IBC places on post-installed anchors. The high strength, easy to install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.

Simpson Anchors THD75500H Includes

·(1) Titen HD Heavy Duty Screw Anchors, 3/4" X 5" 5-Pack

Simpson Anchors THD75500H Features

·Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713

·Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056

·Qualified for static and seismic loading conditions

·Thread design undercuts to efficiently transfer the load to the base material

·Standard fractional sizes

·Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors

·Removable - ideal for temporary anchoring (e.g., formwork, bracing) or applications where fixtures may need to be moved

·Reuse of the anchor to achieve listed load values is not recommended

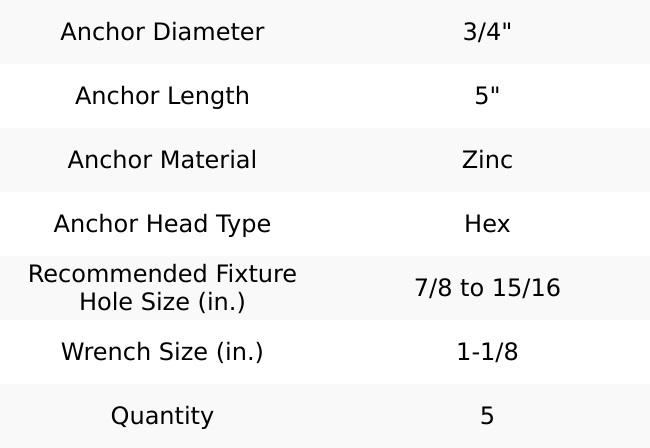

Simpson Anchors THD75500H Specifications
