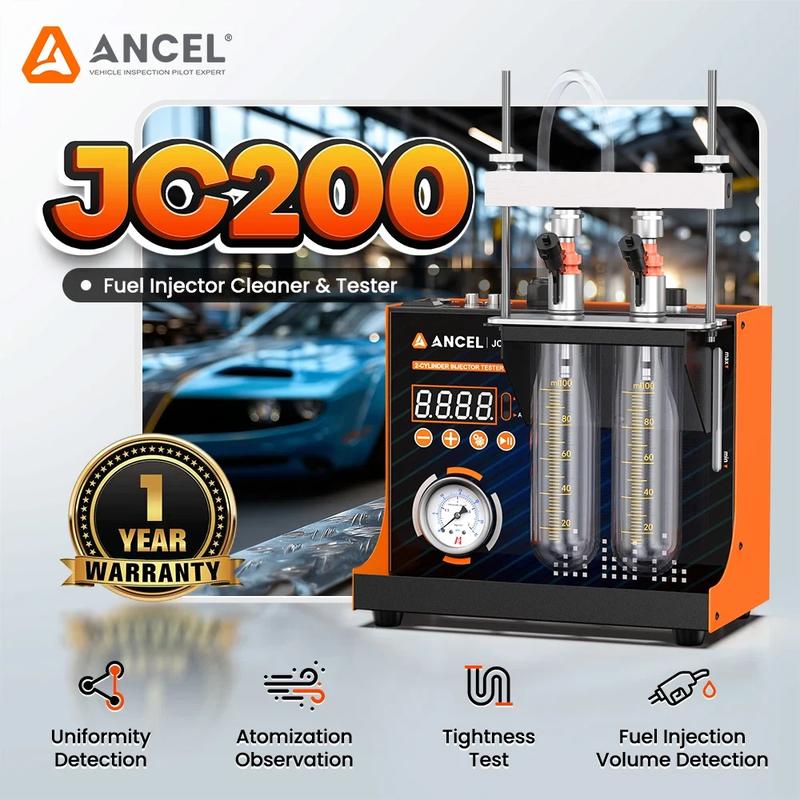

ANCEL JC200 2-Cylinder Injector Cleaner Tester Machine for Car & Motorcycles

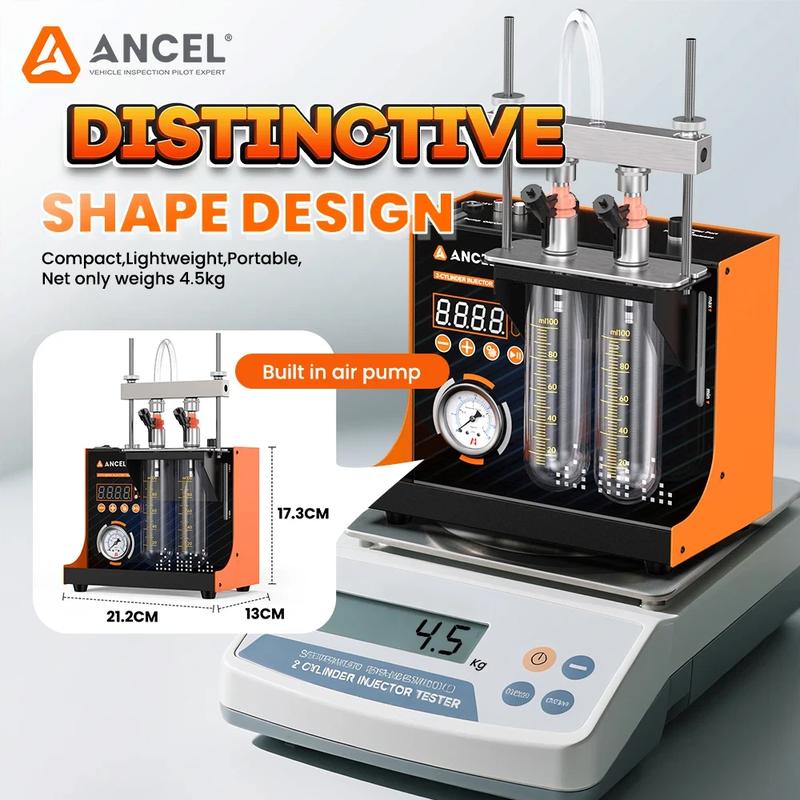

ANCEL JC200 2-Cylinder Injector Cleaner Tester Machine for Car & Motorcycles is a versatile tool designed to diagnose and test fuel injectors efficiently. With its low-cost solution and stable pressure output, it ensures consistent test conditions. The DC12V power supply enhances portability, while the visual oil tank liquid level display promotes recycling of test agents. The bright background light and replaceable composite joints make it suitable for testing various injector types.

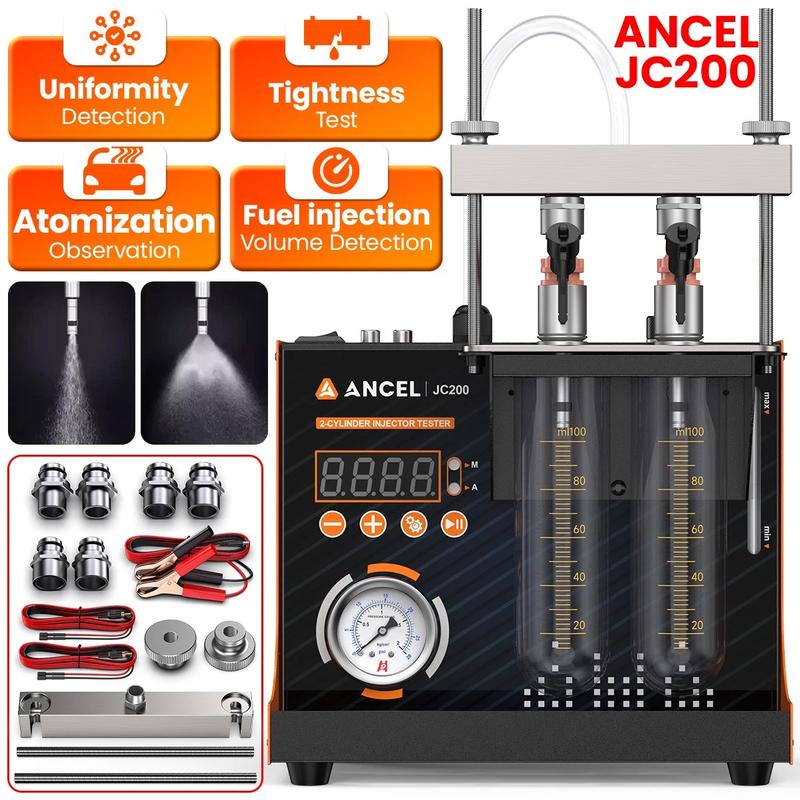

Main Functions:

·Uniformity test: Checks the uniformity of fuel injections.

·Atomization observation: Observes the spray atomization situation with backlight.

·Tightness test: Detects the tightness and dropping of fuel injectors under working pressure.

·Fuel injection volume detection: Detects the fuel injection volume under specific working conditions.

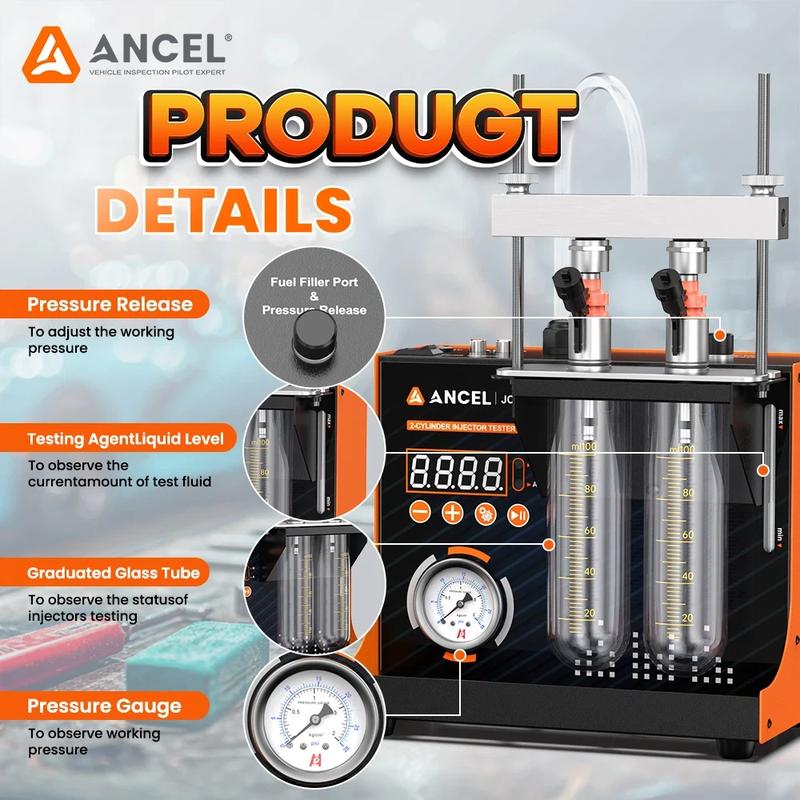

Main Features:

·Low-cost solution for fuel injector testing.

·Uses pressurized air to ensure stable pressure output.

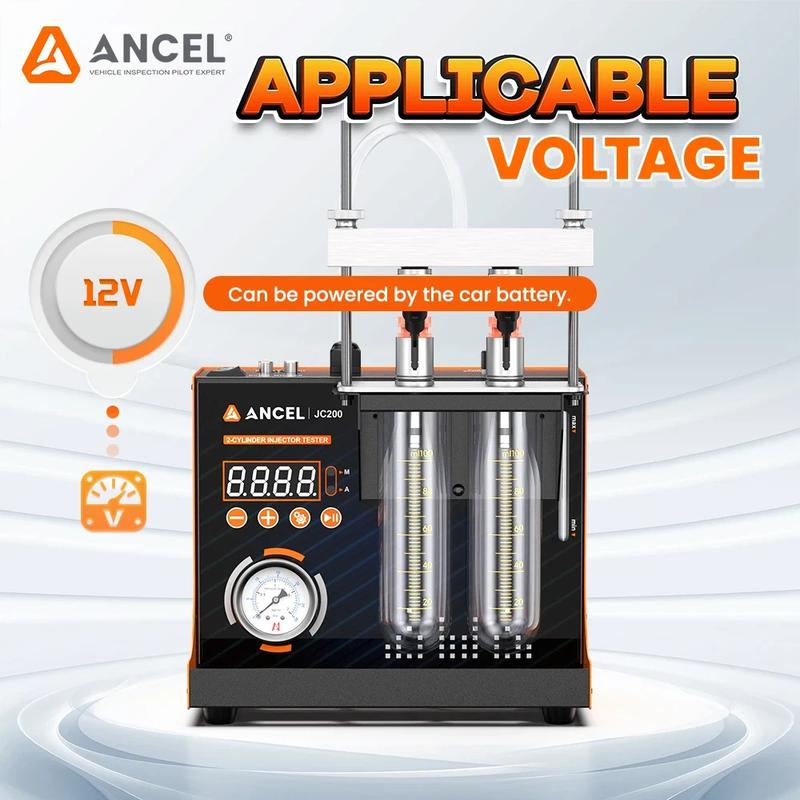

·DC12V power supply for enhanced portability.

·Visually displays oil tank liquid level for recycling of test agent.

·Bright background light for clear visibility of fuel injector operation.

·Replaceable composite joints for different injector types.

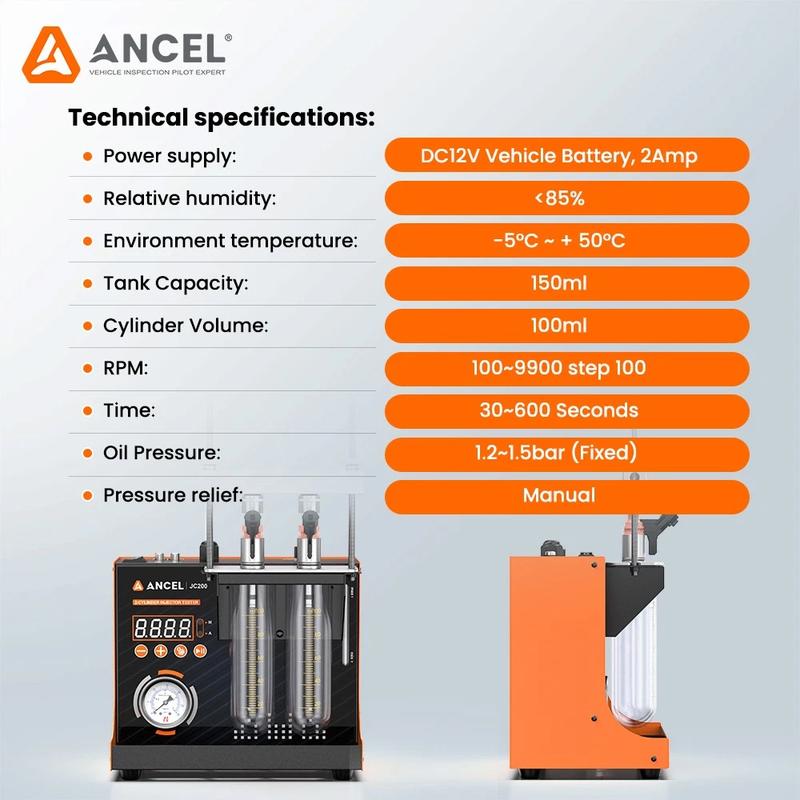

Technical Specifications:

·Power supply: DC12V Vehicle Battery, 2Amp

·Relative humidity:

·Environment temperature: -5°C ~ +50°C

·Tank Capacity: 150ml

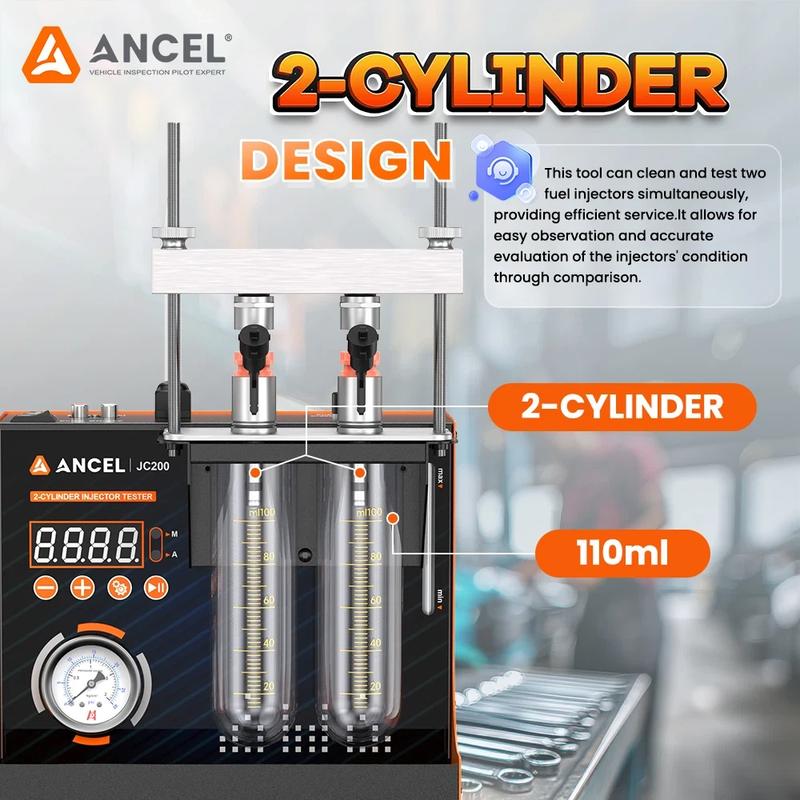

·Cylinder Volume: 100ml

·RPM: 100~9900 step 100

·Time: 30~600 Seconds

·Oil Pressure: 1.2~1.5bar (Fixed)

·Pressure relief: Manual

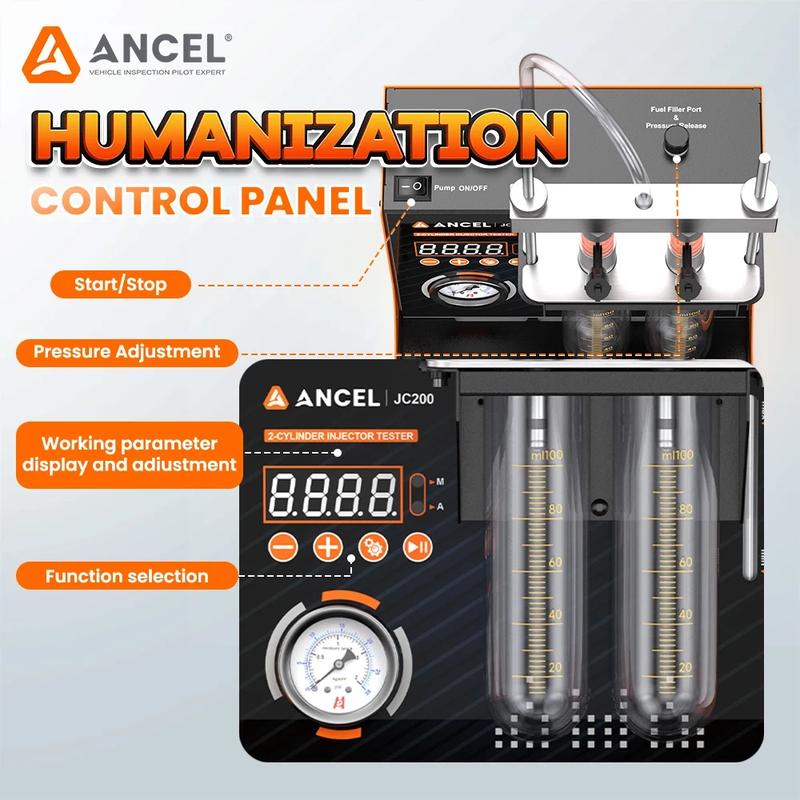

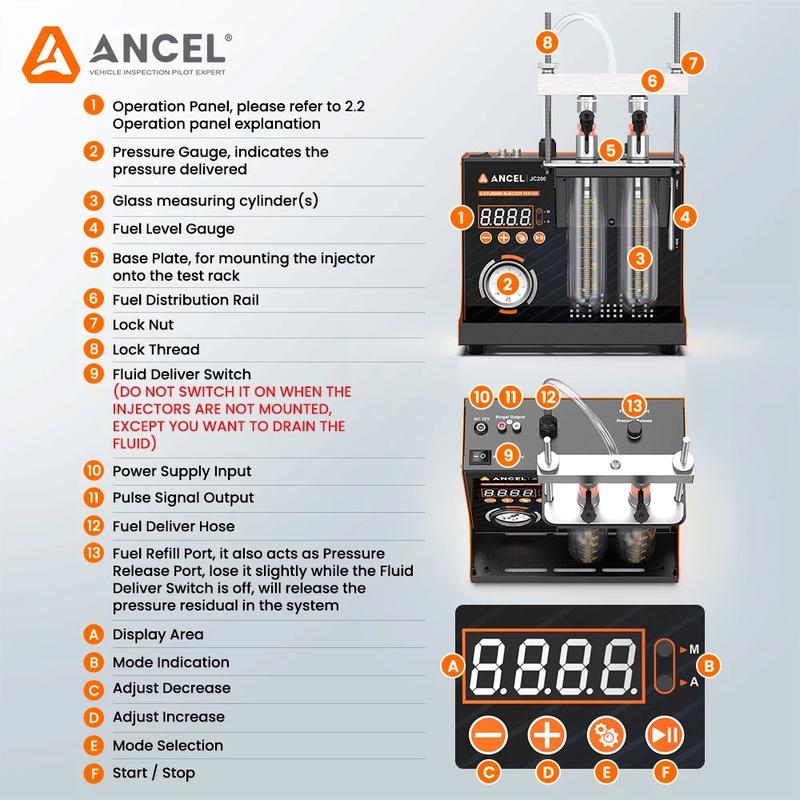

Operating Instructions: 1. Button Functions: - -: Time adjustment / Speed adjustment. - +: Time adjustment / Speed adjustment. - MODE: Mode key, cycles through modes (Manual mode M, Automatic mode A). - START: Start/Stop key, short press to start when stopped, short press to stop when running.

Indicator Functions:

·M: Manual mode.

·A: Auto Mode.

Operation Instructions:

·Manual Mode (M): In stopped state, briefly press "MODE" to switch to M mode. Use "+/-" keys to adjust output speed (range: 100-9900 RPM). Briefly press "START" to activate operation at set speed.

·Automatic Mode (A): In stopped state, briefly press "MODE" to switch to A mode. Use "+/-" keys to adjust timer duration (30-600 seconds). Briefly press "START" to activate. Speed automatically adjusts within 500-6000 RPM range at +/-100 RPM increments every 0.5 seconds, stopping automatically upon countdown completion.
