Features ● 105mm/h with 0.1mm layer height ● 10.1'', 14K (13312 * 5120)

● Resin Residue Detection ● Intelligent Release ● Device Self-Check

● Resin Detection ● PrintingMonitoring

Specification

Printing Dimensions:223.78mm*126.38mm*200mm

Machine Leveling:Leveling-free

Light Source:LED matrix UV light source

Print Speed 105mm/hr ,0.1mm Layer With High Speed Resin; Print Speed 150mm/h ,0.15mm Layer With High Speed Resin;

14K Pioneer of 14K

10.1-inch 14K HD Screen| Air Heater & Purification| High Speed

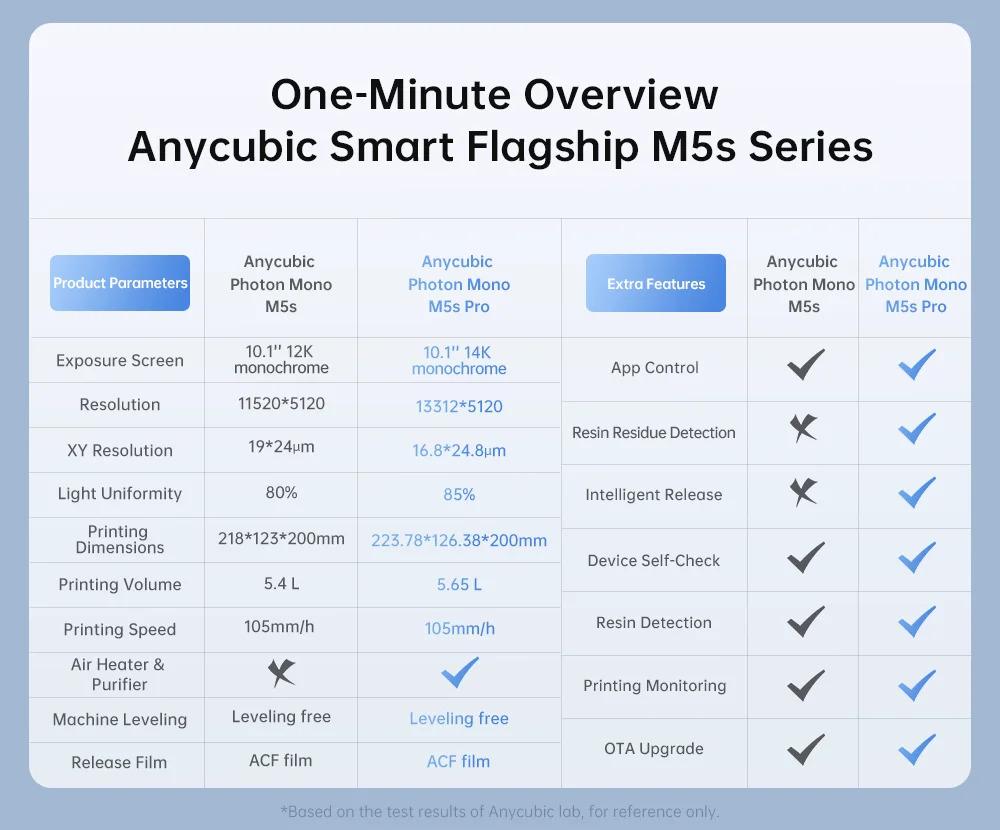

One-Minute Overview Anycubic Smart Flagship M5s Series

Ultra-High 14K Resolution, Smallest Details Brought to Life

Features a 10.1-inch monochrome LCD with a resolution of 13312*5120, the Photon Mono M5s Pro delivers XY resolution of 16.8*24.8μm-printing precision comparable to the thickness of one hair.The light uniformity has been enhanced to 85%,ensuring smallest details and sharp edges.

Air Heater & Purifier

The newly added Air Heater & Purifier module integrates air heating with purification, offering independent control and easy installation.The cover is made of engineering-grade fire-resistant material that has been tested at 0°C and under continuous operation in actual environment, ensuring safe and long-lasting operation in harsh environment.

It supports air heating ensuring the air temperature up to 40℃and keep the resin temperature reach above 20℃ before printing for achieving successful printing even in low-temperature environments.Additionally, a dedicated purification mode is supported, with a built-in high-quality activated carbon component that effectively absorbs resin odors, creating a comfortable printing environment.

High Speed With Great Performance

With an average print speed up to 105mm/h, the Photon Mono M5s Pro offers a high-speed resin printing experience.It adoptes the third-generation high-speed ACF film with reduced peeling force,which ensures high success rates while lowering the peeling height and increasing lifting speed.

Leveling Free Ready to Use

It adopts an brand new leveling free solution that through the floating platform technology and internal sensors, will make necessary adjustments to ensure thatthe print is uniform and falls within an acceptable range to achieve a better result.

Efficiently Protect Printing ,Process With Smart Detection

A new resin residue detection function has been added, which can identify the resin residue in the resin tank through the mechanical algorithm during the descent process to avoid screen breakage.At the same time, during the printing process, the AI algorithm will intelligently calculate and adjust the peeling height in real time according to the model shape, so as to improve the printing success rate and printing speed.

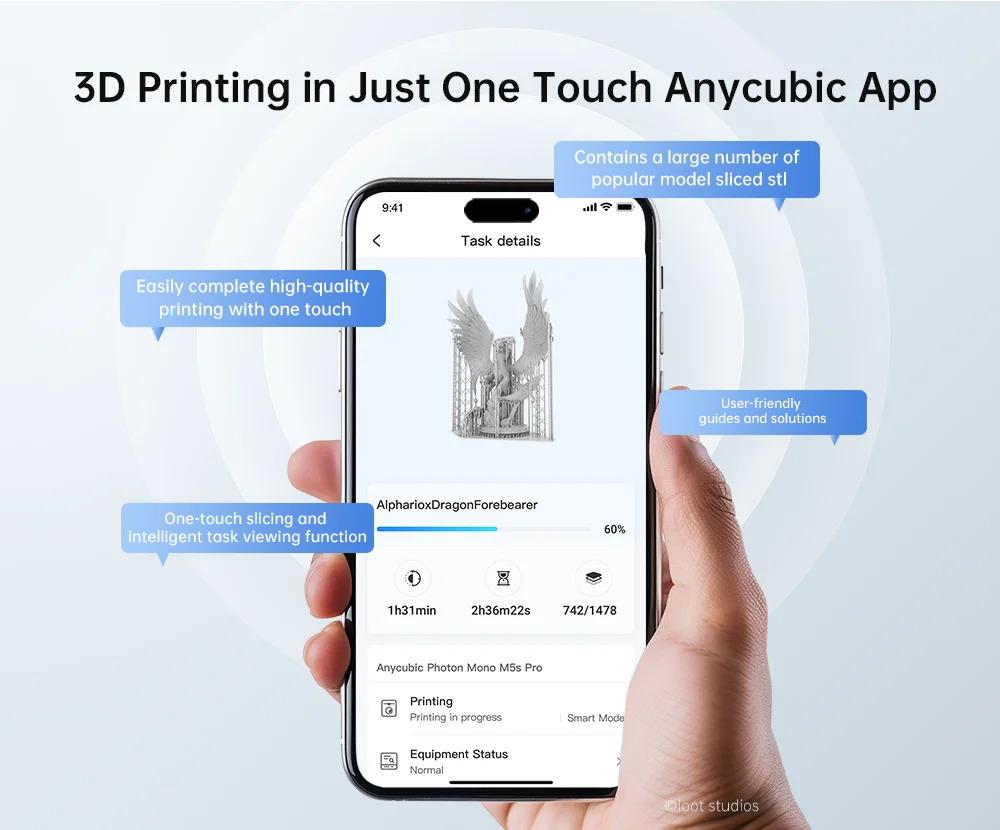

3D Printing in Just One Touch Anycubic App

Adaption to the new version of Anycubic APP,which contains a large number of popular model sliced stl, and can easily complete high-quality printing with one touch;One-touch slicing and intelligent task viewing function,so that each link is in the control;A practical help center that provides users with user-friendly guides and solutions.

Empower your Creativity

The recommended print parameters for using Anycubic Photon Mono M5s Pro with the Anycubic resin are set as follows:

Model Display

FAQ

1.What is the resolution of the Mono M5s Pro LCD screen?

Photon Mono M5s Pro LCD screen resolution is 13312*5120.

2.What is the difference between M5s and M5s Pro?

There is basically no difference between the M5s and M5s Pro, except for the resolution, and the M5s Pro has a heating purifier.

3.What resins can the machine use?

Anycubic 405nm resin is recommended.
