Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal

The Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal is a powerful and flexible tool for managing audio in any professional setting. Whether you’re routing sound for a broadcast, live event, or studio, it gives you the freedom to mix and send audio exactly where you need it. With intuitive controls, crystal-clear sound, and the ability to connect to modern networked audio systems, it’s built to make complex audio setups simple.

Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Review

Built for serious audio professionals, the Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal combines 8 stereo AES3 digital inputs and outputs with advanced AoIP capabilities. It supports RAVENNA, AES67, and even AES67-enabled Dante streams, allowing seamless integration into a variety of systems. With a responsive web-based mixer, detailed metering (on the “D” version), and redundant power options, it’s ready for mission-critical use. Its flexible mix matrix makes routing between physical and networked sources effortless, while its rock-solid build ensures reliability in demanding environments.

Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Features

·Lets you mix and route audio between physical and networked sources with ease

·Can connect over standard network cables or fiber for long-distance runs

·Built-in web controls make setup and adjustments quick and simple

·Works with multiple audio formats including AES67 and RAVENNA

·Redundant power options help keep your audio running without interruptions

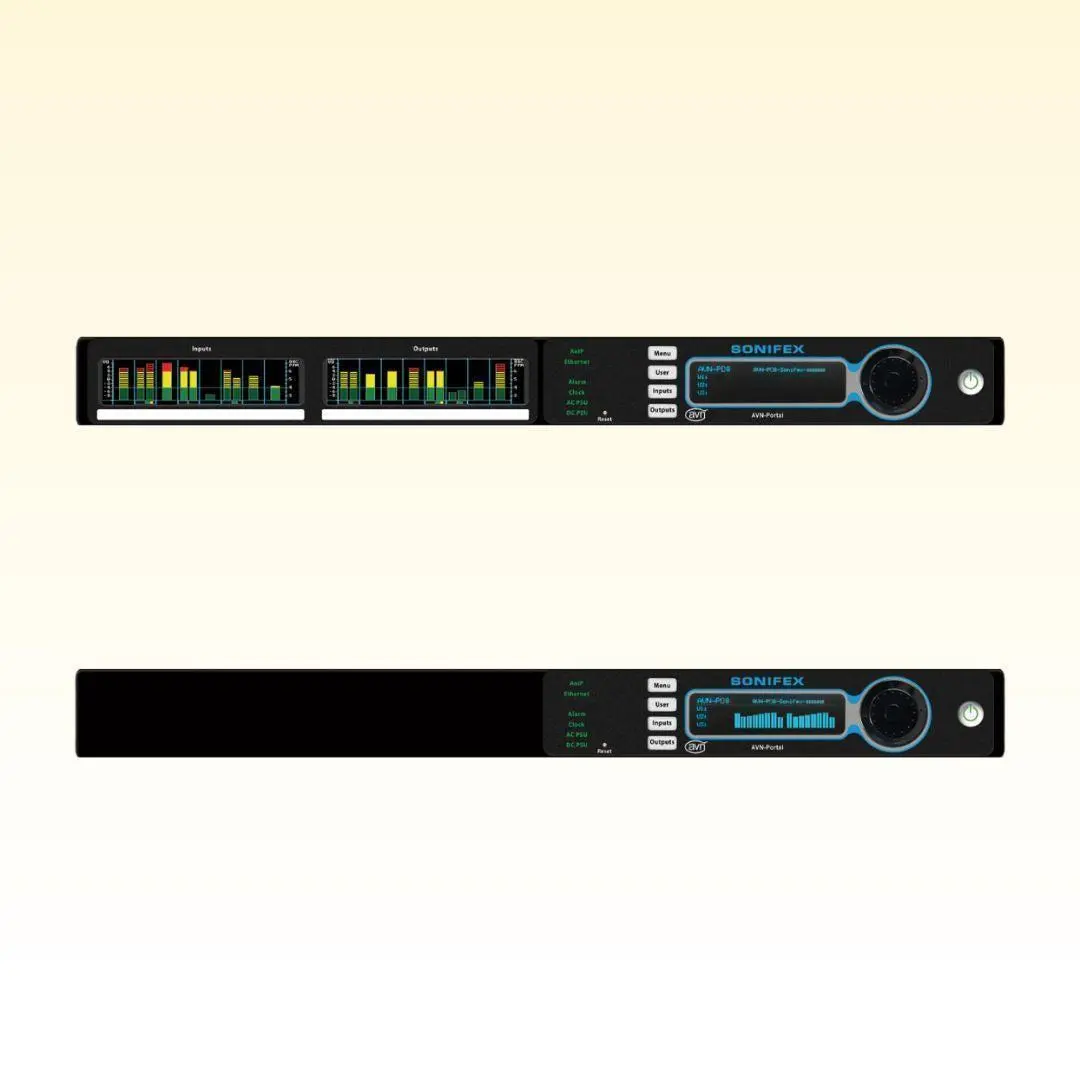

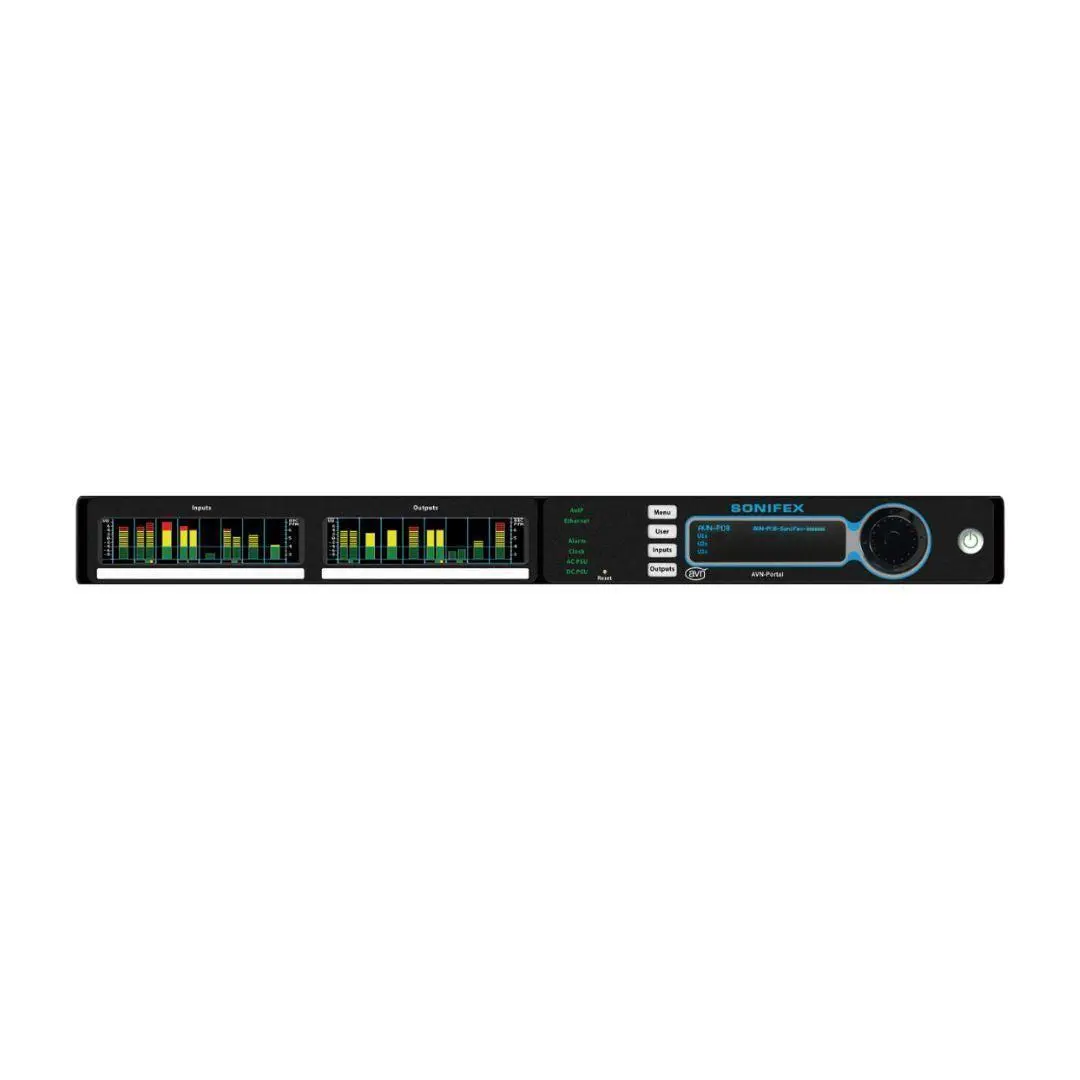

·Available with detailed metering for precise audio monitoring

Sonifex AVN-PD8 AES3 I/O Mix Engine Interface & AES67 Portal Specs

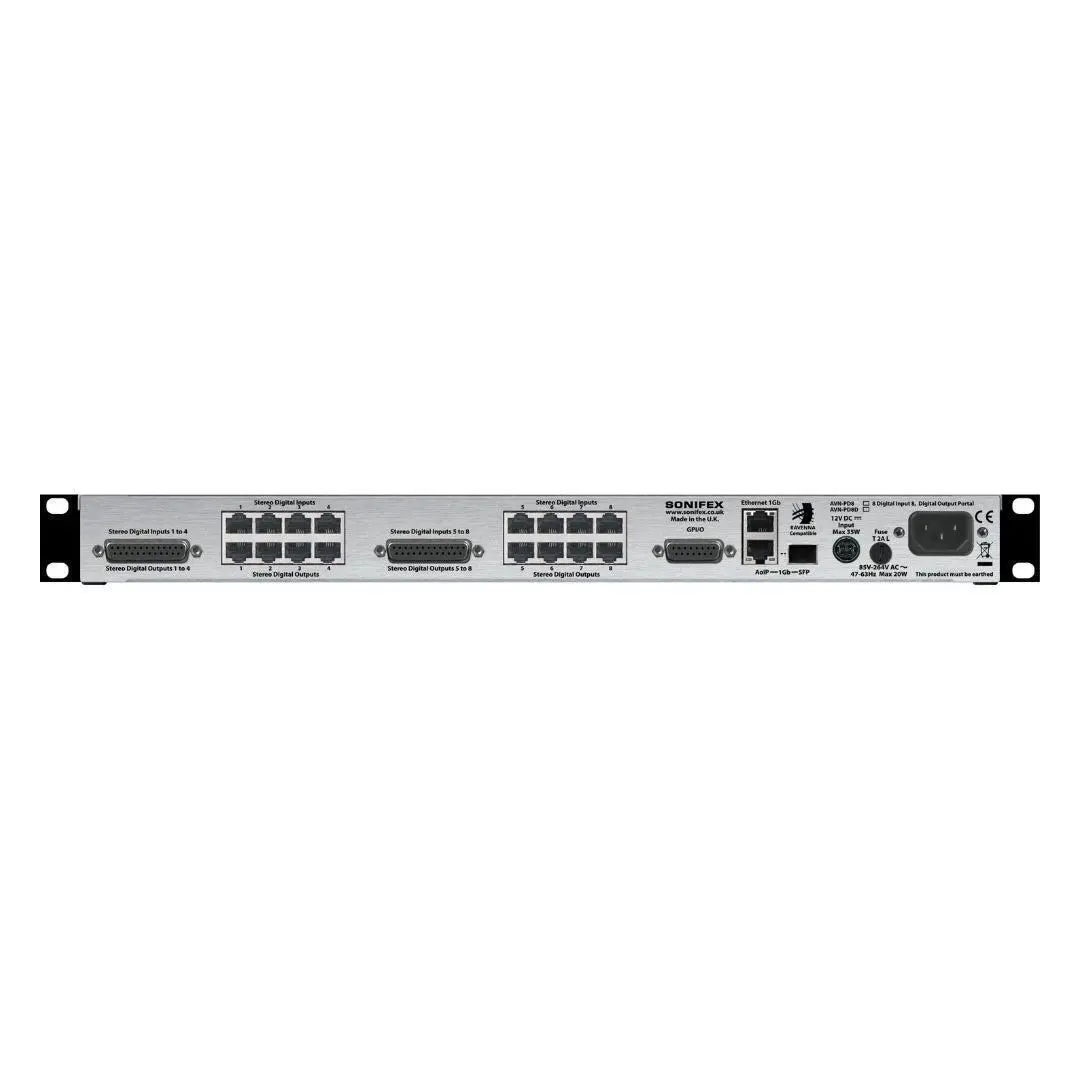

·8 stereo AES3 digital inputs and 8 stereo AES3 digital outputs on D-type and RJ45 connections

·Supports up to 8 AoIP input streams and 8 AoIP output streams, each with up to 8 channels

·Operates at 48 kHz sample rate, 24-bit linear PCM audio

·Dual Gigabit Ethernet ports plus 1Gb SFP port for copper or optical connection

·Universal AC power input 85–264V, 47–63Hz or DC input 10–14V

·Dimensions 19" W x 6.9" D x 1.8" H (1U rackmount)

·Weight 6.34 lbs
