- Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire

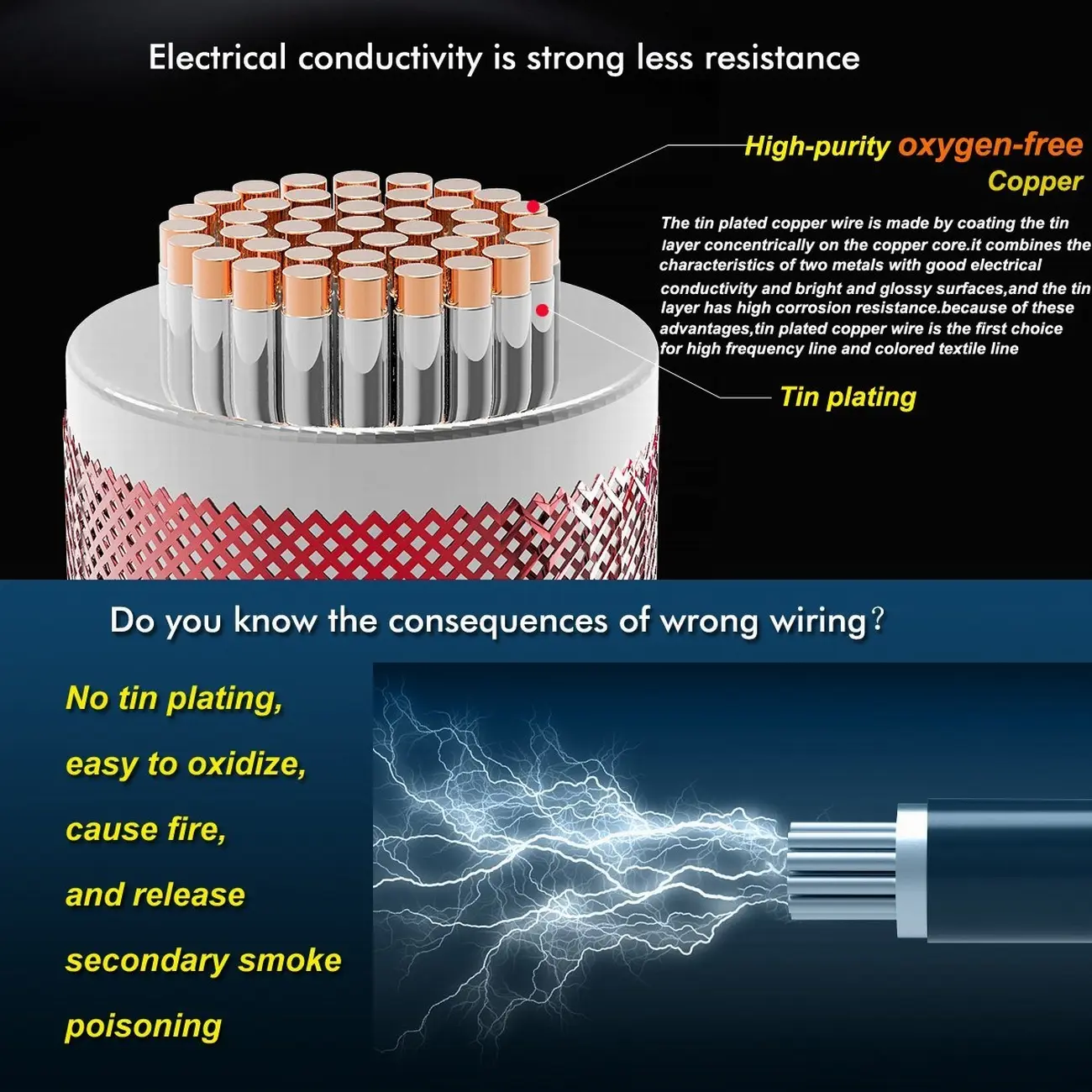

- High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .protecting them from corrosion and making it easier to solder.
- Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation. electronic ceramics,heating parts,car lighting,ballast etc.

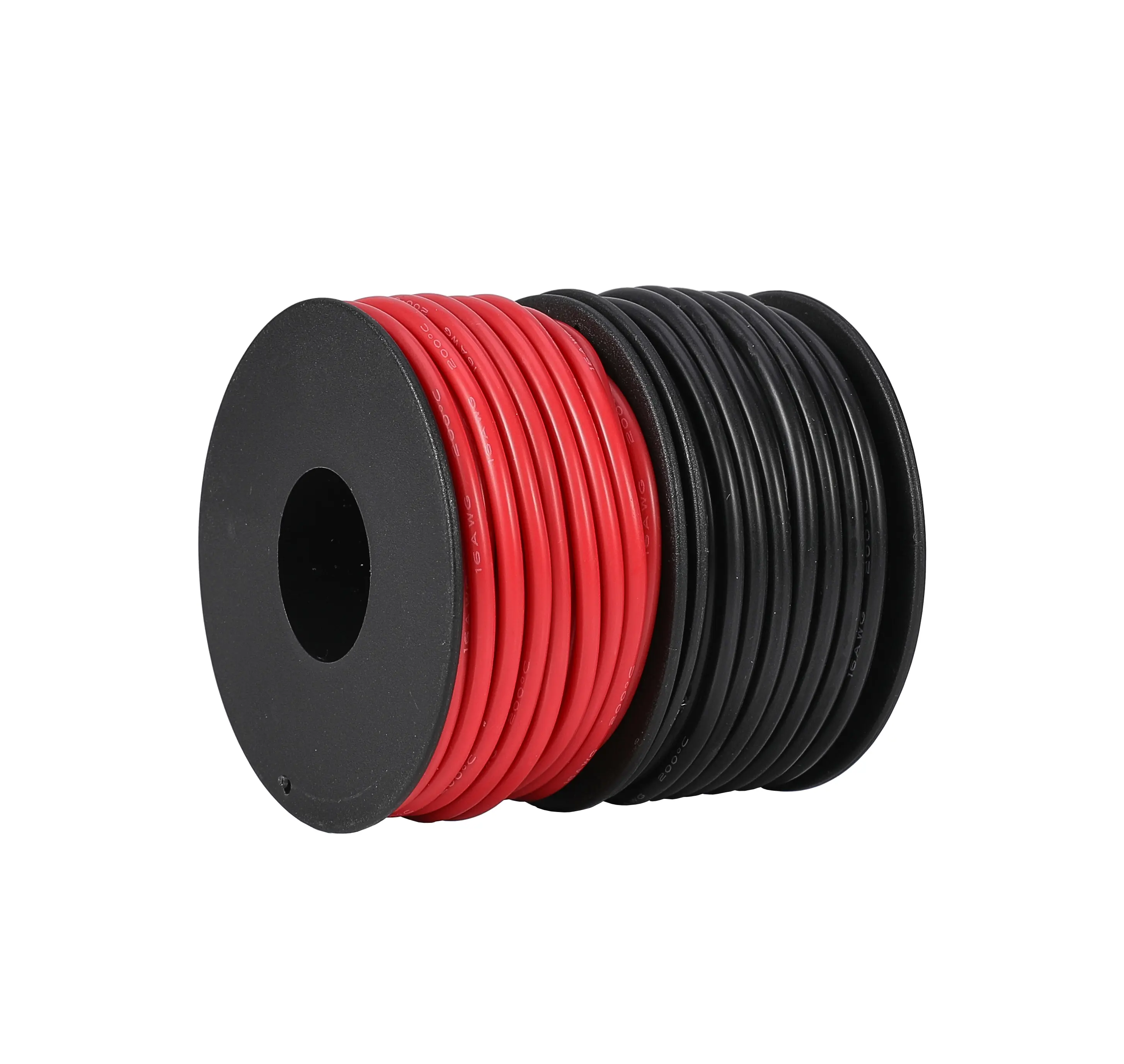

Total 100 feet:50 ft black and 50 ft red
Nominal Voltage: 600V
Testing Voltage:2000V
Temperature Range:-60 Deg C to 200 Deg C
Conductor: Tinned Copper
OD Tolerance: ±0.1mm
Insulator: Silicone

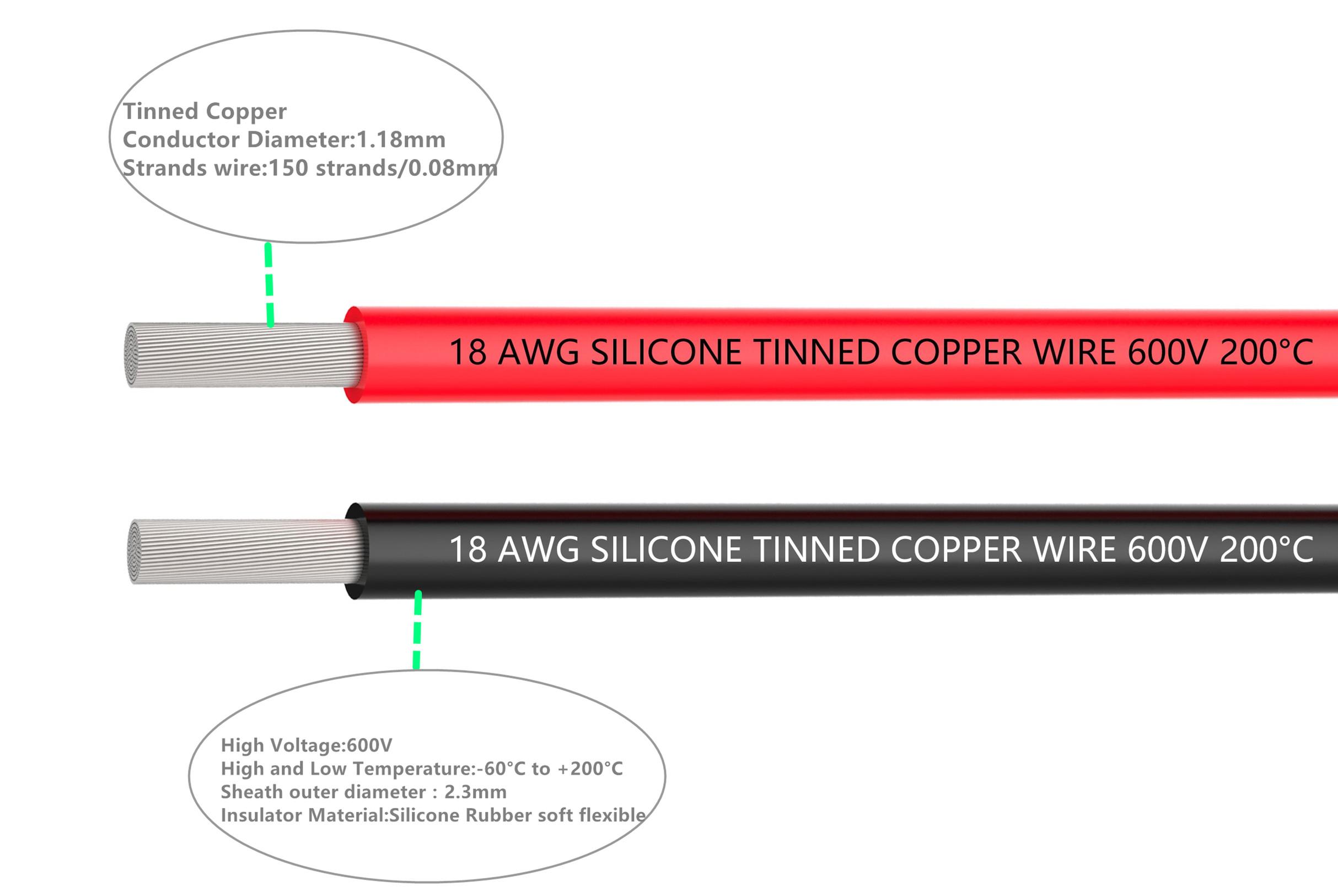

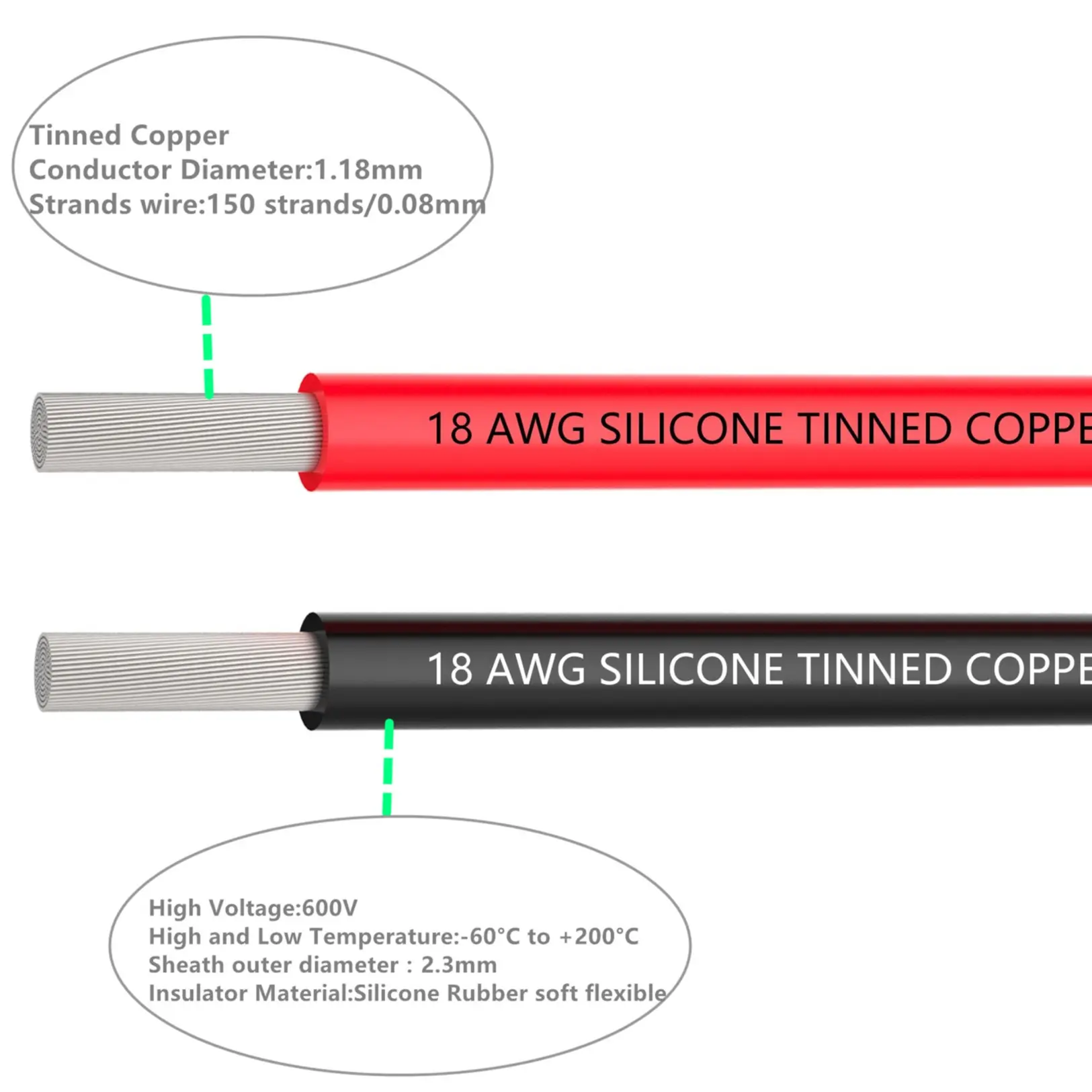

Conductor:
(1) Gauge:18AWG
(2) Copper Number/Wire Diameter:150/0.08mm
(3) Diameter: ∮1.19mm
Insulator:
(1) Jacket Thick:0.55mm
(2) Over Diameter:2.3mm
Bear Current:7.5A
The measurement allowed error is +/-0.4-1.2in.
Warning:If the voltage and current of the circuit in use exceeds the maximum carrying voltage and current allowed for the chosen specification, it may incur accidents like fire and electric shock.
View more
Safety & compliance
Seller info
•Business name: Shenzhen Shuwei Trading Co., Ltd.
•Business address: Building A2, 202, Yatao Garden, Wharf Road, Xixiang Street, Shenzhen, Guangdong, China
$18.48
$5.36 shipping on this order

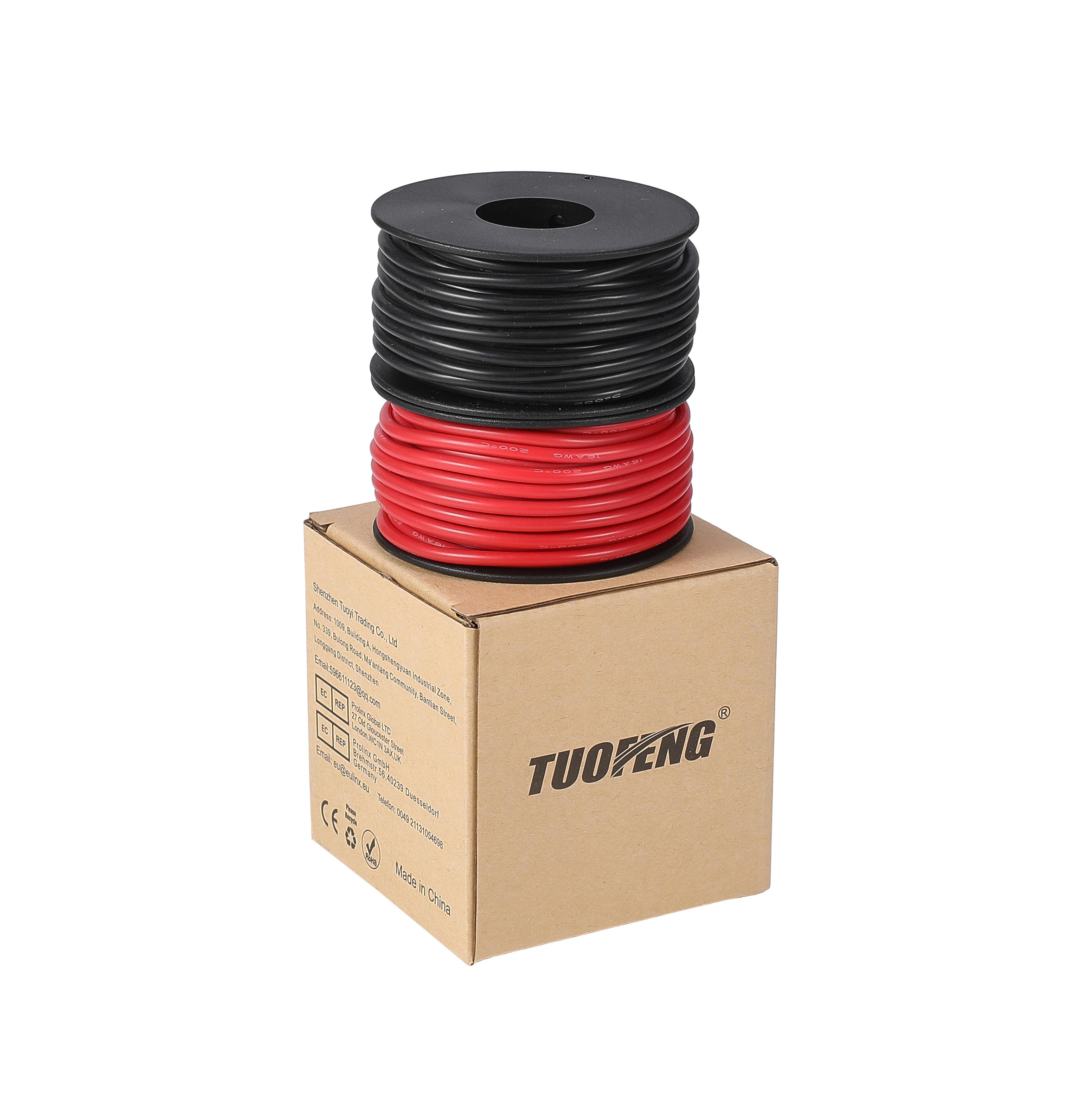

TUOFENG 18awg Wire, 100 Feet Super Flexible Silicone Insulated Hookup Wire 50 ft Black and 50 ft Red 2 Separated Wires Tinned Copper Wire High Temperature Resistance
