Powers Fasteners 7424SD1-PWR Description

The power-stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and untracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

Powers Fasteners 7424SD1-PWR Includes

·(50) Power-Stud+ SDI Carbon Steel Wedge Anchor 1/2" x 5-1/2"

Powers Fasteners 7424SD1-PWR Features

·Consistent performance in high and low strength concrete

·Nominal drill bit size is the same as the anchor diameter

·Anchor can be installed through standard fixture holes

·Length ID code and identifying marking stamped on head of each anchor

·Anchor design allows for follow-up expansion after setting under tensile loading

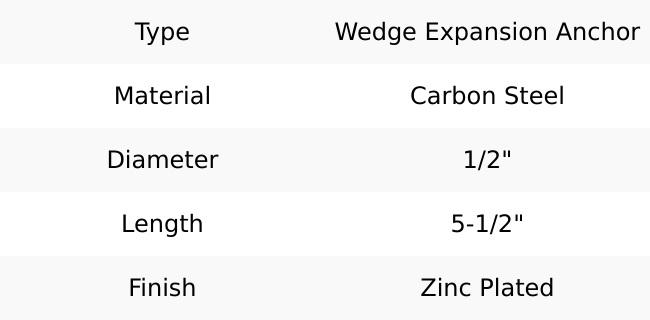

Powers Fasteners 7424SD1-PWR Specifications
