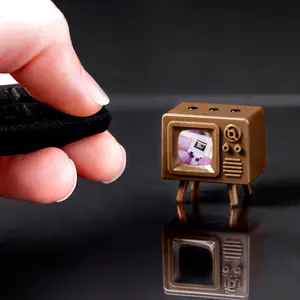

The TinyTV® DIY Kit is a mini that assembles easily in less than 5 minutes with no soldering or special tools required. Load your own videos, movies, and TV shows easily using our TSVconverter - a free tool to convert any MP4 file. Then load the files onto the included MicroSD card. Add it to your collection of dollhouse furniture, miniature models, and dioramas.
Note: This does not receive over-the-air television content, nor can it livestream, it can only play video content from the microSD card.

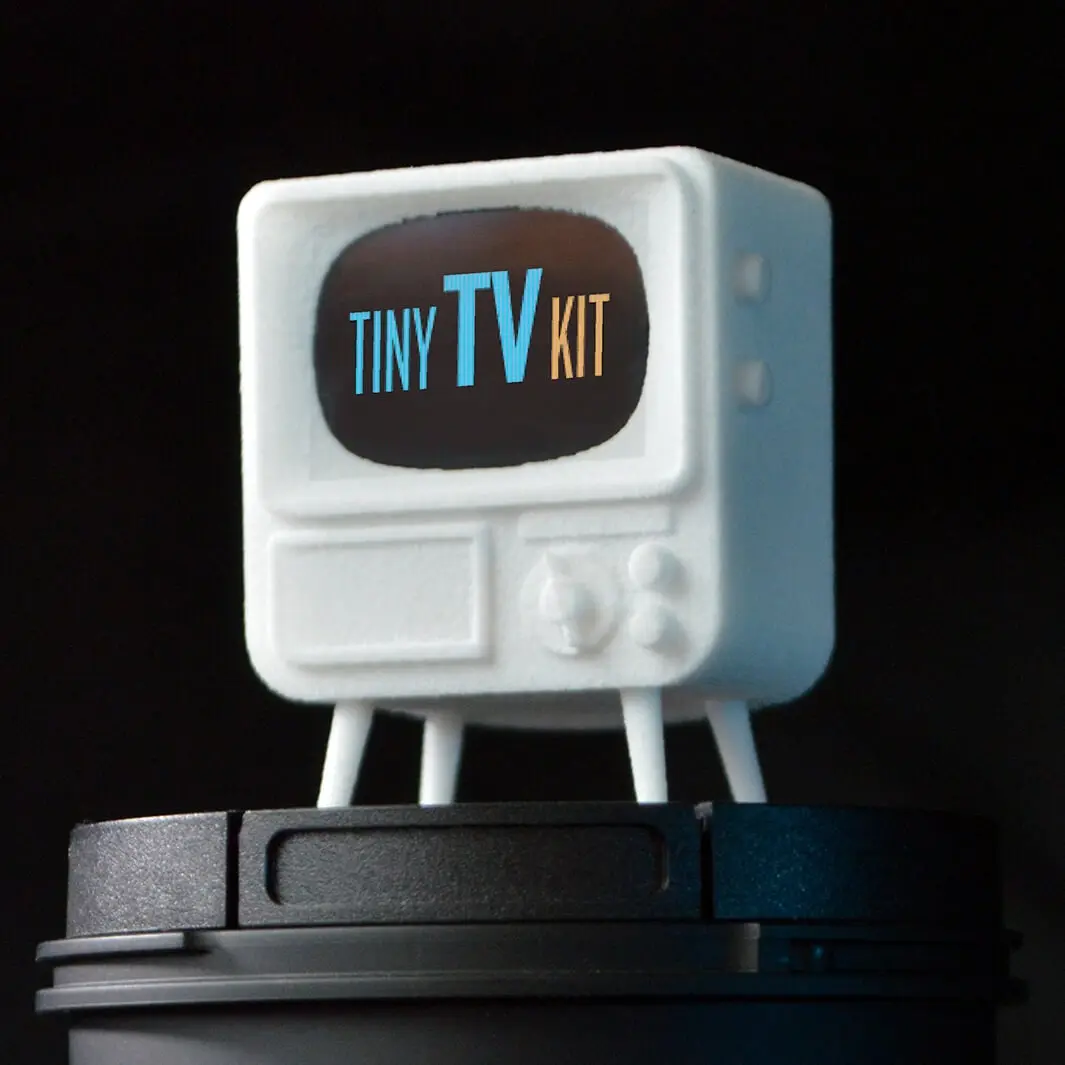

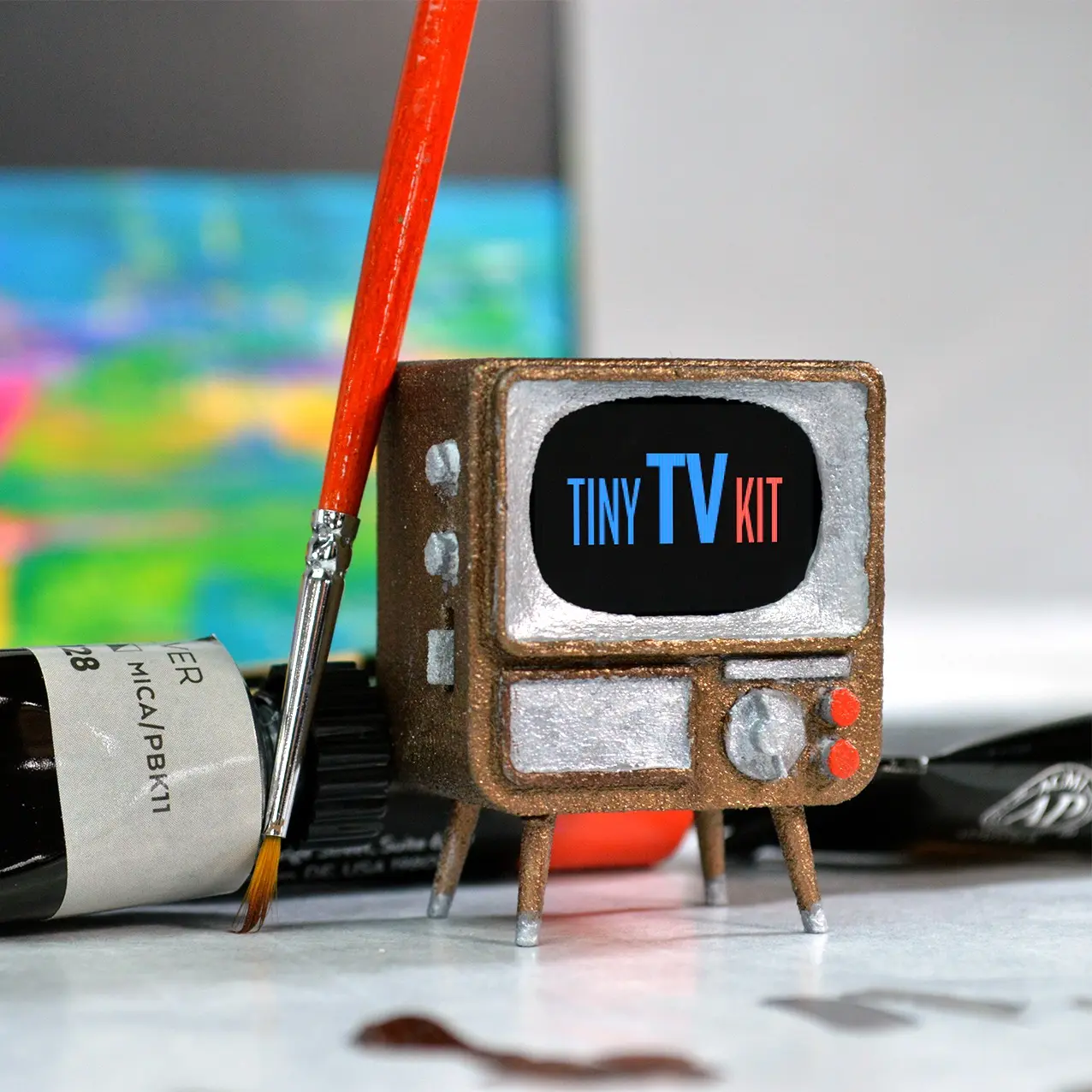

The TinyTV DIY Kit is 3D printed, has a rechargeable battery, 4 push-buttons, and an ON/OFF switch and it also comes with the Tiny Remote, so you can easily change channels, power on or off, and adjust the volume. The TinyTV comes in white but is highly customizable with acrylic paint or even metallic sharpies. Check out our Customizing your DIY TinyTV Kit tutorial!
Want to change up some settings? The TinyTV also comes with a settings menu to easily change the TV mode to loop videos, or change button values if you want to use a different remote. Check out the short TinyTV Settings Menu tutorial!

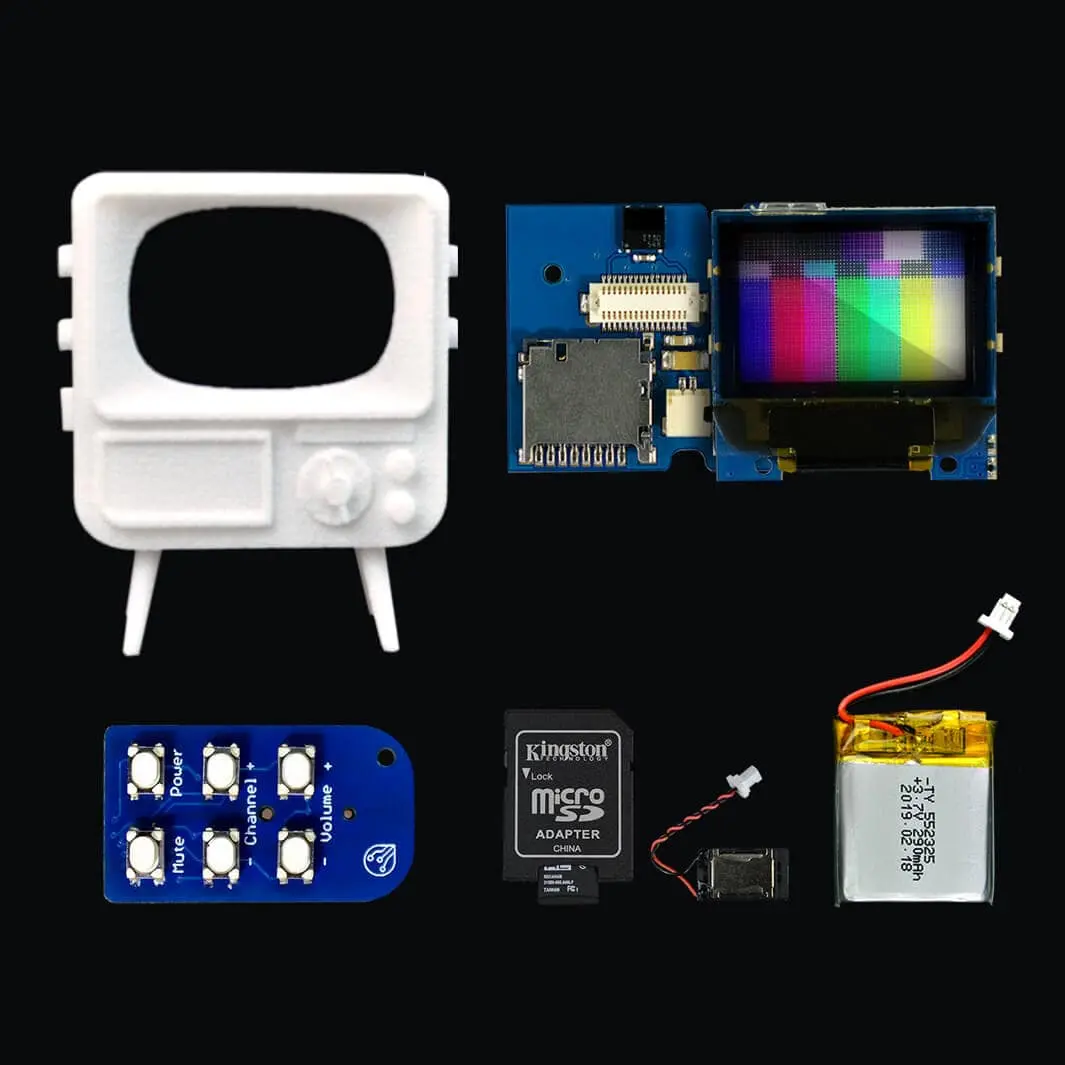

This kit includes the following items:
·TinyScreen+ Processor Board - Runs the TinyTV program, has a SAMD 32-bit processor, OLED screen, USB, and power/battery-charging circuitry.
·MicroSD / Audio TInyShield - Designed specifically for use with the TinyScreen+, this TinyShield has the microSD card adapter, audio driver, and IR receiver (which can receive TV remote control signals).
·TinyTV 3D-Printed Enclosure - grab an extra for a different paint job, or print your own (3D files found under DOWNLOADS).

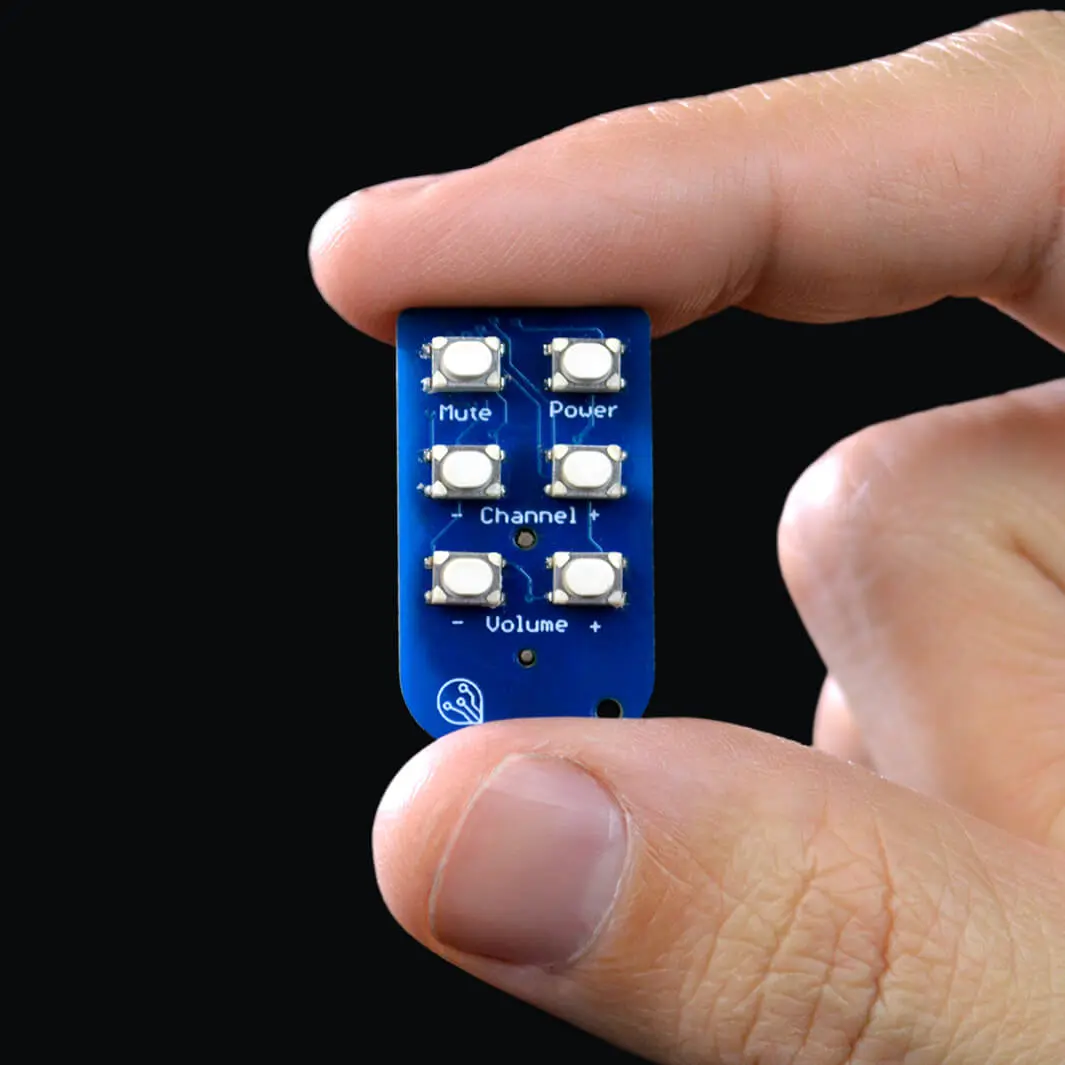

·Tiny IR Remote (includes battery) - Features 6 buttons to alter the channel, volume, and power state. The TinyTV can be reprogrammed to be used with different IR remotes or different buttons using the TinyTV Settings Menu.
·290 mAh Rechargeable Lithium Polymer Battery - Used to power your TinyTV, and is recharged when the USB is plugged into the top of the TinyTV. Charging is complete when the amber LED next to the USB port turns off. A fully charged battery can display videos for up to 5 hours.
·16x9 Speaker - for audio playback on videos
·8GB MicroSD card and Adapter - preloaded with sample videos.
TECH SPECS
·Arduino-compatible platform with a powerful 32-bit ARM processor
·A beautiful and vibrant full-color OLED screen
·MicroSD card included and preloaded with content
·3D Printed TV with 4 push buttons and ON/OFF switch
·Built-in speaker
·Rechargeable lithium battery
·USB port for charging and software updates
·Wireless Tiny Remote with battery - Works best about 12-18in. away from an IR Receiver. Works best with the TinyTV when pointed toward the top (where the receiver is).
Measurements (when looking at the screen):
·Max height: 42mm ± 1mm
·Max length: 35.7mm ± 1mm
·Max width: 25.5mm ± 1mm
NOTES
·Converting videos to the TinyScreen video format (tsv) is simple, just run them through the TSV video converter and put them onto the microSD card to play them back.
·A micro USB cable is not included in the kit.
·The Tiny Remote works best about 12-18in. away from an IR Receiver. Works best with the TinyTV when pointed toward the top (where the receiver is).
ASSEMBLY
The TinyTV DIY Kit is simple to put together - there is no glue, soldering, or special tools needed. It only takes about 5 minutes before you can sit back, relax, and enjoy your favorite movies, videos, and TV shows from anywhere.
