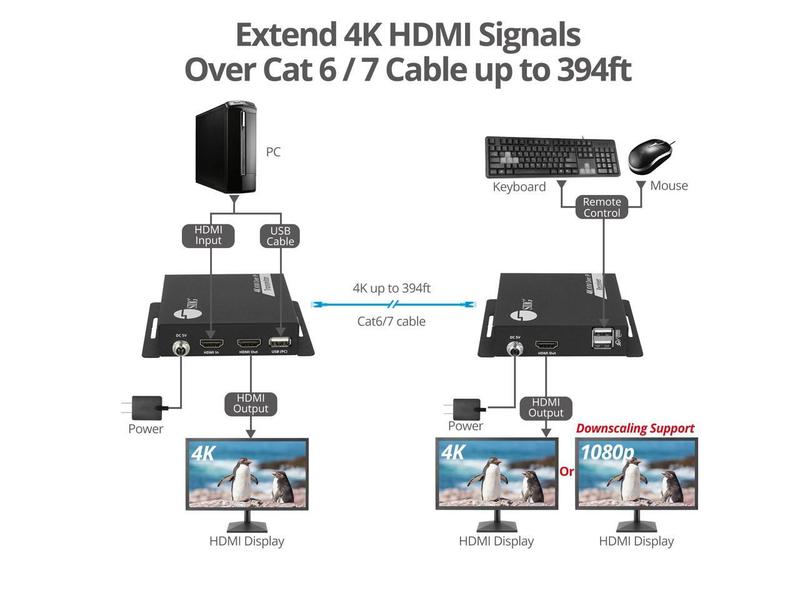

Extend USB Keyboard, Mouse, and 4K HDMI video signals up to 394ft (120m) over CAT6/6a/7 cable. *Good quality CAT cables are essential in delivering quality content.

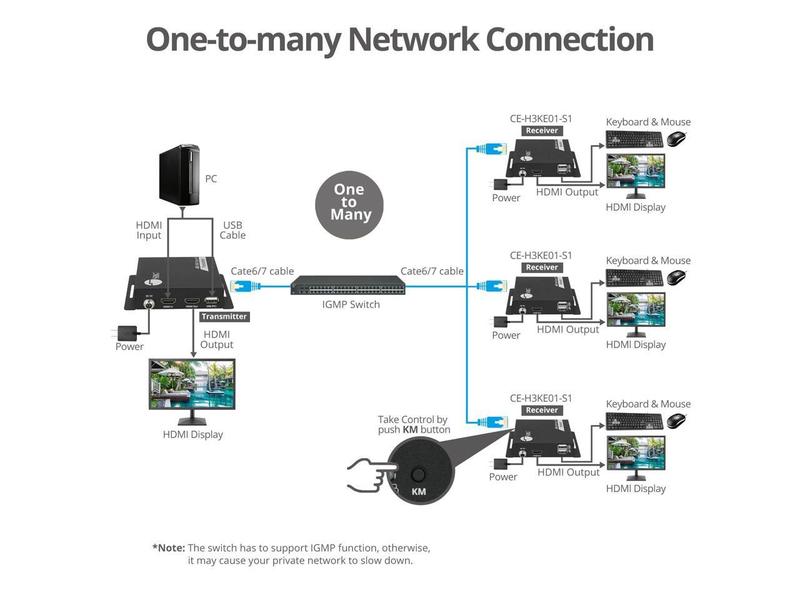

Search CE-H3KE01-S1 for extra receivers
Specifications:
- Compliant with HDCP 1.4 specification
- Video resolution: 4K30Hz, 1080p, 1080i, 720p, 576p, 480p
- Bandwidth: 3.4Gbps / 340MHz (10.2Gbps all channels)
- Transmission distance: Up to 120m for 4K30Hz
- Audio Format: PCM 2/5.1/7.1ch
Product:
Color: Black
Housing: Metal
Transmitting unit (TX):

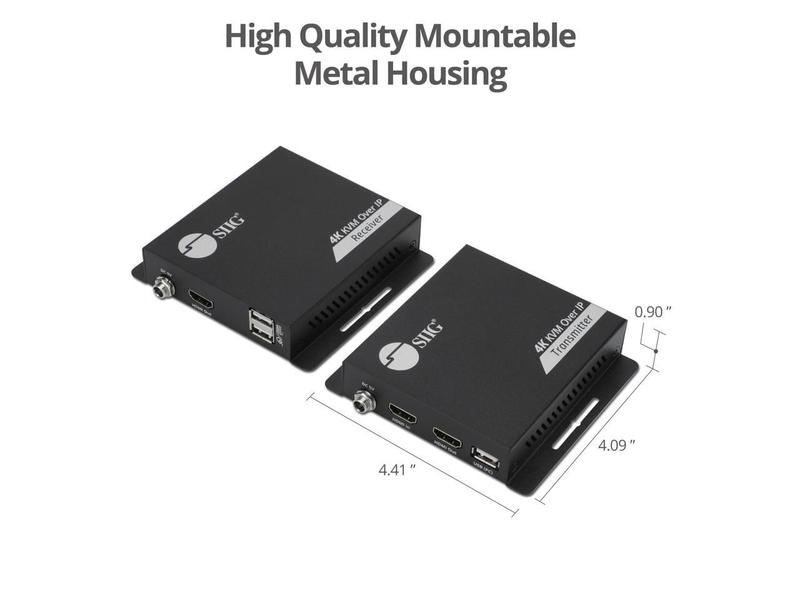

Dimensions: 4.09" (W) x 0.91" (H) x 4.41" (D)
Weight: 0.47 lbs

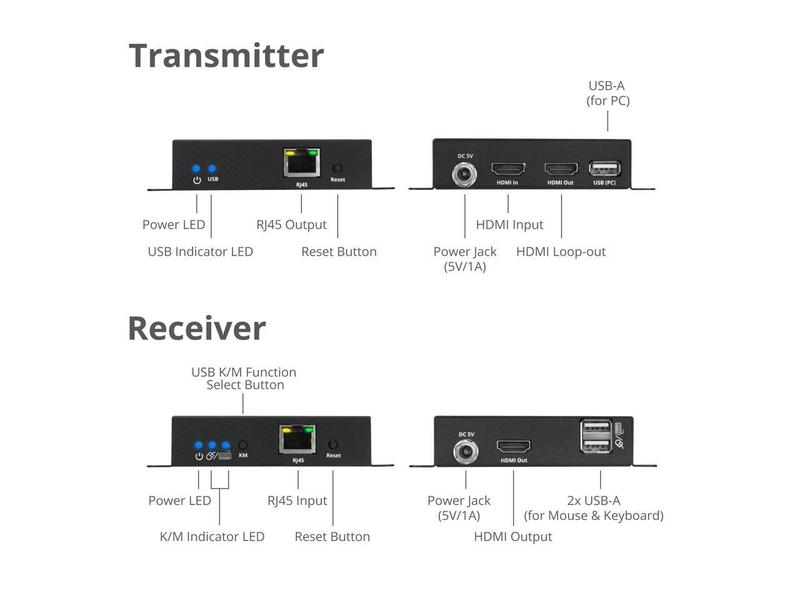

Connectors:
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin, RJ45 Output
1x 4-pin USB Type-A, Female, for Host connection
1x Reset Button
1x Power Jack
Receiving unit (RX):
Dimensions : 4.09" (W) x 0.91" (H) x 4.41" (D)
Weight: 0.47 lbs
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x 8-pin RJ45, Input
2x 4-pin USB Type-A Female, connect to Keyboard/Mouse
1x K/M Switch Button
1x Reset Button
1x Power Jack
Unit package:
Dimensions: 11.50" (W) x 2.17" (H) x 9.37" (D)
Weight: 2.12 lbs
Power adapter:
Input: 100-240V AC, 50/60 Hz
Output: DC 5V/1A
UL listed: E470034 / Level: VI
Environmental conditions:
Operation Temperature: 32 to 122 degrees F
Storage Temperature: 14 to 158 degrees F
Relative humidity: 5 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
UPC Code: 662774-046662
Warranty: 2 years limited
Country of origin: China

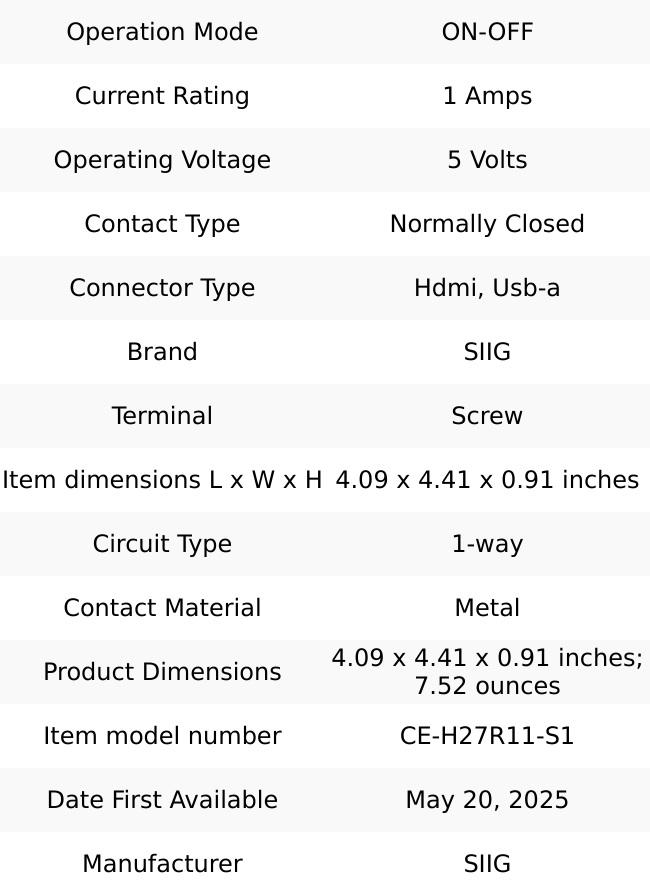

Product information
