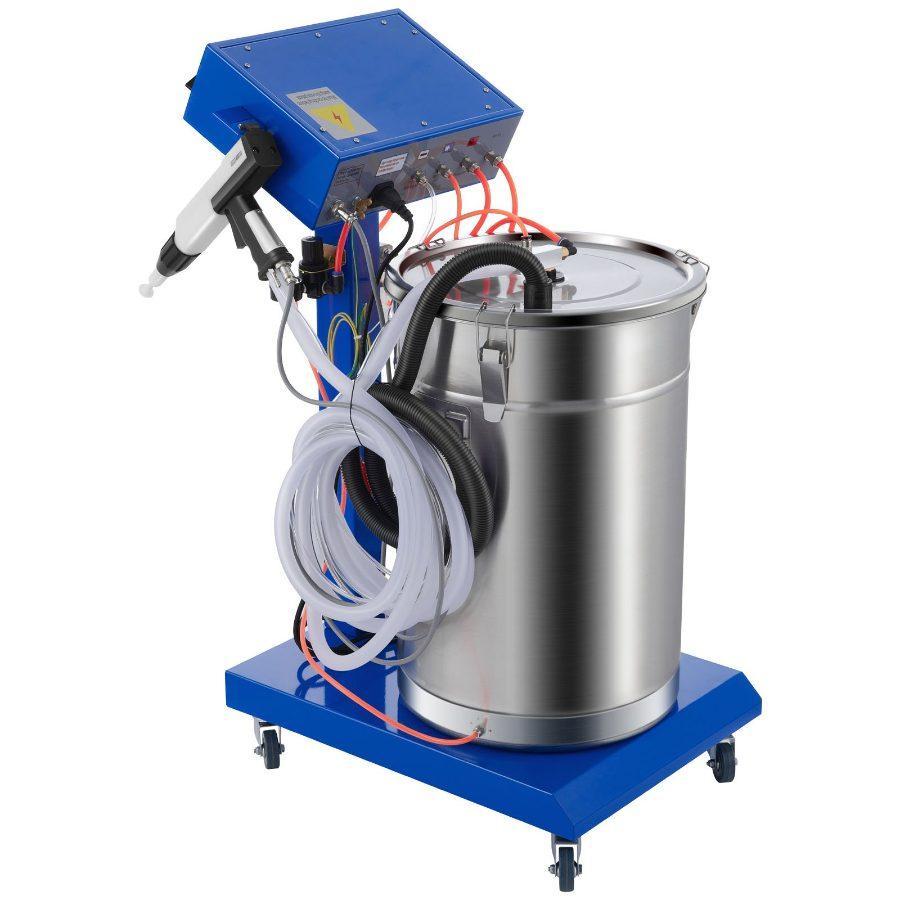

Electrostatic Powder Coating Machine
Efficient Large Capacity Easy to Use
Electrostatic Powder Coating Machine is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. The charged powder particles adhere to the elements and are held there until melted and fused into a smooth coating in a curing oven.

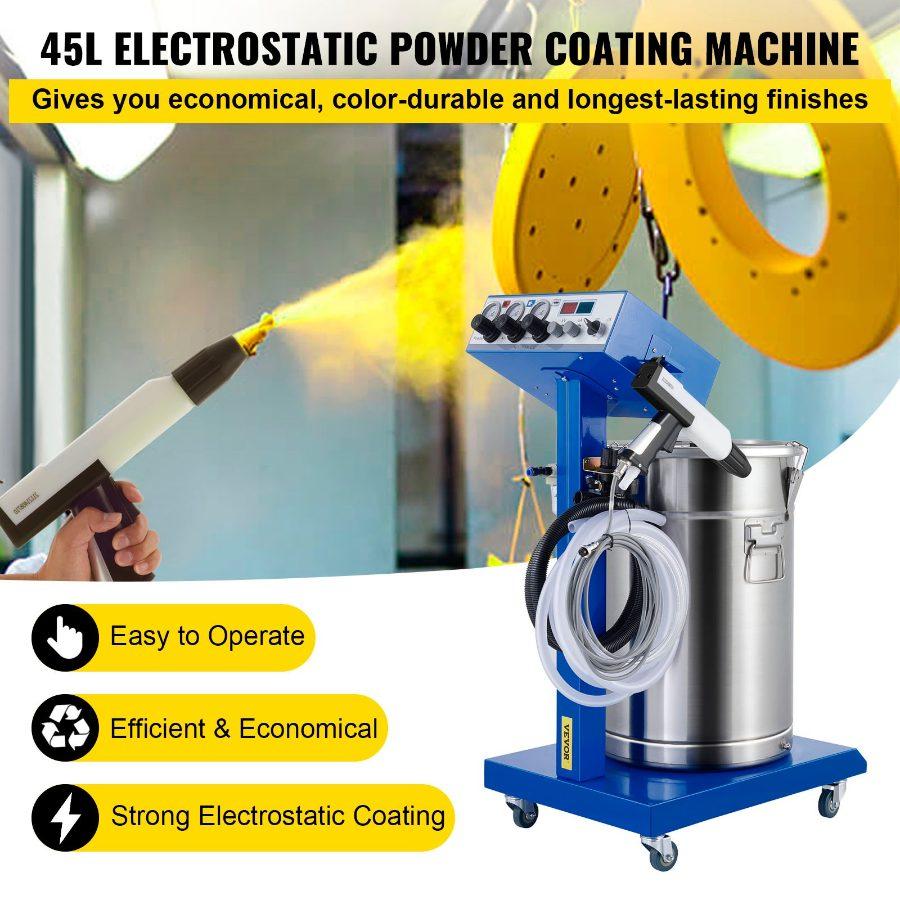

High Efficiency Powder Coating System
Simple Control Pane, Popular styles for 2026 year
Powder Coating Gun, Popular styles for 2026 year
Excellent Quality, Popular styles for 2026 year
Considerate Details, Popular styles for 2026 year
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?, Popular styles for 2026 year
Premium Tough Quality
Incredibly Low Prices
Fast Secure Delivery
30-Day Free Returns, Popular styles for 2026 year
24/7 Attentive Service
Easy-to-use Panel, Popular styles for 2026 year

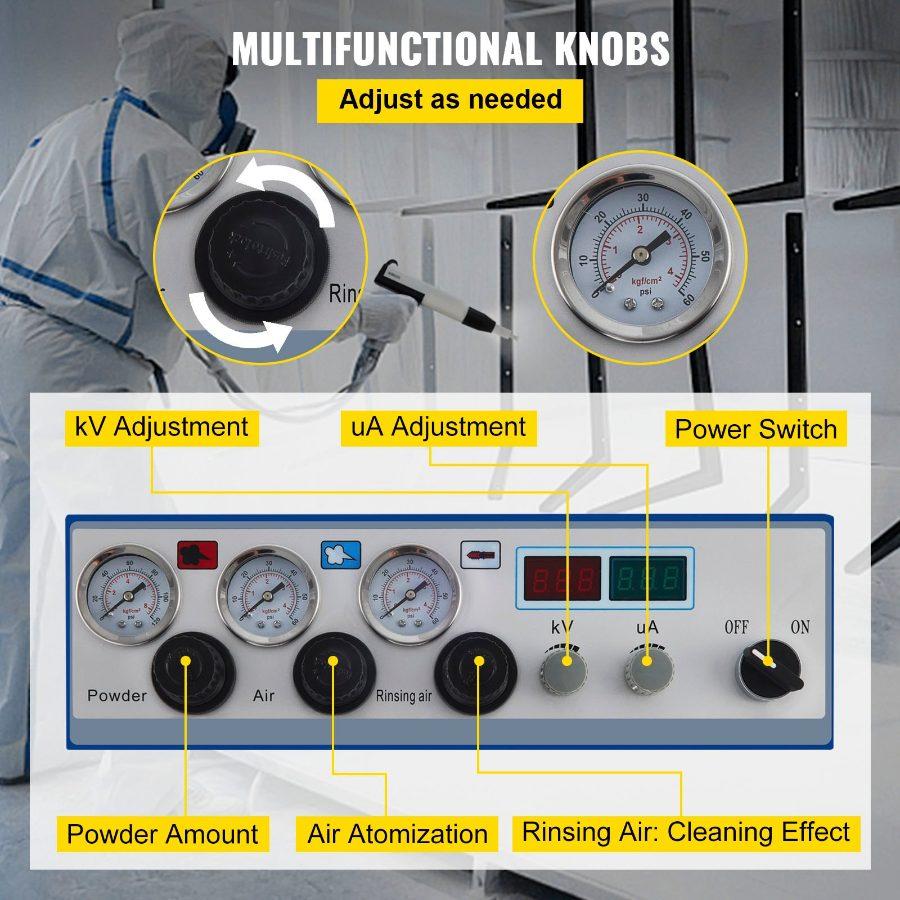

This coating machine is equipped with a control panel, and each function is clearly labeled. You can rotate the knobs according to your needs. It concludes powder, air, rinsing air, kV, and uA adjustment.
Durable Even Finish, Popular styles for 2026 year

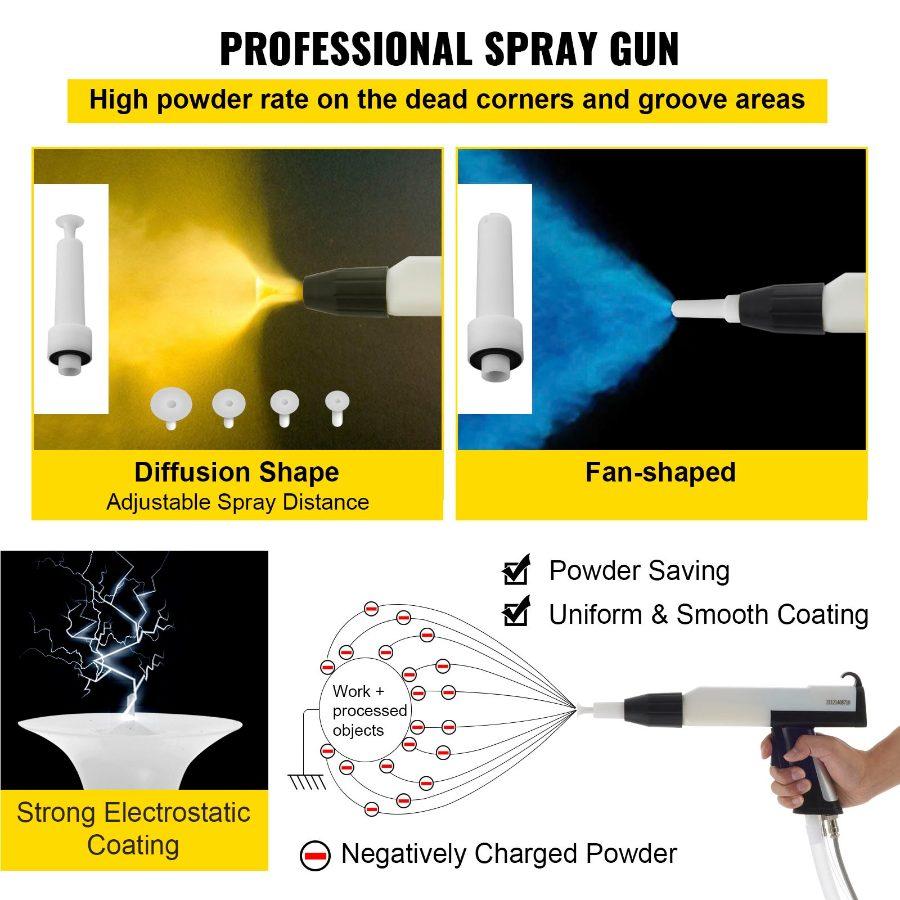

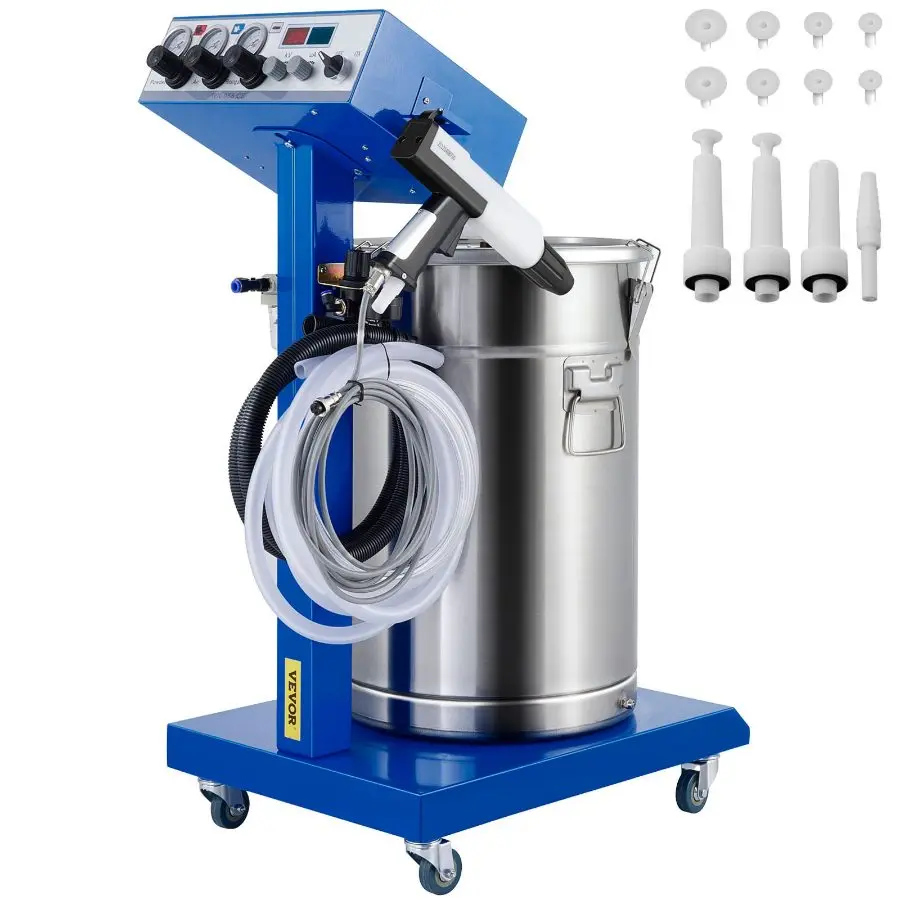

The powder coating gun is durable and lightweight, and the powder output effect is efficient and smooth. In addition, you can use different nozzles to achieve a distinct and superior coating effect.
Stainless Steel Material

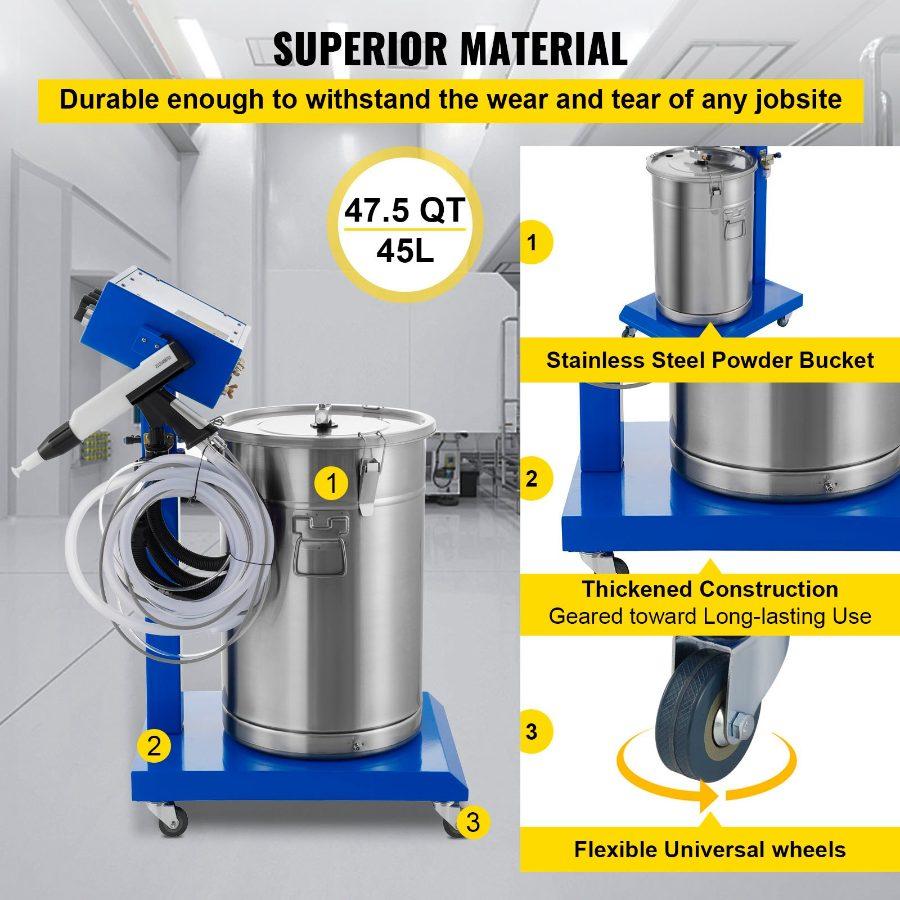

The 45L powder bucket is made of stainless steel with a humanized design, and the widened frame increases the load-bearing capacity.
Easy to Move, Popular styles for 2026 year
The powder coating machine has four universal wheels, a mobile push-pull wheel design, is easy to move, saves time and effort, and is suitable for various working environments.
Humanized Designs, Popular styles for 2026 year

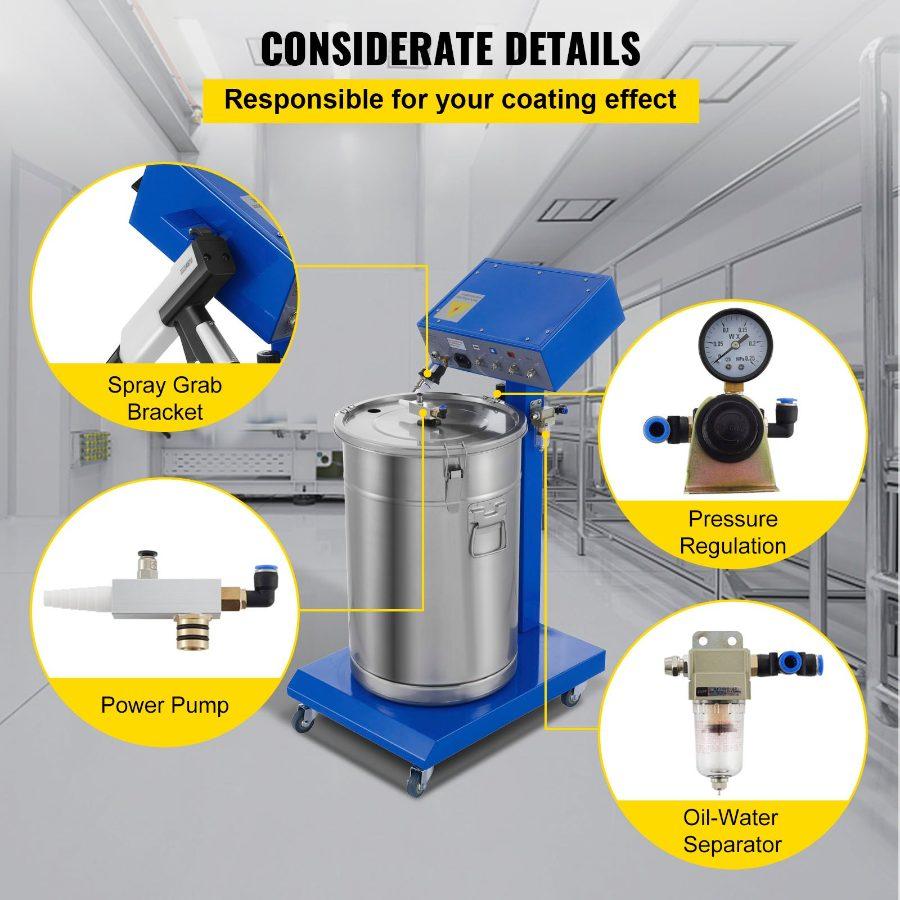

The spraying coat machine has a gun bracket, an oil-water separator, a high-quality powder pump, and a pressure regulator that helps the beginner work more efficiently.
Wide Application, Popular styles for 2026 year
Powder coating is widely used in home appliances, hardware, security doors (windows), heat sinks, construction, auto parts, sports equipment, medical equipment, aluminum, and other industries.
Specifications, Popular styles for 2026 year
Power Voltage: AC110V
Frequency: 50/60Hz, Popular styles for 2026 year
Input Power: 40W, Popular styles for 2026 year
Electromagnetic Valve Control Power Voltage: DC110V
Maximum Output Current: 150Ua
Output Power Voltage: 0-100kv
Work Temperature: 14-113/ -1045
Output Powder Volume: Max. 1 lbs/Min
Polarity: Negative, Popular styles for 2026 year
Gun Weight: 1.1 lbs/ 480 g
Length Of Gun Cable: 157.5 inch/ 4 m
Powder Hopper Volume: 47.5 qt/ 45 L

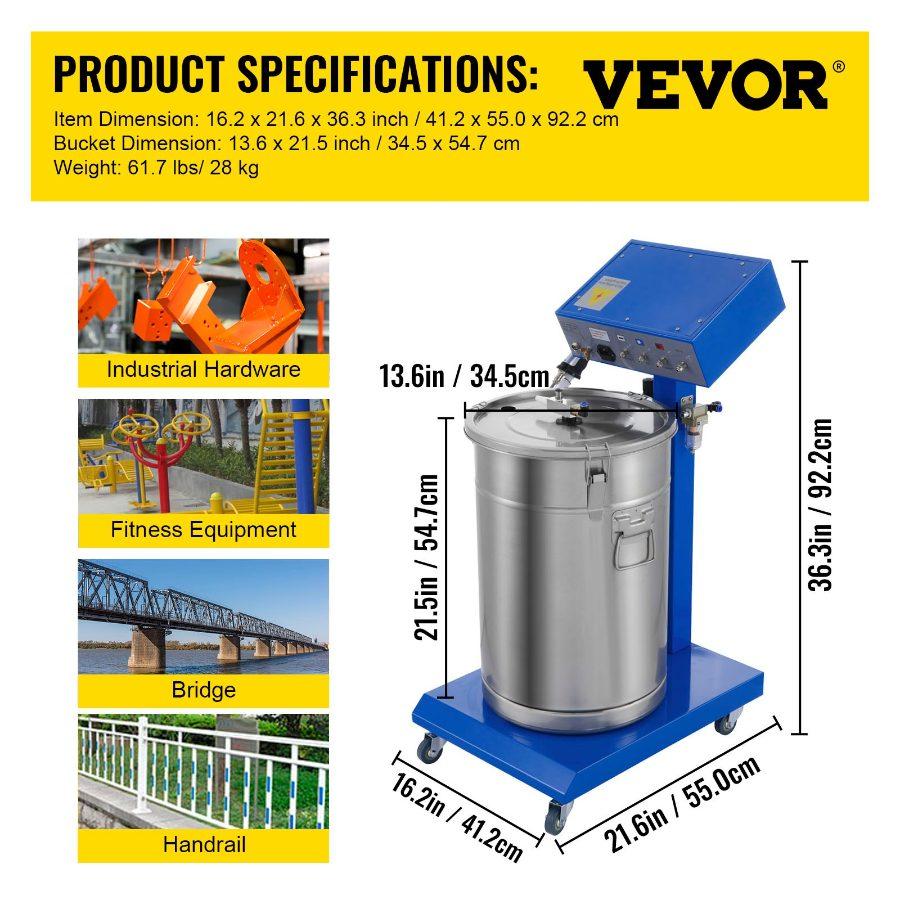

Item Dimension: 16.2x 21.6x 36.3 inch/ 41.2x 55x 92.2 cm
Bucket Dimension: 13.6x 21.5 inch/ 34.5x 54.7 cm
Bucket Material: Stainless Steel
Weight: 61.7 lbs/ 28 kg
Package Content, Popular styles for 2026 year
1x Powder Coating System
1x Powder Bucket, Popular styles for 2026 year
1x Trolley, Popular styles for 2026 year
1x Manual Powder Gun with Gun Cable
1x Powder Gun Spare Parts
1x Gun Bracket, Popular styles for 2026 year
1x Oil-Water Separator
1x Pressure Regulating Valve
1x Powder Pump, Popular styles for 2026 year
1x Powder Hose, Air Tubes, Grounding Line









.
