Item specifics

Condition: New

Operating Temperature: 0-40 Temperature

Measuring voltage range: 400mV/4V/40V/400V/600V

DIY Supplies: ELECTRICAL

Model: ST181 Clamp Meter

Test/Measurement Functions: AC Voltage, AC Current, DC Current, DC Voltage

Battery: Without Battery

Measuring Current Range: 40a/400a

Display: Digital

Measuring Capacitance Range: 4nf/40nf/400nf/4uf/400uf/4mf

Measuring Resistance Range: 400/4k/40k/400k/4m/40m

Form Factor: Handheld

Display Type: Analog And Digital

Features: Backlight

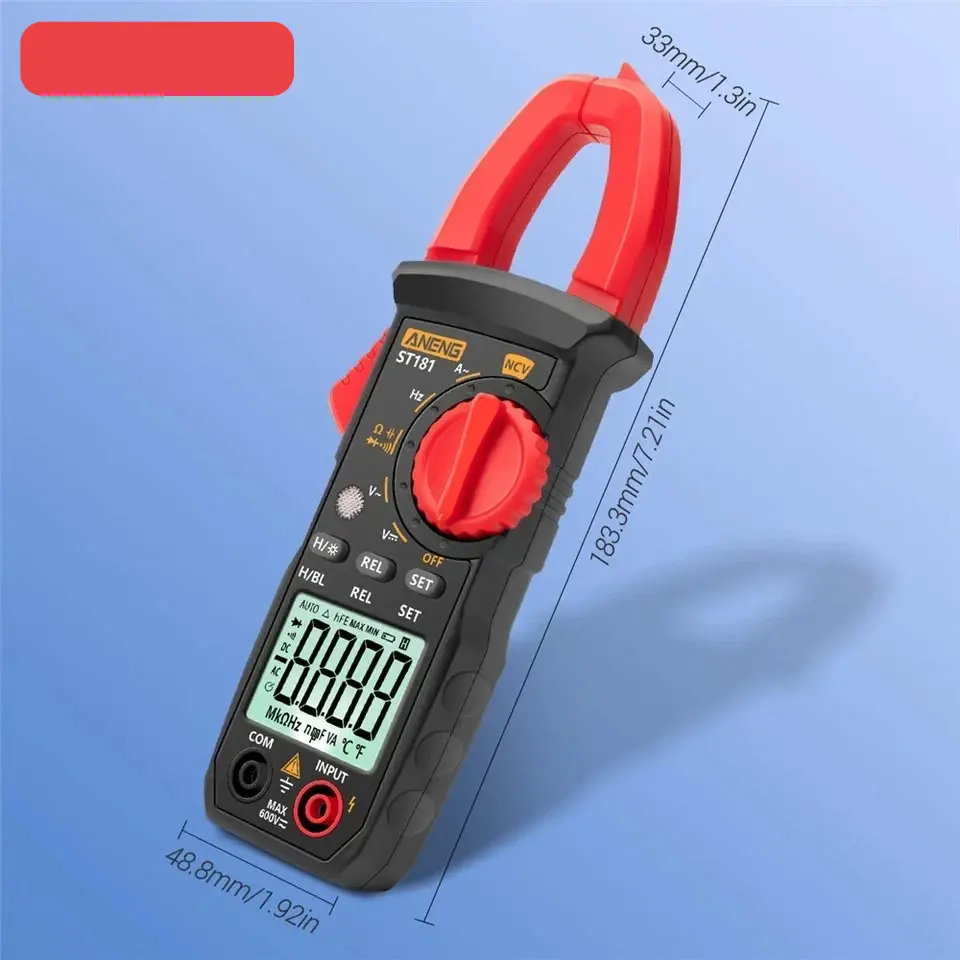

Digital Multimeter Tester – AC/DC Volt, Ohm, Amp Clamp Meter with Auto Range & LCD Display (Model: ST181)

Product Details

The ST181 Digital Clamp Multimeter is a reliable handheld tool designed for accurate electrical measurements and maintenance tasks. With its user-friendly features and durable build, it is suitable for both professionals and DIY users.

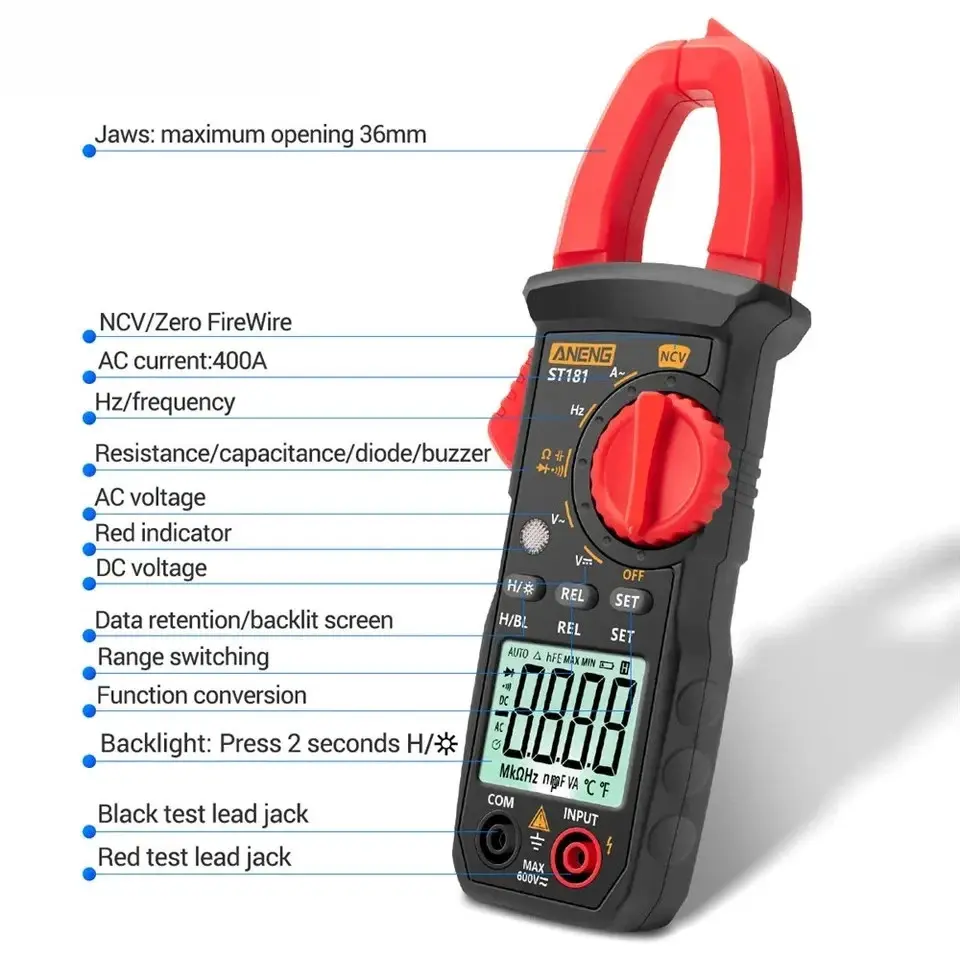

Key Features:

Measures AC/DC voltage, AC current, resistance, and tests continuity

Manual range selection for flexible operation

Overload protection across all measurement ranges

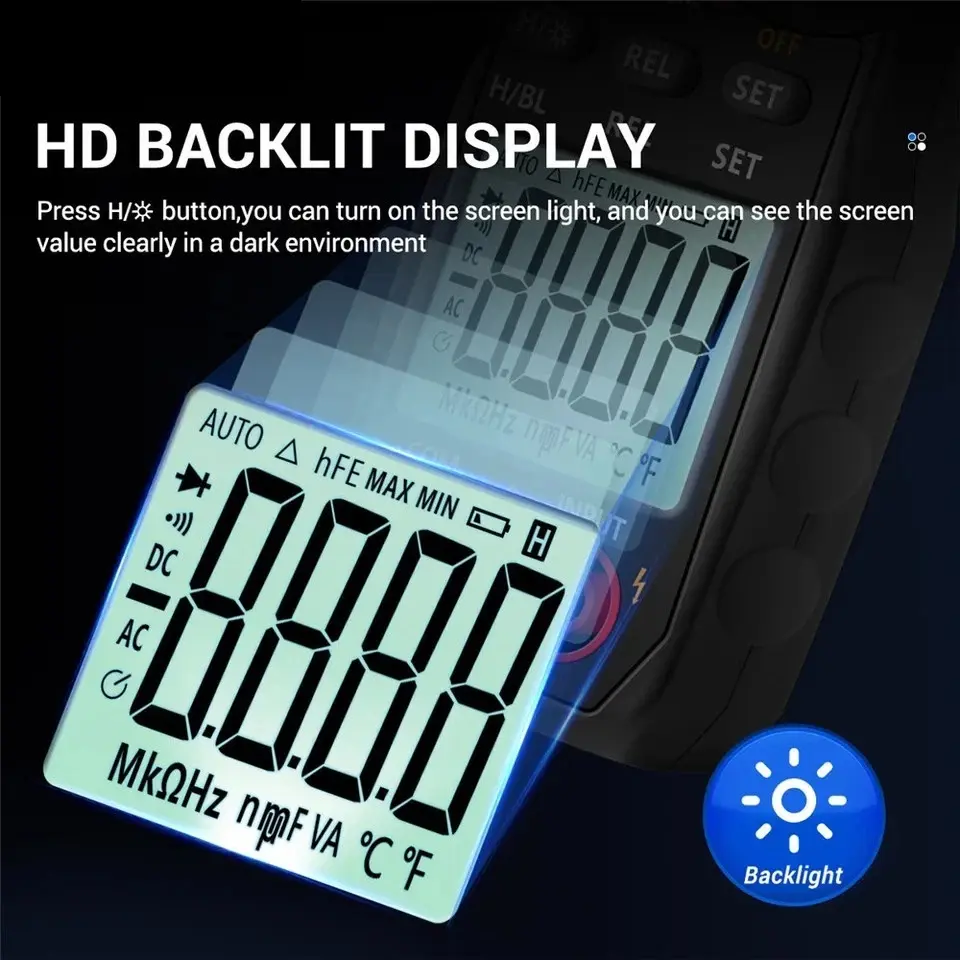

Clear LCD display with backlight for easy reading in any environment

Data hold function, low battery indicator, and auto power-off for convenience

Perfect for electrical equipment testing and routine maintenance

Battery not included

Specifications:

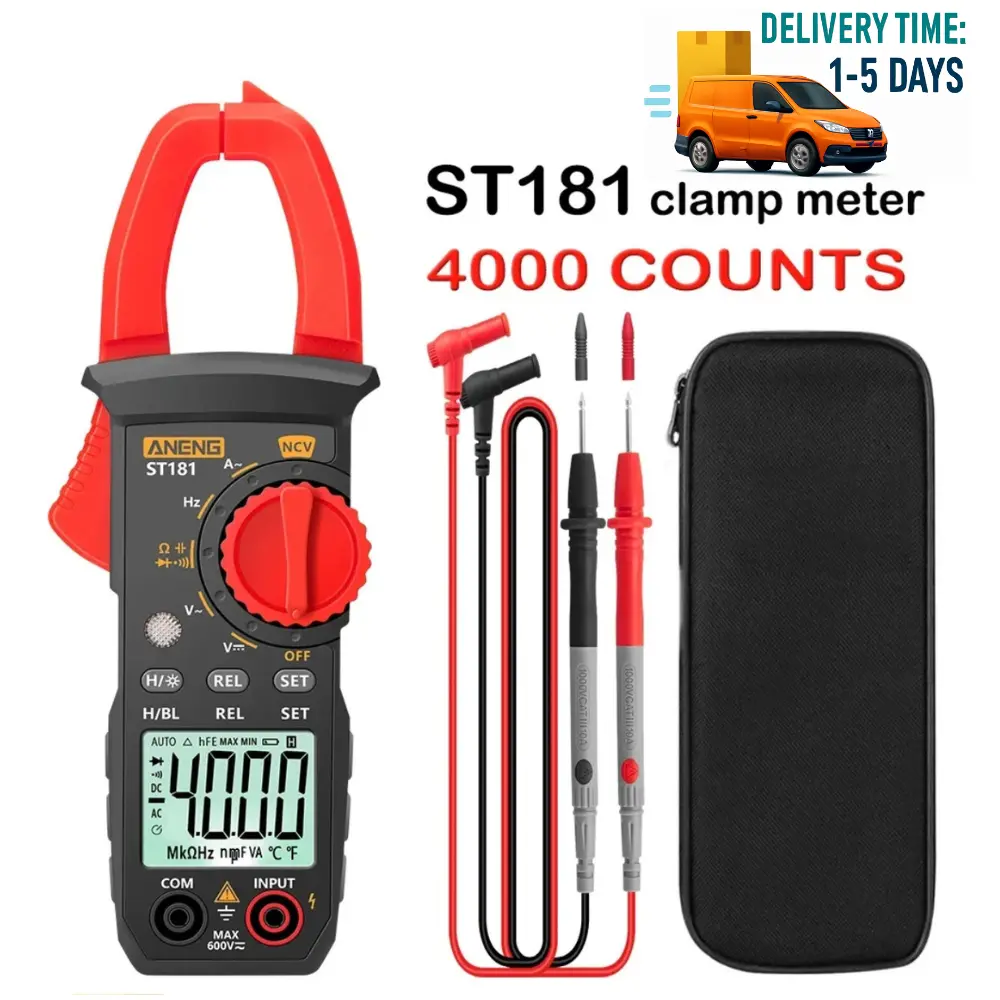

Model: ST181

Display: 4000 counts

Measurement Range & Accuracy:

AC Voltage: 4V / 40V / 400V / 600V ±(1.5%+3)

DC Voltage: 400mV / 4V / 40V / 400V / 600V ±(1.0%+3)

Resistance:

400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ ±(1.2%+3)

40MΩ ±(1.5%+5)

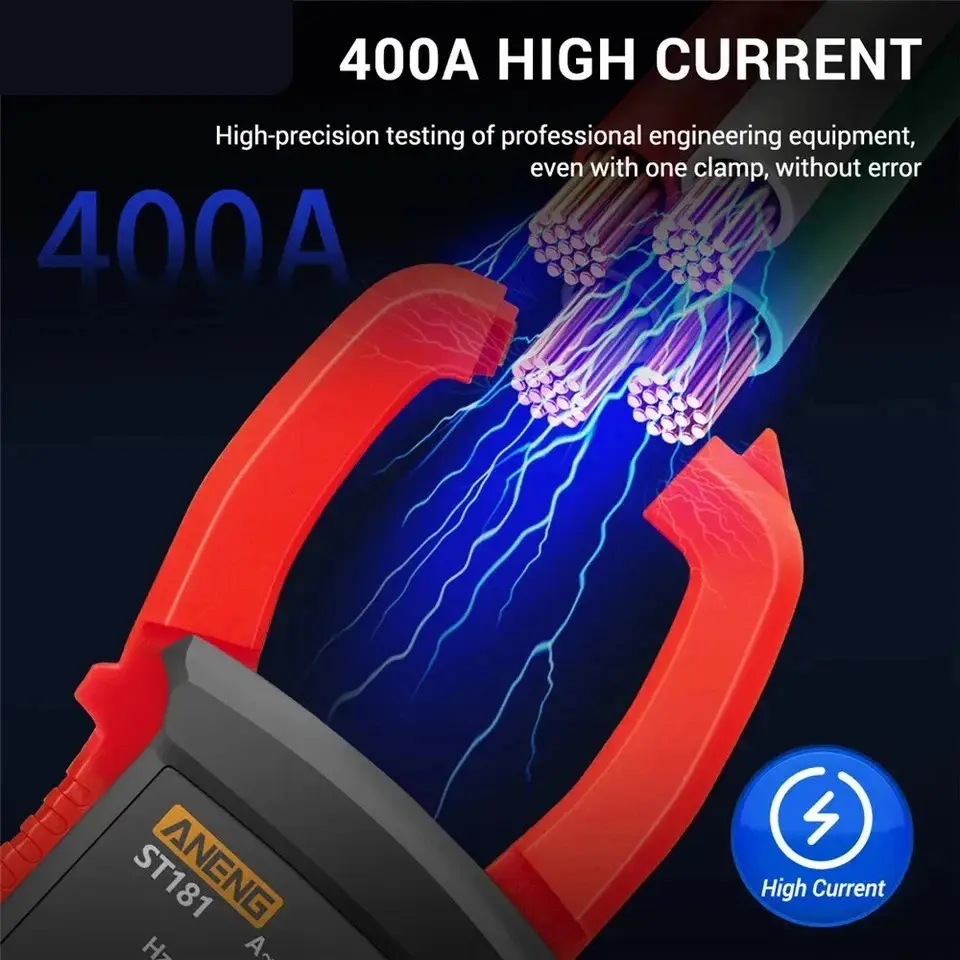

AC Current: 40A / 400A ±(2.5%+3)

Frequency:

10Hz ~ 400kHz ±(1.0%+5)

400kHz ~ 4MHz ±(2.0%+5)

Capacitance:

1nF ~ 4µF ±(2.5%+10)

4µF ~ 400µF ±(4.0%+20)

4mF ±(5.0%+30)

Working Temperature: 18°C ~ 28°C
