Description

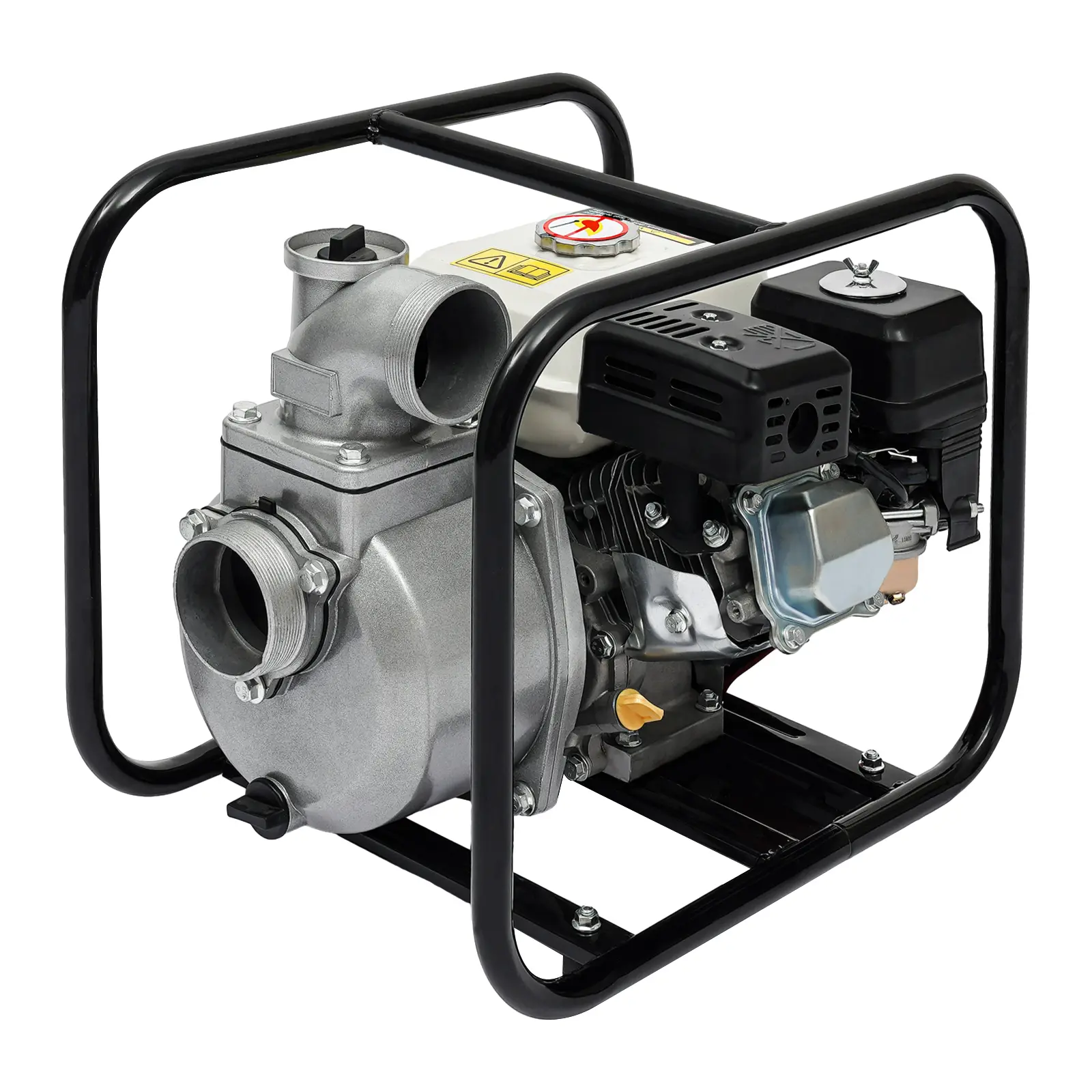

Whether you are seeking to supply water to the farmland, irrigate lush vegetation, or extinguish fires, this high-performance water transfer pump will surely come to your aid and exceed your expectations. The 7.5HP 4-stroke engine with 210cc displacement provides sufficient power to ensure efficient water pumping and improve work efficiency.

Application

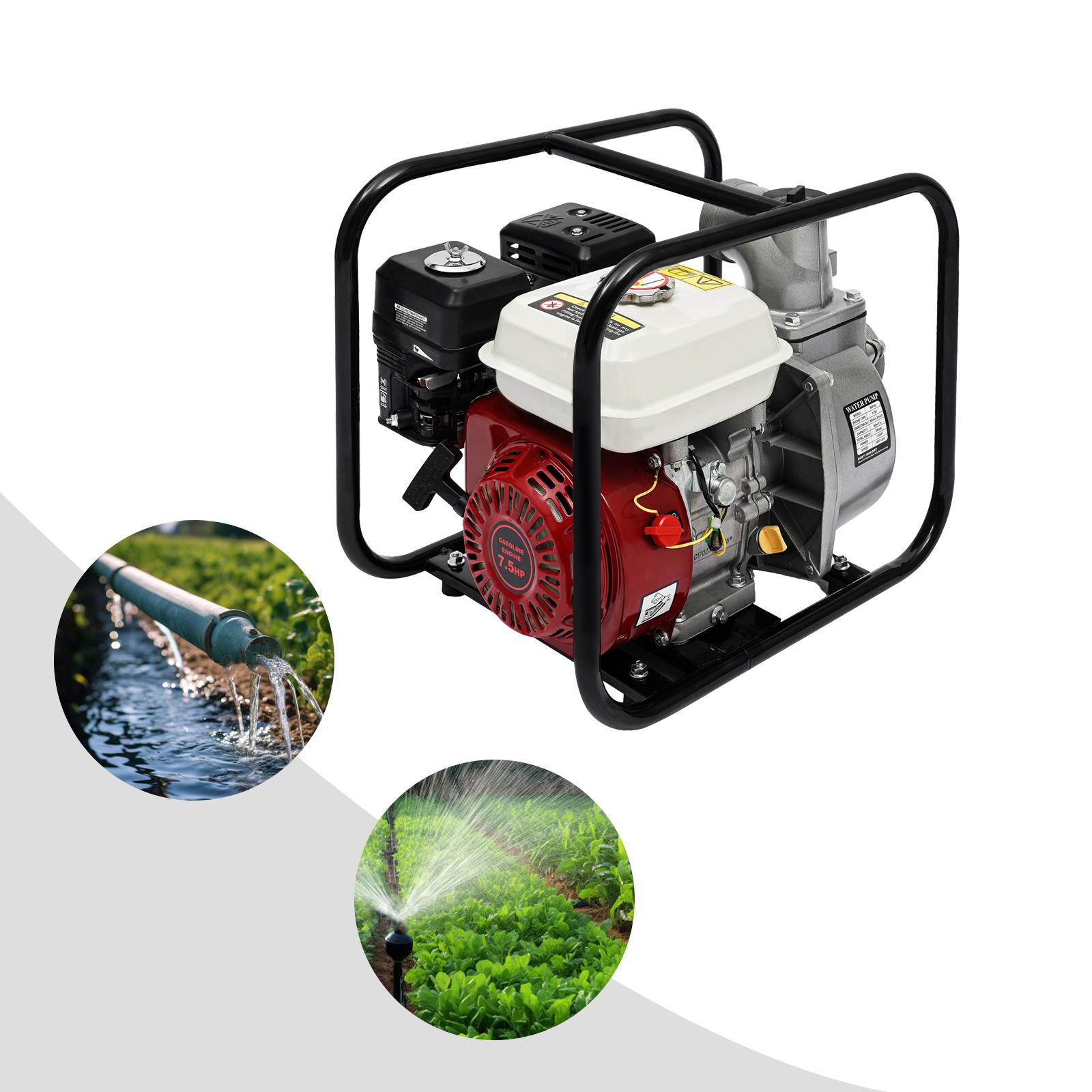

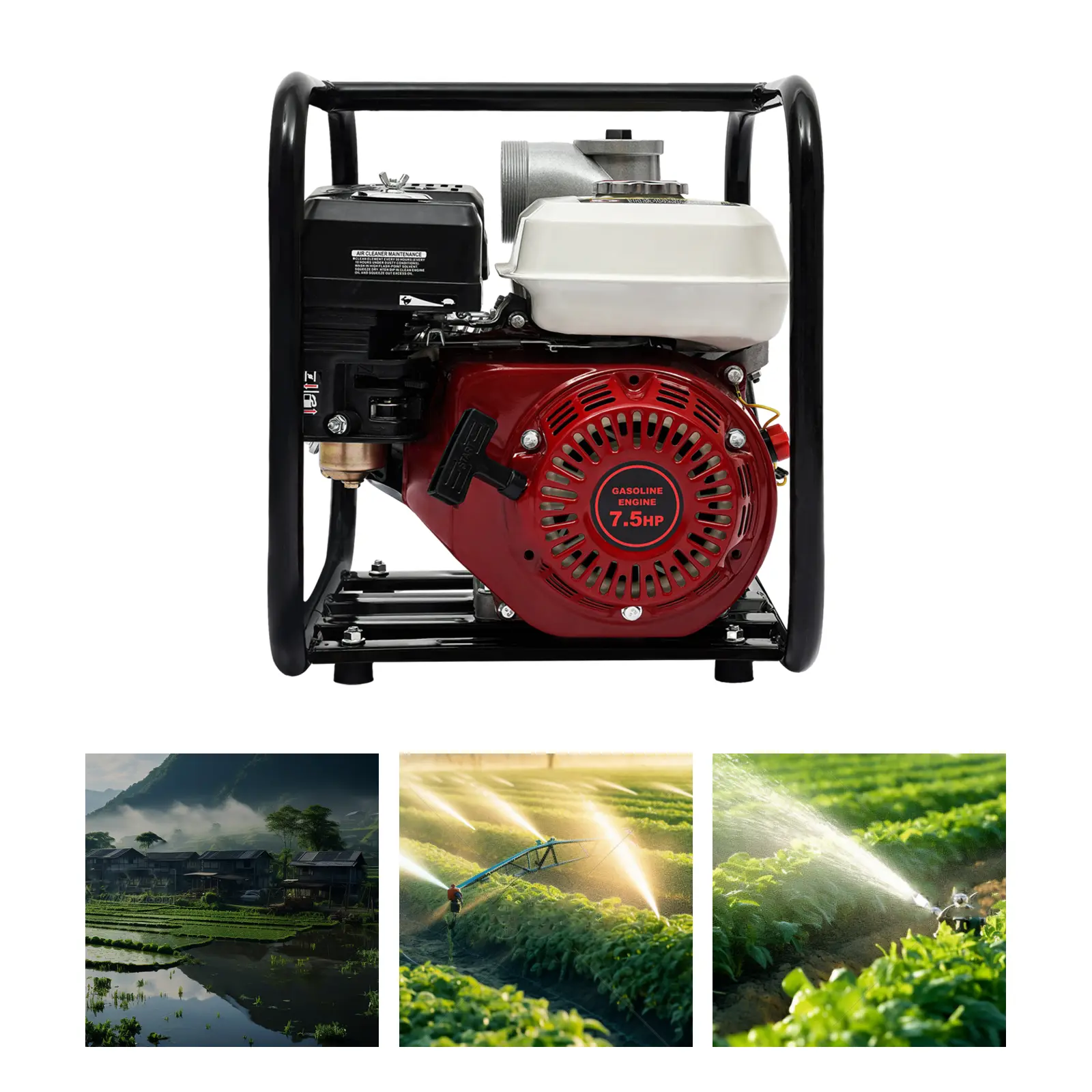

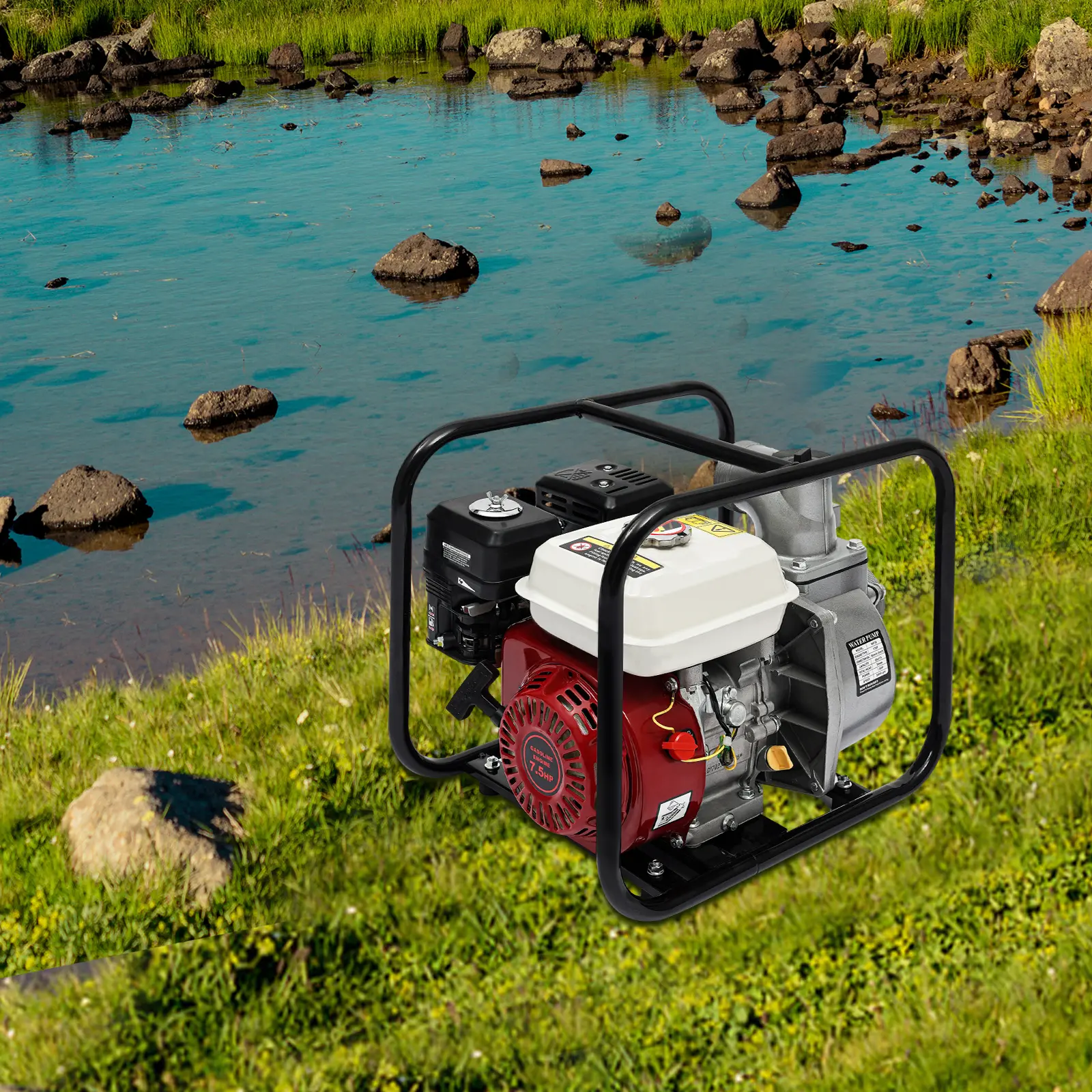

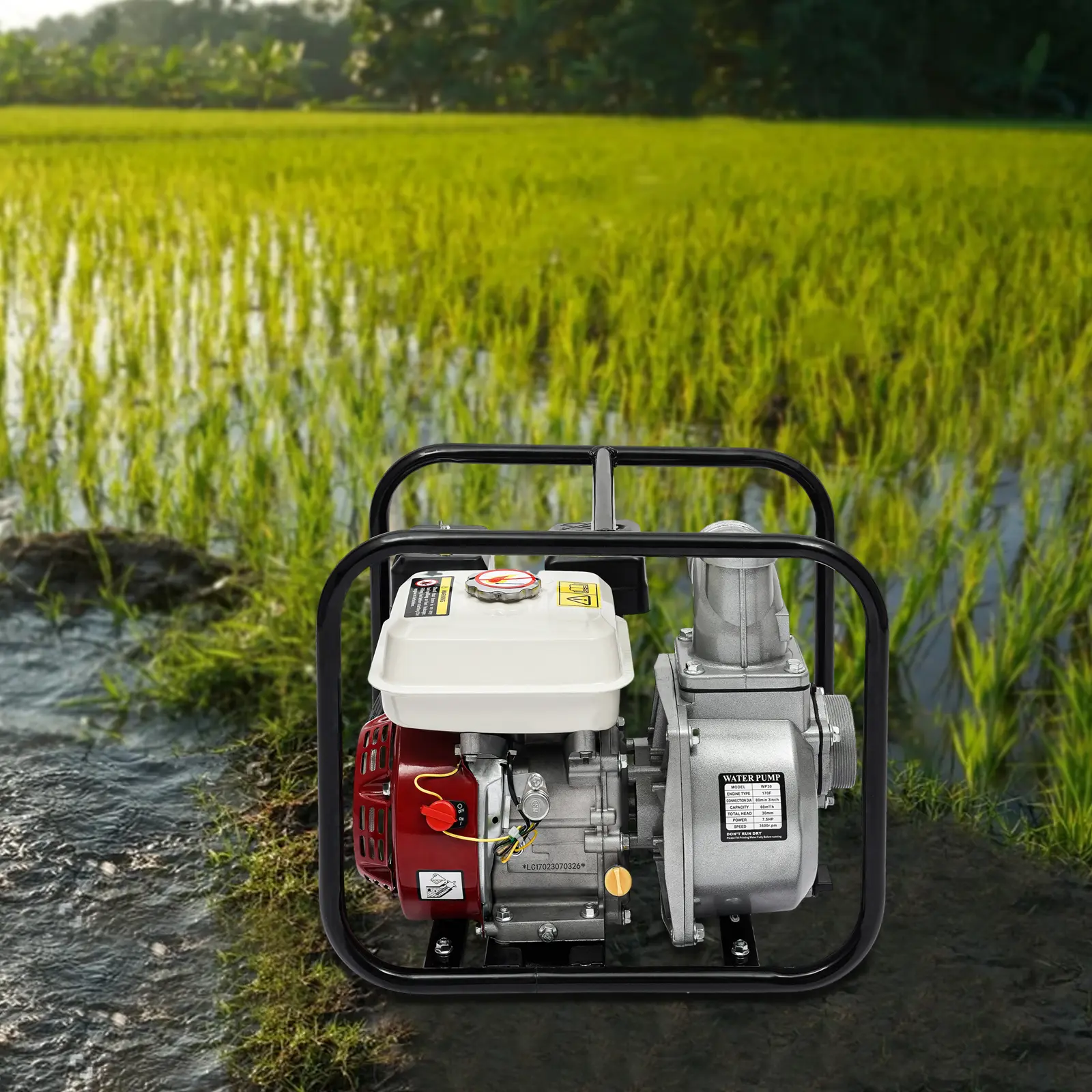

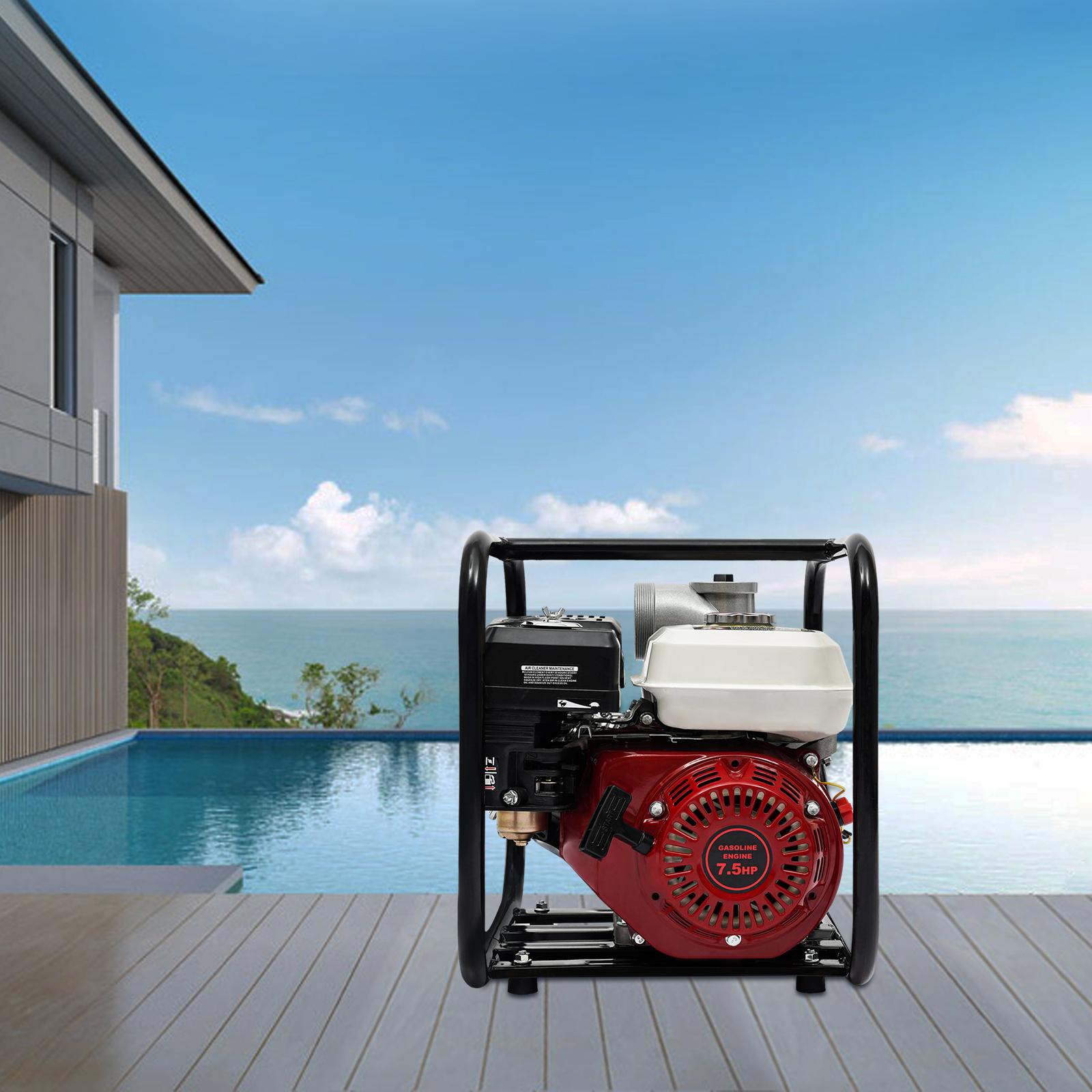

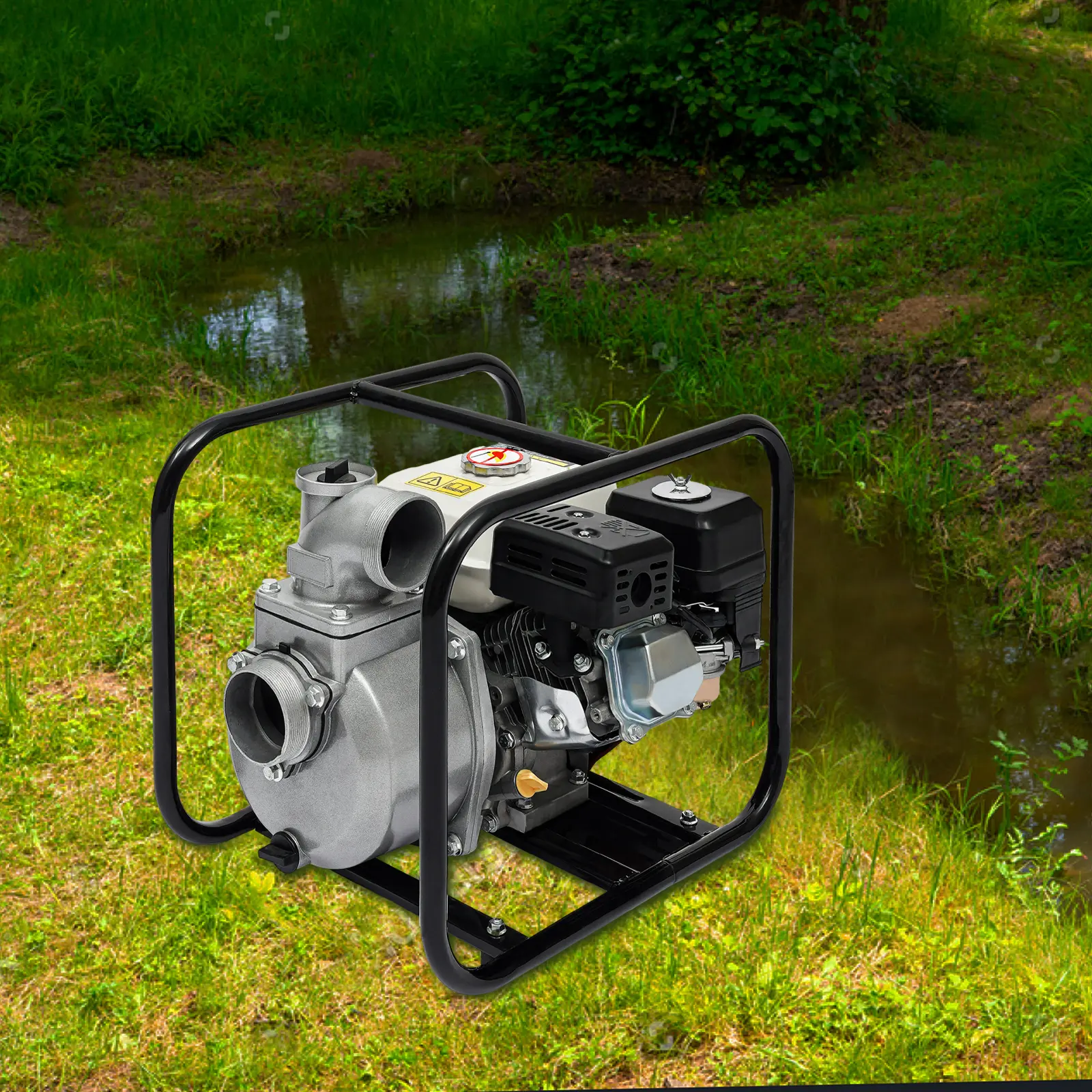

It is ideal for long-distance water transmission in farmland, garden irrigation, greenhouse planting, ground cleaning, fishpond aquaculture, fast drainage, water collection, swimming pool water exchange, water extraction from deep wells, firefighting, and so on.

How to Start

1. Add four-stroke special engine oil.

2. Add pure gasoline to the four-stroke engine.

3. Fill the water injection port with water.

4. Turn the air door up and close.

5. Press the oil bubble to fill it with oil.

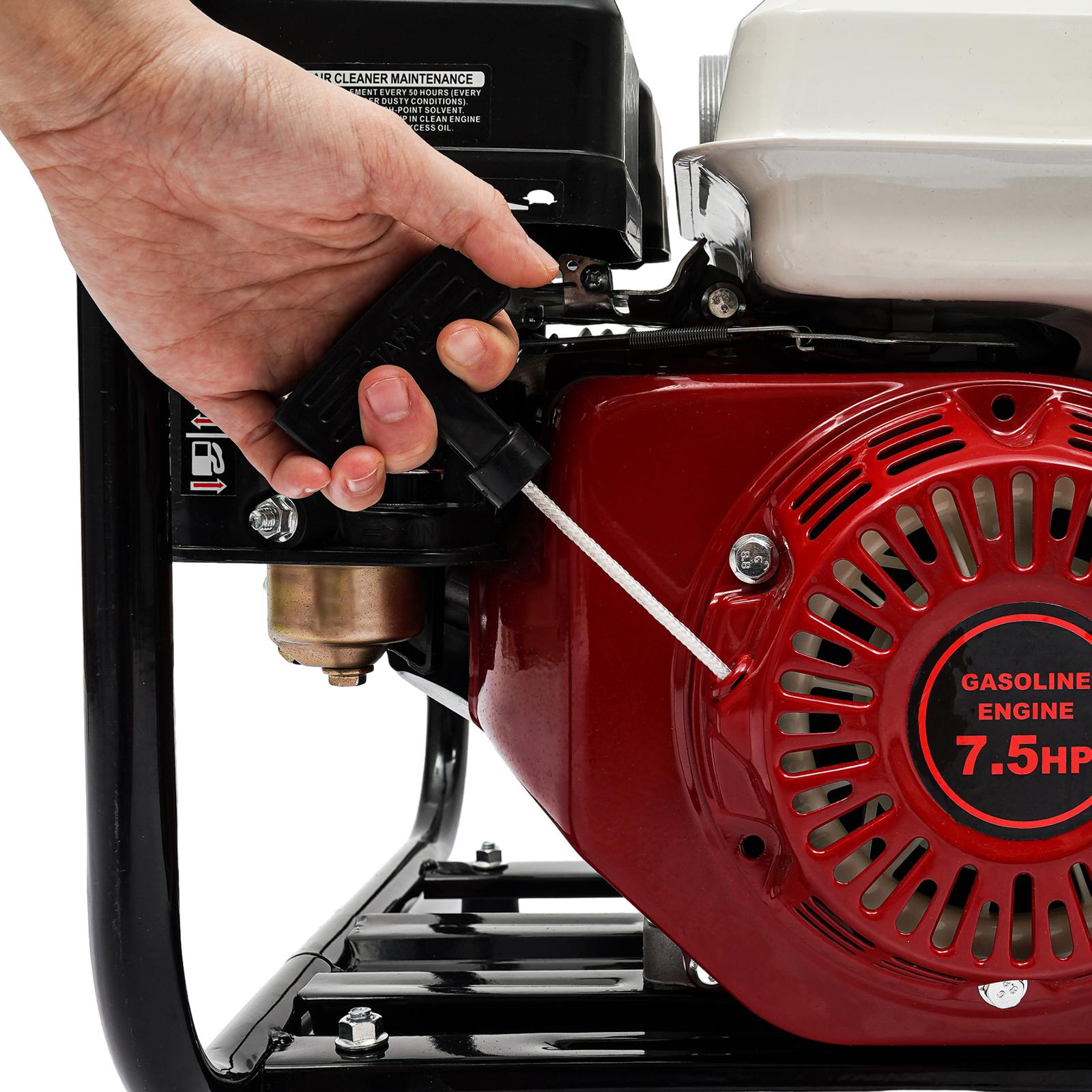

6. Pull the starter and hear the roar.

7. Push down the air door to open it.

8. Pull the starter again to start it.

Specification

Material: Aluminum Alloy and Iron

Color: Black, Silver, White, Red

Processes: Polishing, Spray Molding, and Galvanizing

Assembly Required: Yes

Number of Items: 1

Model: WP30

Engine Type: 170F

Start Method: Recoil Start

Output Mode: Direct Connection

Engine Type: Single Cylinder, Air-cooled, Four Stroke

Power Source: Gasoline

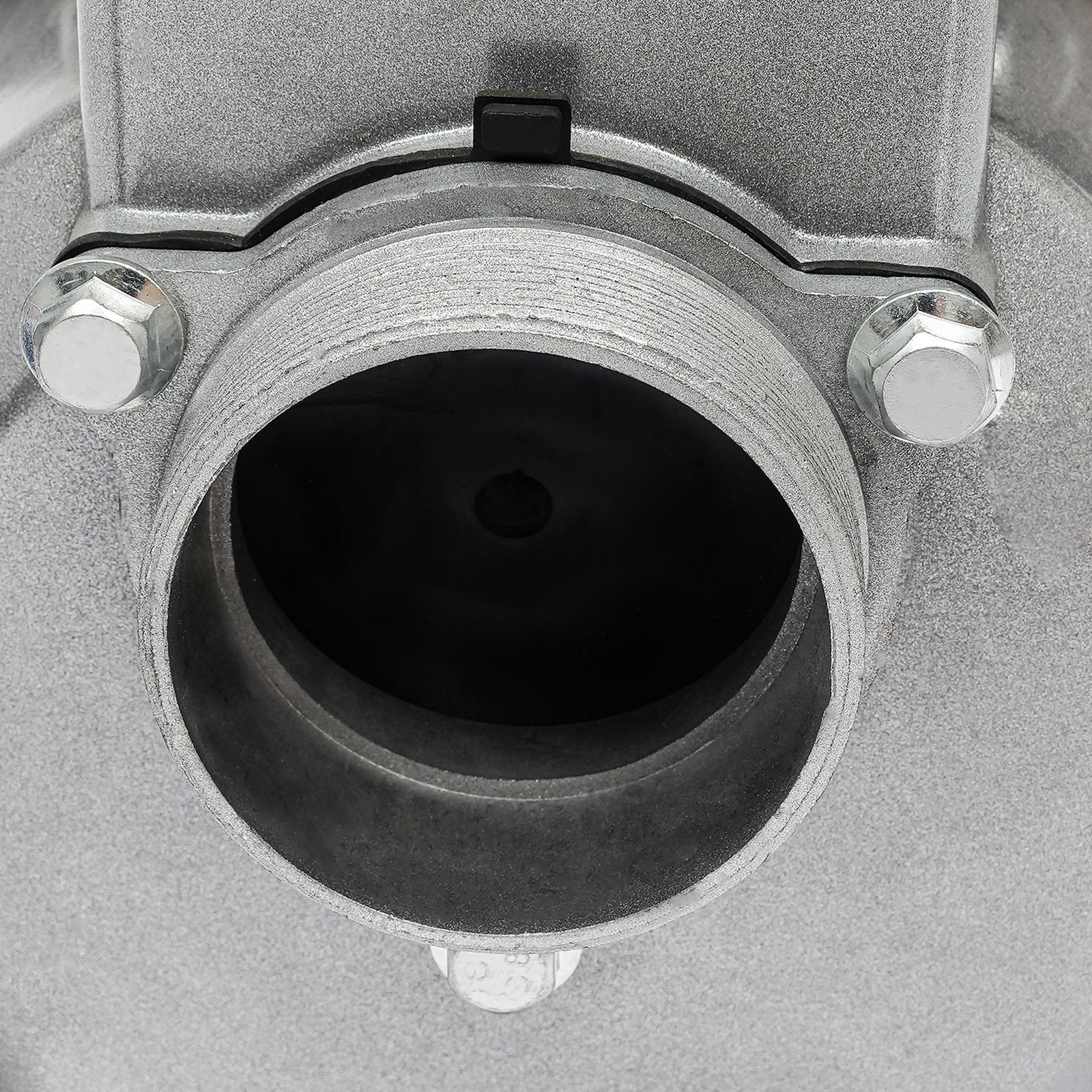

Connection Diameter: 80mm/3in

Capacity: 60m³/2118.88ft³/h

Total Head: 30mm/1.18in

Displacement: 210cc

Power: 7.5 HP, 5.5kw

Speed: 3600rpm

Oil Pot Capacity: 3.6L/0.95gal

Max. Water Pumping Capacity: 1000L/264gal/min

Suction Force: 0.08mpa

Lifting Height: 28m/91.86ft

Maximum Suction Lift: 7m/22.96ft

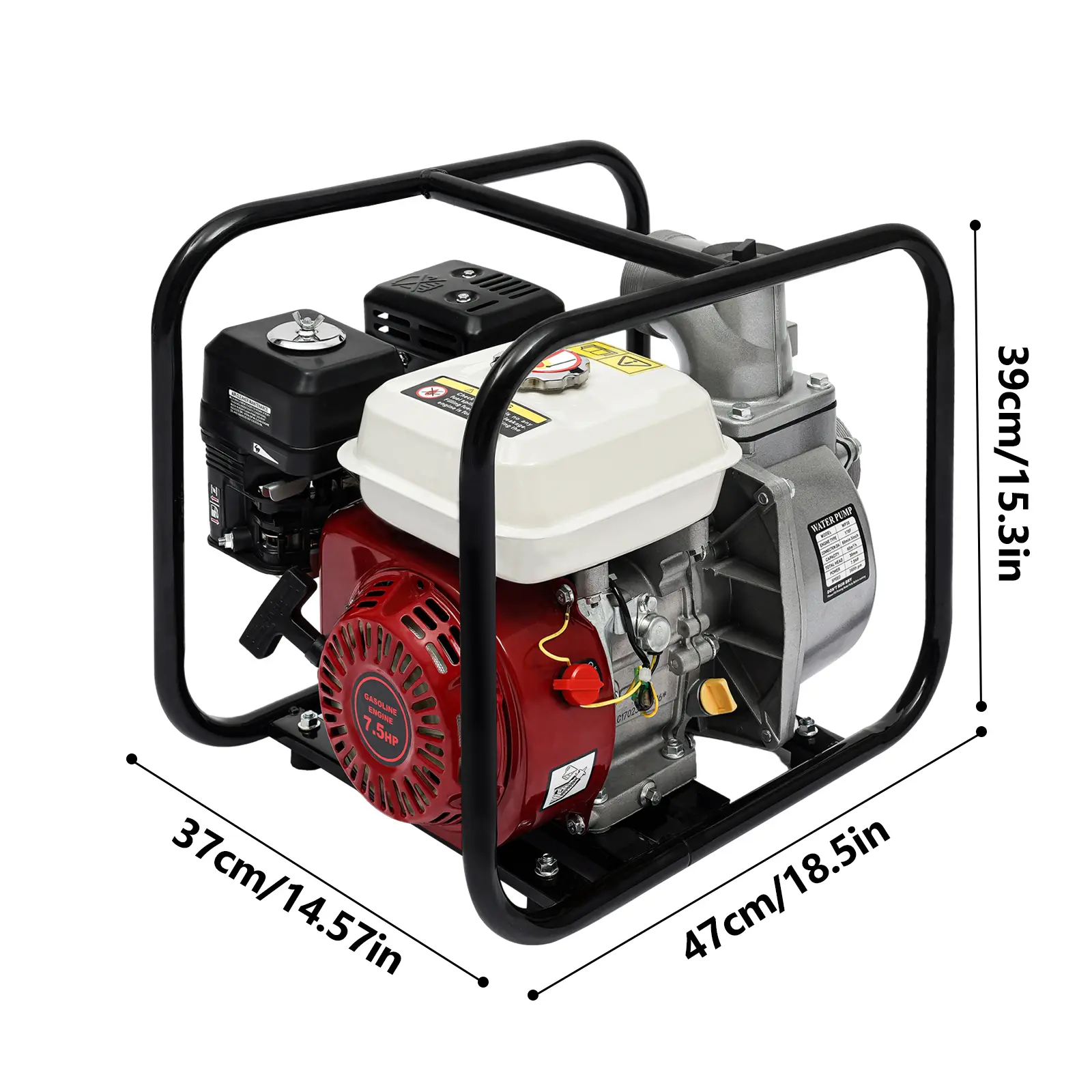

Product Size: 47*37*39cm/18.5*14.57*15.3in

Package Size: 51*39*43cm/20.08*15.35*16.93in

Gross Weight: 22kg/48.5lb

Net Weight: 21kg/46.3lb

Package Included

1*Water Transfer Pump

1*English Manual

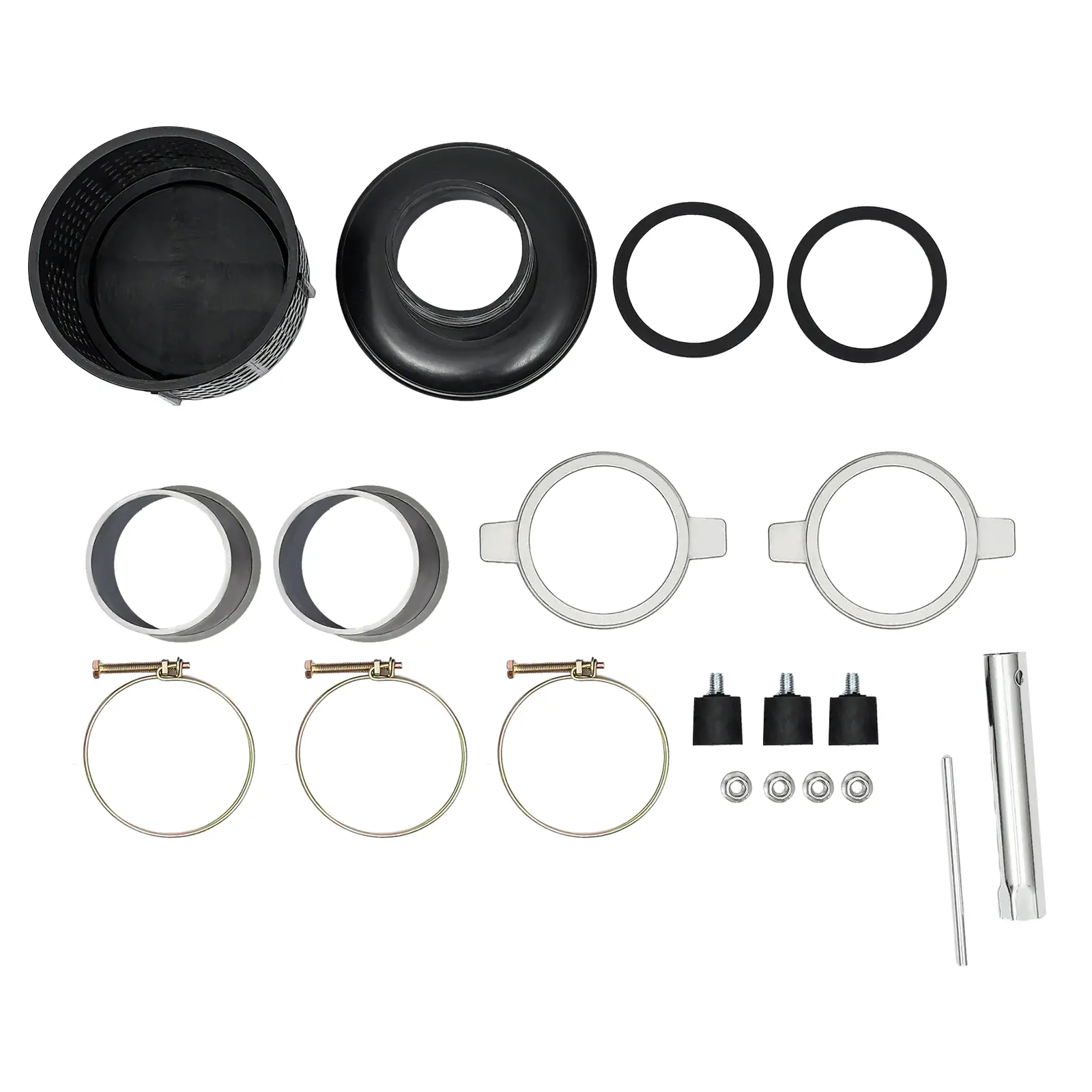

All Accessories Required for Installation

Notes

1. This product does not include water hoses.

2. Please fill the priming water fully before running, don't run dry. When using it for the first time, it is necessary to change the oil every 5-10 hours, otherwise, impurities in the oil will block the crankshaft.

3. Please check for fuel spillage or leakage before starting. Please add gasoline only when it is cooled. Please use the correct model of engine oil, genuine factory products, and clean engine oil. Gasoline should also be free of impurities.

4. Gasoline engines are prohibited from stopping at high speeds and should be stopped when the throttle is lowered to the lowest possible level.

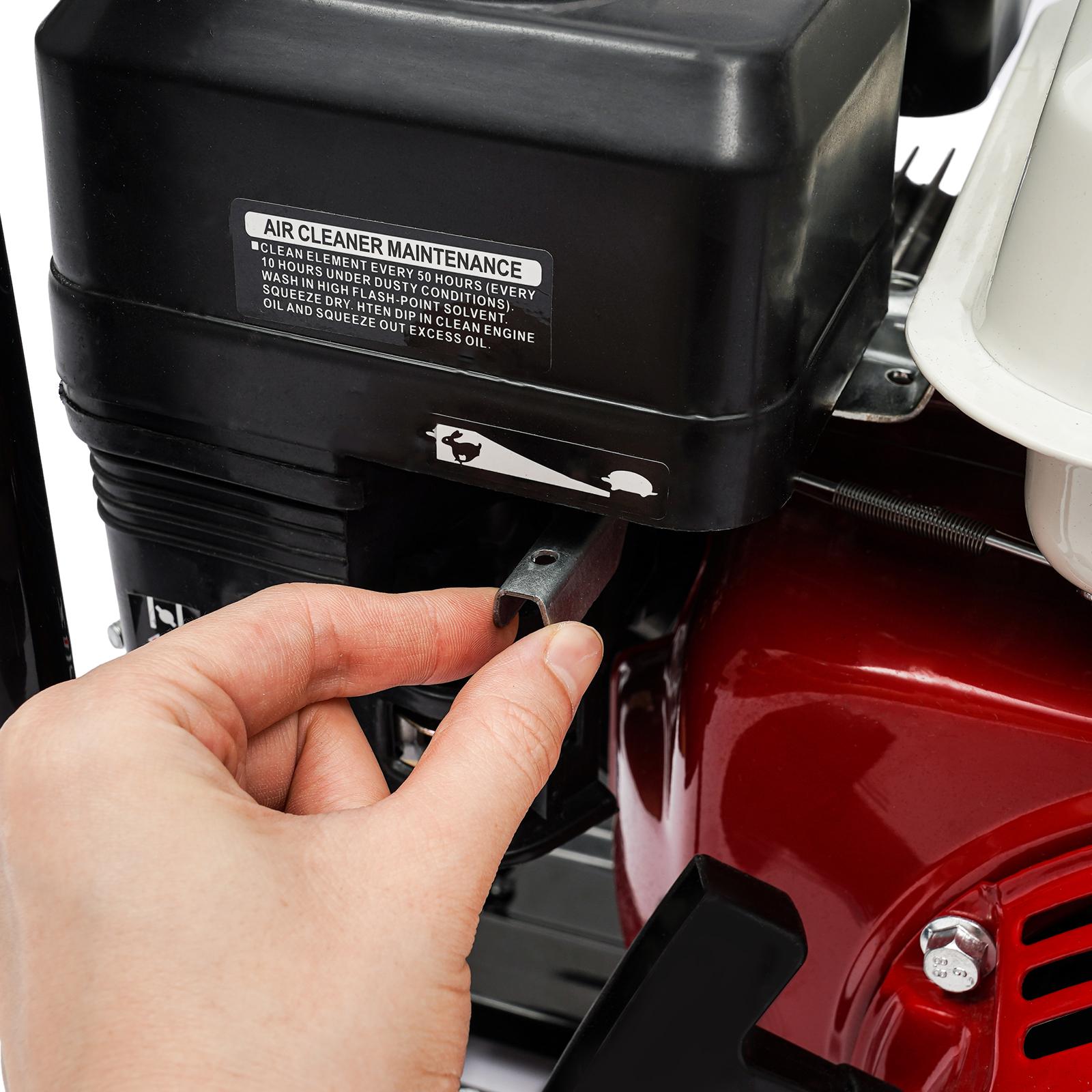

5. The air filter element should be regularly inspected and replaced, and the dirty element should be cleaned with soapy water and dried in the shade before use. The cremation plug generally does not need to be replaced. If carbon accumulates, remove it and scrape it off with a knife.

6. If the machine is ready to be out of use for a long time, please do not directly turn off the gasoline engine switch, please turn off the throttle switch and consume all the gasoline in the carburetor; If not consumed completely, maintaining oil in the carburetor for a long time can lead to oxidation of the carburetor.

7. Even if using a fan or opening doors and windows for ventilation, please do not operate this product in your home, garage, basement, crawling space, shed, or other partially enclosed spaces.

8. Please read the operating manual and product label carefully before use and pay attention to the safety instructions included.

9. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
