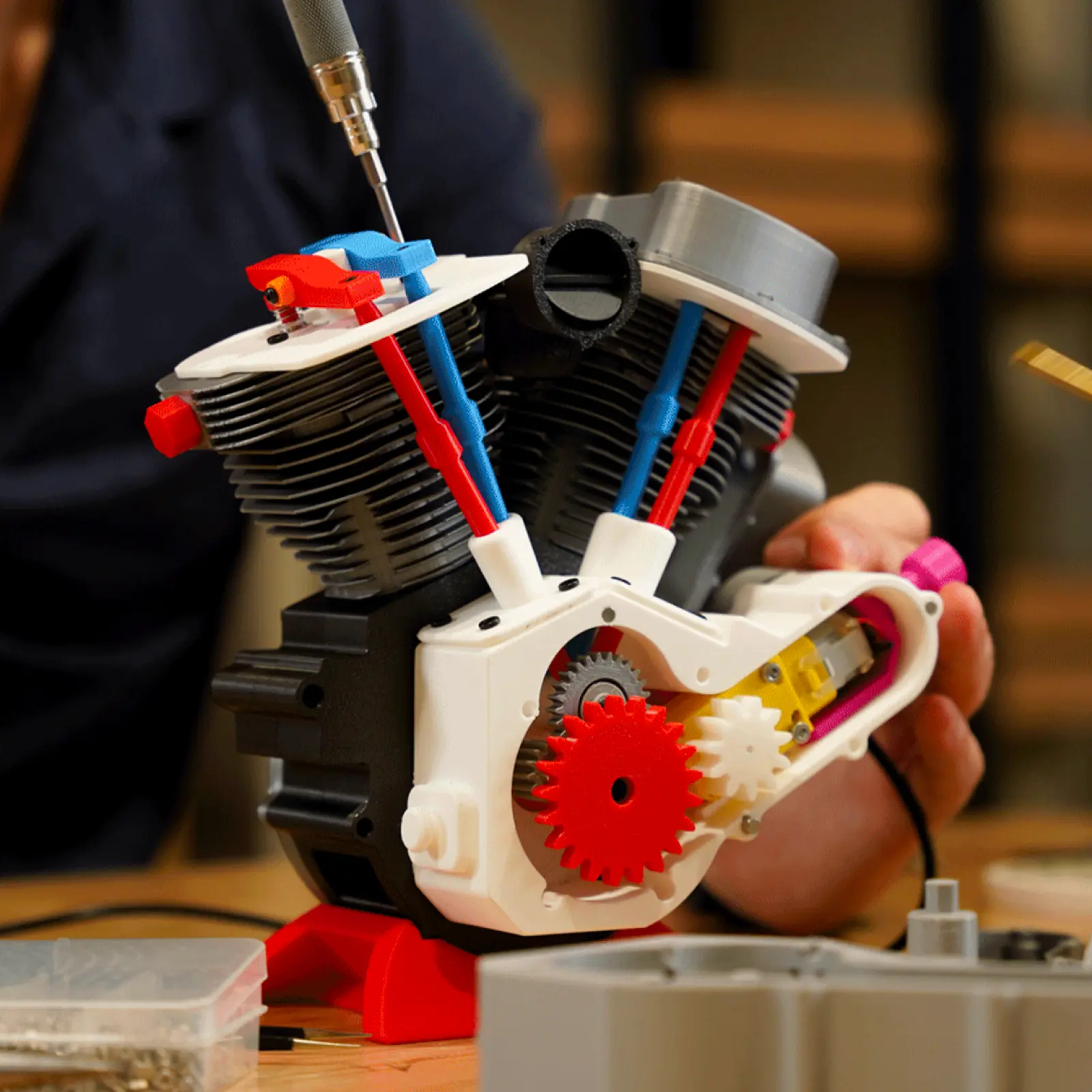

This is a V-twin engine model that consists of various parts like a crankshaft, connecting rods, camshafts, gears, and a throttle valve, among others. It can replicate the functioning of a real engine. The engine model has magnetic decorative covers and hollowed-out structures that make it easy to observe the internal parts. It can be rotated using either a manual crank or an electric motor. In manual mode, the engine runs at a slow pace, allowing for a better observation of each movement. With the motor drive mode, the engine can run continuously by using the motor to rotate the crankshaft.

Overview

The Engine Model Components Kit contains all the necessary hardware components for assembling an Engine Model. To complete the assembly for an entirely functional piece, users also need to download the model files and 3D print the remaining parts.

·Recommended filaments: Bambu PLA series, PLA Basic is recomended especially in moving parts

·Hardware Kit: Engine Model Components Kit-005



Please make sure you clean the build plate before printing and/or applying glue to prevent print failures.



Follow the video tutorial step by step to print and assemble your build.

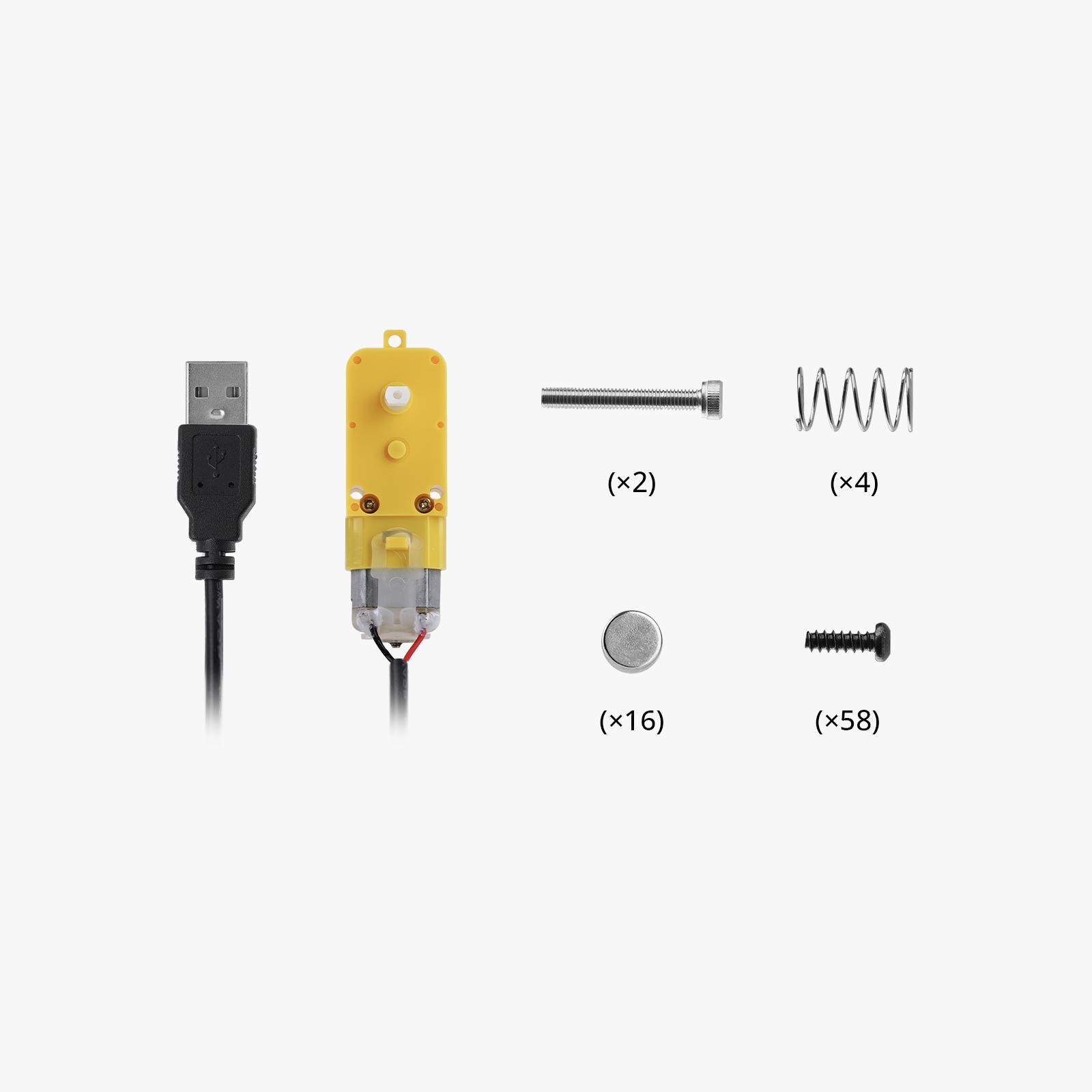

·In the Box

1. TT Motor (DC5V 59RPM CCW Single Axis) * 1

2. BT2.6x8 SHCS Self Tapping Screw * 58±4 (44 pcs for assembly, remaining extras can be kept as spares)

3. M3x23 SHCS Machine Screw * 2

4. 4x2 mm Round Magnet * 16

5. 0.5x7x12 mm Helical Compression Spring * 4

·Notes

1. Please power the device using a USB power supply with the specified voltage.

2. Please test the operation of the mechanism by rotating the control handle before powering. After powering, verify the operational status of the motor and be cautious to prevent motor blockage.

3. It is recommended to use indoors at room temperature.
