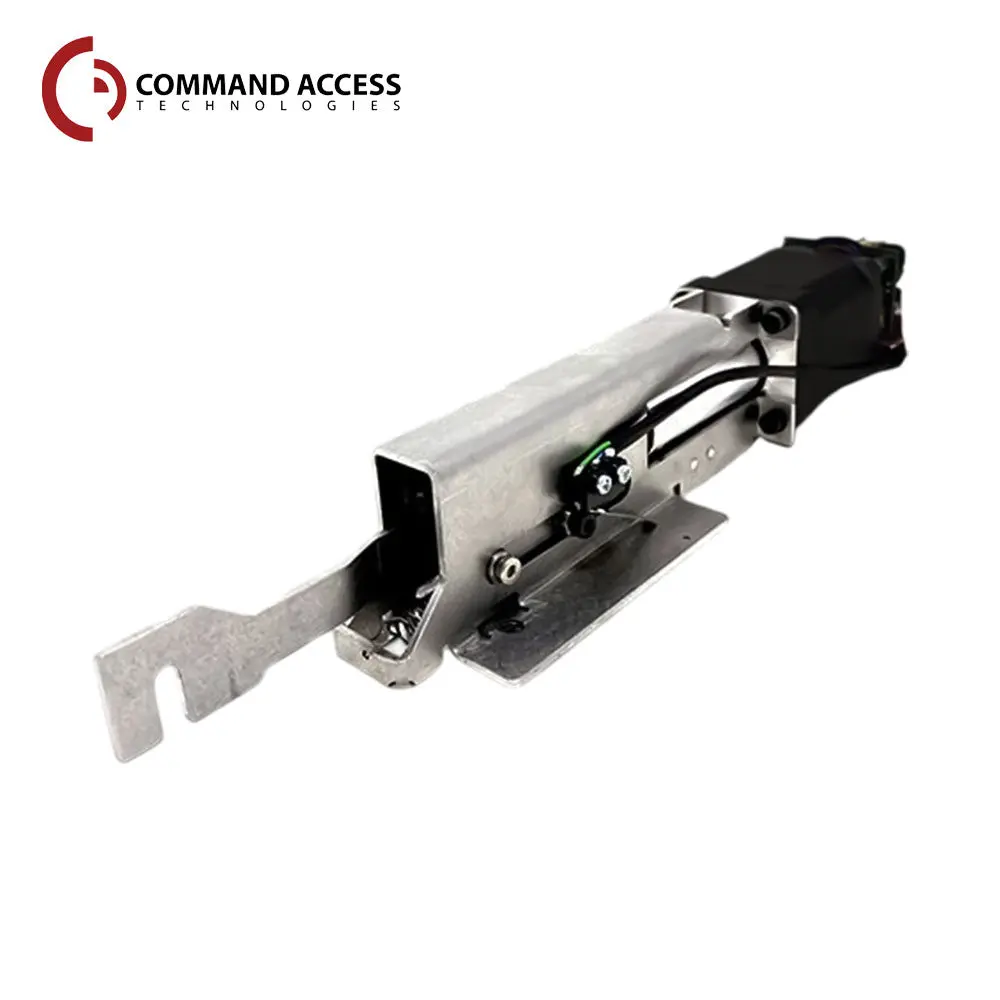

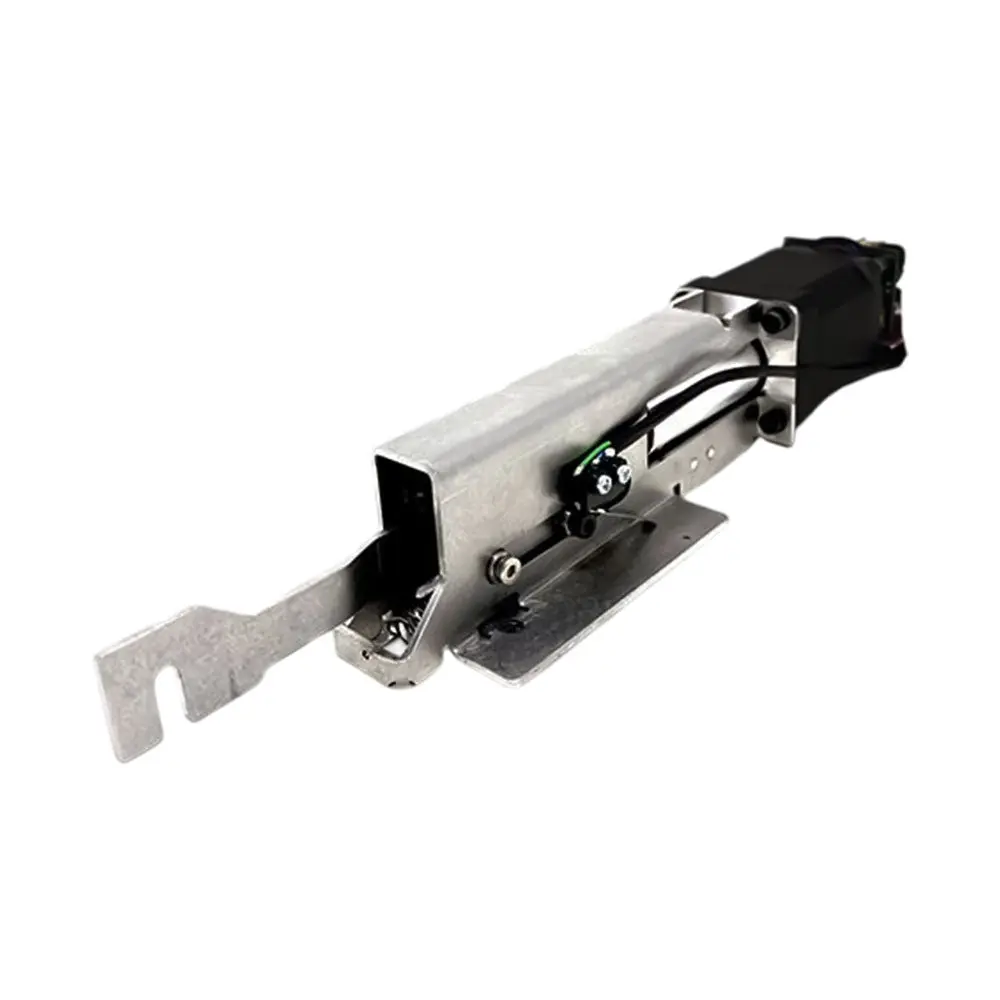

Command Access - MLRK1-FAL17 - Motorized Latch Retraction Kit for Falcon Dor-o-matic 1690/1790, AHT4/5, and First Choice 3600/3700 Series Exit Device

The MLRK1-FAL17 is a robust, straightforward field-installable motorized latch retraction kit for Falcon Dor-o-Matic 1690/1790 & First Choice 3600/3700 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses our new 1 TOUCH PTS “Push to Set” technology, making post-installation adjustments a breeze.

·1 Touch “PTS” Push to set technology

·Easy installation - Fast, quiet, smooth

·True Electronic Dogging - Full push pad retraction

·UL Listed

·3 year warranty

Features:

·Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues

·1 Touch “PTS”: Quick & easy post-installation adjustment

·Electric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged position

·Low Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!

·Up to 300’ wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel

·6’’cable with Robust Quick Molex Connect for MM5 module to 6’ Power Lead to easily connect to Power Supply.

·3-year “No Hassle” Warranty

Voltage:

·Voltage range – 24 to 28 VDC

·System protection – unit shutdown when voltage exceeds 28VDC

·Standard - Average Current Peak: 900A, Average Current Hold: 215mA

·PTS adjustment – approx. 1/4”

Wire Run:

·300' with 18ga wire

Product Details:

·Weight: 2 Lbs

Device Cutdown Details:

·36” - 1-1/4”

·48” - 1-1/4”

Built-in REX:

·SPDT rated at .5A @ 24V

·Green (C)

·Blue - (NO)

·Gray (NC)

Falcon Kit:

·Mechanical Device

·CAT Modified Motor

·CAT Modified Solenoid

·FALCON Solenoid

·SDC Motor (LR100-FAK)

Download:

·Installation Instruction
