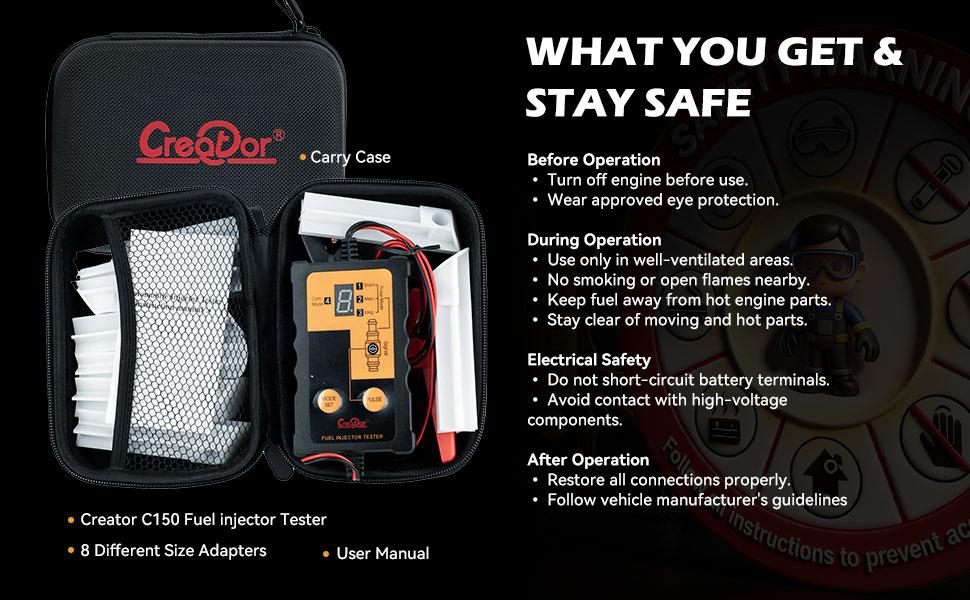

UPGRADED UNIVERSAL FUEL INJECTOR TESTER AND CLEANER KIT

Creator C150 Professional Diagnostic Tool

The Creator C150 is a professional-grade fuel injector tester and cleaner kit designed for DIY mechanics and automotive enthusiasts. This versatile tool enables you to diagnose, test, and clean fuel injectors at home without visiting a garage. It effectively identifies common injector faults including blockage, leakage, sticking, and burnout conditions in petrol vehicles with 12V/5V EFI/GDI systems. By maintaining clean injectors, you can restore engine performance, improve fuel efficiency, and extend vehicle lifespan while saving on costly replacement expenses.

Universal Compatibility: Equipped with 8 different size cleaning adapters, the Creator C150 is compatible with 12V fuel injectors from almost all vehicle models, including standard, competition with VW/Audi brand, and competition with BMW N series brand vehicles.

Multi-Function Testing: Beyond injector testing, this tool can be modified for relay testing or solenoid valve testing under professional guidance.

8 PULSE MODES & DUAL-CHANNEL TESTING

Test 2 Injectors Simultaneously: The Creator C150 features two pairs of pulse output terminals (test leads), allowing you to test two fuel injectors at the same time for direct comparison. This dual-channel capability provides significant advantage over single-channel testers that can only test one injector at a time.

8 Pulse Modes + Dual Power Settings: 4 pulse patterns (Single/Short/Long/Continuous) with 2 power levels (Low/High) for Comprehensive Diagnostics and Effective Cleaning.

Mode Lock Notice: During pulse output, the MODE SET button is locked. Press the PULSE button again to terminate output, then the MODE SET button unlocks for mode selection.

STEP-BY-STEP OPERATION GUIDE

Step 1: Turn off the vehicle engine completely before beginning any testing procedure.

Step 2: Unplug the injector wires of the vehicle to be tested. Connect one pair or two pairs of pulse output terminals to the vehicle injectors. Connect the red pulse output terminal to the positive terminal of the injector and the black pulse output terminal to the negative terminal.

Step 3: Connect the red clip of the Creator C150 to the positive terminal of the 12V car battery and the black clip to the negative terminal of the battery.

Step 4: Insert the DC plug into the power input port of the injector tester.

Step 5: Press the MODE SET key to switch between desired pulse signal output modes. The screen will display the currently selected mode number.

Step 6: After selecting the desired pulse signal output mode, press the PULSE key. The tester will output a pulse signal to the injector, and the signal indicator will light up during pulse output.

Step 7: To repeat the test in the same mode, press the PULSE button again.

Step 8: To change modes, press the PULSE button to terminate pulsing output first, then use the MODE SET button to select a new mode.

IMPORTANT NOTICES & CAUTIONS

Power Requirements: This kit requires external 12V DC power supply (car battery or adapter, not included). Please prepare this before beginning any testing or cleaning work.

Cleaning Agents: Fuel injector cleaning operation requires carburetor cleaner or injector aerosol (not included). Please have these materials ready before starting the cleaning process.

Equipment Protection: When using the fuel injector tester cleaner, do not expose the cover and plastic housing to cleaning agents to avoid permanent damage to the unit.

Engine Compatibility: Designed for gasoline engines only. Not applicable to diesel mechanical fuel injectors.

Professional Modifications: Any modifications beyond standard injector testing (such as relay or solenoid valve testing) should be carried out under the guidance of qualified professionals.

Safety First: Always ensure the engine is off before connecting or disconnecting any test leads. Verify all connections are secure before activating pulse output.

Note: 12V DC Power Supply and Injector Cleaning Solution sold separately.
