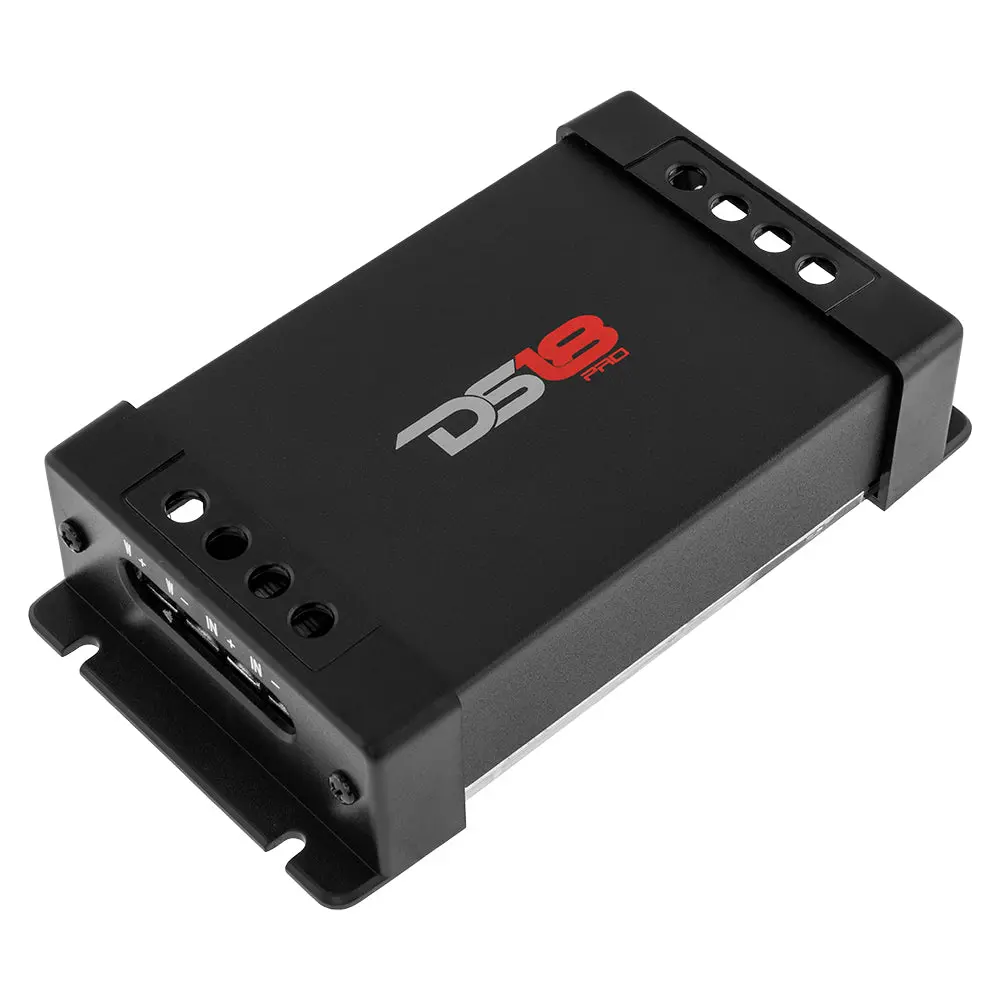

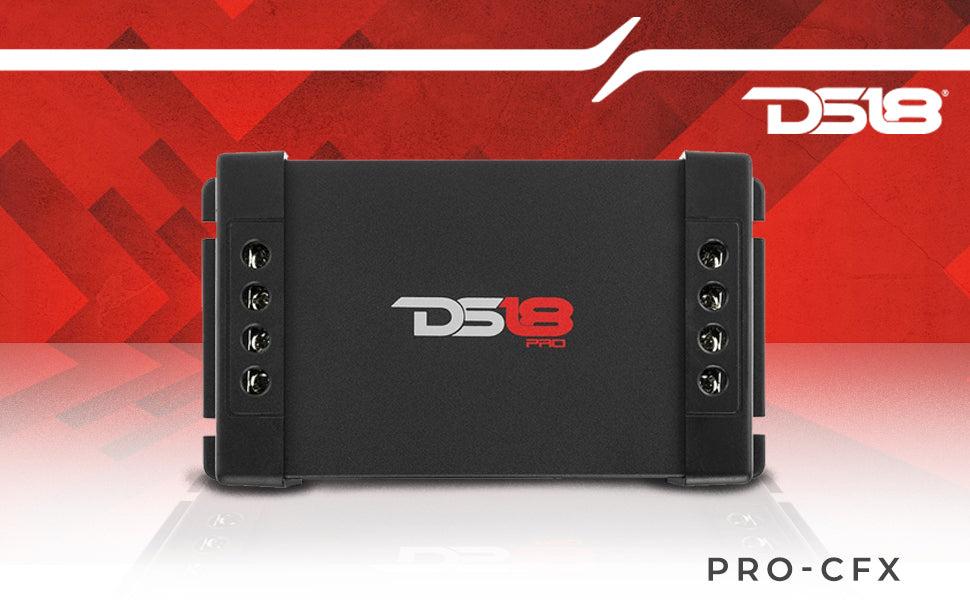

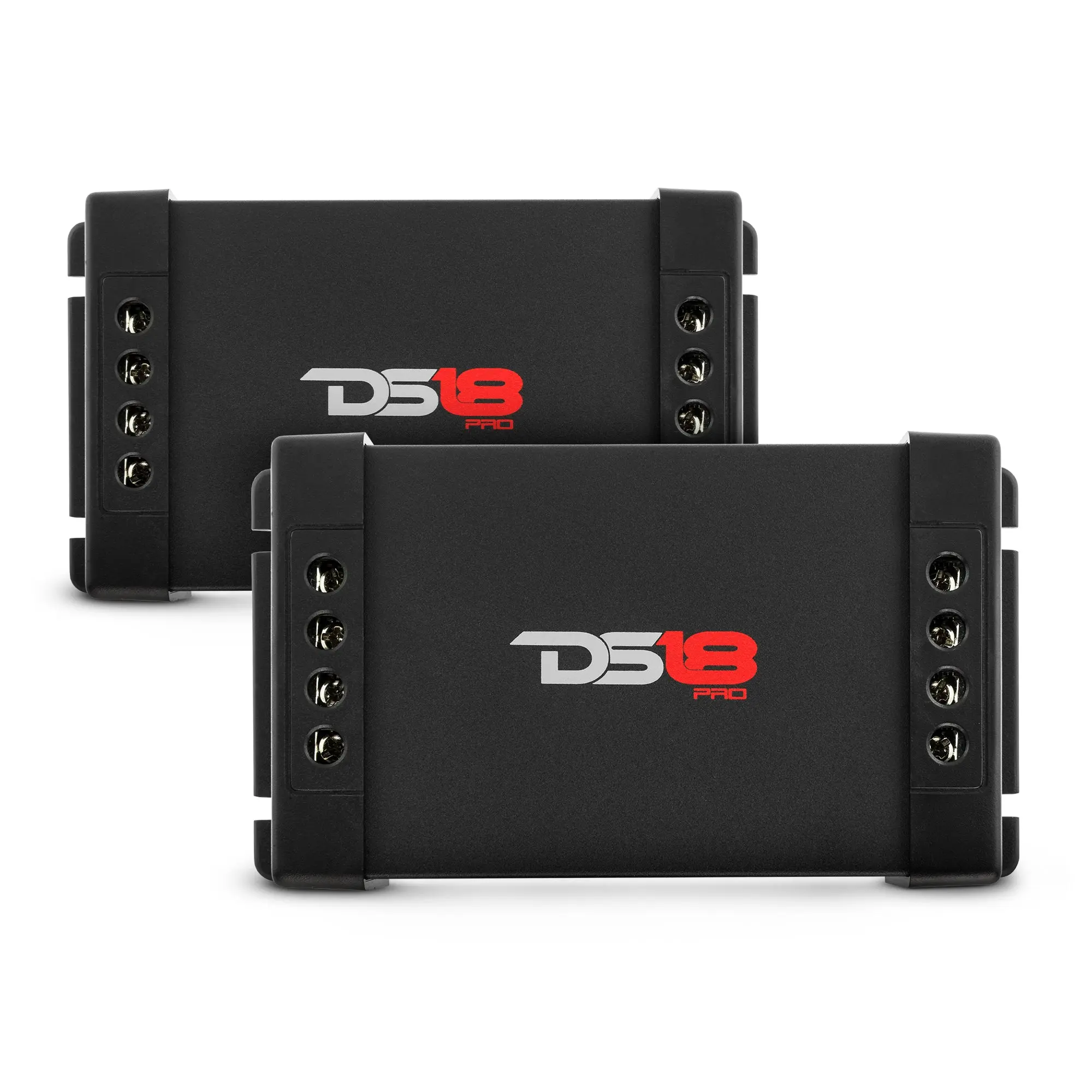

DS18 PRO-CFX 2-Way Passive Crossover (Pair)

With DS18's PRO CFX, you can make your own passive setup and use the speakers of your choosing for an amazingly full sound. This is a 2 way passive crossover that lets you choose a mid woofer 8" and under for the midrange and a tweeter for the high range. The crossover is rated for 300w RMS so you will be able to get great sound at a high volume with great frequency crossover point accuracy. These are the perfect addition for anyone looking to add a passive crossover utilizing only 1 channel on your amp and separate a full range signal for both components.

Highlights

·2 way design that allows you to add a midrange and tweeter while it passively filters the frequencies for both.

·Utilize 2 speakers on 1 channel of your amplifier while filtering out unneeded frequencies and help each speaker complement overall sound quality.

·Rated for high power speakers for a total of 300w RMS so you will also have loudness with great sound quality.

Technical Details

PRO-CFX Product Manual

GENERAL SPECIFICATIONS / ESPECIFICACIONES GENERALES:

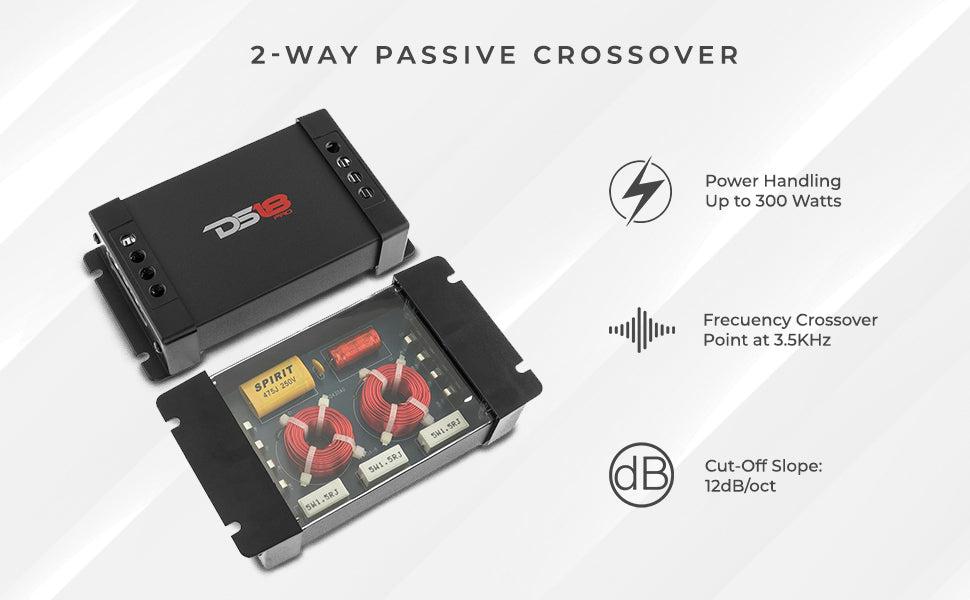

·Passive Crossover Ways / Vias de Crossover Pasivo: 2-Ways (High and Low Frequency)

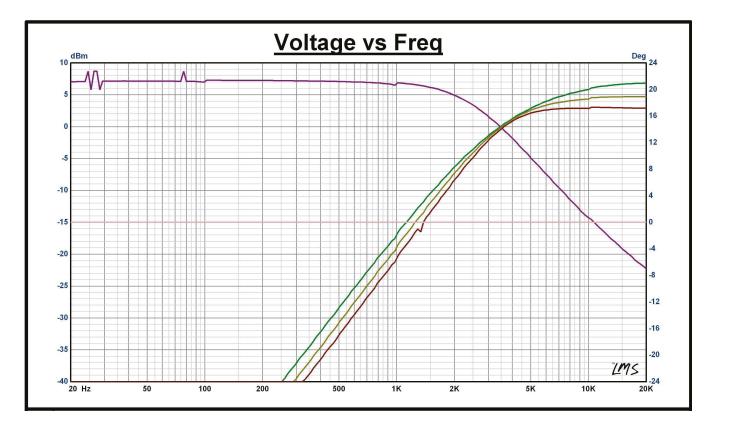

·Frequency Crossover Point / Punto de Cruce de Frecuencia: 3.5KHz (@ 4 Ohms)

·Power Handling / Manejo de Potencia: Up to 300 Watts / Hasta 300 Watts

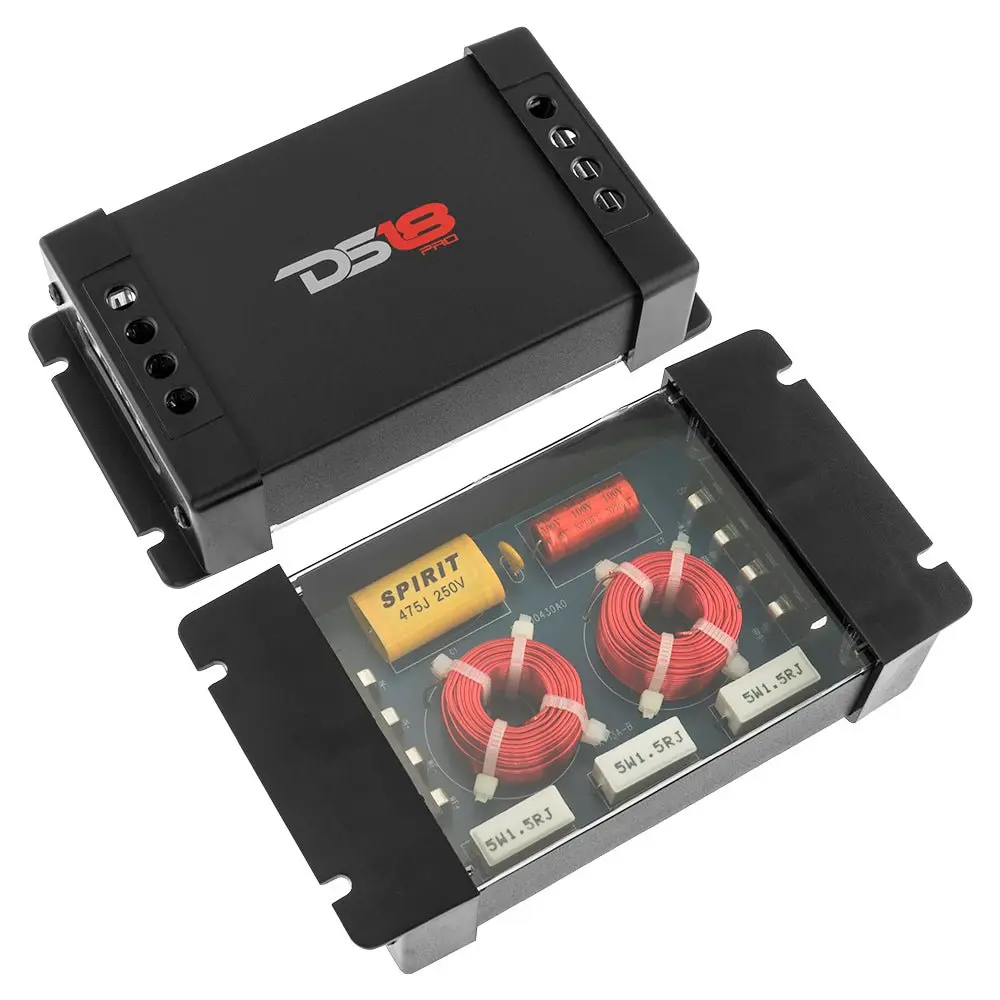

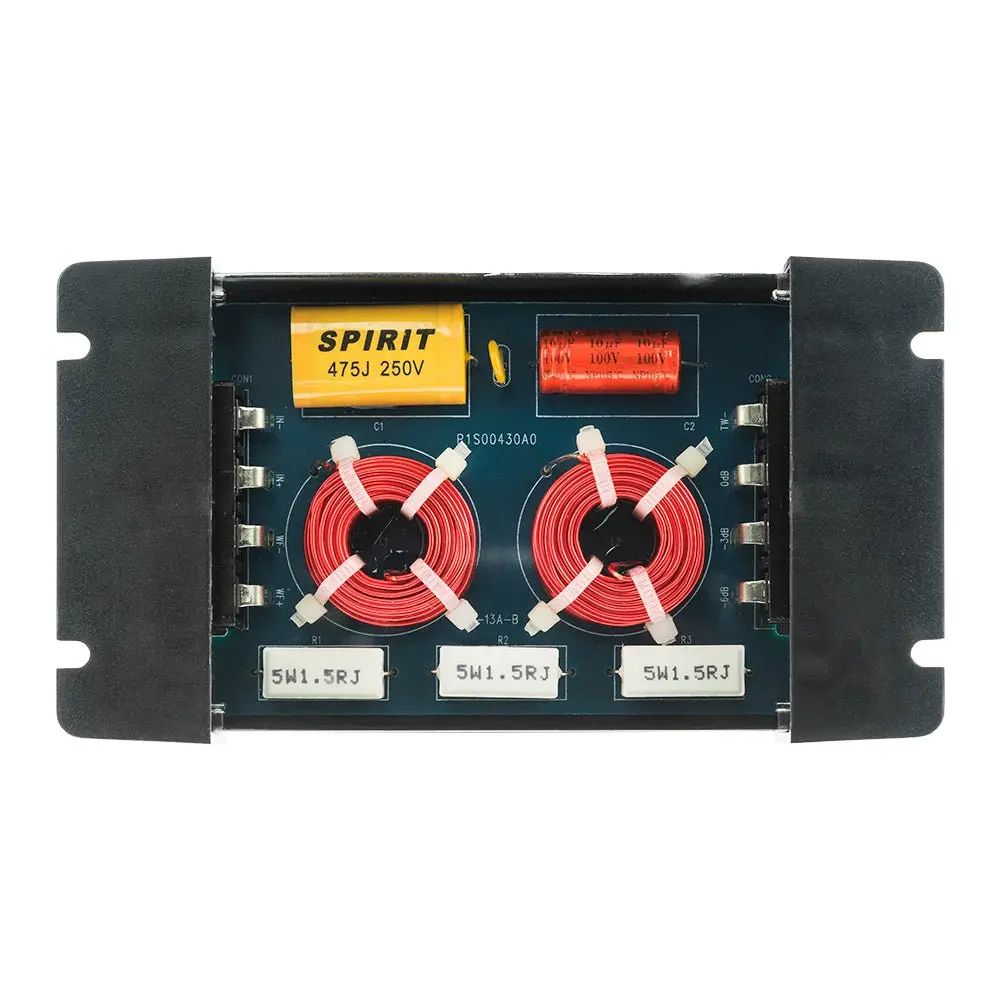

CROSSOVER FEATURES / CARACTERISTICAS DEL CROSSOVER:

·Capacitor Type / Tipo de capacitador: NP

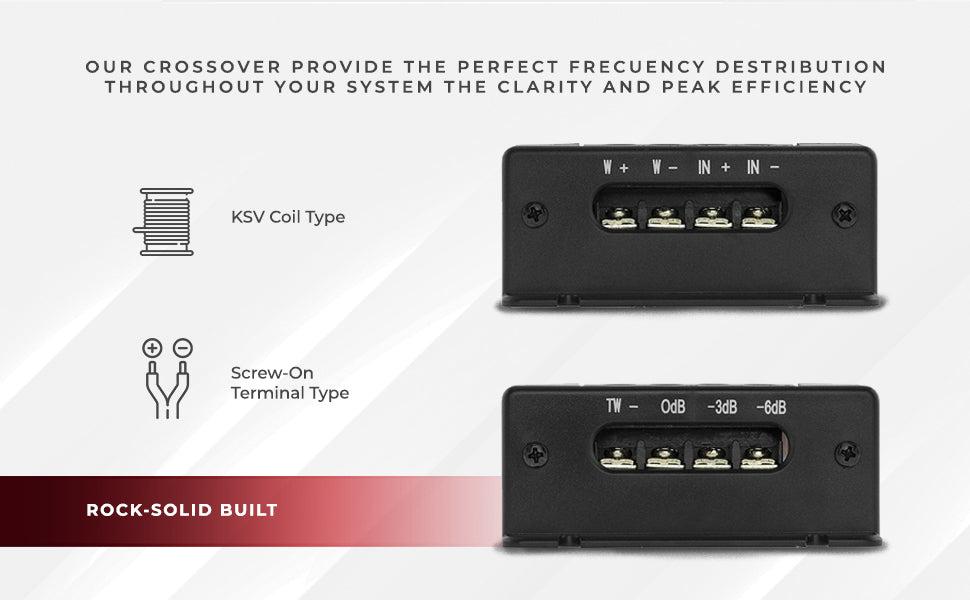

·Mylar Coil Type / Tipo de Embobinado: KSV Terminal Type

MEASUREMENTS / MEDIDAS:

·Overall Length / Largo Total: 6.3” / 160 mm

·Overall Depth / Profundidad Total: 3.5” / 88 mm

·Overall Height / Altura Total: 1.5” / 38 mm
