About This Item

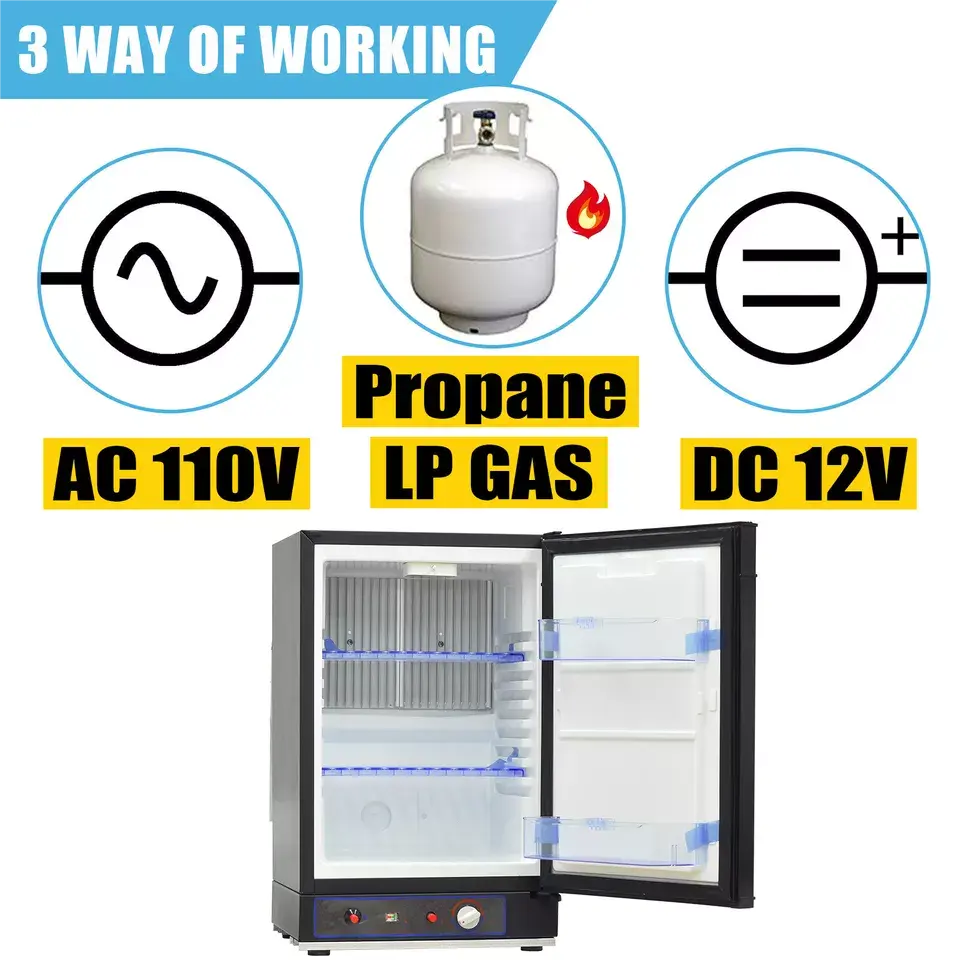

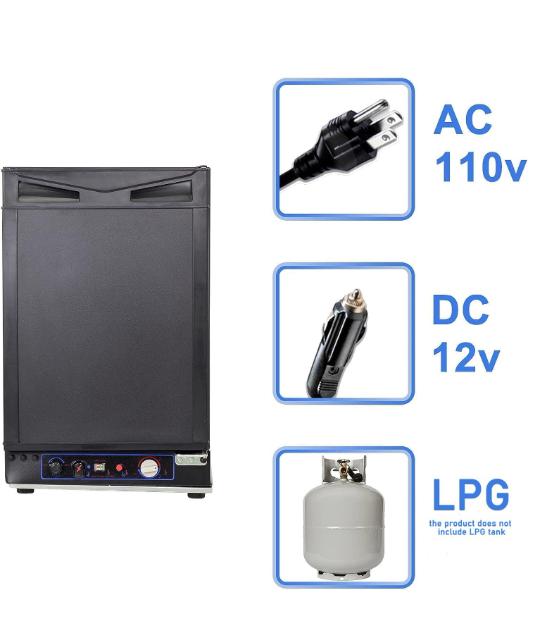

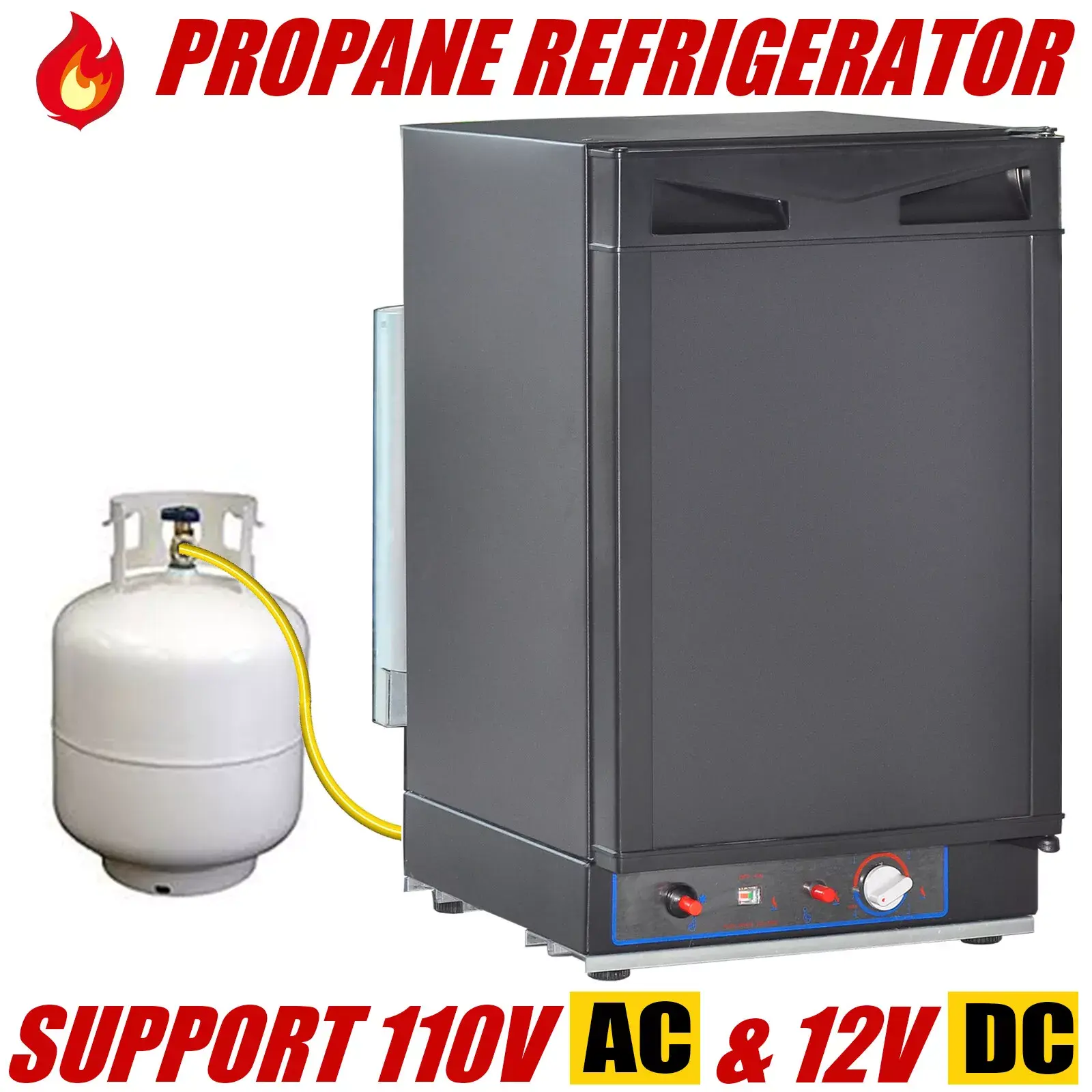

【3-way power supply cooler】 Propane camper refrigerator operate on 12V, 110V, LPG and are widely used in a variety of situations. It is ideal for apartments, dorms, offices, semi trucks, and RV.

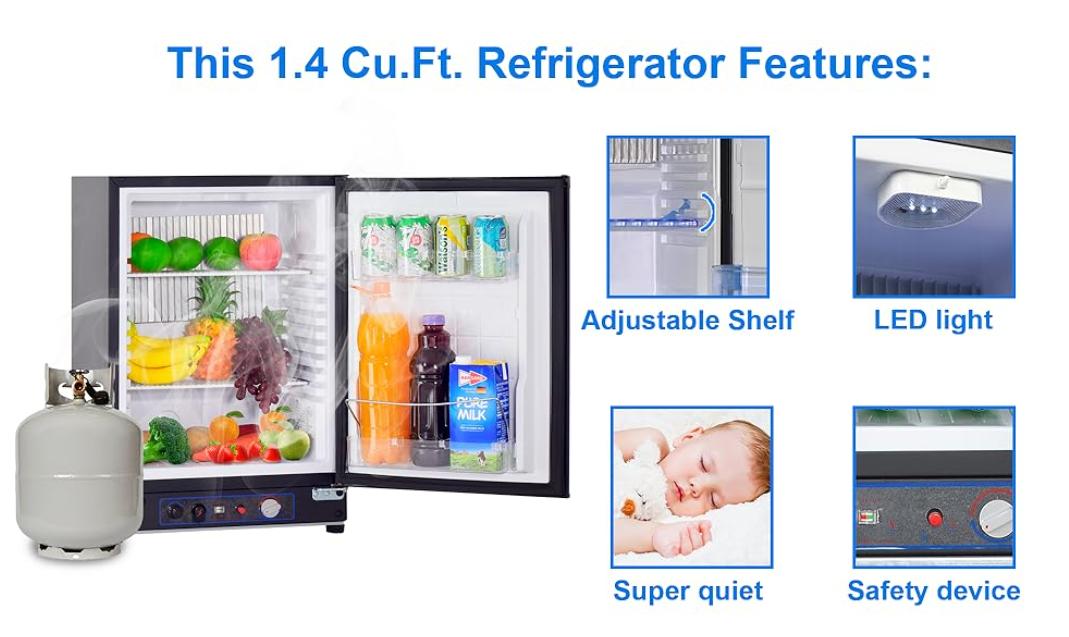

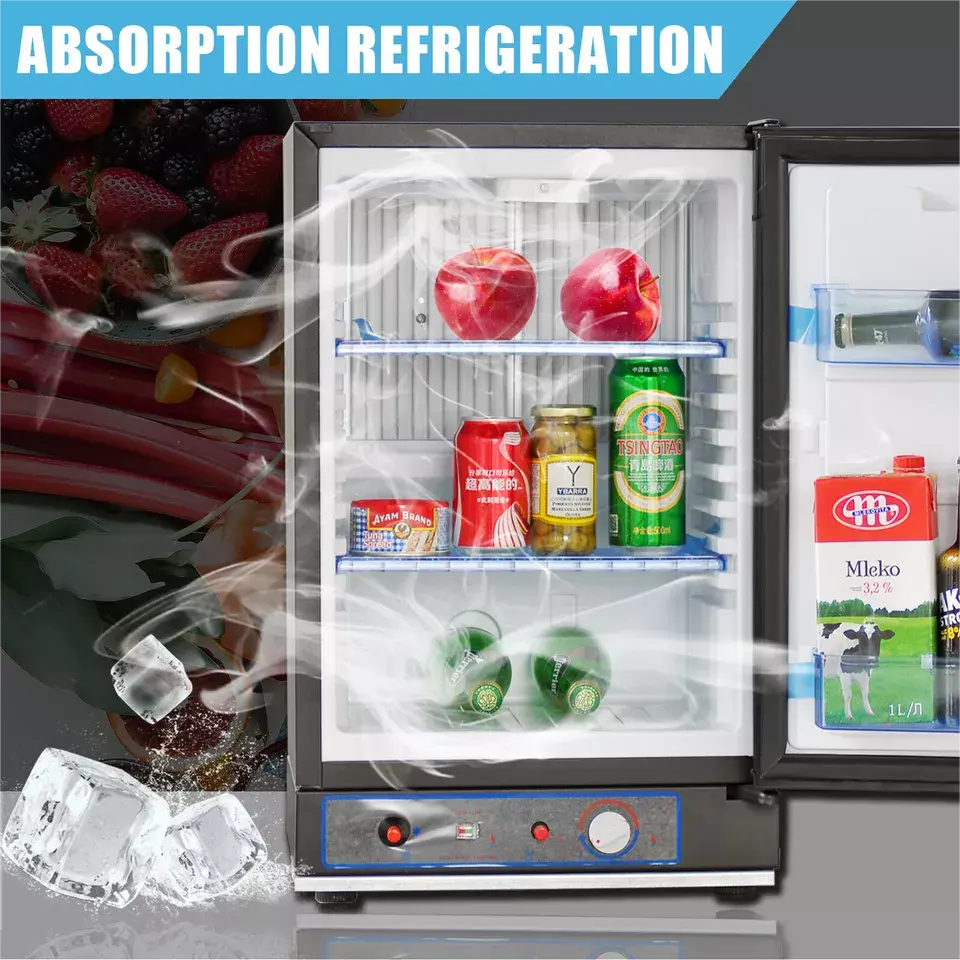

【User-friendly angle】Adjustable Shelves: Depending on the type or size of the food, you can place them in shelves or crisper drawers. Reversible door: The reversible door design gives your refrigerator more options for door opening direction.

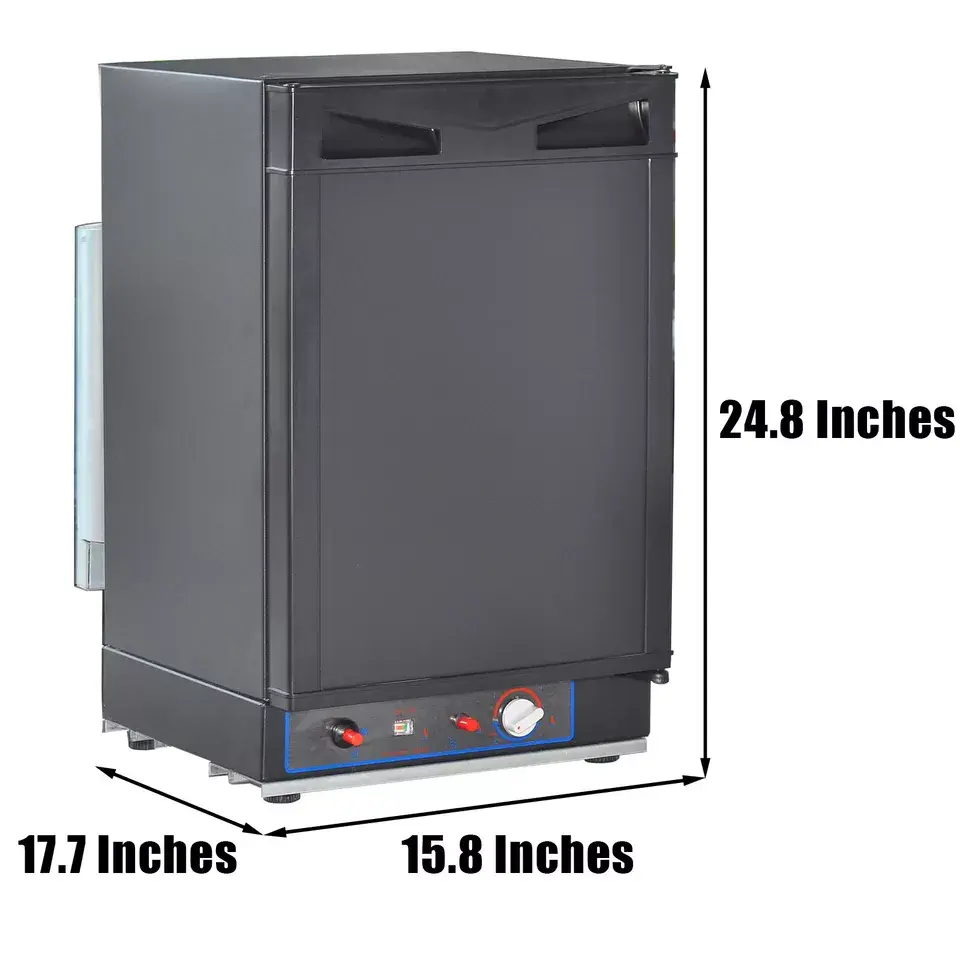

【Compact & Large Capacity】Dimensions(w*d*h）: 15.8*17.7*25 inches; This mini fridge can fit anywhere you need it. The 1.4cu.ft space can hold fresh fruits and vegetables as well as refrigerated drinks while traveling.

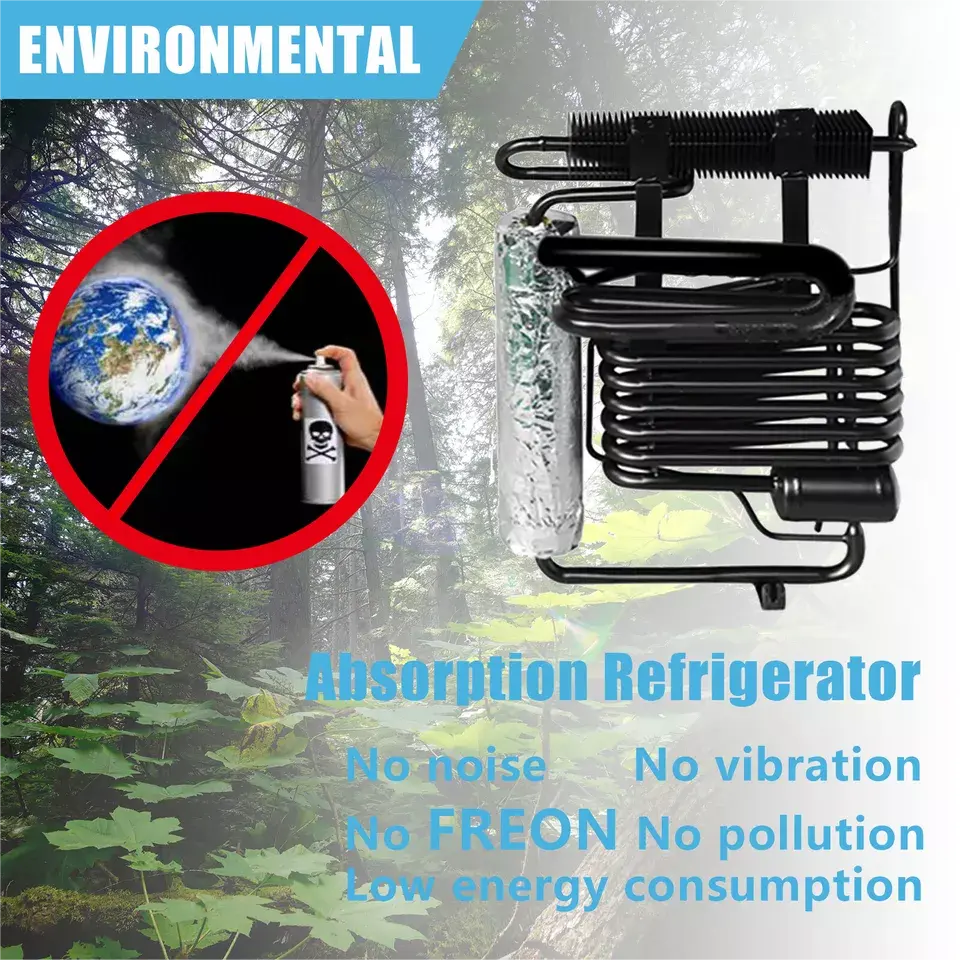

【Quiet and Environmentally】No freon or pollution during refrigeration, providing a quiet and healthy green environment for camper, office, or apartment.

Using Method：

When you receive it, please put it upright horizontally for 6 hrs before plugging it up. It is less efficient than a compressor refrigerator, which needs around 6~8 hrs to get cold at the first use. Please set the temperature at the lowest and plug it in 110 V and test if it is cold inside and heated on the back after 6~8 hrs. So it is with the 12 V. Please don't use 2 kinds of power supply at the same time. Please don't use house batteries or solar batteries when using DC 12V, it is recommended to use it on a car cigarette lighter. If there is one voltage not working, just tell us, and we will handle it for you immediately.

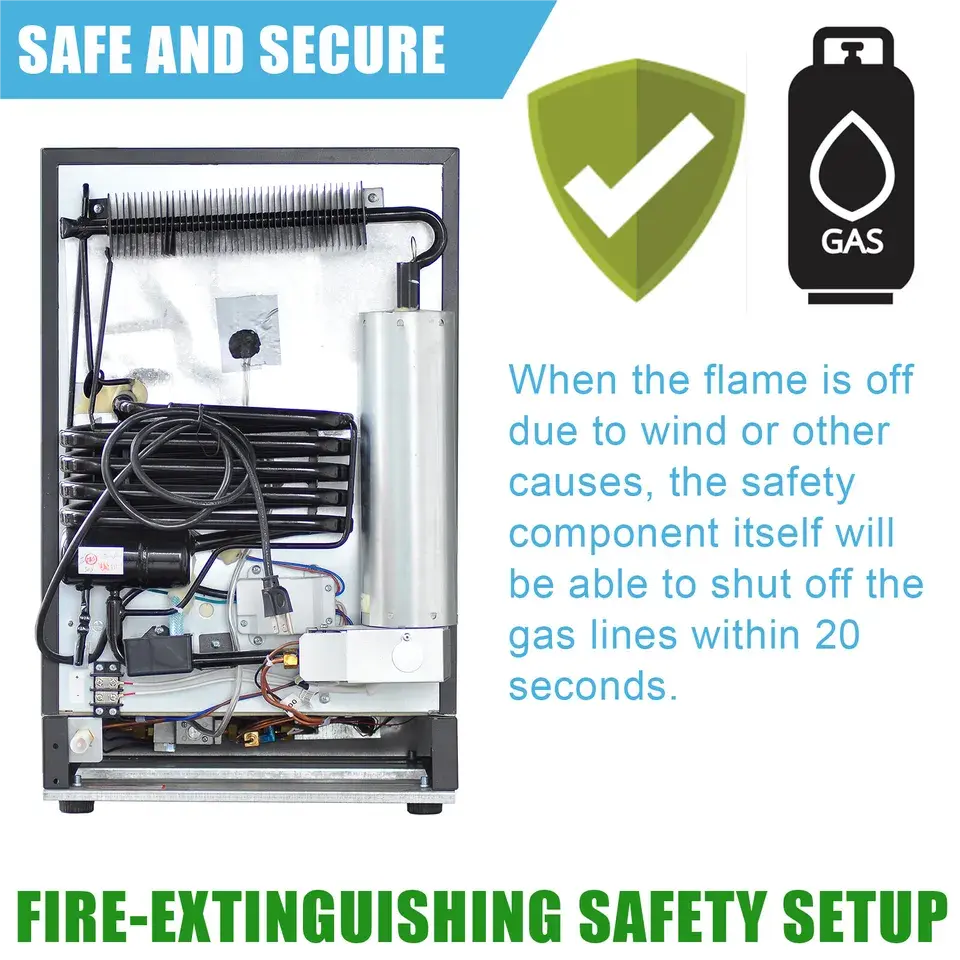

·Please keep VENTILATED when using GAS(we have the vent kit in our store). NEVER install gas appliances in unventilated places.

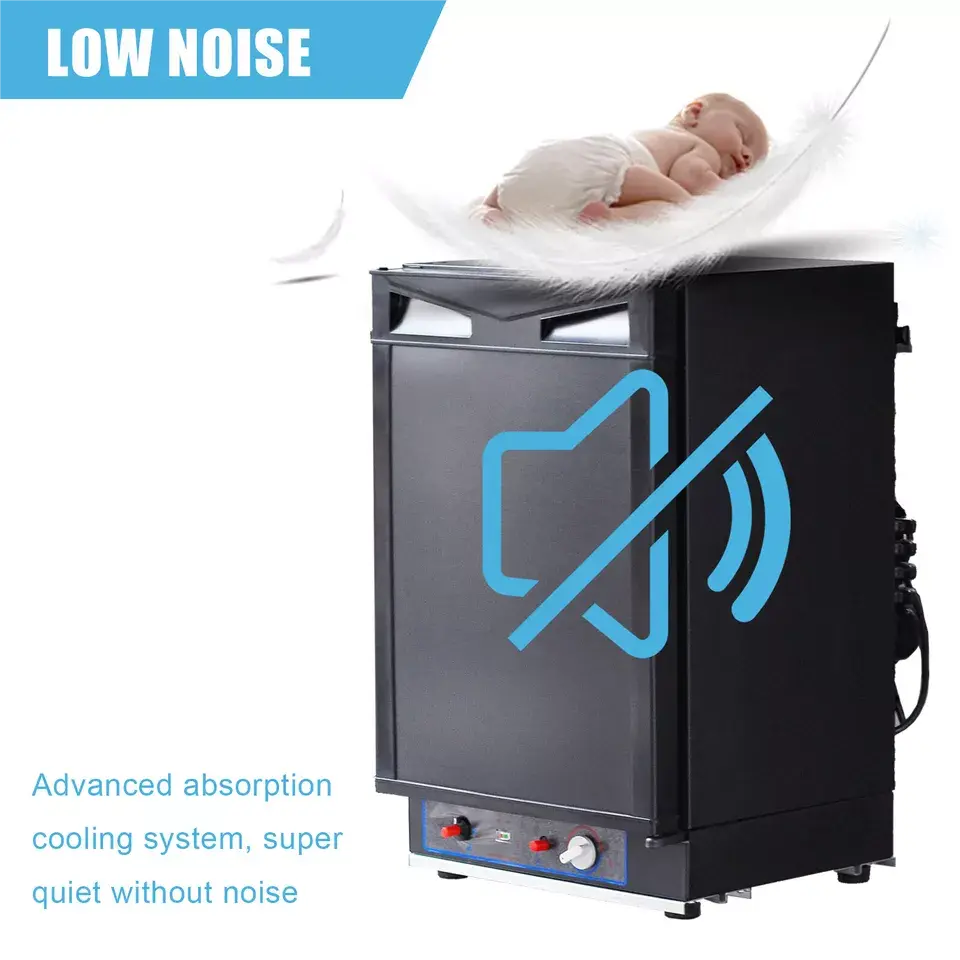

·This is a noiseless absorption refrigerator. No sounds heard doesn't mean it's not working.

·It needs 6~8 h to cool from 90 ℉ to (32~50 ℉) in an empty state on electricity. If it is full of cold food, the time needed is 2~4 h. It's more efficient on propane and cools fast.

·Please adjust the foot to make sure the fridge top(bottom) surface is horizontal when you use it. When slant angle ＞ 5°, the cooling unit may be blocked and stop cooling.

·Trouble Shooting: Heater failure-Replace heater. Cooling unit blocked-

1. Put it upside down for 8 h.

2. Put it upright for 8 h.

3. Plug it up.

Operation instruction：

1. Make sure that all valves between the gas container and the refrigerator are open.

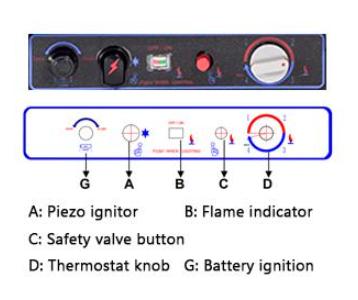

2. Depress the safety device control (C) and hold it down while depressing the igniter switch (A) .

3. Check the flame indicator (B) to see whether the flame is alight.

4. Keep the safety device control (C) depressed for a further 10-15 seconds.

5. Release the safety device control (C ) and again check to see that the flame is alight.

6. Adjust the thermostat knob (D) to desired temperature setting and allow for 8 to 10 hours of operation to achieve desired temperature.

If the burner has not lit after 4-5 attempts, turn off the gas tap, wait 5 minutes and then try to re-light. If the burner still fails to light, please contact the authorised service provider in your area.

Note: If the battery ignition fails to spark, you might need to replace the battery(G).
