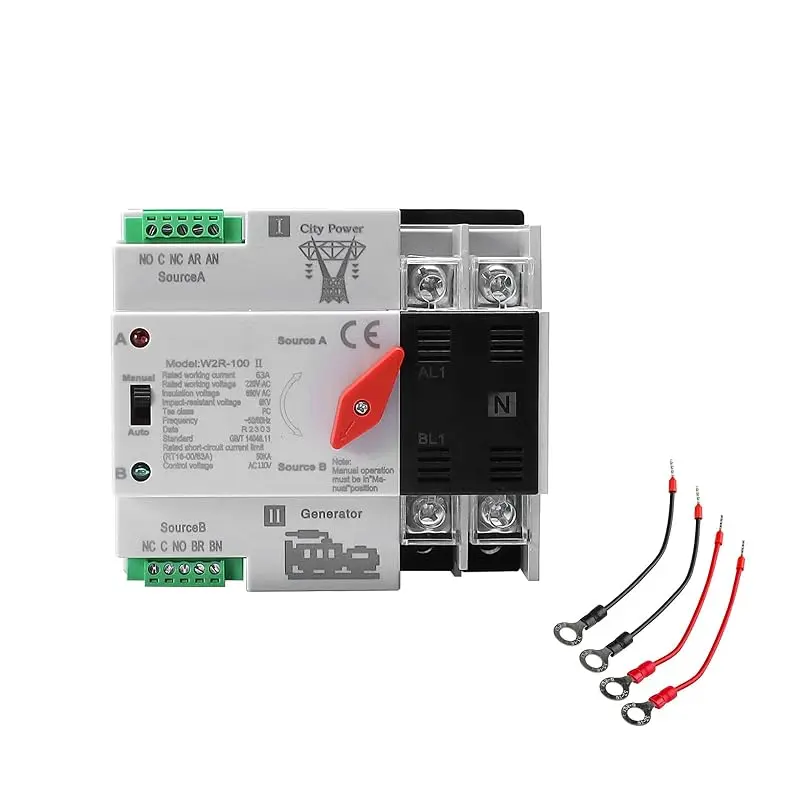

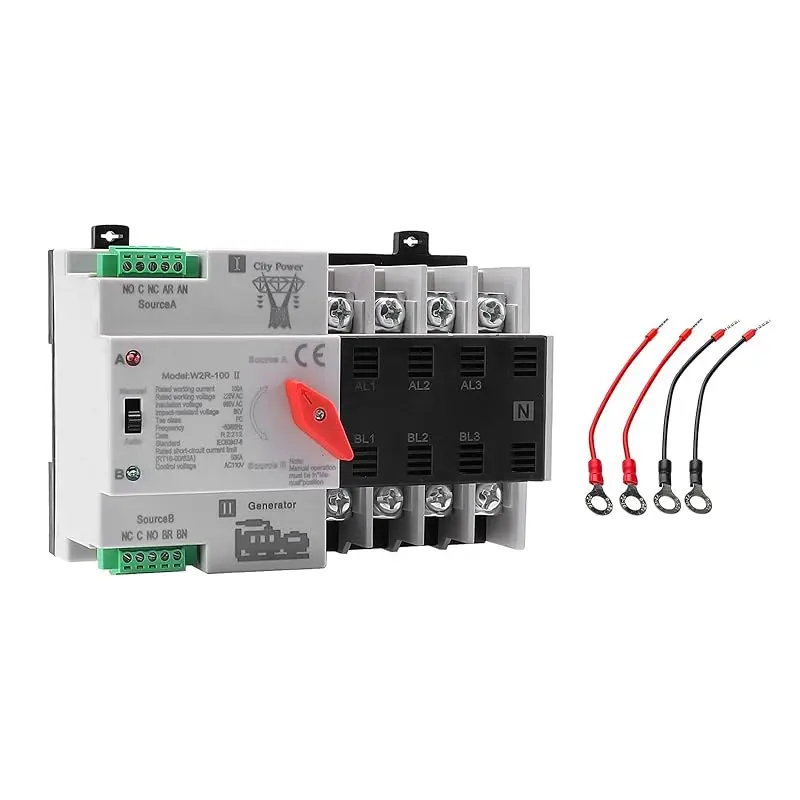

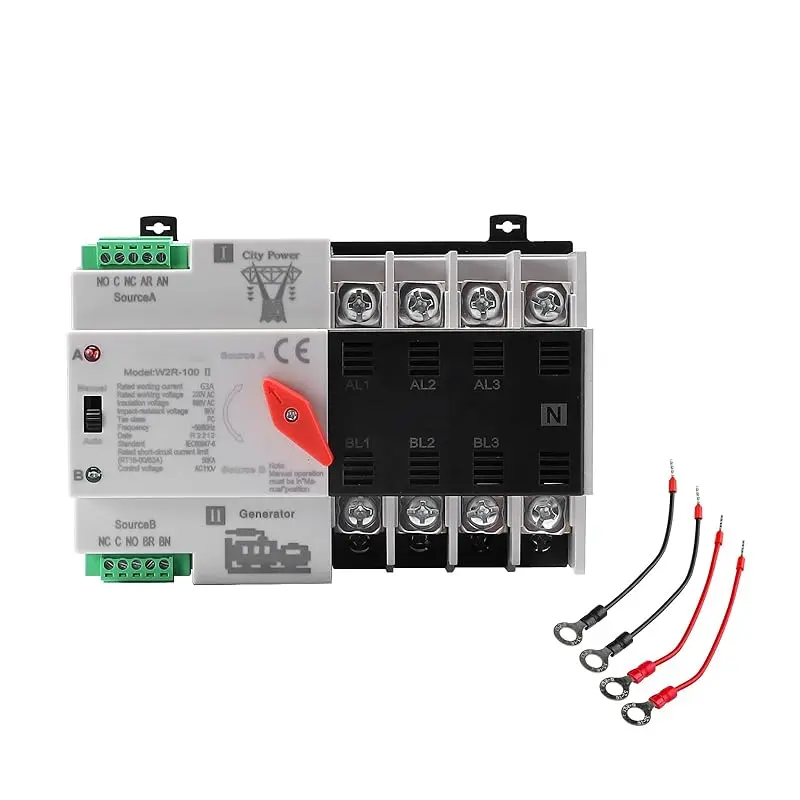

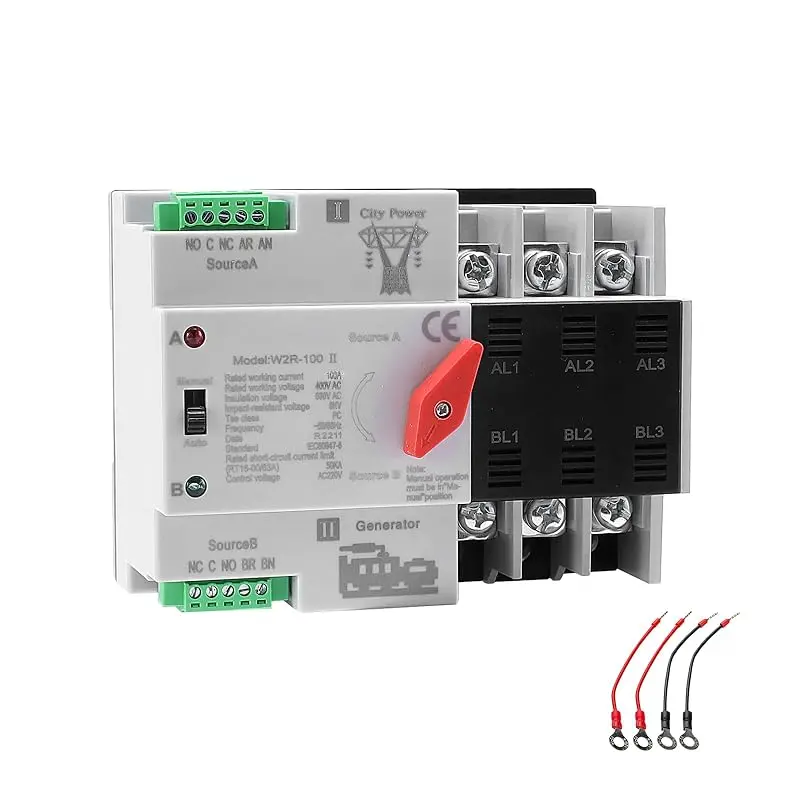

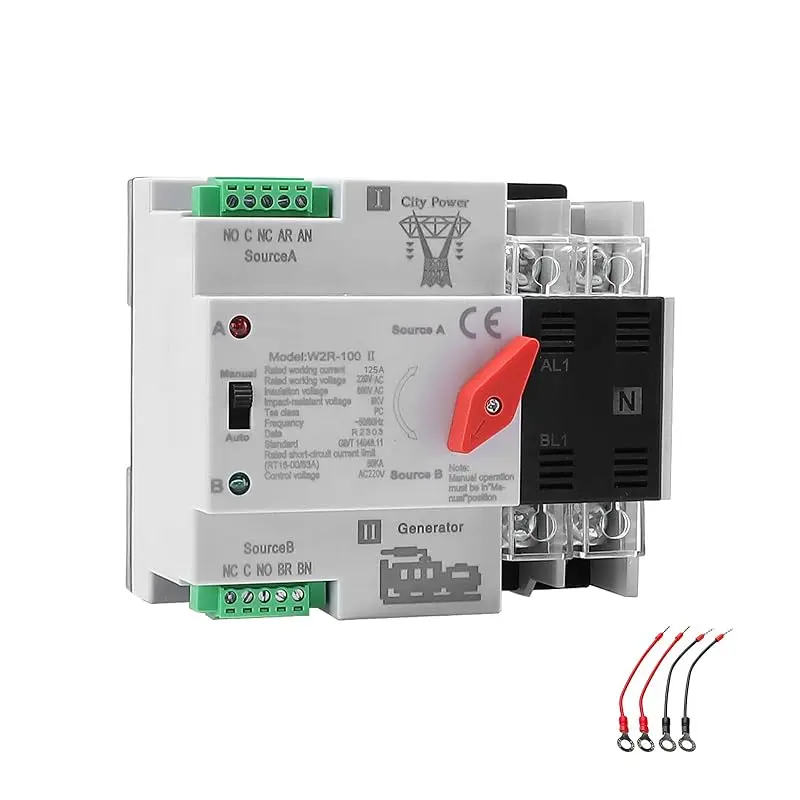

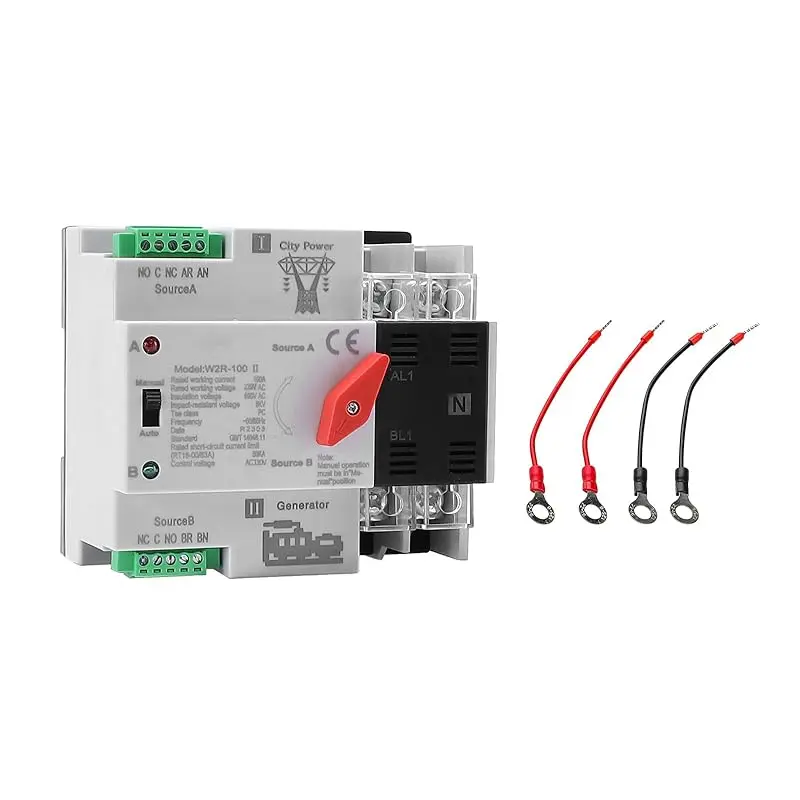

100A 4P Dual Power Auto Transfer Switch (4Pole ATS), 100A Capacity, AC220V, 50/60Hz, Din Rail Mount, PA6 Plastic, Manual Option, Fast Transfer Emergency Device for Home Generators, 30-Day No-Reason Return (Solar Charge Controllers & Accessories)

1 global reviews

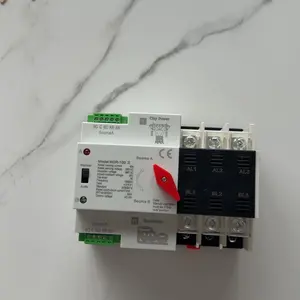

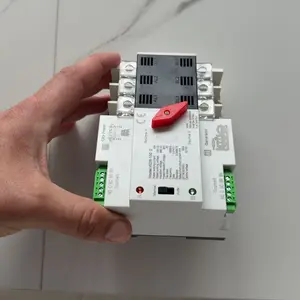

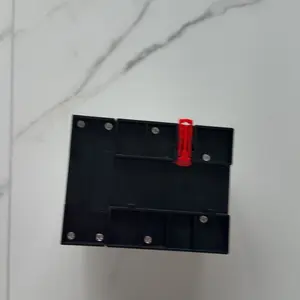

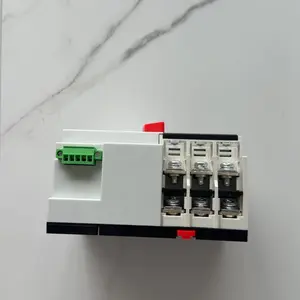

Photos from reviews

E** c**o

E** c**o

E** c**o

E** c**o

Displaying 1 of 1 reviews

Reset filters

E** c**o

Verified purchase

Lo recomiendo 10 de 10

Item:

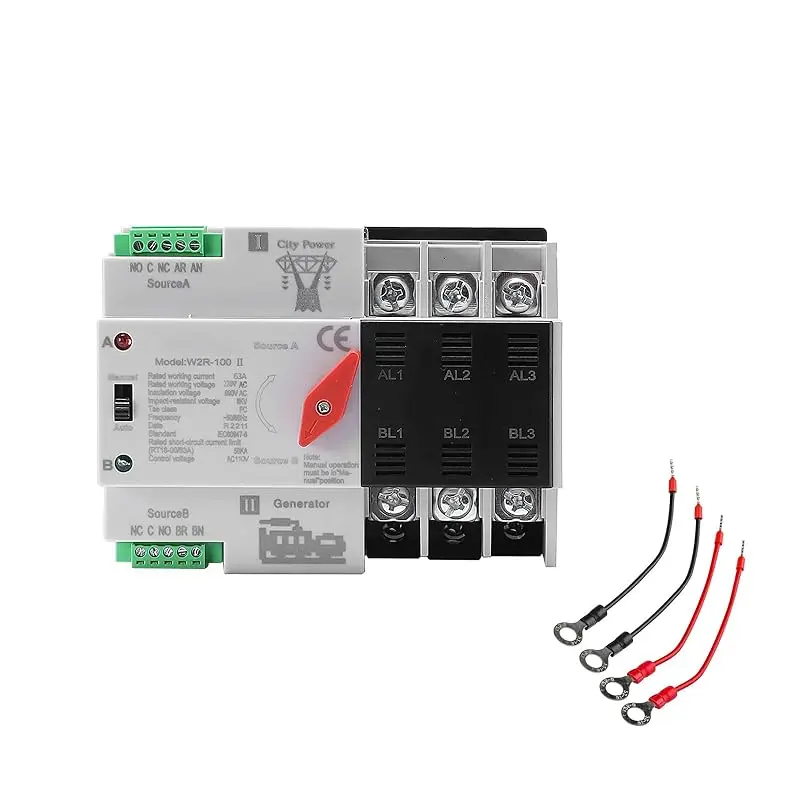

ATS 3P 63A AC110V

2026-08-01

About this product

Details

Operation mode	Manual,Automatic
Mounting type	DIN rail mount
Manufacturer	IGEYAPA

Product description

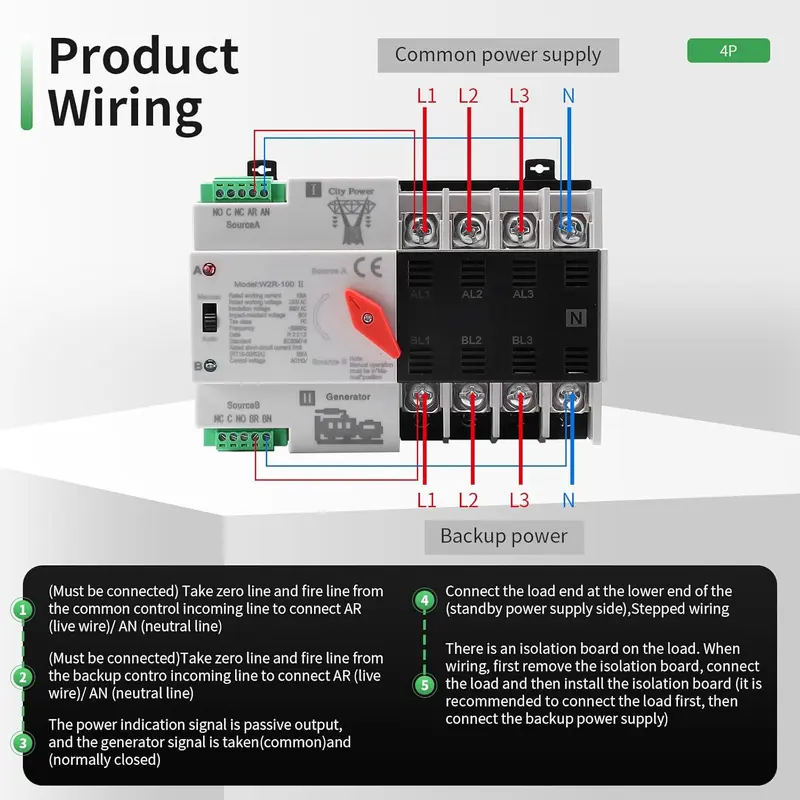

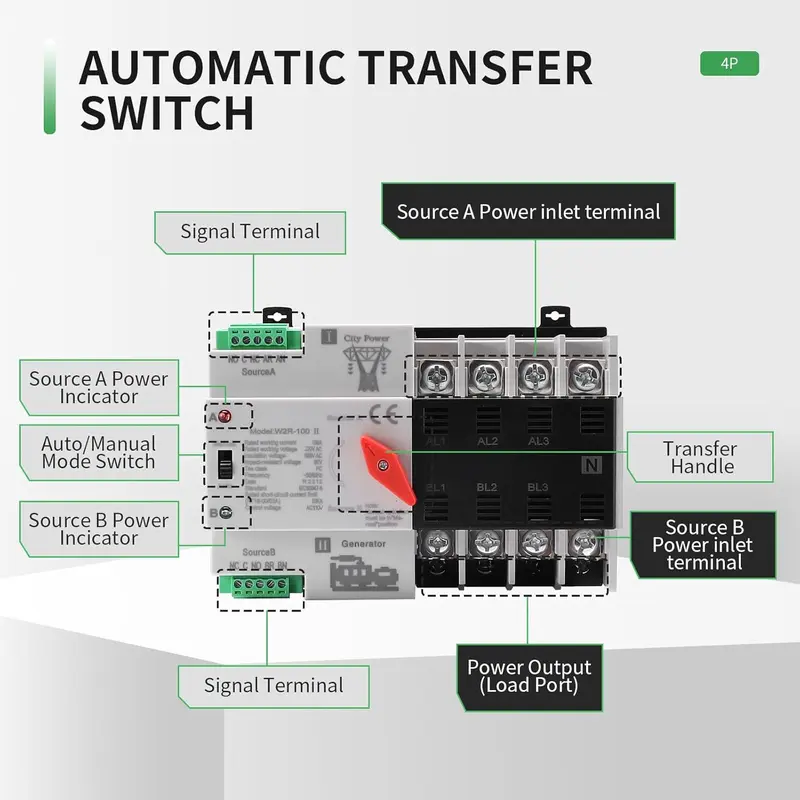

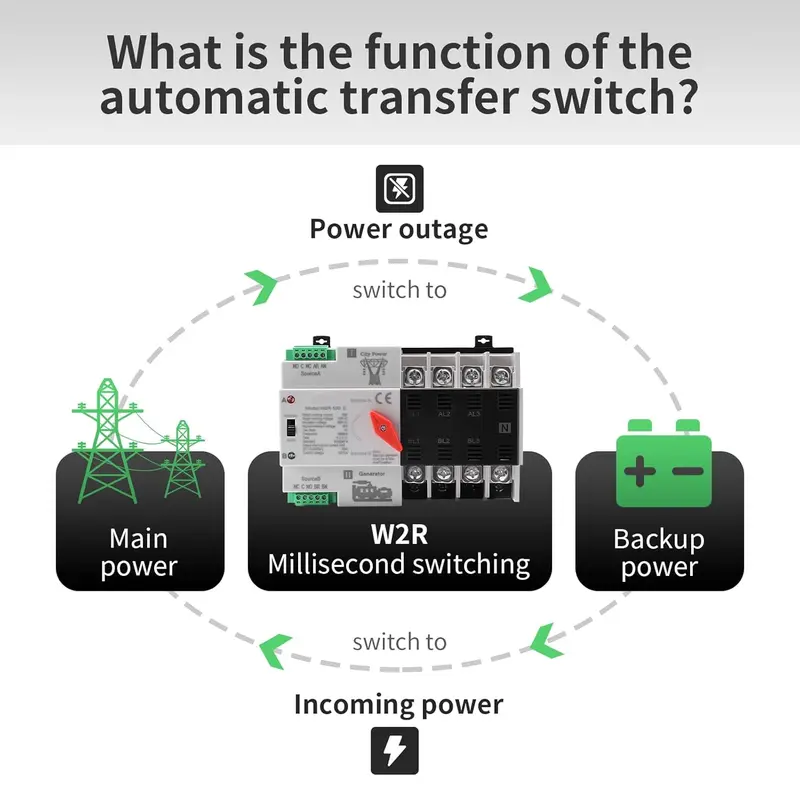

Functions and Features: 100a 4p dual power auto transfer switch W2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal.When the common power supply A is abnormal, the backup power supply B is quickly switched and put into use within 0.05 seconds to ensure the continuity, reliability and safety of power supply.When the common power supply returns to normal, it automatically switches from the backup power supply to the common power supply.Both power supply A and power supply B can be connected to the mains/generator/photovoltaic, with four wiringAutomatic Mode: ac 220v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A.When the normal power source A is working normally, A (red light) is always onwhen the normal power source A is abnormal, A (green light) goes out and switches to the automatic power source B within 0.05 seconds, and B (green light) is on.When the normal power source A returns to normal, it will automatically switch from the backup power source B to the normal power source A.Manual Mode: guetneu automatic transfer switch use manual mode to make sure the left switch is in Manual.If you choose power source A, operate the red switch handle on the right to point to Sonrce A, and LED indicator A (red light) will be on.If you choose power source B, manually operate the red switch handle on the right to point the switch to Source B, and LED indicator B (red light) will be on.220V over-voltage and under-voltage protection: Designed for home track installation, dedicated to PZ30 distribution box.This series of automatic transfer switches is suitable for 50/60Hz dual power grid.The working current is 100A.220V/50Hz Undervoltage value: 175V, Recovery value: 195VOvervoltage value: 260V, Recovery value: 240V (± 5V).Please select the product with the corresponding specifications according to the actual working voltage you need.Wide Application: This 4P dual power ATS ensures a stable power supply, it is used in situations where power outages cannot be sustained,which is very suitable for high-demand equipmentused in hospitals, low-temperature cold storage, data centers and emergency systems, it can automatically and quickly switch to the backup power supply during the power outage of the main power supply to ensure safe and reliable power supply. Suitable for indoor and outdoor generatorsQuality assurance and worry-free after-sales: Made of high-quality PA6, it has high strength, high temperature resistanceit is lightweight but sturdy. we provides a 30-day no-reason return and a 3-year warranty for this product to ensure that you have a worry-free shopping experience. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to contact us.

Safety & compliance

Seller information

•

Business name: jianshijingkaiquweimiaoshangmaoyouxiangongsi

•

Business address (This address has been automatically translated for your convenience):Jiangxi,China

$68.78

$15.12 shipping on this order
